Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-64936PULSE XFMR 1CT:1 1.2MH |
4,954 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 1.2mH | - | 1CT:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

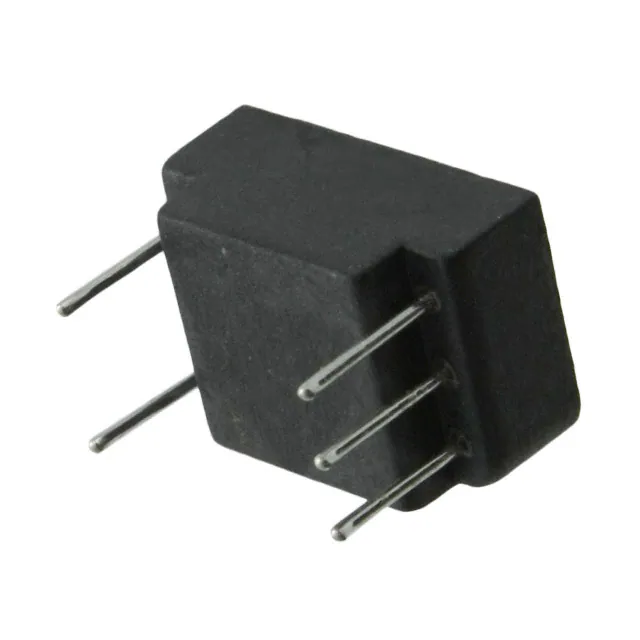

PE-65351PULSE XFMR 1:2CT 1.2MH |
3,996 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 1.2mH | - | 1:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-65535PULSE XFMR 1:2CT 20MH |
4,118 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 20mH | - | 1:2CT | Through Hole | 0.559" L x 0.559" W (14.20mm x 14.20mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
|
PE-65778PULSE XFMR 1CT:1CT 1.2MH |
3,602 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 1.2mH | - | 1CT:1CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PE-65793PULSE XFMR 1:1 TX 1:1 RX 22MH |
4,657 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 22mH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 0.390" (9.91mm) | 0°C ~ 70°C | - | - |
|
|
PE-65798PULSE XFMR 1:2.5 1:2.5 TX/R 22MH |
3,480 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 22mH | - | 1:2.5 Transmitter, 1:2.5 Receiver | Surface Mount | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 0.390" (9.91mm) | 0°C ~ 70°C | - | - |
|
|
PE-65834PULSE XFMR 1:1 1.2MH |
2,429 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 1.2mH | - | 1:1 | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
|
PE-65835PULSE XFMR 1CT:2CT 1.2MH |
4,704 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 1.2mH | - | 1CT:2CT | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
|
PE-65848PULSE XFMR 1CS:1CS 3.5MH 5.6MH |
3,235 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS | Surface Mount | 0.496" L x 0.496" W (12.60mm x 12.60mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
PE-65862PULSE XFMR 1CT:2CT 1:1.36CT TX/R |
1,063 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | 1CT:2CT Transmitter, 1:1.36CT Receiver | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
PE-68011PULSE XFMR |
2,609 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | - | - | - | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
|
PE-68025PULSE XFMR 1:1 |
4,856 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PE-68027PULSE XFMR 1:1 |
3,454 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PE-68515PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,703 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|

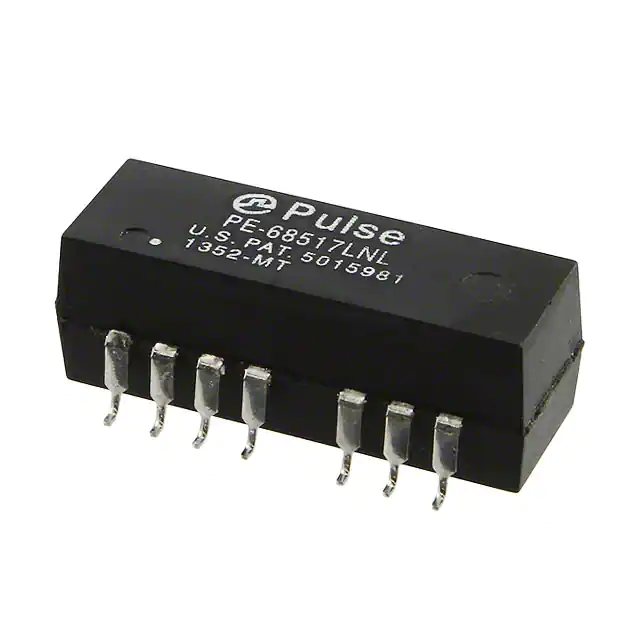

PE-68517PULSE XFMR 1:1 |
1,153 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
|
PE-68517LPULSE XFMR 1:1 |
3,657 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
|
PE-68617PULSE XFMR 1CS:2 1.7MH |
1,827 | 0.00 |
|
- |
- | Tube | Active | - | 1.7mH | - | 1CS:2 | Surface Mount | 0.550" L x 0.600" W (13.97mm x 15.24mm) | 0.390" (9.91mm) | 0°C ~ 70°C | - | - |
|
|
PE-68628PULSE XFMR 1.25:1 |
1,165 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | - | - | - | 1.25:1 | Through Hole | 0.800" L x 0.450" W (20.32mm x 11.43mm) | 1.050" (26.67mm) | -40°C ~ 85°C | - | - |
|
|
PE-68828PULSE XFMR 1CT:1CT TX 1CT:2CT RX |
3,344 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 1.2mH, 1.2mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
PE-69012PULSE XFMR 1:1 TX 1:1 RX |
4,225 | 12.23 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.094" (2.39mm) | 0°C ~ 70°C | - | - |
