Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-64972NLTRANSFORMER |
1,190 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|

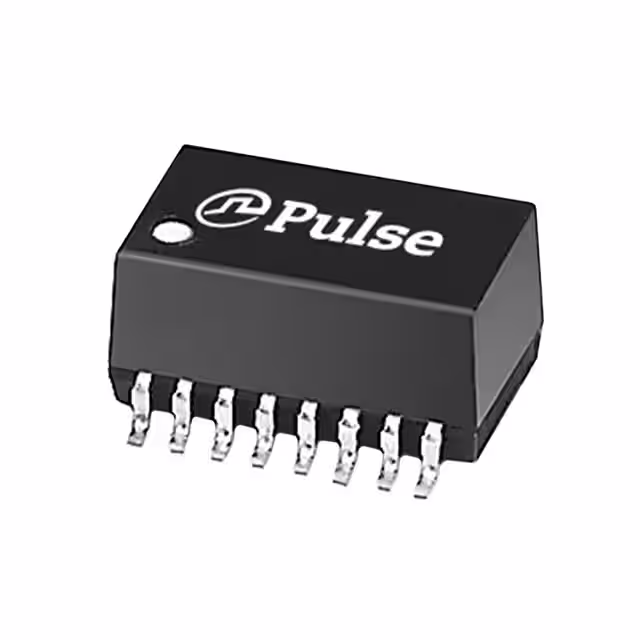

ST7011QNLPULSE XFMR 1CT:1.414CT 1CT:1CT |
4,108 | 0.00 |
|
- |
- | Tube | Active | LAN 10G Base-T | 175µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
ST7032QNLPULSE XFMR 1:1 TX 1:1 RX 67UH |
3,970 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | 67µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
ST7033QNLPULSE XFMR 1:1 TX 1:1 RX 90UH |
2,528 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | 90µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
23Z356SMPULSE XFMR 1CT:1.414CT 1CT:1CT |
3,732 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | 200µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
|
78Z1120B-01PULSE XFMR |
2,073 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | - | - | - | Through Hole | 1.000" L x 0.400" W (25.40mm x 10.16mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
B8245PULSE XFMR 4B3T 150 OHM |
2,170 | 0.00 |
|
Datasheet |
SMART | Tray | Active | ADSL | - | - | - | Through Hole | 2.016" L x 0.634" W (51.20mm x 16.10mm) | 0.472" (12.00mm) | - | - | - |
|
|
E2010PULSE XFMR |
3,634 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | - | - | - | Through Hole | 1.000" L x 0.405" W (25.40mm x 10.29mm) | 0.310" (7.87mm) | 0°C ~ 70°C | - | - |
|
|
E2023PULSE XFMR 1CT:2.5CT 1CT:1CT |
2,658 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
EX2001PULSE XFMR |
1,390 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | - | - | - | Surface Mount | 0.930" L x 0.390" W (23.62mm x 9.91mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
H1081PULSE XFMR 1:1.41 TX 1:1 RX |
1,975 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | - | - | 1:1.41 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.395" W (25.40mm x 10.03mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PE-5158XPULSE XFMR 1CT:1CT 1MH |
4,706 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 1mH | 77VµS | 1CT:1CT | Through Hole | 0.650" L x 0.443" W (16.51mm x 11.25mm) | 0.400" (10.16mm) | 0°C ~ 70°C | - | - |
|
|
PE-5160XPULSE XFMR 1:1 10MH |
4,604 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 10mH | 224VµS | 1:1 | Through Hole | 0.650" L x 0.443" W (16.51mm x 11.25mm) | 0.400" (10.16mm) | 0°C ~ 70°C | - | - |
|
|
PE-5163XPULSE XFMR 1CT:1CT 10MH |
3,905 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 10mH | 252VµS | 1CT:1CT | Through Hole | 0.650" L x 0.443" W (16.51mm x 11.25mm) | 0.400" (10.16mm) | 0°C ~ 70°C | - | - |
|
|
PE-5760PULSE XFMR 1:1:1 5MH |
4,714 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 5mH | 25VµS | 1:1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-5762PULSE XFMR 1:1:1 500UH |
2,855 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 500µH | 8.5VµS | 1:1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-61015PULSE XFMR 1:1 5MH |
3,133 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | - | 5mH | 1500VµS | 1:1 | Through Hole | 0.775" L x 0.940" W (19.68mm x 23.87mm) | 0.821" (20.85mm) | 0°C ~ 70°C | - | - |
|
|
PE-61017PULSE XFMR 2:1 1MH |
2,103 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | - | 1mH | 700VµS | 2:1 | Through Hole | 0.775" L x 0.940" W (19.68mm x 23.87mm) | 0.821" (20.85mm) | 0°C ~ 70°C | - | - |
|
|
PE-61018PULSE XFMR 2:1 5MH |
4,113 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | - | 5mH | 1500VµS | 2:1 | Through Hole | 0.775" L x 0.940" W (19.68mm x 23.87mm) | 0.821" (20.85mm) | 0°C ~ 70°C | - | - |
|
|
PE-63387PULSE XFMR 1:1:1 1.5MH |
1,259 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | - | 1.5mH | 320VµS | 1:1:1 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
