Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HM2102NLTXFMR CMC MODULE AECQ BATT MNGT |
2,976 | 6.75 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 125°C | - | - |
|

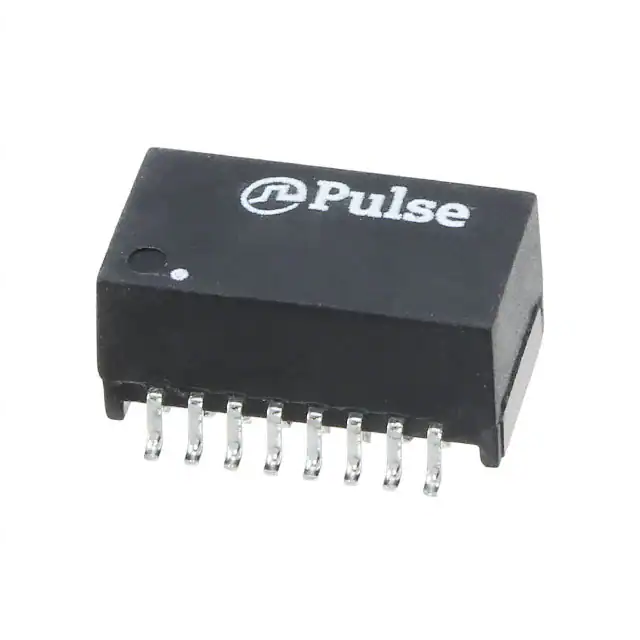

HM1188NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
898 | 6.78 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 105°C | - | - |
|
HX6096NLTPULSE XFMR 1CT:1CT TX/RX |
4,952 | 8.93 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
HM1188NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
8,088 | 6.94 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 105°C | - | - |
|

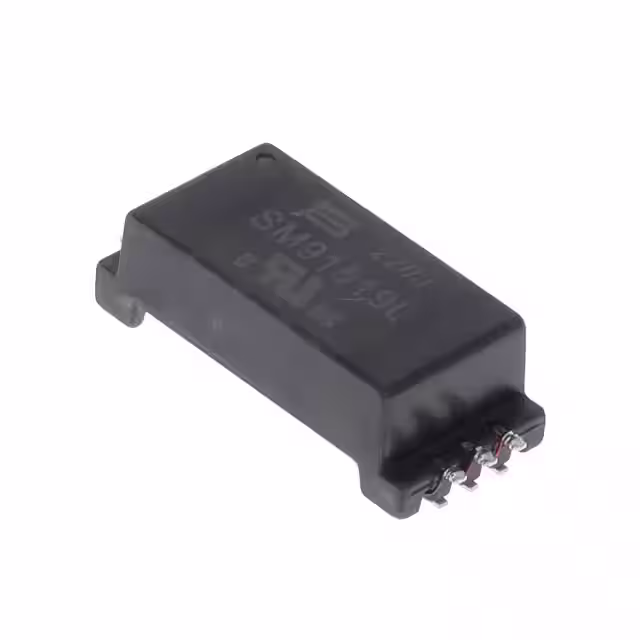

SM91519L-EBMS TRANSFORMER/CMC,6PIN,SGL,6.4 |
173 | 5.16 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|

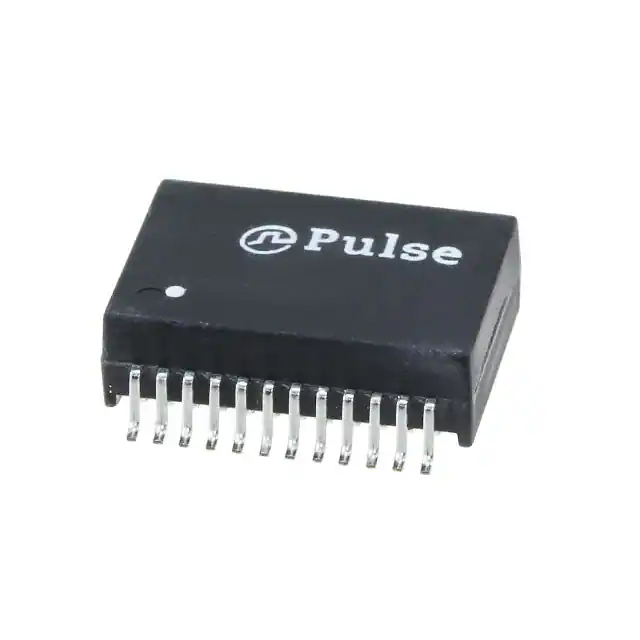

HX6098NLTPULSE XFMR 1 CT:1CT TX/RX 120UH |
622 | 9.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|

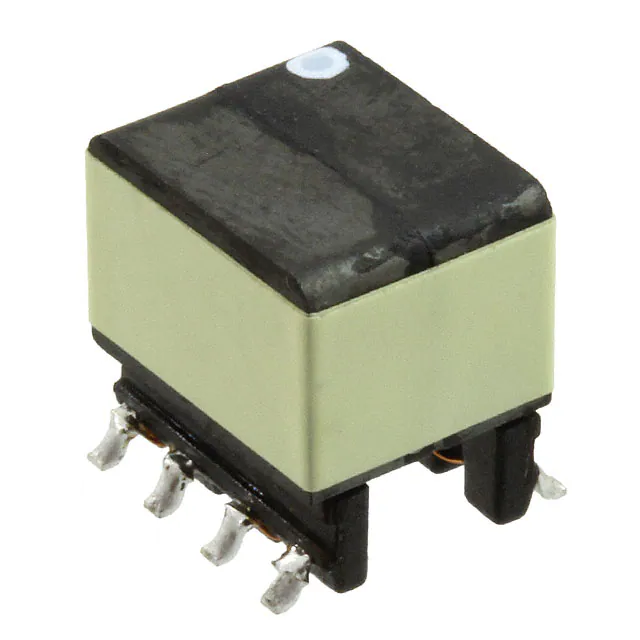

760301302XFRMR GATE DRIVE SMD |
909 | 7.85 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 750µH | 102VµS | 1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
760301301XFRMR GATE DRIVE SMD |
780 | 7.85 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 750µH | 102VµS | 1:1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
HX6098FNLTPULSE XFMR 1 CT:1CT TX/RX 120UH |
434 | 9.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
HX5084FNLPULSE XFMR 1 CT:1CT TX/RX 350UH |
3,927 | 7.46 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | -40°C ~ 85°C | - | - |
|

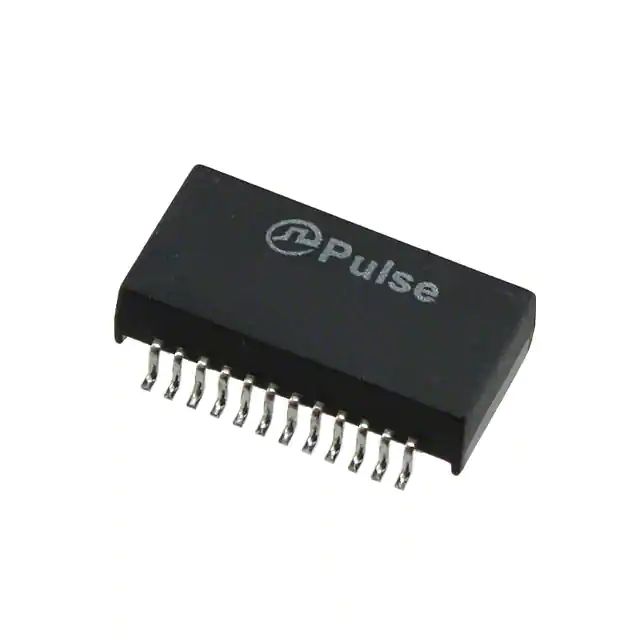

HX5084NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,505 | 7.46 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | -40°C ~ 85°C | - | - |
|
|
HX5084NLMODULE 4CH EXTEMP GIGABIT 24SOIC |
323 | 7.46 |
|
Datasheet |
- | Tube | Active | - | 330µH | - | - | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.163" (4.14mm) | -40°C ~ 85°C | - | - |
|

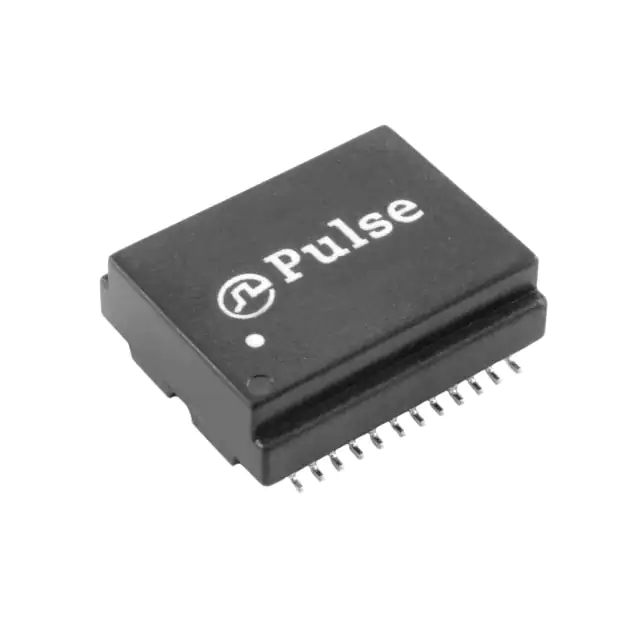

H6096FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,022 | 8.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|

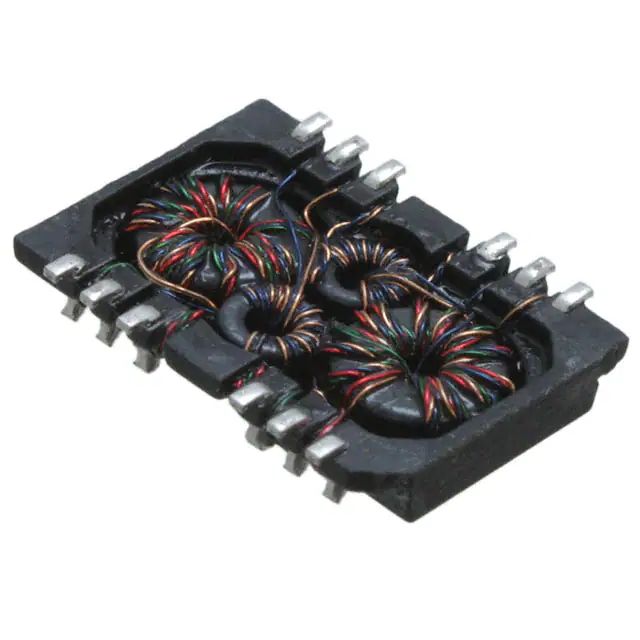

HX0068ANLMODULE XFMR 1:1 100D SIN SMD |
2,065 | 7.51 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
|
HX2019FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
242 | 7.51 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
|
HX5084FNLTMOD MAGNETIC 1PORT 1000BASE-T |
2,562 | 7.46 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | -40°C ~ 85°C | - | - |
|
|
HX0068ANLTMODULE XFMR 1:1 100D SIN SMD |
4,942 | 7.51 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
|

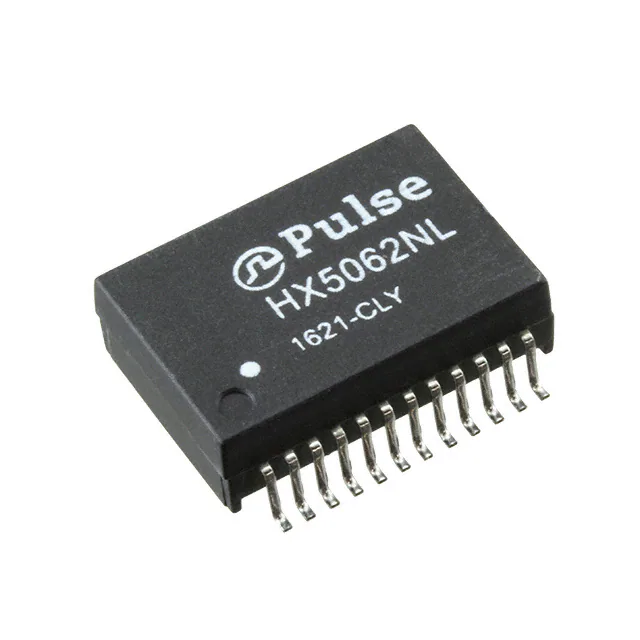

HX5062NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,590 | 8.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
H2019NLMODULE XFRMR VOIP SGL LAN 16SOIC |
4,403 | 7.66 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.240" (6.10mm) | 0°C ~ 70°C | - | - |
|

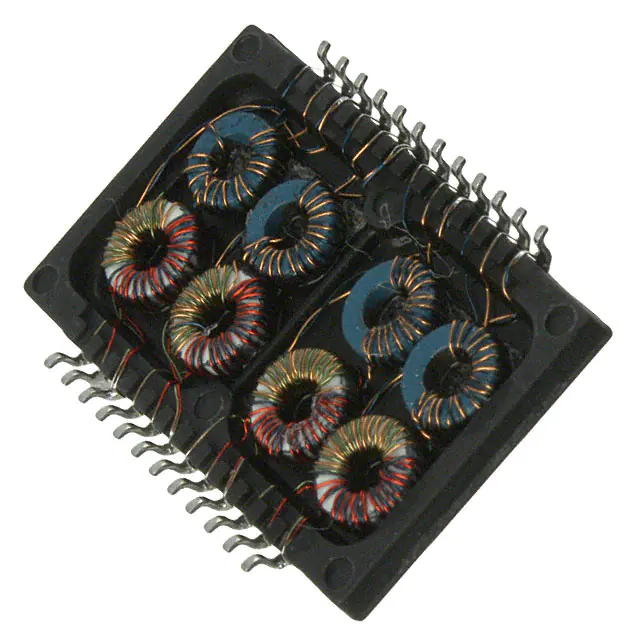

S558-5999-AZ-FMODULE XFRMR GIGABIT MINIPCI SMD |
561 | 7.45 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.880" L x 0.540" W (22.35mm x 13.72mm) | 0.084" (2.13mm) | 0°C ~ 70°C | - | - |
