Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

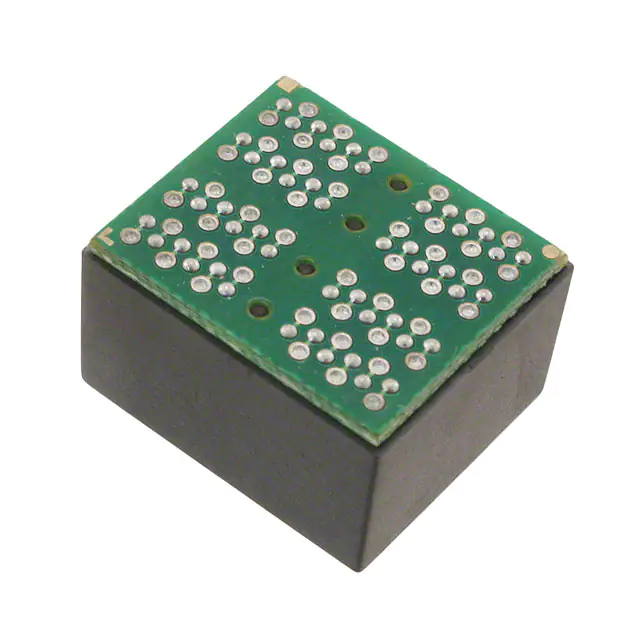

H5200NLMODULE XFORMR DUAL GIGABIT SMD |
108 | 15.20 |
|
Datasheet |
- | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | 0°C ~ 70°C | - | - |
|
HX6136HLTMODULE DUAL GIGABIT ETHERNET 50P |
500 | 0.00 |
|
Datasheet |
HX6136HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX6136HLMODULE DUAL GIGABIT ETHERNET 50P |
180 | 0.00 |
|
Datasheet |
HX6136HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX5020HLMODULE DUAL GIGABIT ETHERNET 50P |
170 | 0.00 |
|
Datasheet |
HX5020HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX6135HLTMODULE DUAL GIGABIT ETHERNET 50P |
500 | 0.00 |
|
Datasheet |
HX6135HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
TX1193NLTMODULE 1CT:2CT 1.2MH SMD |
748 | 16.13 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
|
HX6135HLMODULE DUAL GIGABIT ETHERNET 50P |
180 | 0.00 |
|
Datasheet |
HX6135HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX5020HLTMODULE DUAL GIGABIT ETHERNET 50P |
487 | 0.00 |
|
Datasheet |
HX5020HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
TM5020NLRLAN XFMR 1G BASE-T DUAL |
2,799 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|

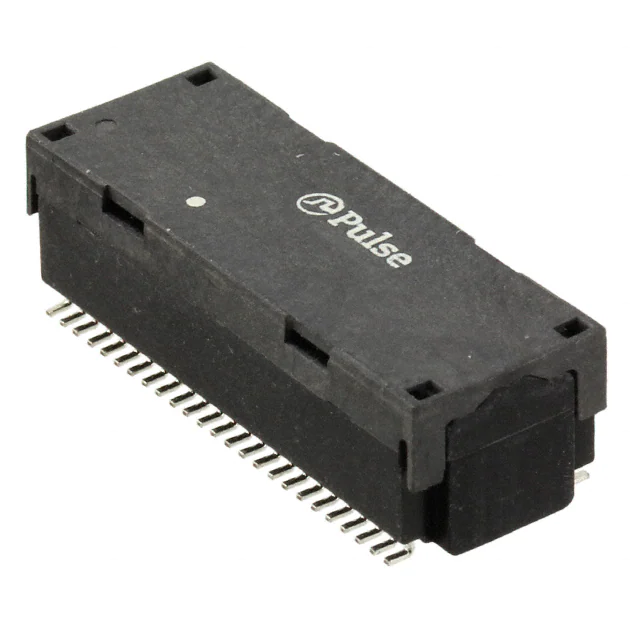

HX5020FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
805 | 18.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
H6080NLTXFRMR MODUL GIGABT 2PORT POE 1:1 |
179 | 16.65 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
TM82453NLLAN XFMR 1G BASE-T SINGLE |
2,800 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 1000 Base-T | 320µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.614" L x 0.343" W (15.60mm x 8.70mm) | 0.094" (2.39mm) | 0°C ~ 70°C | - | - |
|

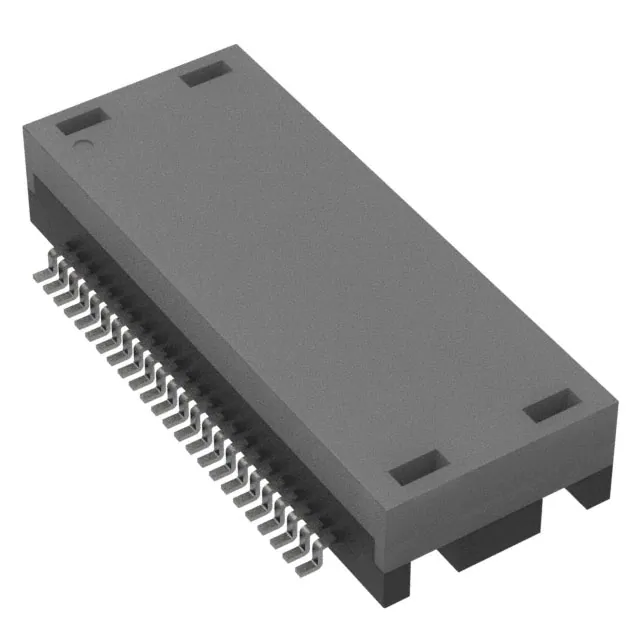

2337824-4DISCRETE ETHERNET MAGNETICS DUAL |
1,400 | 18.81 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | - | -40°C ~ 105°C | - | - |
|
10GB-6014TLAN MODULE XFRMR 10GBASE-T SMD |
777 | 22.37 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.605" L x 0.547" W (15.37mm x 13.89mm) | 0.255" (6.47mm) | -40°C ~ 125°C | - | - |
|
10GB-6013TLAN MODULE XFRMR 10GBASE-T SMD |
394 | 23.51 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
|
10GB-6011NLTLAN MODULE XFRMR 10GBASE-T SMD |
290 | 23.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
|
|
10GB-6011TLAN MODULE XFRMR 10GBASE-T SMD |
300 | 23.90 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
|
10GB-6012TLAN MODULE XFRMR 10GBASE-T SMD |
200 | 23.27 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.511" W (18.42mm x 12.98mm) | 0.410" (10.41mm) | -40°C ~ 85°C | - | - |
|
|
10GB-6012NLTLAN MODULE XFRMR 10GBASE-T SMD |
294 | 23.04 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.511" W (18.42mm x 12.98mm) | 0.410" (10.41mm) | -40°C ~ 85°C | - | - |
|
|
10GB-6013NLTLAN MODULE XFRMR 10GBASE-T SMD |
300 | 23.06 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
