Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G509TRANSFORMER 0.50MH 1CT:1CT PULSE |
357 | 11.27 |
|
Datasheet |
G5 | Tube | Active | Isolation and Data Interface (Encapsulated) | 500µH | 8.5VµS | 1CT:1CT | Through Hole | 0.350" L x 0.500" W (8.90mm x 12.70mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
_iNRCORE_Product-Image.jpg)
|

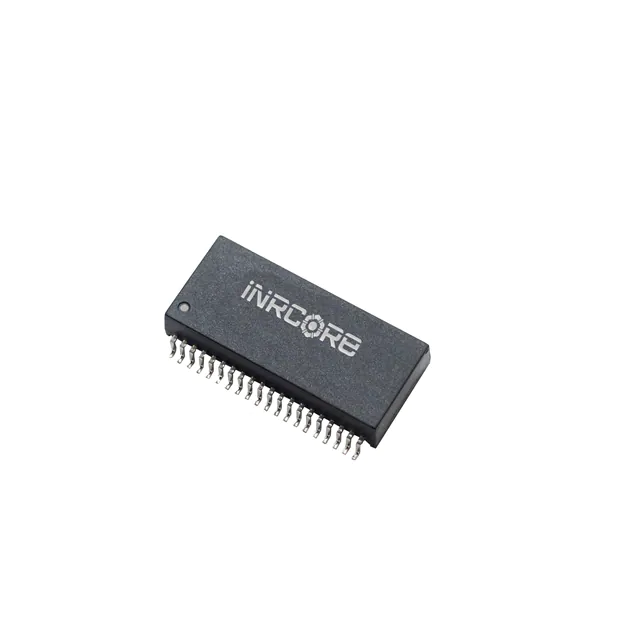

R4009NLXFRMR ETHERNET MOD IND 10/100B-T |
135 | 11.33 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 1.080" L x 0.480" W (27.43mm x 12.19mm) | 0.226" (5.74mm) | -40°C ~ 85°C | - | - |
|
TM2019ANLLAN XFMR 10/100 BASE-T (POE+) |
3,871 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.185" (4.70mm) | -40°C ~ 85°C | - | - |
|
H7029FNL10GBASE-T DISCRETE 4CH MAR/SOL P |
1,355 | 11.73 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 120µH | - | 1:1 | - | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
|
TM42430ANLLAN XFMR 10/100 BASE-T (POE) |
2,000 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.535" L x 0.480" W (13.60mm x 12.20mm) | 0.224" (5.70mm) | -40°C ~ 85°C | - | - |
|
HU4006NLMODULE MAGNETIC SNGL 2.5GB SMT |
200 | 10.61 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | 0.540" L x 0.480" W (13.72mm x 12.19mm) | 0.226" (5.75mm) | 0°C ~ 70°C | - | - |
_iNRCORE_Product-Image.jpg)
|
R5003NLXFRMR ETHERNET MOD IND 1000B-T |
120 | 12.07 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | -40°C ~ 85°C | - | - |
|
|
TX1341NLXFRMR OCTAL 1:2 1.2MH SMD |
146 | 10.64 |
|
Datasheet |
- | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
749050010U10G BASE-T TRANSFORMER 1 PORT |
284 | 9.69 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10G Base-T | 200µH | - | - | Surface Mount | 0.550" L x 0.500" W (13.97mm x 12.00mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
H5019NLTRANSFORMER MODULE GIGABIT 1PORT |
941 | 9.37 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.780" L x 0.655" W (19.81mm x 16.64mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
|
TM5007NLLAN XFMR 1G BASE-T SINGLE |
1,593 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.224" (5.70mm) | 0°C ~ 70°C | - | - |
|
S558-5999-AN-FMODULE XFRMR GIGABIT MINIPCI SMD |
1,441 | 9.40 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.880" L x 0.540" W (22.35mm x 13.72mm) | 0.084" (2.13mm) | 0°C ~ 70°C | - | - |
|

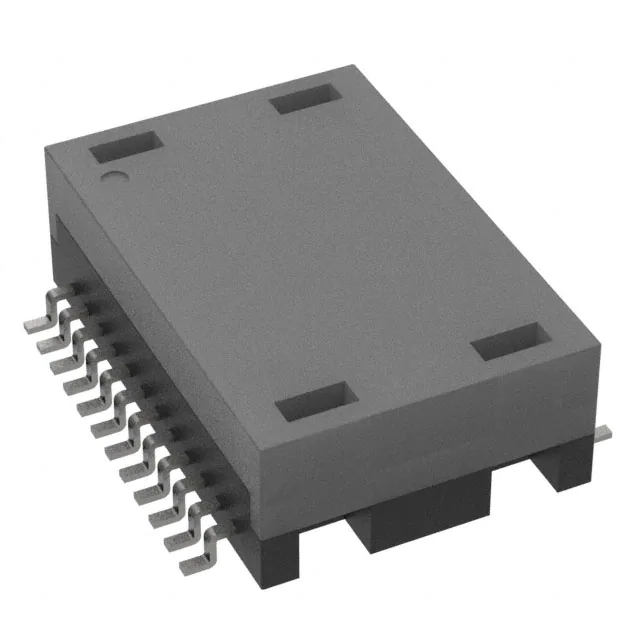

2337822-5DISCRETE ETHERNET MAGNETICS SING |
411 | 11.23 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | - | -40°C ~ 105°C | - | - |
|

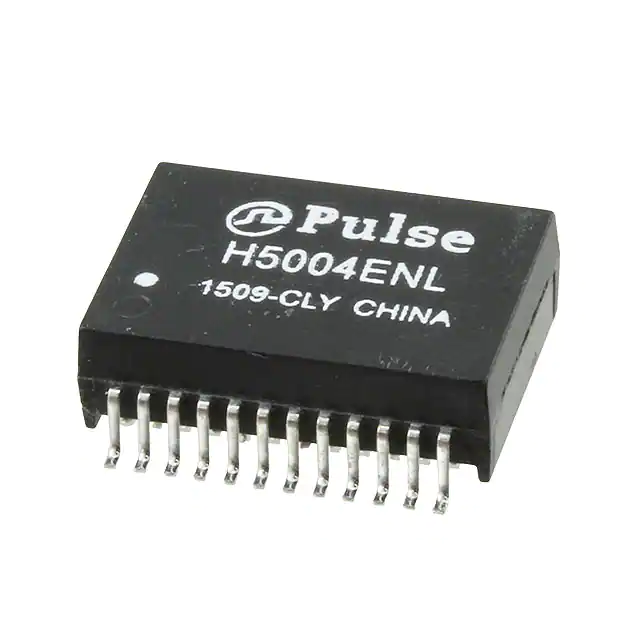

H5004ENLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
105 | 11.61 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
TX1341NLTXFRMR OCTAL 1:2 1.2MH SMD |
3,070 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1473NLTXFRMR OCTAL 1:2/1:1 1.2MH SMD |
600 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:2, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TM7008NLLAN XFMR 10G BASE-T (POE+) |
1,800 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.223" (5.67mm) | 0°C ~ 70°C | - | - |
|
HX6106NLTPULSE XFMR 350UH |
388 | 8.07 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN, Power over Ethernet (PoE) | 350µH | - | - | Surface Mount | 0.715" L x 0.511" W (18.16mm x 12.98mm) | 0.410" (10.41mm) | - | - | - |
|
|
T1068NLTXFRMR 4PORT 1:2CT 1.2MH SMD |
737 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:1CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
T1124NLTXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
380 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
