Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1114NLTXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
317 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
749053012TRANSFORMER LAN |
1,330 | 11.28 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN | 200µH | - | 1:1 | Surface Mount | 0.550" L x 0.532" W (13.97mm x 13.50mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
749053010WE-LAN 10G BASE-T SMD TRANSFORME |
356 | 11.28 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.550" L x 0.532" W (13.97mm x 13.50mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|

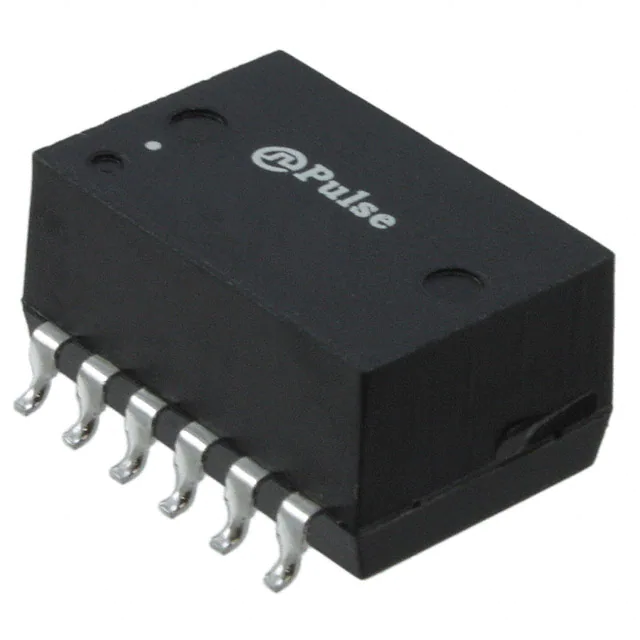

T1212NLTXFRMR 1CT:1CT/1CT:2CT 1.20MH SMD |
255 | 11.26 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

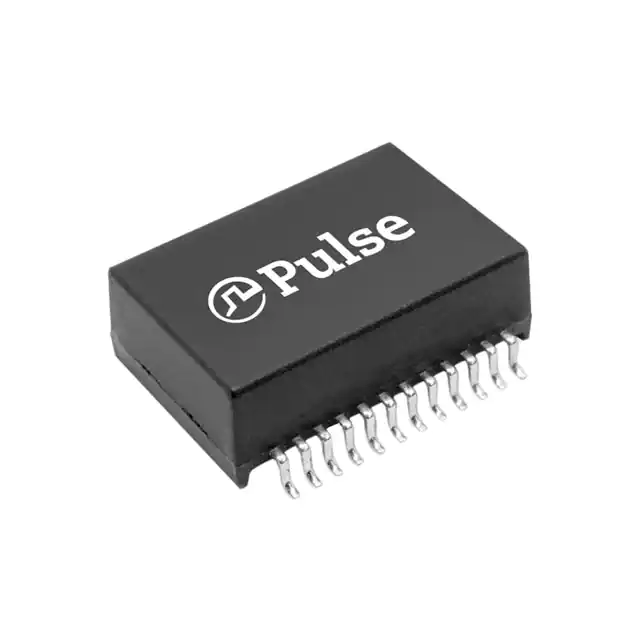

HM6098NLXFMR MDL 1000BASE-T SMT AEC-Q200 |
404 | 14.98 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 120µH | - | - | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 105°C | - | - |
|
749014011TRANSFORMER WE-LAN MED 10/100BT |
375 | 12.25 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.967" L x 0.669" W (24.55mm x 17.00mm) | 0.427" (10.85mm) | 0°C ~ 70°C | - | - |
_iNRCORE_Product-Image.jpg)
|
R6001NLXFRMR ETHERNET MOD IND 10/100B-T |
905 | 19.63 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 120µH | - | - | Surface Mount | 0.700" L x 0.490" W (17.78mm x 12.45mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
MGDT100100LFPLANAR GATE-DRIVE XFMR, 1 : 1 : |
194 | 12.44 |
|
Datasheet |
- | Tray | Active | Gate Drive | 240µH | - | 1:1:1 | Through Hole | 0.810" L x 0.725" W (20.57mm x 18.42mm) | 0.450" (11.43mm) | -55°C ~ 125°C | - | - |
|

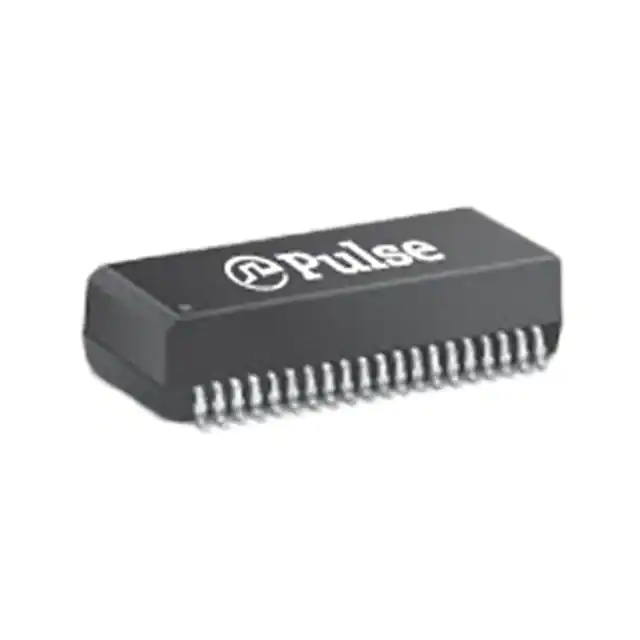

HX1259NLXFRMR MODULE 4PORT 1:1 10/100 |
205 | 12.10 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.110" L x 0.480" W (28.19mm x 12.19mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
H7137FNLTTRANSFORMER MODULE 10GBASE-T SMD |
1,346 | 12.21 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.698" L x 0.585" W (17.73mm x 14.86mm) | 0.290" (7.37mm) | 0°C ~ 70°C | - | - |
|
|
H7137FNLTRANSFORMER MODULE 10GBASE-T SMD |
308 | 12.21 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.698" L x 0.585" W (17.73mm x 14.86mm) | 0.290" (7.37mm) | 0°C ~ 70°C | - | - |
|
TM5004NLLAN XFMR 1G BASE-T SINGLE |
2,400 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | - | -40°C ~ 85°C | - | - |
|
HM1234FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
164 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | -40°C ~ 105°C | Automotive | AEC-Q200 |
|
2337824-2DISCRETE ETHERNET MAGNETICS DUAL |
2,982 | 10.67 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | - | -40°C ~ 105°C | - | - |
|

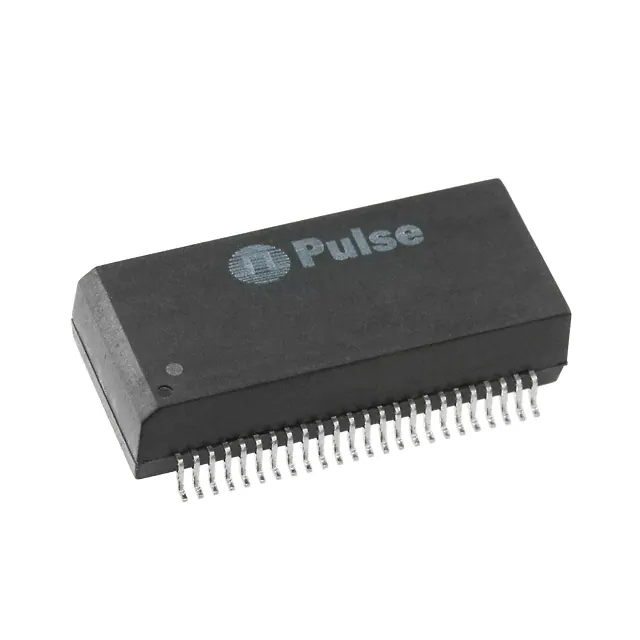

H2017NLXFRMR MAGNT MOD 4PORT POE 10/100 |
204 | 13.73 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
H5201NLMODULE XFORMR DUAL GIGABIT SMD |
204 | 15.20 |
|
Datasheet |
- | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | 0°C ~ 70°C | - | - |
|
H5020FNLPULSE XFMR 1CT:1 TX 1CT:1 RX |
135 | 18.38 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
TM5008ANLELAN XFMR 1G BASE-T SINGLE |
2,100 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537" L x 0.600" W (13.64mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
749052012TRANSFORMER LAN |
264 | 14.08 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.550" L x 0.532" W (13.97mm x 13.50mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
|
TM1234NLLAN XFMR 10/100 BASE-T QUAD |
2,346 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.106" L x 0.480" W (28.10mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
