Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

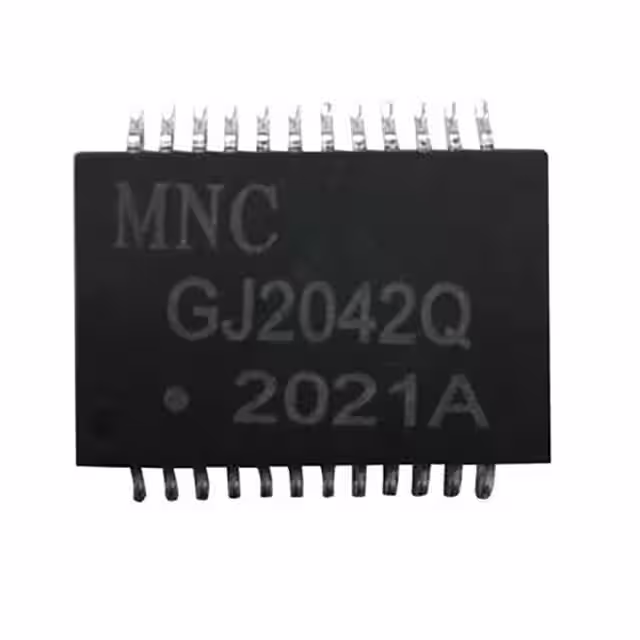

GJ2042QLAN XFMR 10/100/1000 BASE-T |
400 | 9.94 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.733" L x 0.500" W (18.00mm x 12.70mm) | 0.268" (6.80mm) | 0°C ~ 70°C | - | - |
|

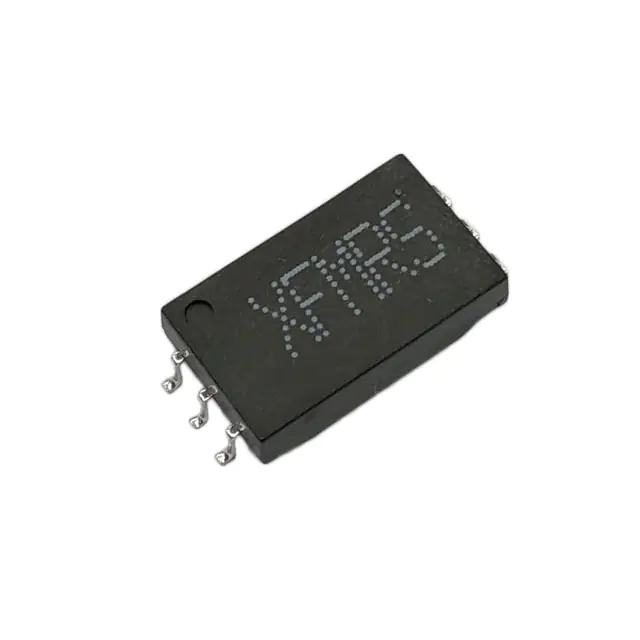

XFBMC29-BA09-EXFMR BATT MGMT AEC-Q200 |
1,357 | 5.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Battery Management | - | - | 1CT:1CT | Surface Mount | 0.768" L x 0.392" W (19.50mm x 9.96mm) | 0.197" (5.00mm) | -40°C ~ 125°C | - | - |
|
H2009FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
119 | 11.44 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.703" L x 0.518" W (17.86mm x 13.16mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
H4807CGQUAD LAN XFMR 10/100 BASE-T |
290 | 11.10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.114" L x 0.508" W (28.30mm x 12.90mm) | 0.295" (7.50mm) | 0°C ~ 70°C | - | - |
|
TOEP13-0284SGPOE TRANSFORMER |
200 | 9.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 240µH | - | - | - | 0.705" L x 0.551" W (17.91mm x 14.00mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
G4818CGDUAL LAN XFMR 1000 BASE-T |
180 | 12.40 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 1.201" L x 0.500" W (30.5mm x 12.70mm) | 0.413" (10.50mm) | 0°C ~ 70°C | - | - |
|
HX1234TPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
214 | 14.30 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
ETH1-460LDPULSE XFMR 1:1 350UH |
803 | 0.00 |
|
Datasheet |
ETH1-460 | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.732" L x 0.400" W (18.60mm x 10.16mm) | 0.650" (16.50mm) | -40°C ~ 85°C | - | - |
|

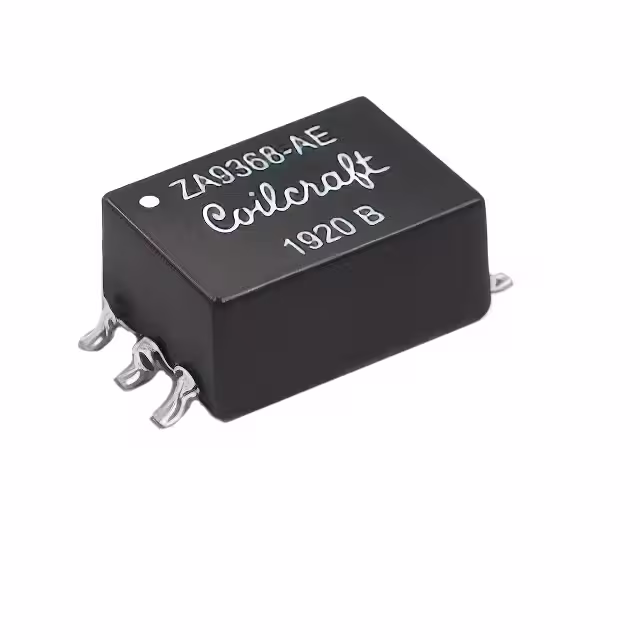

ZA9368-AEDTRANSFORMER |
2,580 | 15.13 |
|
Datasheet |
ZA9368-AE | Strip | Active | Isolation and Data Interface (Encapsulated) | 256µH | 16VµS | 1:1.75 | Surface Mount | - | 0.220" (5.60mm) | -40°C ~ 125°C | - | - |
|
|
HX7028NLTMDL SIN 10G 1:1 SM TR |
170 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | - | - | - | Surface Mount | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
H6080NLXFRMR MODUL GIGABT 2PORT POE 1:1 |
280 | 16.65 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
XFBMC45-01S-AXFMR BATT MGMT AEC-Q200 |
250 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Battery Management | - | - | 1CT:1CT | Surface Mount | 0.670" L x 0.492" W (17.02mm x 12.50mm) | 0.425" (10.80mm) | -40°C ~ 125°C | - | - |
|

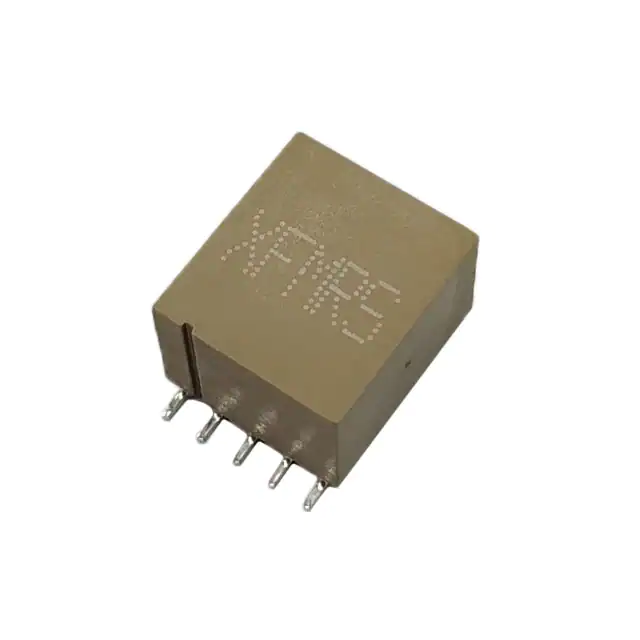

XFBMC60-01S-AXFMR BATT MGMT AEC-Q200 |
250 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Battery Management | - | - | 1CT:1CT | Surface Mount | 0.670" L x 0.492" W (17.02mm x 12.50mm) | 0.425" (10.80mm) | -40°C ~ 125°C | - | - |
|

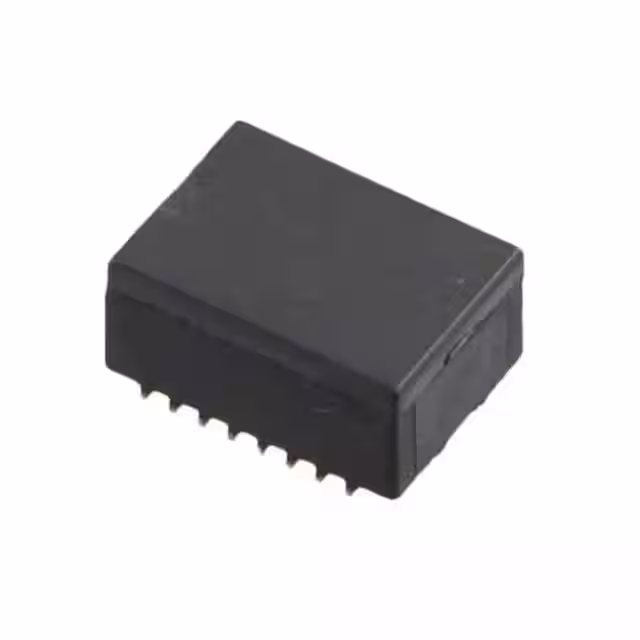

XFATM9B-LMCO-ATransformer, 10/100, Leaded |
500 | 4.00 |
|
- |
- | Tape & Reel (TR) | Active | 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.245" (6.23mm) | -40°C ~ 85°C | - | - |
|
XFBMC45NC-01S-AXFMR BATT MGMT AEC-Q200 |
250 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Battery Management | - | - | 1CT:1CT | Surface Mount | 0.670" L x 0.492" W (17.02mm x 12.50mm) | 0.425" (10.80mm) | -40°C ~ 125°C | - | - |
|
XFBMC60NC-01S-AXFMR BATT MGMT AEC-Q200 |
250 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Battery Management | - | - | 1CT:1CT | Surface Mount | 0.670" L x 0.492" W (17.02mm x 12.50mm) | 0.425" (10.80mm) | -40°C ~ 125°C | - | - |
|

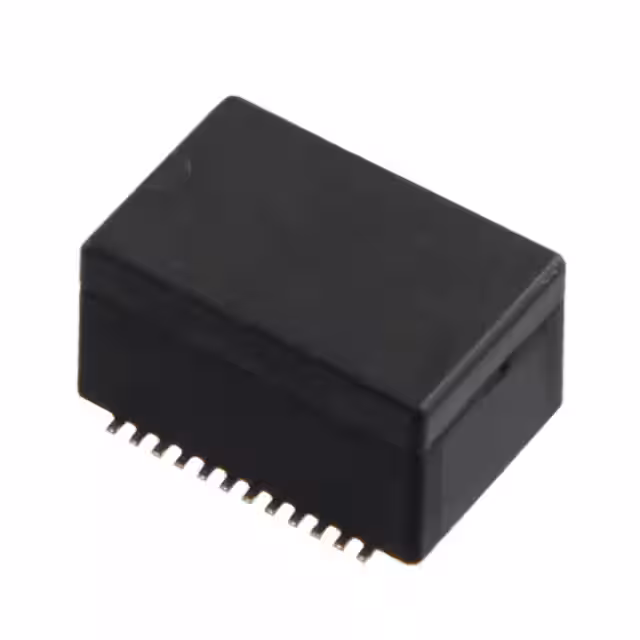

XFGID10018LAN, 10/100/1000 BASE-T, SMD |
300 | 40.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 300µH | - | 1:1CT | Surface Mount | 0.600" L x 0.430" W (15.24mm x 10.92mm) | 0.330" (8.38mm) | -40°C ~ 85°C | - | - |
|
|
PM-WT75WIDEBAND RF PULSE COUPLING XFMR |
1,217 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Data/Voice Coupling | 7µH | - | 1:1 | Surface Mount | 0.451" L x 0.346" W (11.45mm x 8.80mm) | 0.189" (4.80mm) | -40°C ~ 85°C | - | - |
|
|
AWLT45326P-181-2.5GLAN XFRMR 1CT:1CT 2.5G 180UH SMD |
300 | 0.00 |
|
Datasheet |
AWLT45326P | Tape & Reel (TR) | Active | LAN 1/2.5/5/10G Base-T | 180µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.126" (3.20mm) | -40°C ~ 85°C | - | - |
|
|
AWLT45326P-351-1GLAN XFRMR 1CT:1CT 1G 350UH SMD |
300 | 0.00 |
|
Datasheet |
AWLT45326P | Tape & Reel (TR) | Active | LAN 1/2.5/5/10G Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.126" (3.20mm) | -40°C ~ 85°C | - | - |
