Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWLT45326P-161-5GLAN XFRMR 1CT:1CT 5G 180UH SMD |
300 | 0.00 |
|
Datasheet |
AWLT45326P | Tape & Reel (TR) | Active | LAN 1/2.5/5/10G Base-T | 180µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.126" (3.20mm) | -40°C ~ 85°C | - | - |
|
|
AWLT45326P-121-10GLAN XFRMR 1CT:1CT 10G 120UH SMD |
300 | 0.00 |
|
Datasheet |
AWLT45326P | Tape & Reel (TR) | Active | LAN 1/2.5/5/10G Base-T | 120µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.126" (3.20mm) | -40°C ~ 85°C | - | - |
|
|
XF1276H-EP13SPOE TRANSFORMER |
180 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 127µH | - | 1:0.500:0.167:0.167 | Surface Mount | 0.550" L x 0.530" W (13.97mm x 13.46mm) | 0.490" (12.45mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|
|
WBC9-1LCPULSE XFMR 1:9 9UH 81UH |
594 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:9 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|
|
WBC4-14LCPULSE XFMR 1:4 2UH 8UH |
1,694 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:4 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|

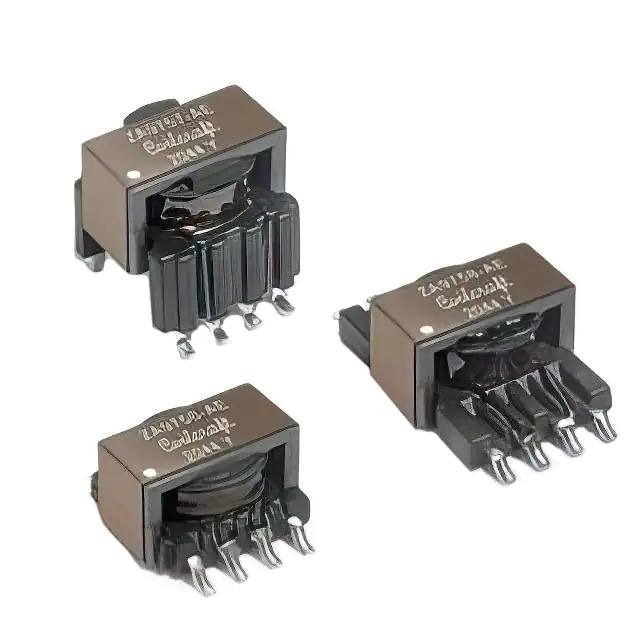

ZA9758-AEDTRANSFORMER |
1,632 | 6.76 |
|
Datasheet |
- | Strip | Active | Isolation and Data Interface (Encapsulated) | 215µH | 31VµS | 1:1 | Surface Mount | - | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
|
T60403-D4721-X005IGNITION TRANSFORMER |
199 | 0.00 |
|
- |
- | Bulk | Active | Gate Drive | 3.4mH | 250VµS | 2:1 | Through Hole | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.531" (13.50mm) | -25°C ~ 85°C | - | - |
|
|
PM-9610XFMR,ISO WITH FILTR,1000 BASE T |
2,500 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.732" L x 0.512" W (18.60mm x 13.00mm) | 0.400" (10.15mm) | -40°C ~ 85°C | - | - |
|

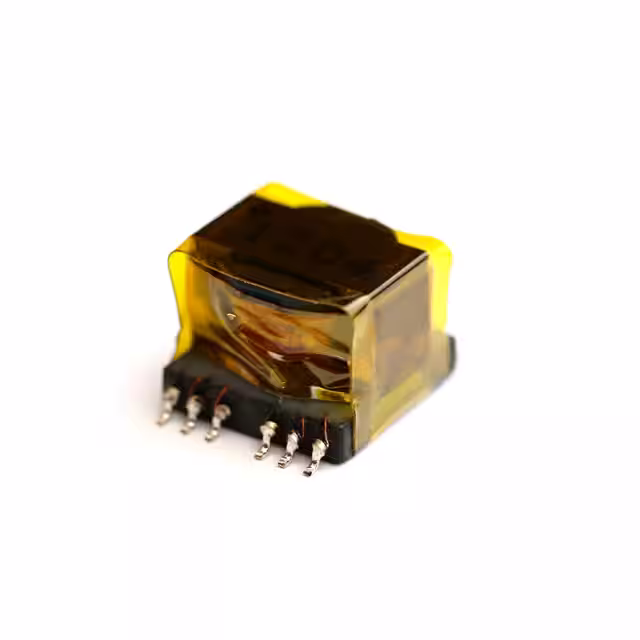

TTER09-1204SGPWR XFMR,17:5:11:3:11:3,20UH |
1,200 | 9.06 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 20µH | - | 17:5:11:3:11:3 | Surface Mount | 0.670" L x 0.512" W (17.00mm x 13.00mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
PM-85405KV ISOLATION XFMR |
275 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.961" L x 0.600" W (24.40mm x 15.24mm) | 0.406" (10.30mm) | 0°C ~ 70°C | - | - |
|
PT61018PELPULSE XFMR 1CT:1CT 350UH |
4,777 | 1.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|

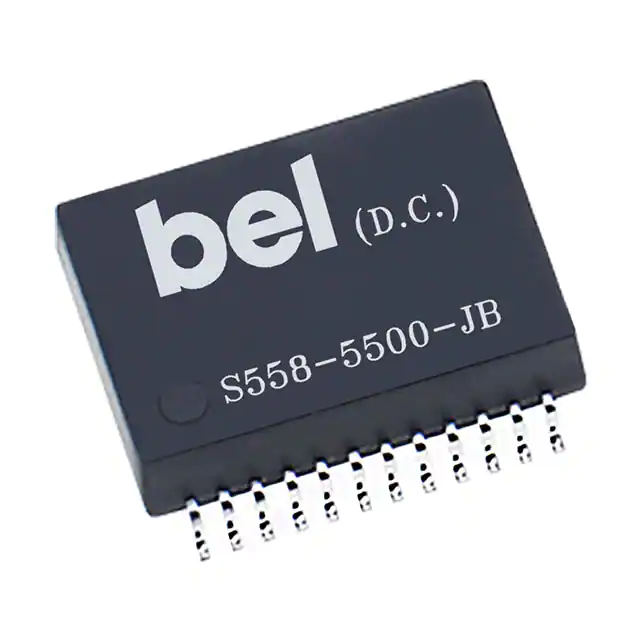

S558-5500-JBMODULE XFRMR LAN 1G 2.5G POE SMD |
4,196 | 4.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1/2.5 GBase-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.225" (5.71mm) | -40°C ~ 85°C | - | - |
|
1003CTRANSFORMER PULSE 2:1:1 400VUS |
2,103 | 5.12 |
|
Datasheet |
1000 | Tube | Active | - | 12mH | 400VµS | 2:1:1 | Through Hole | 0.593" L x 0.593" W (15.06mm x 15.06mm) | 0.640" (16.25mm) | 0°C ~ 70°C | - | - |
|
HX1224CNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,175 | 7.74 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537" L x 0.570" W (13.64mm x 14.48mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

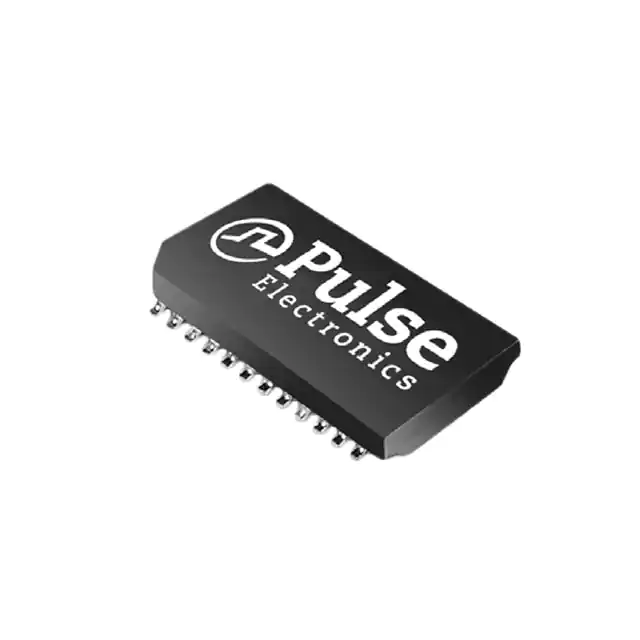

HX5149NLPULSE XFMR 1:1 360UH |
3,043 | 8.21 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 360µH | - | 1:1 | Surface Mount | 0.700" L x 0.390" W (17.78mm x 9.91mm) | 0.126" (3.20mm) | -40°C ~ 85°C | - | - |
|

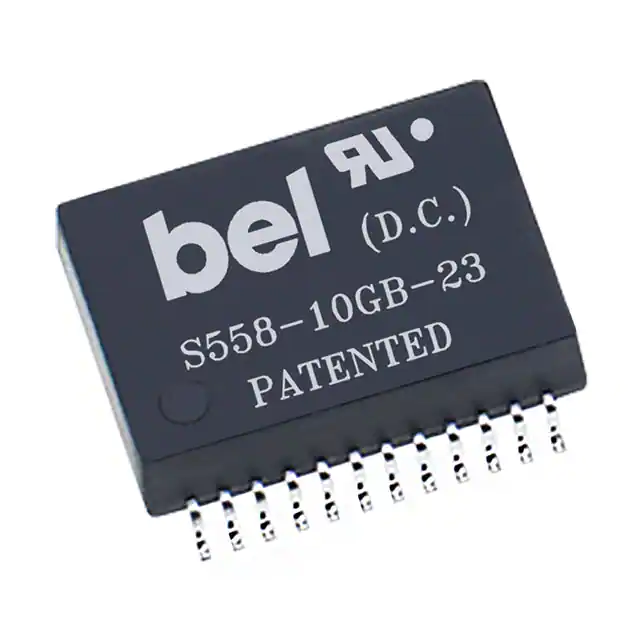

S558-10GB-23MODULE XFRMR LAN 10G POE SMD |
2,477 | 9.01 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.610" L x 0.480" W (15.49mm x 12.19mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
100B-1001XXFMR MODULE 100BT SMG COM PBC |
4,514 | 18.42 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.583" L x 0.470" W (14.81mm x 11.94mm) | 0.198" (5.03mm) | -55°C ~ 125°C | - | - |
|
HX5400NLXFRMR MODL 4PORT POE GIGABIT |
1,667 | 24.48 |
|
Datasheet |
- | Tray | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.438" (11.12mm) | -40°C ~ 85°C | - | - |
|
|
HX6400NLTMDL QUAD 1GPP 1:1 SM TR |
1,894 | 24.13 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 150µH | - | 1:1 | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|
1000B-5002FXNLMDL SIN 1GD 1:1 SMT TU NPB |
2,423 | 28.83 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.235" (5.97mm) | - | - | - |
