Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFX0890NLPULSE XFMR 1.02MH |
4,647 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 1.02mH | - | - | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
78602/2JCXFRMR 1:1:1 10VUS SMD TOROID |
4,965 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 500µH | 10VµS | 1:1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
78601/4MCPULSE XFMR 1:1 67UH |
3,258 | 1.57 |
|
Datasheet |
786 | Tube | Not For New Designs | General Purpose | 67µH | 4VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/1JCPULSE XFMR 1:1:1 1.89MH |
4,399 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 1.89mH | 20VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/2MCPULSE XFMR 1:1:1 500UH |
3,218 | 1.57 |
|
Datasheet |
786 | Tube | Not For New Designs | General Purpose | 500µH | 10VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78613/1JCPULSE XFMR 1CT:1 2MH |
1,895 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 2mH | 20VµS | 1CT:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78613/9MCPULSE XFMR 1CT:1 10MH |
2,823 | 1.57 |
|
Datasheet |
786 | Tube | Not For New Designs | General Purpose | 10mH | 56VµS | 1CT:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PA0510NLPULSE XFMR 2.5:1:1 1.2MH |
2,355 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 1.2mH | 27.2VµS | 2.5:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PA2005NLPULSE XFMR 1:1:1 840UH |
2,547 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 840µH | 26VµS | 1:1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
|

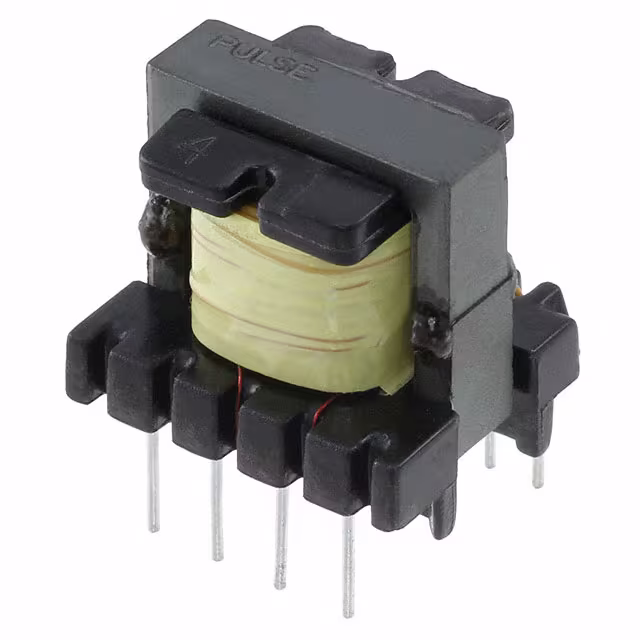

P5001NLPULSE XFMR 1:0.1:0.1 |
3,427 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.1:0.1 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
SPOE3-3308POE POWER OVER ETHERNET EP7 CORE |
3,670 | 3.76 |
|
Datasheet |
SPoE | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 500µH | - | - | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|

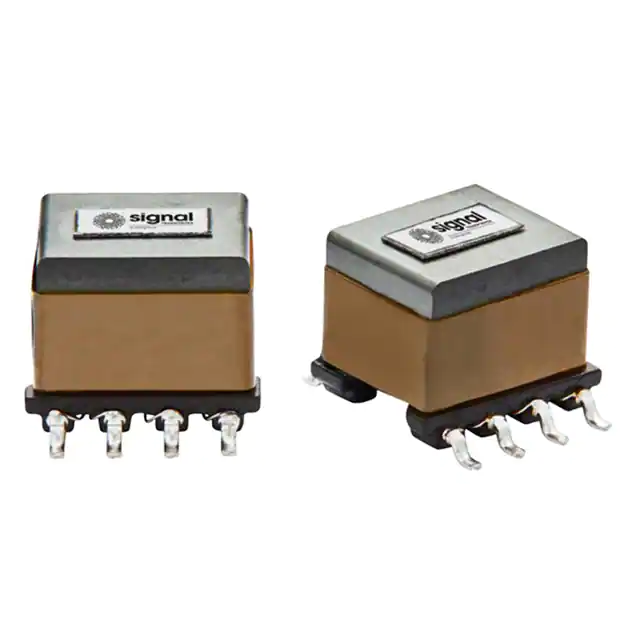

SPOE3-1212POE POWER OVER ETHERNET EP7 CORE |
3,069 | 4.35 |
|
Datasheet |
SPoE | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 310µH | - | 1:0.7 | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|

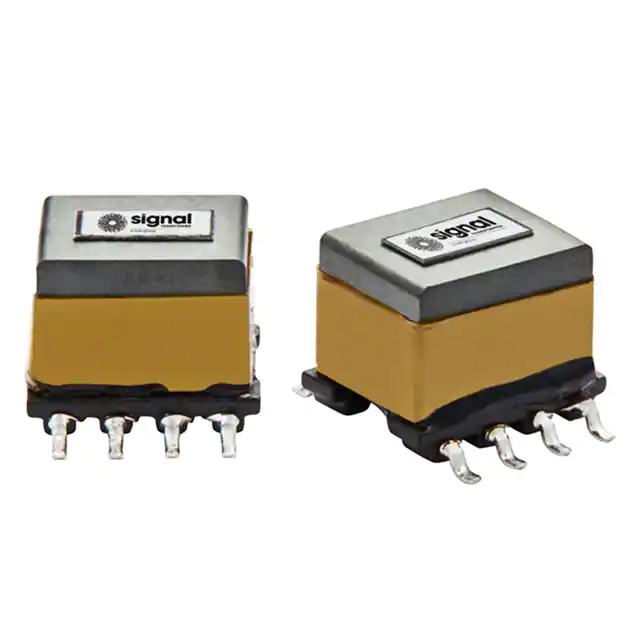

SPOE3-0508POE POWER OVER ETHERNET EP7 CORE |
3,337 | 4.35 |
|
Datasheet |
SPoE | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 500µH | - | 1:00.1 | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|
SPOE7-3308POE PWR OVER ETHERNET EP10 CORE |
2,478 | 4.61 |
|
Datasheet |
SPoE | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 253µH | - | - | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|

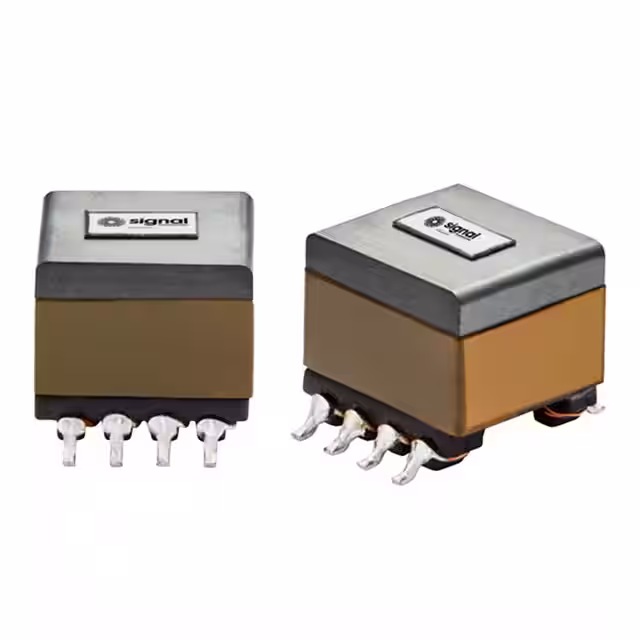

SPOE7-0508POE PWR OVER ETHERNET EP10 CORE |
1,377 | 4.61 |
|
Datasheet |
SPoE | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 253µH | - | - | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|
TX1287NLXFRMR 1CT:2.42CT/1CT:2.42CT SMD |
2,452 | 5.52 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
ITRA-0249-D104ITRA PULSE TRANSFORMER THT 0.1A |
1,543 | 3.81 |
|
Datasheet |
ITRA | Bulk | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1:1 | Through Hole | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.512" (13.00mm) | -25°C ~ 100°C | - | - |
|
|
ITNF-0249-D101ITNF PULSE TRANSFORMER THT 0.1A |
3,130 | 3.87 |
|
Datasheet |
ITNF | Bulk | Active | Isolation and Data Interface (Encapsulated) | 1.4mH | - | 1:1:1 | Through Hole | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.512" (13.00mm) | -25°C ~ 100°C | - | - |
|
ISNF-0249-D101ISNF PULSE TRANSFORMER SMD 0.1A |
3,294 | 4.12 |
|
Datasheet |
IS | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.4mH | 250VµS | 1:1:1 | Surface Mount | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.532" (13.50mm) | -25°C ~ 100°C | - | - |
|
|
ISRA-0249-D104ISRA PULSE TRANSFORMER SMD 0.1A |
2,080 | 4.34 |
|
Datasheet |
IS | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 3.5mH | 300VµS | 1:1 | Surface Mount | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.532" (13.50mm) | -25°C ~ 100°C | - | - |
