RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2450DP14B7200002TMINI PASSIVE RF DIPLEXER 2.4/7GH |
3,523 | 0.00 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 6.2GHz ~ 8.2GHz | 20.00dB / - | 22.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
2450DP14B7200001TMINI PASSIVE RF DIPLEXER 2.4/7GH |
3,996 | 0.00 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 6.2GHz ~ 8.2GHz | 20.00dB / - | 22.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|

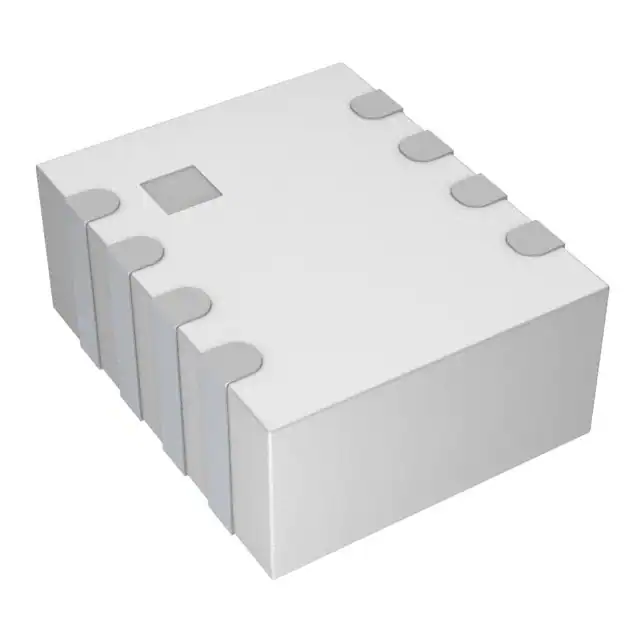

DPX252690DT-5121C1RF DIPLEXER 1008 8 PC PAD |
2,920 | 0.98 |
|
Datasheet |
DPX | 1008 (2520 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
SLFD21-5R950G-12TMULTILAYER DIPLEXER, 2400~2500/5 |
3,900 | 0.00 |
|
Datasheet |
SLFD | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
DPX165900DT-8025A1RF DIPLEXER 2.45GHZ/5.5GHZ 0805 |
4,110 | 0.78 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.1GHz ~ 5.9GHz | 18.00dB / 26.00dB | 23.00dB / 31.00dB | 22.0dB / 12.0dB | - | - | Surface Mount |
|
DPX165850DT-8132A1RF DIPLEXER 0603 4 PC PAD |
3,880 | 0.78 |
|
Datasheet |
DPX | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | 20.00dB / 24.00dB | - | 9.5dB / 9.5dB | - | - | Surface Mount |
|
DPX162690DT-8022B2RF DIPLEXER 832MHZ/2.2GHZ 0603 |
3,359 | 0.78 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 704MHz ~ 960MHz / 1.71GHz ~ 2.69GHz | 20.00dB / - | - | 19.7dB / 9.9dB | - | - | Surface Mount |
|
|
SLFD21-5R950G-01TMULTILAYER DIPLEXER, 2400~2500/5 |
4,000 | 0.00 |
|
Datasheet |
SLFD | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 1.57GHz ~ 5.95GHz | - / 25.00dB | 15.00dB / 16.00dB | - | - | - | Surface Mount |
|
|
SLFT21-2R450G-07TMULTILAYER TRIPLEXER, 1560~1606/ |
4,000 | 0.00 |
|
Datasheet |
SLFT | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Triplexer | 1.56GHz ~ 1.606GHz / 5.95GHz ~ 4.9GHz | - / 13.00dB | - / 24.00dB | - | - | - | Surface Mount |
|
|
SLFT21-2R450G-08TMULTILAYER TRIPLEXER, 1560~1606/ |
3,800 | 0.00 |
|
Datasheet |
SLFT | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Triplexer | 1.56GHz ~ 1.606GHz / 4.9GHz ~ 5.95GHz | - / 15.00dB | - / 20.00dB | - | - | - | Surface Mount |
|
|
DPX2520LWUDRWP31LANT LB JB MB DIPLEXER |
3,000 | 0.00 |
|
Datasheet |
DPX | 1008 (2520 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.11GHz ~ 2.17GHz / 3.3GHz ~ 3.6GHz | 5.00dB / 10.10dB | 5.00dB / 10.70dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|

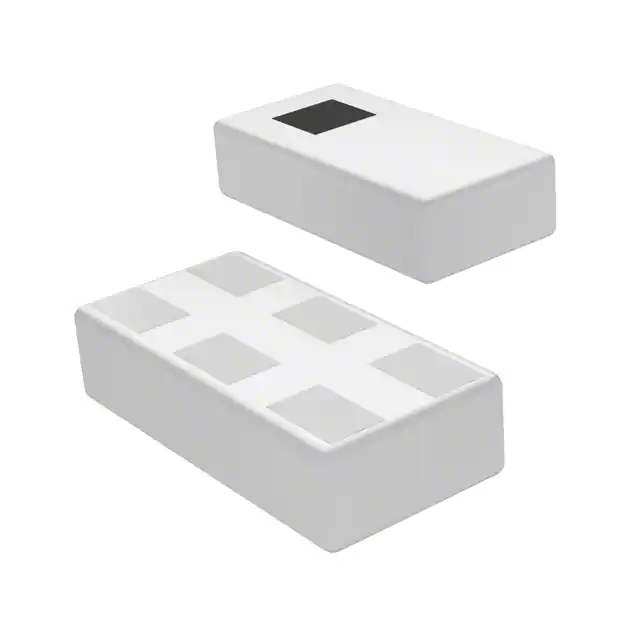

DPX165950DT-8030A1RF DIPLEXER 2.45/5.425GHZ 0603 |
2,851 | 0.83 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Not For New Designs | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / 31.00dB | 20.00dB / 28.00dB | 9.5dB / 9.5dB | - | - | Surface Mount |
|
DPX162500DT-8014A1RF DIPLEXER 1.575/2.45GHZ 0603 |
7,976 | 1.16 |
|
Datasheet |
DPX | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz | 20.00dB / - | 20.00dB / - | 9.5dB / 9.5dB | - | - | Surface Mount |
|
|
DPX165850DT-8017A1RF DIPLEXER 2.45GHZ/5.51GHZ 0603 |
4,000 | 0.78 |
|
Datasheet |
DPX | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.85GHz | 20.00dB / - | 20.00dB / - | - | - | - | Surface Mount |
|
DPX165950DT-8018A1RF DIPLEXER 2.45/5.425GHZ 0603 |
3,694 | 0.78 |
|
Datasheet |
DPX | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / 24.00dB | 20.00dB / 26.00dB | 14.0dB / 12.0dB | - | - | Surface Mount |
 PKG.jpg)
|
DPX162170DT-8122B1RF DIPLEXER 892MHZ/1.94GHZ 0603 |
3,711 | 0.88 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 824MHz ~ 960MHz / 1.71GHz ~ 2.17GHz | 15.00dB / 19.00dB | 20.00dB / 24.00dB | 21.0dB / 20.0dB | - | - | Surface Mount |
|
DPX205850DT-4154B1RF DIPLEXER 0805 6 PC PAD |
2,594 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX202750DT-4058A1RF DIPLEXER 0805 6 PC PAD |
1,950 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
DPX205850DT-4052B2RF DIPLEXER 0805 6 PC PAD |
1,925 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
DPX202170DT-4049A1RF DIPLEXER 892MHZ/1.94GHZ 0805 |
1,825 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 824MHz ~ 960MHz / 1.71GHz ~ 2.17GHz | 15.00dB / 18.00dB | 20.00dB / 23.00dB | 20.0dB / 14.0dB | - | - | Surface Mount |
