DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL81805EVAL3ZEVAL BOARD FOR ISL81805 |
4,926 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 5V, 12V | 20A, 20A | -36V ~ -60V | Boost | 200kHz | Board(s) | ISL81805 |
|
|
I6A10A-001-EVK-S1PXEVAL BOARD FOR I6A4W010A033V001R |
4,474 | 286.14 |
|
Datasheet |
i6A4W | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 250 W | 3.3V ~ 40V | 10A | 9V ~ 53V | Buck | 400kHz | Board(s) | i6A4W010A033V-001-R |
|
|
ISL81806EVAL1ZEVAL BOARD FOR ISL81806 |
2,595 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 80V | Buck | 500kHz | Board(s) | ISL81806 |
|

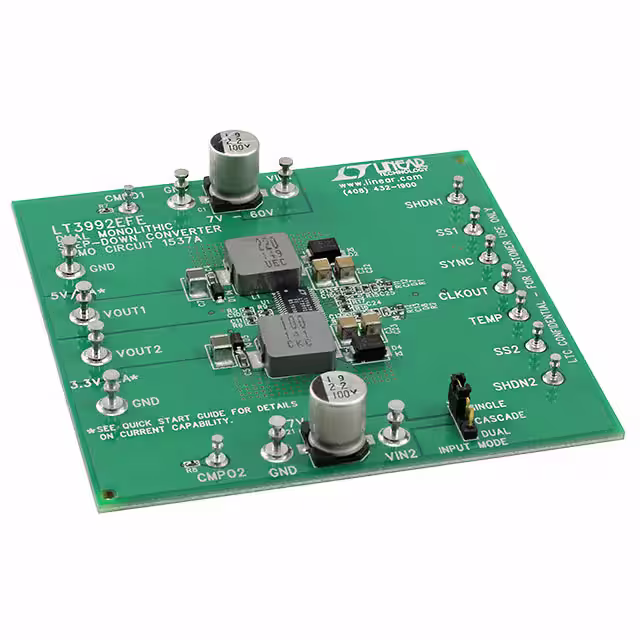

DC1537AEVAL BOARD FOR LT3992 |
2,550 | 264.82 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 7V ~ 60V | Buck | 300kHz | Board(s) | LT3992 |
|

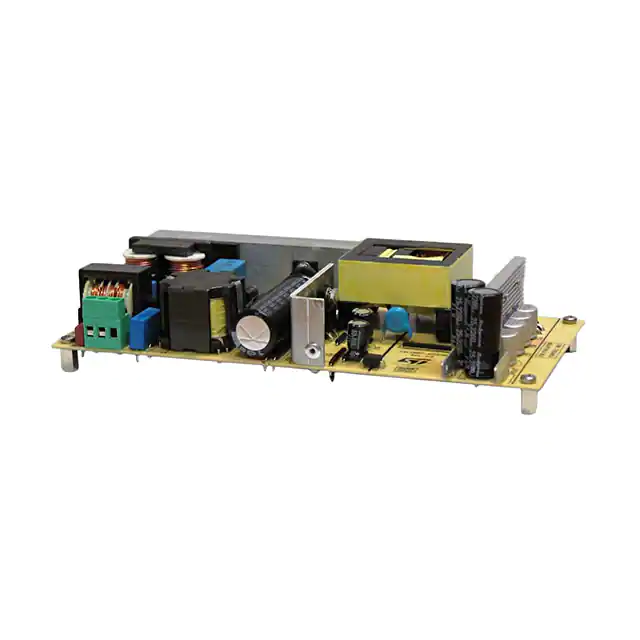

EVLCMB1-AIO210WEVAL BOARD FOR STCMB1 |
3,967 | 309.87 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 210 W | 12V | 17.5A | 90 ~ 264 VAC | - | - | Board(s) | STCMB1 |
|
TMDSRESDCKITEVAL BOARD FOR TMDSCNCD2808 |
3,187 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 15 W | 12V | - | 16V ~ 22V | Resonant | - | Board(s) | TMDSCNCD2808, TMDSCNCD28335, TMDXCNCD28027 |
|

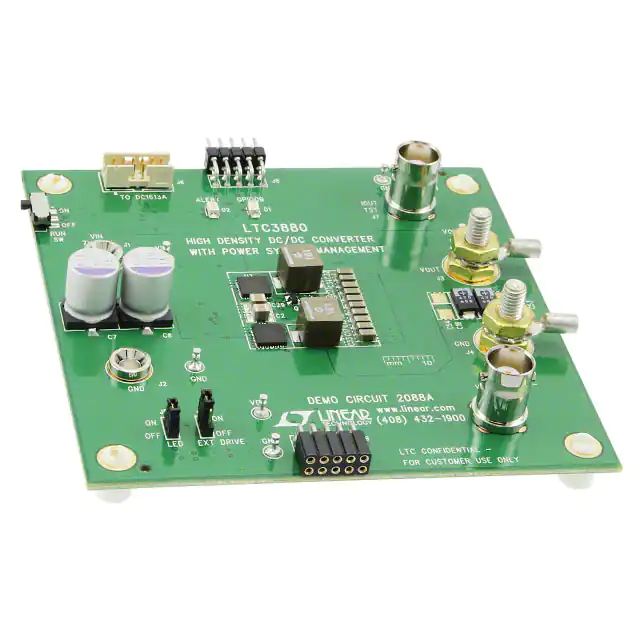

DC2088AEVAL BOARD FOR LTC3880 |
3,035 | 267.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3880 |
|

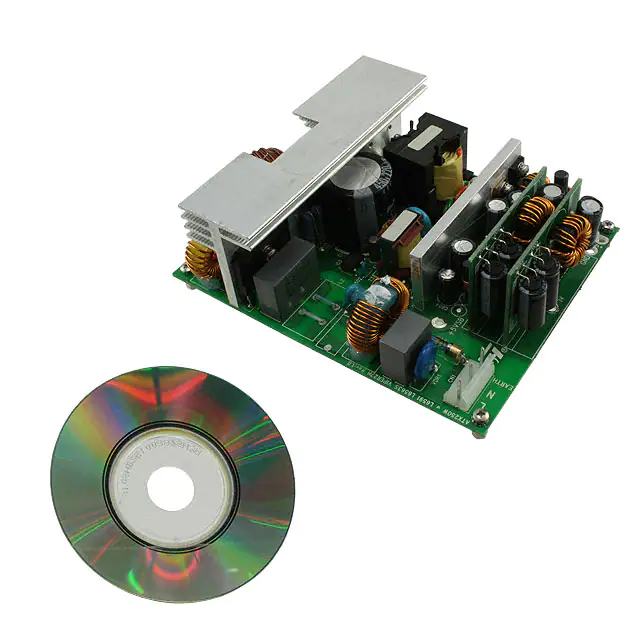

STEVAL-ISA145V1EVAL BOARD FOR L6563S L6591 |
4,614 | 0.00 |
|
Datasheet |
VIPer™ plus | Box | Obsolete | Power Supply, ATX | 4 Isolated Outputs | 250 W | 3.3V, 5V, 5V ,12V | 13.5A, 12A, 8A, 2A | 88 ~ 264 VAC | Flyback | 80kHz | Board(s) | L6563S, L6591, L6727, VIPer27H |
|
|
ISL91211BIK-REFZEVAL BOARD FOR ISL91211B |
4,967 | 347.99 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | - | - | Buck | - | Board(s) | ISL91211B |
|
|
ISL62883CEVAL2ZEVAL BOARD FOR ISL62883C |
1,992 | 265.94 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 75A | 4.5V ~ 20V | Buck | 300kHz | Board(s) | ISL62883C |
|
|
ISL6269AEVAL2ZEVAL BOARD FOR ISL6269A ISL6269B |
2,062 | 269.10 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V or 1.2V | 5A | 5V ~ 25V | Buck | 300kHz or 600kHz | Board(s) | ISL6269A, ISL6269B |
|

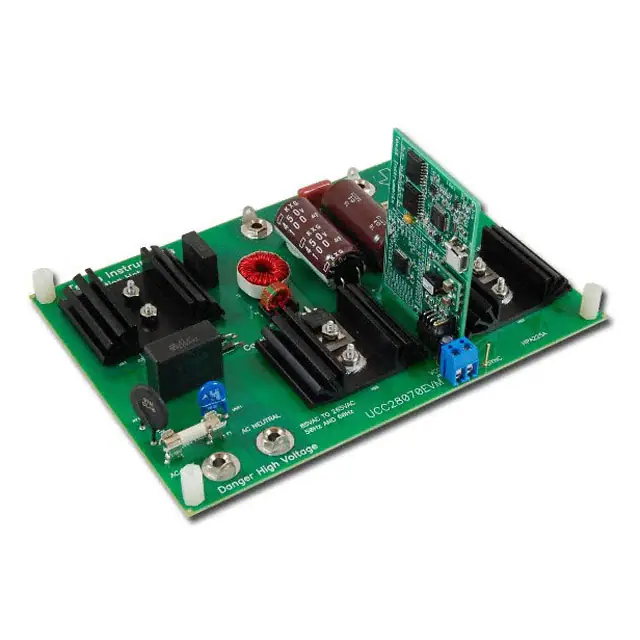

TMDSHVPFCKITEVAL BOARD FOR TMS320F28027 |
3,331 | 265.14 |
|
Datasheet |
C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 300 W | 390V | - | 85 ~ 265 VAC | - | - | Board(s) | TMS320F28027 |
|
DC1317A-BEVAL BOARD FOR LT19521 |
1,907 | 257.48 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 25A | 18V ~ 72V | Forward Converter | 200kHz | Board(s) | LT1952-1 |
|
|
DC1317A-GEVAL BOARD FOR LT19521 |
1,471 | 257.48 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 12V | 8A | 9V ~ 36V | Buck-Boost | 200kHz | Board(s) | LT1952-1 |
|

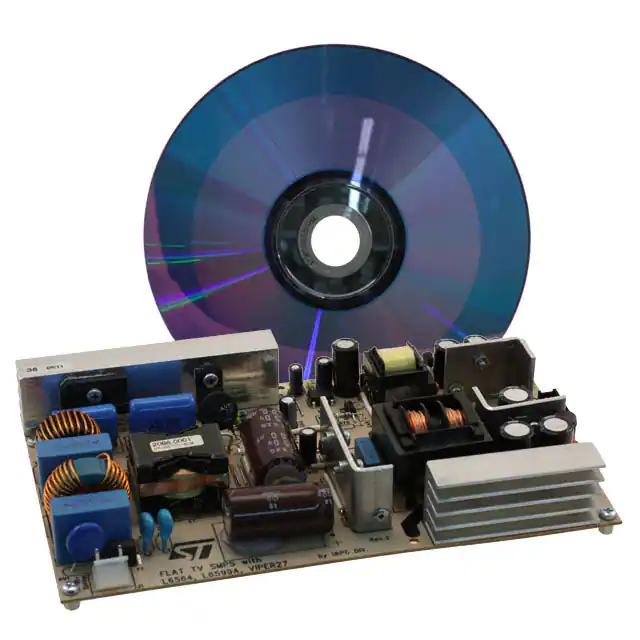

EVL170W-FTVEVAL BOARD FOR VIPER27LN L6564 |
2,524 | 319.44 |
|
Datasheet |
VIPER™ | Bulk | Active | Power Supply with PFC | 2 Isolated Outputs | 170 W | 5V, 12V, 24V | 6A, 2A, 2A | 90 ~ 264 VAC | Flyback | 130kHz | Board(s) | Viper27LN, L6564, L6599A |
|

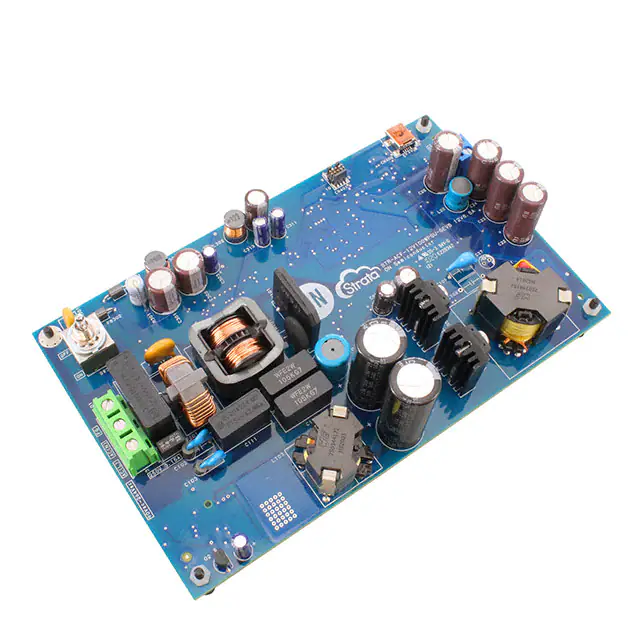

STR-ACF-12V100WPSU-GEVBEVAL BOARD FOR NCP1568 |
4,364 | 280.33 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 100 W | 12V | 8.5A | 90 ~ 264 VAC | Flyback | - | Board(s) | NCP1568 |
|

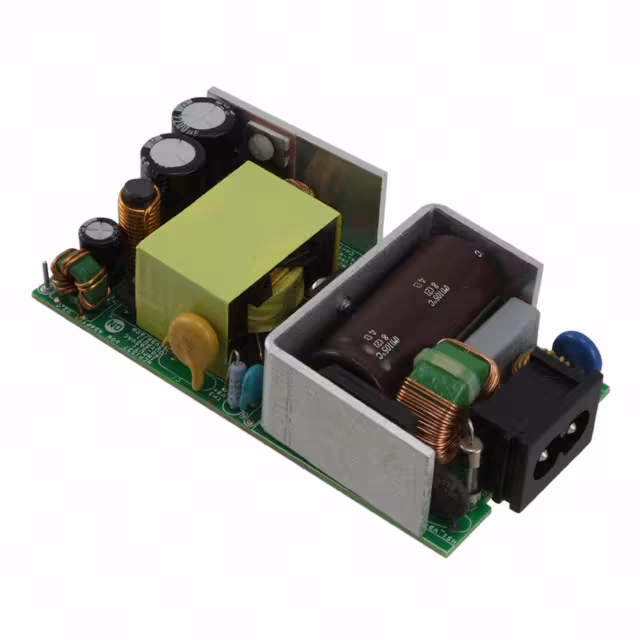

NCP1337ADAPGEVBEVAL BOARD FOR NCP1337 |
4,405 | 0.00 |
|
Datasheet |
GreenPoint™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 60 W | 12V | 5A | 90 ~ 265 VAC | Flyback | 130kHz | Board(s) | NCP1337 |
|
|
ISL62883EVAL2ZEVAL BOARD FOR ISL62883 |
3,935 | 281.18 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 1.5V | 75A | 4.5V ~ 20V | Buck | 300kHz | Board(s) | ISL62883 |
|
DC1740A-AEVAL BOARD FOR LTC3880 |
1,458 | 294.25 |
|
Datasheet |
PolyPhase® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 80A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3880 |
|

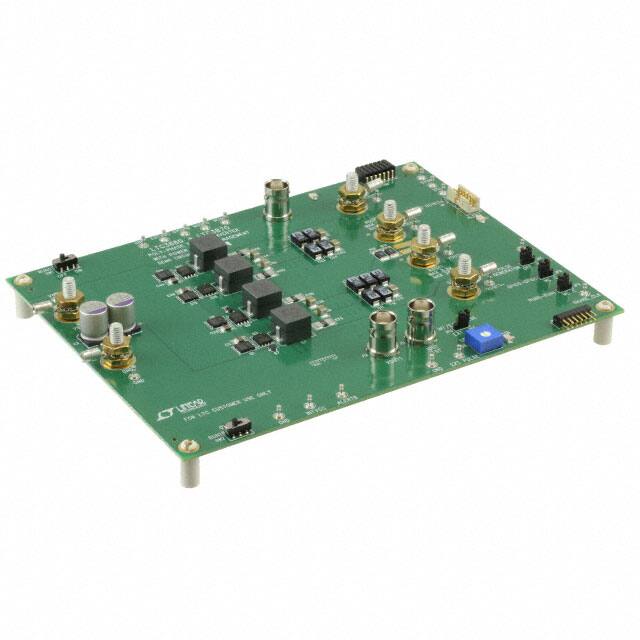

DC2089A-AEVAL BOARD FOR LTC3870 LTC3880 |
2,487 | 294.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 80A | 7V ~ 14V | Buck | 350kHz | Board(s) | LTC3870, LTC3880 |
