Home > Products > Inductors, Coils, Chokes > Fixed Inductors

Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
7447798151 FIXED IND 15UH 5.45A 25.8MOHM SM Würth Elektronik	8,468	3.57	RFQ	Datasheet	WE-PDF	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Nickel Zinc Ferrite (NiZn)	15 µH	±20%	5.45 A	4A	Shielded	25.8mOhm Max	-	19MHz	-	-40°C ~ 150°C	100 kHz	-	Surface Mount	-	0.402" L x 0.402" W (10.20mm x 10.20mm)	0.252" (6.40mm)
7447798271 FIXED IND 27UH 4.3A 42.5MOHM SMD Würth Elektronik	1,401	3.57	RFQ	Datasheet	WE-PDF	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Nickel Zinc Ferrite (NiZn)	27 µH	±20%	4.3 A	3.1A	Shielded	42.5mOhm Max	-	15MHz	-	-40°C ~ 150°C	100 kHz	-	Surface Mount	-	0.402" L x 0.402" W (10.20mm x 10.20mm)	0.252" (6.40mm)
7447798360 FIXED IND 3.6UH 12A 5.95 MOHM Würth Elektronik	1,298	3.57	RFQ	Datasheet	WE-PDF	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Nickel Zinc Ferrite (NiZn)	3.6 µH	±30%	12 A	8.6A	Shielded	5.95mOhm Max	-	46MHz	-	-40°C ~ 150°C	100 kHz	-	Surface Mount	-	0.402" L x 0.402" W (10.20mm x 10.20mm)	0.252" (6.40mm)
7447798620 FIXED IND 6.2UH 9.4A 9.5MOHM SMD Würth Elektronik	750	3.57	RFQ	Datasheet	WE-PDF	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Nickel Zinc Ferrite (NiZn)	6.2 µH	±30%	9.4 A	6.7A	Shielded	9.5mOhm Max	-	33MHz	-	-40°C ~ 150°C	100 kHz	-	Surface Mount	-	0.402" L x 0.402" W (10.20mm x 10.20mm)	0.252" (6.40mm)
7687709152 FIXED IND 1.5MH 520MA 2.2OHM SMD Würth Elektronik	682	3.56	RFQ	Datasheet	WE-PD HV	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	1.5 mH	±20%	520 mA	800mA	Shielded	2.2Ohm Max	-	900kHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.472" L x 0.472" W (12.00mm x 12.00mm)	0.413" (10.50mm)
7687709681 FIXED IND 680UH 800MA 1.15OHM SM Würth Elektronik	543	3.56	RFQ	Datasheet	WE-PD HV	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	680 µH	±20%	800 mA	1.2A	Shielded	1.15Ohm Max	-	1.5MHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.472" L x 0.472" W (12.00mm x 12.00mm)	0.413" (10.50mm)
7447798241 FIXED IND 24UH 4.5A 39.5MOHM SMD Würth Elektronik	516	3.57	RFQ	Datasheet	WE-PDF	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Nickel Zinc Ferrite (NiZn)	24 µH	±20%	4.5 A	3.25A	Shielded	39.5mOhm Max	-	16MHz	-	-40°C ~ 150°C	100 kHz	-	Surface Mount	-	0.402" L x 0.402" W (10.20mm x 10.20mm)	0.252" (6.40mm)

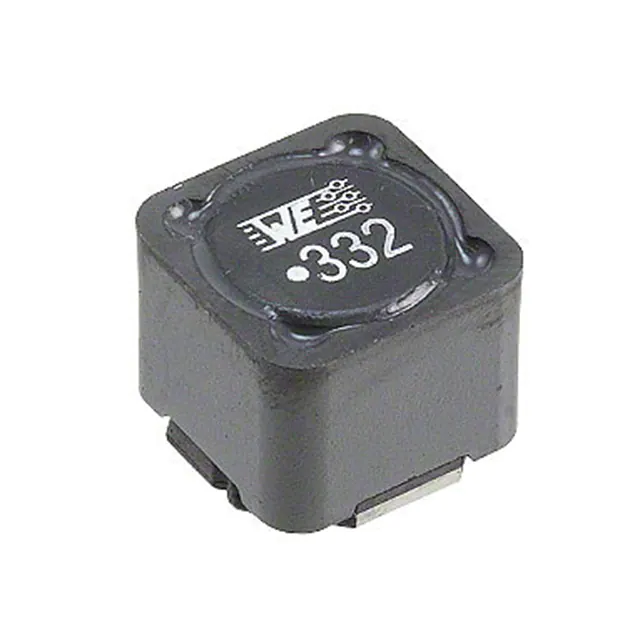

7687709332 FIXED IND 3.3MH 370MA 5.2OHM SMD Würth Elektronik	256	3.56	RFQ	Datasheet	WE-PD HV	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	3.3 mH	±20%	370 mA	520mA	Shielded	5.2Ohm Max	-	600kHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.472" L x 0.472" W (12.00mm x 12.00mm)	0.413" (10.50mm)
1025-52J FIXED IND 22UH 144MA 3.3 OHM TH Delevan	3,745	1.17	RFQ	Datasheet	1025	Axial	Tape & Reel (TR)	Active	Molded	Iron	22 µH	±5%	144 mA	-	Unshielded	3.3Ohm Max	50 @ 2.5MHz	25MHz	-	-55°C ~ 105°C	2.5 MHz	-	Through Hole	-	0.095" Dia x 0.250" L (2.41mm x 6.35mm)	-
TCK-131 FIXED IND 15UH 850MA 235MOHM SMD Traco Power	1,245	3.39	RFQ	Datasheet	-	Nonstandard	Bag	Active	-	-	15 µH	±20%	850 mA	-	Unshielded	235mOhm	-	-	-	-40°C ~ 125°C	1 kHz	-	Surface Mount	-	0.177" L x 0.157" W (4.50mm x 4.00mm)	0.146" (3.70mm)
UP4B-101-R FIXED IND 100UH 2A 170 MOHM SMD Eaton - Electronics Division	772	3.32	RFQ	Datasheet	UNI-PAC™	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	100 µH	±20%	2 A	3.6A	Unshielded	170mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-	0.870" L x 0.591" W (22.10mm x 15.00mm)	0.310" (7.87mm)
SPD62R-352M FIXED IND 3.5UH 2.5A 120MOHM SMD Delevan	5,575	3.21	RFQ	Datasheet	SPD62R	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	3.5 µH	±20%	2.5 A	2.5A	Shielded	120mOhm Max	-	-	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	-	0.260" L x 0.244" W (6.60mm x 6.20mm)	0.118" (3.00mm)
IHLP6767GZERR56M01 FIXED IND 560NH 56A 1.05MOHM SMD Vishay Dale	254	4.63	RFQ	Datasheet	IHLP-6767GZ-01	Nonstandard	Tape & Reel (TR)	Active	Molded	-	560 nH	±20%	56 A	88A	Shielded	1.05mOhm Max	-	-	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	-	0.675" L x 0.675" W (17.15mm x 17.15mm)	0.276" (7.00mm)
PQ2617BHA-330K FIXED IND 33UH 28A 2.5 MOHM SMD Bourns Inc.	1,052	4.53	RFQ	Datasheet	PQ2617BHA	Nonstandard	Tray	Active	Drum Core, Wirewound	Ferrite	33 µH	±10%	28 A	8.7A	Shielded	2.5mOhm Max	-	10MHz	AEC-Q200	-40°C ~ 155°C	100 kHz	-	Surface Mount	-	1.098" L x 0.780" W (27.90mm x 19.80mm)	0.748" (19.00mm)
SD3118-2R2-R FIXED IND 2.2UH 1.5A 74 MOHM SMD Eaton - Electronics Division	3,641	3.37	RFQ	Datasheet	SD3118	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	2.2 µH	±30%	1.5 A	2A	Shielded	74mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.122" L x 0.122" W (3.10mm x 3.10mm)	0.071" (1.80mm)
VLBUC12060120R12LF3 FIXED IND 120NH 106A 0.125MOHM S TDK Corporation	413	0.00	RFQ	Datasheet	VLBUC	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Ferrite	120 nH	±15%	70 A	106A	Unshielded	0.138mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.472" L x 0.236" W (12.00mm x 6.00mm)	0.472" (12.00mm)
TCK-133 FIXED IND 68UH 370MA 1.117OHM SM Traco Power	307	3.47	RFQ	Datasheet	-	Nonstandard	Bag	Active	-	-	68 µH	±20%	370 mA	-	Unshielded	1.117Ohm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.177" L x 0.157" W (4.50mm x 4.00mm)	0.146" (3.70mm)
PD0120.113NL FIXED IND 12.2UH 7.6A 16MOHM SMD Pulse Electronics	825	3.65	RFQ	Datasheet	PD0120NL	Nonstandard	Tray	Active	Wirewound	-	12.2 µH	±10%	7.6 A	9A	Unshielded	16mOhm Max	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.638" L x 0.628" W (16.20mm x 15.95mm)	0.323" (8.20mm)
HCTI-680-3.4 FIXED IND 680UH 3.4A 150 MOHM TH Signal Transformer	587	3.66	RFQ	Datasheet	HCTI	Radial, Vertical (Open)	Tray	Active	Toroidal	-	680 µH	±15%	3.4 A	-	Shielded	150mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Through Hole	-	1.280" Dia x 0.650" W (32.51mm x 16.51mm)	-
TCK-132 FIXED IND 22UH 680MA 378MOHM SMD Traco Power	454	3.47	RFQ	Datasheet	-	Nonstandard	Bag	Active	-	-	22 µH	±20%	680 mA	-	Unshielded	378mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.177" L x 0.157" W (4.50mm x 4.00mm)	0.146" (3.70mm)

Total 147749 Record«Prev 1... 324 325 326 327328329 330 331...7388 Next»
