Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

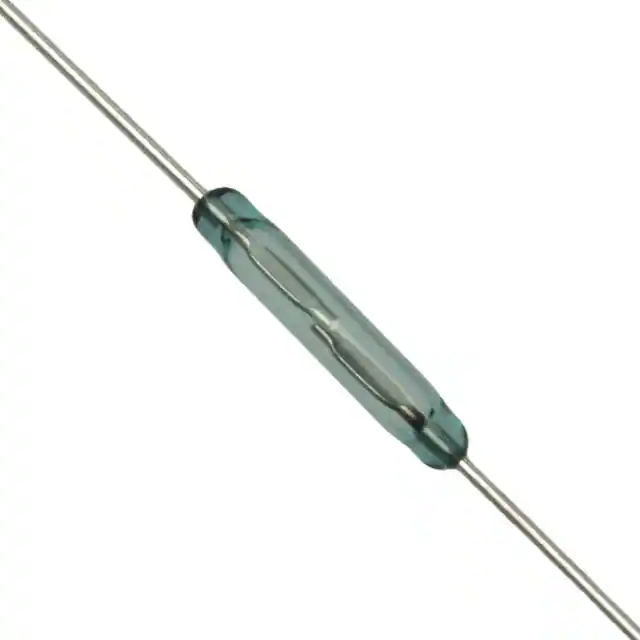

MDSR-10-8-10SWITCH REED SPST-NO 350MA 140V |
669 | 1.67 |
|
Datasheet |
MDSR-10 | Box | Active | Glass Body Reed | SPST-NO | 8 ~ 10AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
|
MDSR-10-10-15SWITCH REED SPST-NO 350MA 140V |
176 | 1.67 |
|
Datasheet |
MDSR-10 | Box | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
MS-106-3-2SWITCH REED SPST-NO 700MA 130V |
234 | 1.46 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Through Hole | PC Pin | 0.669" (17.00mm) | 0.669" L x 0.110" W x 0.126" H (17.00mm x 2.80mm x 3.20mm) | 0.126" (3.20mm) | -20°C ~ 85°C | - | 1A (AC/DC) |
|

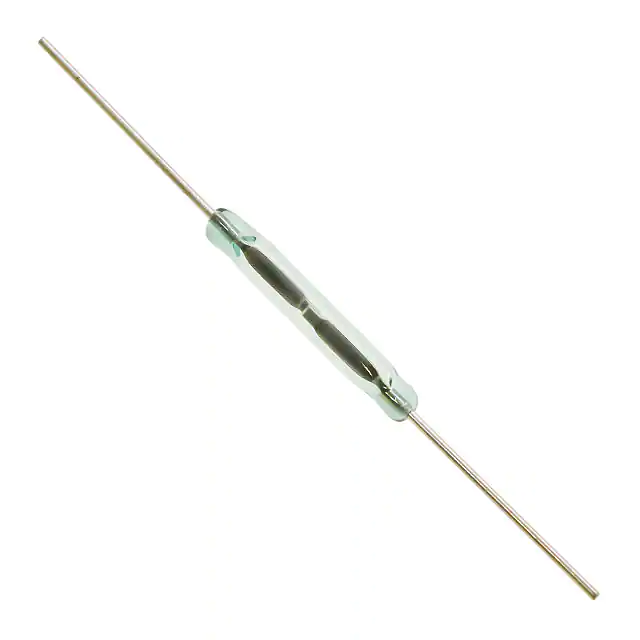

MDSR-4-12-18SWITCH REED SPST-NO 500MA |
900 | 1.38 |
|
Datasheet |
MDSR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|

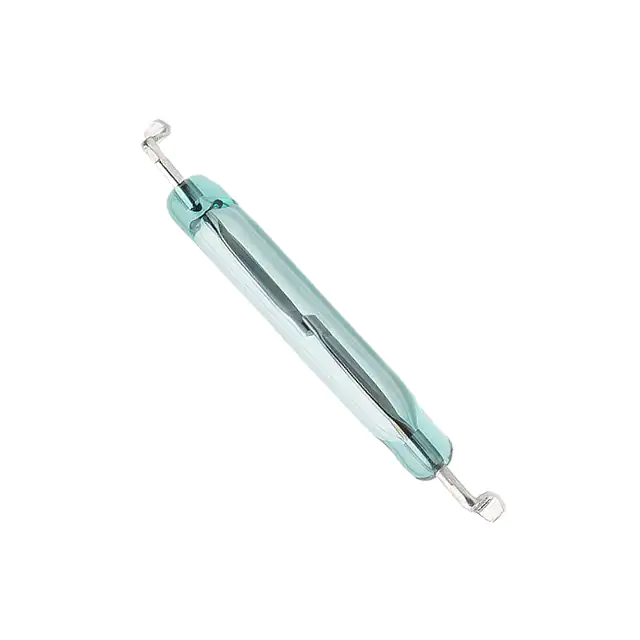

MASM-14R-10-15SWITCH REED SPST-NO 350MA 140V |
7,397 | 1.67 |
|
Datasheet |
MASM-14 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
RI-69SMDM-1015-G1SWITCH REED SPST-NO 700MA 140V |
788 | 1.21 |
|
Datasheet |
RI-69SMDM | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 3AT | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | - | - | Surface Mount | Gull Wing | 0.639" (16.23mm) | 0.452" L x 0.090" W x 0.090" H (11.48mm x 2.29mm x 2.29mm) | 0.095" (2.41mm) | -40°C ~ 85°C | 0.25 pF | 1A (DC) |
|

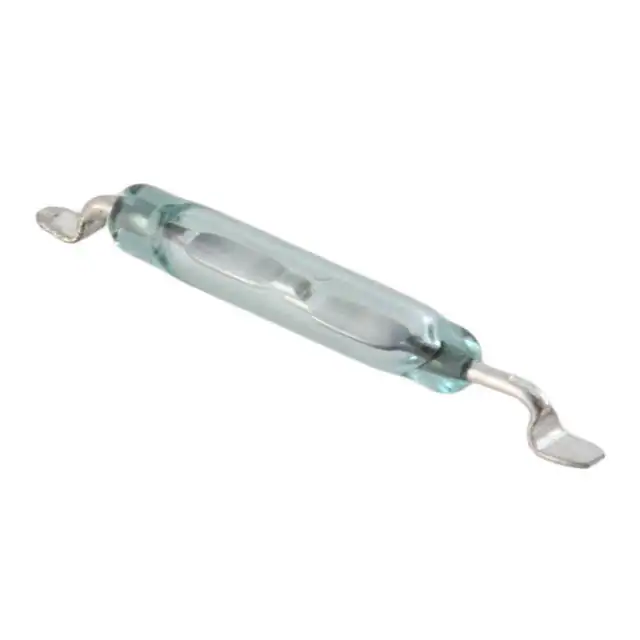

MDSM-10B-10-25SWITCH REED SPST-NO 350MA 140V |
3,276 | 1.76 |
|
Datasheet |
MDSM-10 | Box | Active | Glass Body Reed | SPST-NO | 10 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.615" (15.62mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | 0.079" (2.00mm) | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
|
MDSM-10R-10-25SWITCH REED SPST-NO 350MA 140V |
9,538 | 1.82 |
|
Datasheet |
MDSM-10 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.615" (15.62mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | 0.079" (2.00mm) | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
MS-108-3-3SWITCH REED SPST-NO 1A 140V |
281 | 1.36 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | 5AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Through Hole | PC Pin | 0.878" (22.30mm) | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | - | 1.2A (AC/DC) |
|
|
MS-108-3-2SWITCH REED SPST-NO 1A 140V |
202 | 1.36 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 5AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Through Hole | PC Pin | 0.878" (22.30mm) | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | - | 1.2A (AC/DC) |
|
|
MASM-14R-8-10SWITCH REED SPST-NO 350MA 140V |
2,304 | 1.67 |
|
Datasheet |
MASM-14 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 8 ~ 10AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
MS-108-3-1SWITCH REED SPST-NO 1A 140V |
382 | 1.46 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 5AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Through Hole | PC Pin | 0.878" (22.30mm) | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | - | 1.2A (AC/DC) |
|
|
MS-106-3-1SWITCH REED SPST-NO 700MA 130V |
250 | 1.46 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Through Hole | PC Pin | 0.669" (17.00mm) | 0.669" L x 0.110" W x 0.126" H (17.00mm x 2.80mm x 3.20mm) | 0.126" (3.20mm) | -20°C ~ 85°C | - | 1A (AC/DC) |
|
|
MS-106-3-3SWITCH REED SPST-NO 700MA 130V |
237 | 1.46 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Through Hole | PC Pin | 0.669" (17.00mm) | 0.669" L x 0.110" W x 0.126" H (17.00mm x 2.80mm x 3.20mm) | 0.126" (3.20mm) | -20°C ~ 85°C | - | 1A (AC/DC) |
|
PMC-2021S3035SWITCH REED SPST-NO 1.5A 250V |
1,696 | 1.72 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | 5AT | 1.5A (AC/DC) | 250 V | 200 V | 50W | 1 ms | 0.4 ms | Surface Mount | Axial | 1.126" (28.60mm) | 0.100" Dia x 0.787" L (2.54mm x 20.00mm) | - | -60°C ~ 125°C | - | 2A (AC/DC) |
|
|
PMC-2021S3540SWITCH REED SPST-NO 1.5A 250V |
1,359 | 1.72 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 35 ~ 40AT | 5AT | 1.5A (AC/DC) | 250 V | 200 V | 50W | 1 ms | 0.4 ms | Surface Mount | Axial | 1.126" (28.60mm) | 0.100" Dia x 0.787" L (2.54mm x 20.00mm) | - | -60°C ~ 125°C | - | 2A (AC/DC) |
|
MDSM-4R-7-13SWITCH REED SPST-NO 350MA 140V |
904 | 1.67 |
|
Datasheet |
MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 7 ~ 13AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
PMC-1001TH1015SWITCH REED SPST-NO 700MA 130V |
3,869 | 1.53 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.640" (16.26mm) | 0.492" L x 0.114" W x 0.110" H (12.50mm x 2.90mm x 2.80mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|

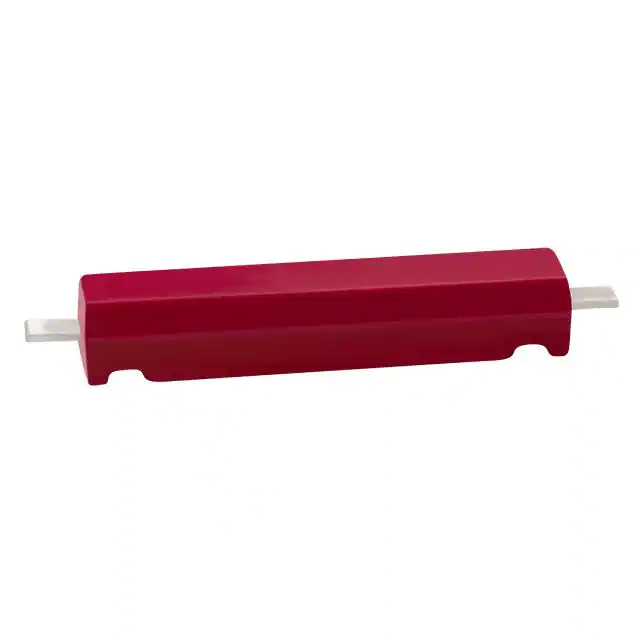

CT10-1540-A2SWITCH REED SPST-NO 500MA 140V |
1,904 | 1.58 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 40AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Axial, Flat | 0.614" (15.60mm) | 0.505" L x 0.095" W x 0.095" H (12.83mm x 2.41mm x 2.41mm) | - | -40°C ~ 125°C | - | 500mA (DC) |
|

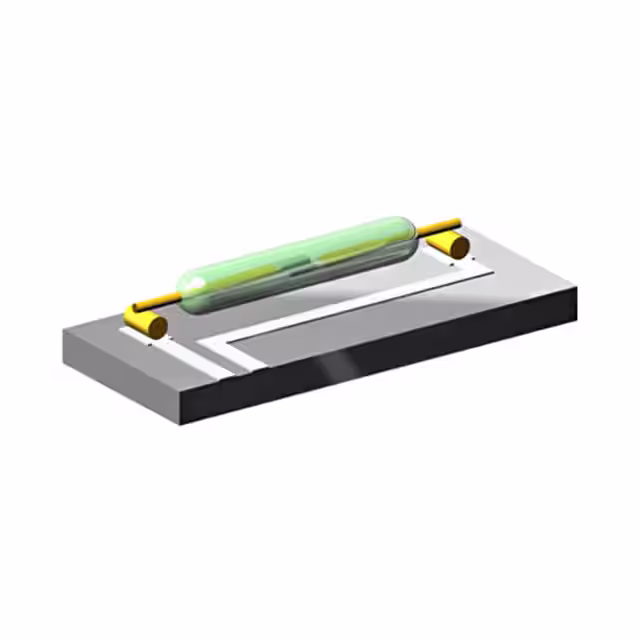

PMC-2021T3540SWITCH REED SPST-NO 1.5A 250V |
2,376 | 1.88 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 35 ~ 40AT | 5AT | 1.5A (AC/DC) | 250 V | 200 V | 50W | 1 ms | 0.4 ms | Surface Mount | Axial | 1.126" (28.60mm) | 0.787" L x 0.100" W x 0.118" H (20.00mm x 2.54mm x 3.00mm) | - | -60°C ~ 125°C | - | 2A (AC/DC) |
