Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
59050-030SWITCH REED SPDT 250MA |
858 | 4.62 |
|
Datasheet |
59050 | Box | Active | Molded Body Reed | SPDT | 3.81mm | 16.51mm | 250mA (DC) | - | 175 V | 5W | 1 ms | 1 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -40°C ~ 105°C | - | 1.5A (DC) |
|

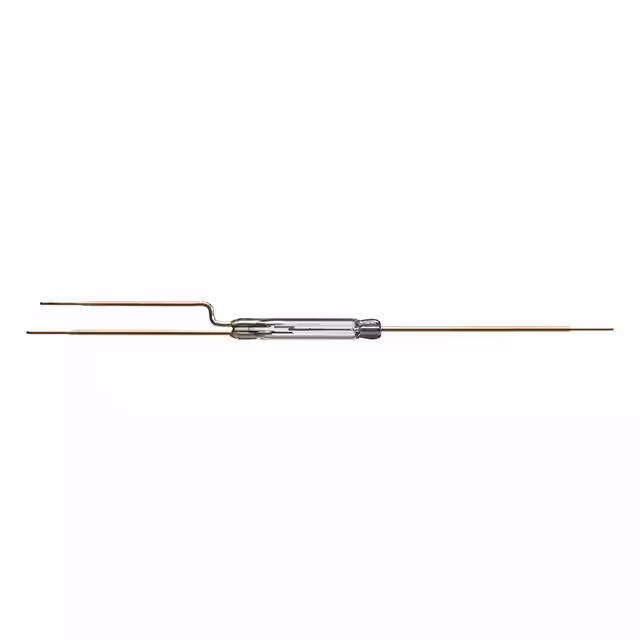

PMC-1496B1520SWITCH REED SPDT 1A 140V |
384 | 6.00 |
|
Datasheet |
- | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 20AT | 6AT | 1A (AC/DC) | 140 V | 150 V | 20W | 2.5 ms | 2.5 ms | Surface Mount | Axial | 2.165" (55.00mm) | 0.087" Dia x 0.571" L (2.20mm x 14.50mm) | - | -40°C ~ 130°C | - | 2A (AC/DC) |
|

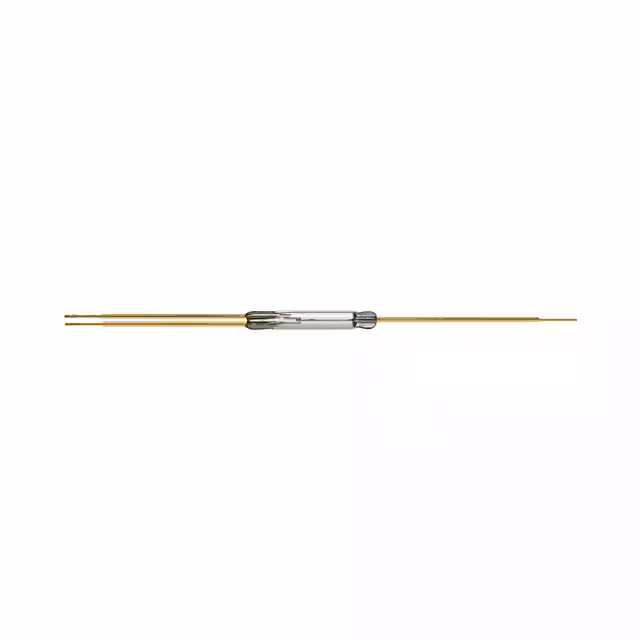

PMC-1496S1520SWITCH REED SPDT 1A 140V |
297 | 5.73 |
|
- |
- | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 20AT | 6AT | 1A (AC/DC) | 140 V | 150 V | 20W | 2.5 ms | 2.5 ms | Surface Mount | Axial | 2.165" (55.00mm) | 0.087" Dia x 0.571" L (2.20mm x 14.50mm) | - | -40°C ~ 130°C | - | 2A (AC/DC) |
|
|
PMC-1496B2025SWITCH REED SPDT 1A 140V |
269 | 6.00 |
|
Datasheet |
- | Bulk | Active | Glass Body Reed | SPDT | 20 ~ 25AT | 6AT | 1A (AC/DC) | 140 V | 150 V | 20W | 2.5 ms | 2.5 ms | Surface Mount | Axial | 2.165" (55.00mm) | 0.087" Dia x 0.571" L (2.20mm x 14.50mm) | - | -40°C ~ 130°C | - | 2A (AC/DC) |
|
RI-69SMDM-1520-G1SWITCH REED SPST-NO 700MA 140V |
4,946 | 1.21 |
|
Datasheet |
RI-69SMDM | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4 ~ 18AT | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | - | - | Surface Mount | Gull Wing | 0.639" (16.23mm) | 0.452" L x 0.090" W x 0.090" H (11.48mm x 2.29mm x 2.29mm) | 0.095" (2.41mm) | -40°C ~ 85°C | 0.25 pF | 1A (DC) |
|
PMC-1001S1520SWITCH REED SPST-NO 700MA 130V |
2,724 | 0.98 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.512" (13.00mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|
PMC-1401TS1520SWITCH REED SPST-NO 1A 140V |
4,414 | 1.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) | - | -60°C ~ 155°C | - | 1.2A (AC/DC) |
|
PMC-1401T1520SWITCH REED SPST-NO 1A 140V |
2,044 | 1.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 5 ~ 20AT | 1A (AC/DC) | 140 V | 200 V | 10W | 0.4 ms | 0.5 ms | Surface Mount | Axial | 0.768" (19.50mm) | 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) | - | -60°C ~ 155°C | 0.5 pF | 1.2A (AC/DC) |
|
|
PMC-1401TS1015SWITCH REED SPST-NO 1A 140V |
1,861 | 1.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) | - | -60°C ~ 155°C | - | 1.2A (AC/DC) |
|

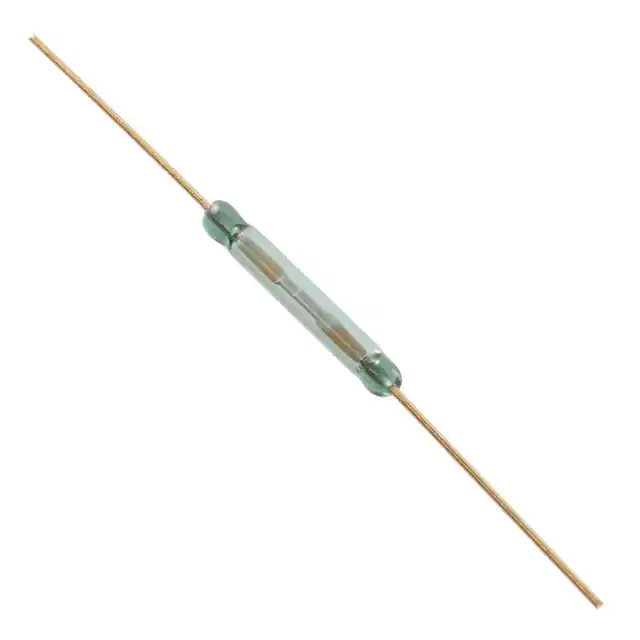

GC2717 - 3035SWITCH REED SPST-NO 500MA 500V |
12,089 | 1.31 |
|
Datasheet |
GC2717 | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | 5AT | 500mA (AC/DC) | 500 V | 500 V | 10VA | - | 0.1 ms | Through Hole | Axial | 2.165" (55.00mm) | 0.102" Dia x 0.748" L (2.60mm x 19.00mm) | - | -40°C ~ 125°C | 0.5 pF | 1A (AC/DC) |
|
PMC-1001T2025SWITCH REED SPST-NO 700MA 130V |
2,477 | 1.25 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.640" (16.26mm) | 0.394" L x 0.079" W x 0.091" H (10.00mm x 2.00mm x 2.30mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|
MACD-14-25-30SWITCH REED SPST-NO 350MA 140V |
2,193 | 1.51 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|

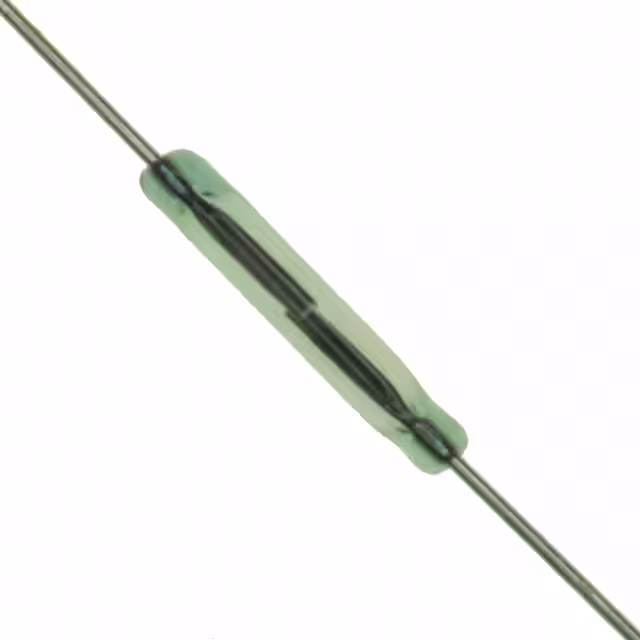

MLRR-4-22-28SWITCH REED SPST-NO 700MA 140V |
850 | 1.67 |
|
Datasheet |
MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
MDSM-4R-17-23SWITCH REED SPST-NO 350MA 140V |
2,657 | 1.67 |
|
Datasheet |
MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSM-4R-12-23SWITCH REED SPST-NO 350MA 140V |
2,087 | 1.67 |
|
Datasheet |
MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 12 ~ 23AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|

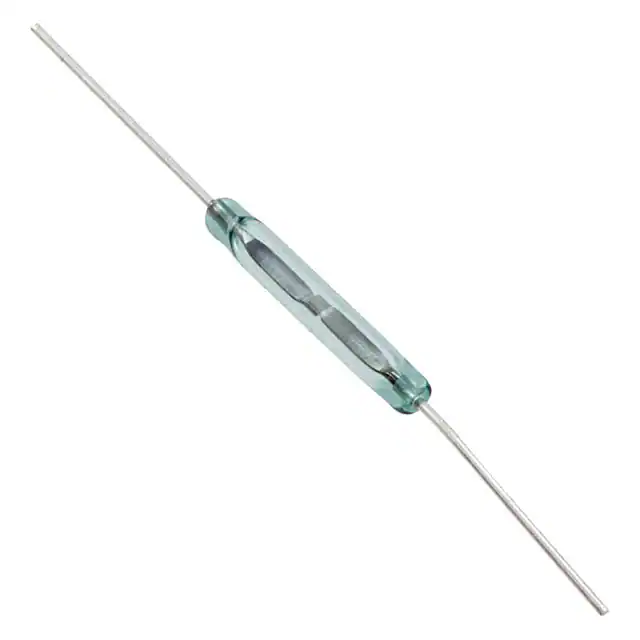

MDSR-4-12-38SWITCH REED SPST-NO 500MA |
1,016 | 1.38 |
|
Datasheet |
MDSR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 12 ~ 38AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
GC2717 - 1520SWITCH REED SPST-NO 500MA 500V |
1,300 | 1.26 |
|
Datasheet |
GC2717 | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 5AT | 500mA (AC/DC) | 500 V | 500 V | 10VA | - | 0.1 ms | Through Hole | Axial | 2.165" (55.00mm) | 0.102" Dia x 0.748" L (2.60mm x 19.00mm) | - | -40°C ~ 125°C | 0.5 pF | 1A (AC/DC) |
|

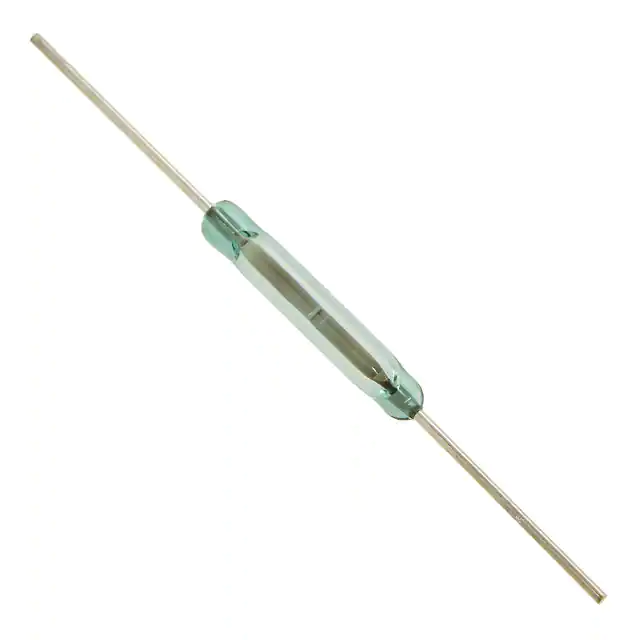

MLRR-4-27-33SWITCH REED SPST-NO 700MA 140V |
881 | 1.67 |
|
Datasheet |
MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
PMC-1001TH2025SWITCH REED SPST-NO 700MA 130V |
320 | 1.53 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.640" (16.26mm) | 0.492" L x 0.114" W x 0.110" H (12.50mm x 2.90mm x 2.80mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|
|
PMC-1001THL1520SWITCH REED SPST-NO 700MA 130V |
2,245 | 1.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.768" (19.50mm) | 0.610" L x 0.114" W x 0.110" H (15.50mm x 2.90mm x 2.80mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
