Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RI-69GP1015SWITCH REED SPST-NO 700MA 140V |
5,818 | 0.78 |
|
Datasheet |
RI-69 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 3 ~ 16AT | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.15 ms | 0.02 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.390" L (1.80mm x 9.91mm) | - | -55°C ~ 75°C | 0.25 pF | 1A (DC) |
|

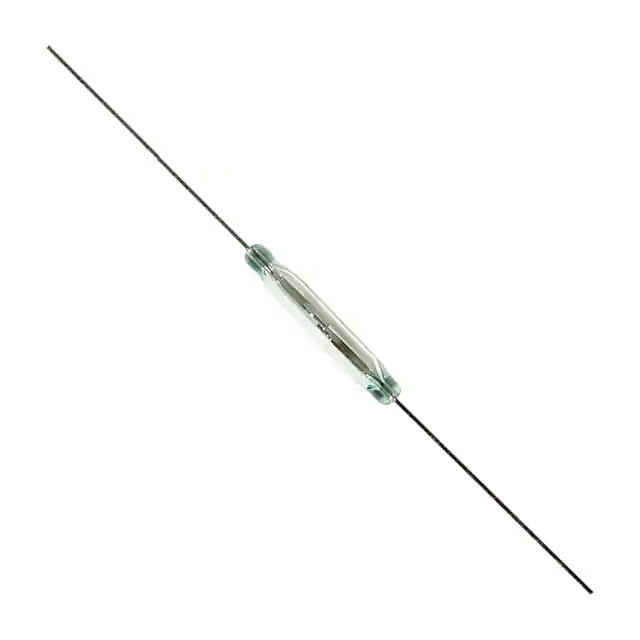

ORD 228VL/10-15 ATSWITCH REED SPST-NO 500MA 100V |
7,421 | 1.13 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 100 V | 100 V | 10W | 0.4 ms | 0.05 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | - | 0.3 pF | 1A (AC/DC) |
|
GC2717 - 2025SWITCH REED SPST-NO 500MA 500V |
5,318 | 1.31 |
|
Datasheet |
GC2717 | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 5AT | 500mA (AC/DC) | 500 V | 500 V | 10VA | - | 0.1 ms | Through Hole | Axial | 2.165" (55.00mm) | 0.102" Dia x 0.748" L (2.60mm x 19.00mm) | - | -40°C ~ 125°C | 0.5 pF | 1A (AC/DC) |
|
PMC-1001S1015SWITCH REED SPST-NO 700MA 130V |
7,512 | 0.98 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.512" (13.00mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|
MDCG-4-12-18SWITCH REED SPST-NO 350MA 140V |
3,270 | 1.38 |
|
Datasheet |
MDCG-4 | Bulk | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDCG-4-27-33SWITCH REED SPST-NO 350MA 140V |
950 | 1.38 |
|
Datasheet |
MDCG-4 | Bulk | Active | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|

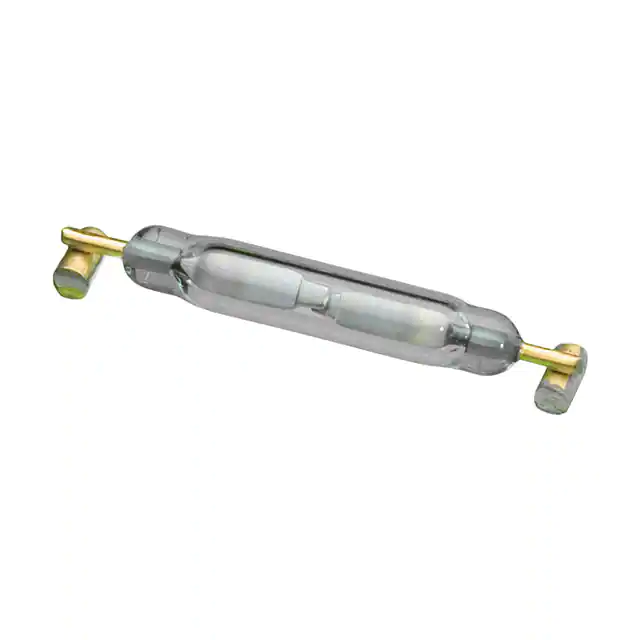

PMC-1001TS1015SWITCH REED SPST-NO 700MA 130V |
8,441 | 1.25 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.512" (13.00mm) | 0.394" L x 0.079" W x 0.091" H (10.00mm x 2.00mm x 2.30mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|
PMC-1001T1520SWITCH REED SPST-NO 700MA 130V |
4,433 | 1.25 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.640" (16.26mm) | 0.394" L x 0.079" W x 0.091" H (10.00mm x 2.00mm x 2.30mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|
|
PMC-1001TS2025SWITCH REED SPST-NO 700MA 130V |
3,636 | 1.25 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.512" (13.00mm) | 0.394" L x 0.079" W x 0.091" H (10.00mm x 2.00mm x 2.30mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|

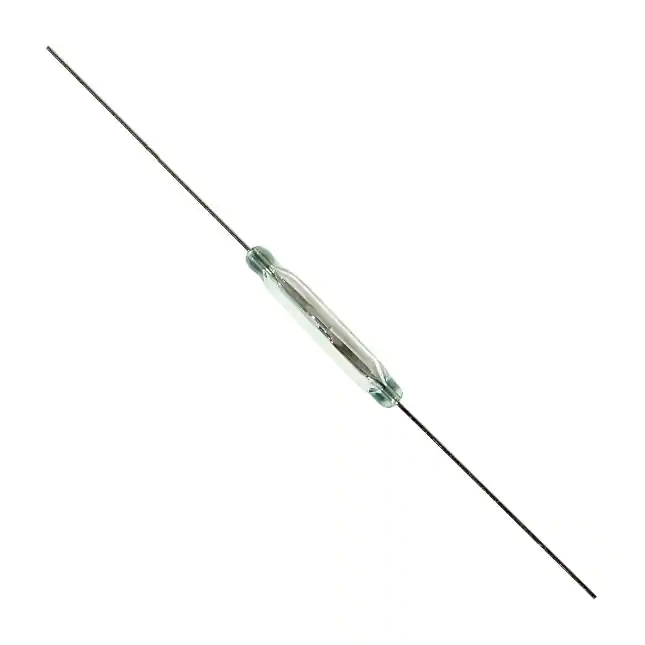

KSK-1A66-1520SWITCH REED SPST-NO 500MA 180V |
447 | 1.10 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 180 V | 180 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | -40°C ~ 130°C | 0.2 pF | 1.25A (AC/DC) |
|

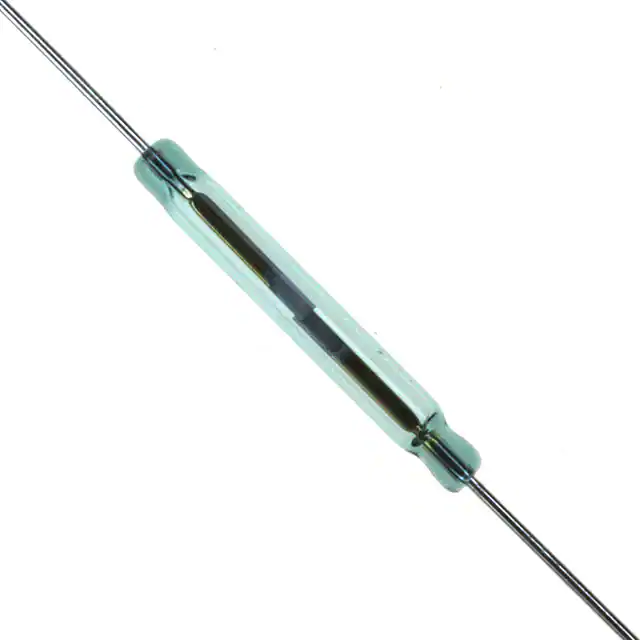

MLRR-3-32-38SWITCH REED SPST-NO 700MA 140V |
1,547 | 1.57 |
|
Datasheet |
MLRR-3 | Bulk | Active | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
|
MLRR-3-42-48SWITCH REED SPST-NO 700MA 140V |
410 | 1.57 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 42 ~ 48AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|

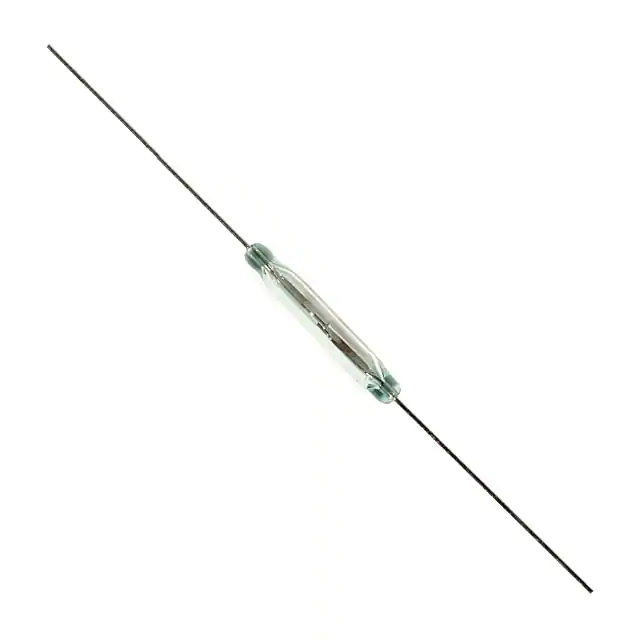

ORD 228VL/20-30 ATSWITCH REED SPST-NO 500MA 100V |
985 | 1.13 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 500mA (AC/DC) | 100 V | 100 V | 10W | 0.4 ms | 0.05 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | - | 0.3 pF | 1A (AC/DC) |
|

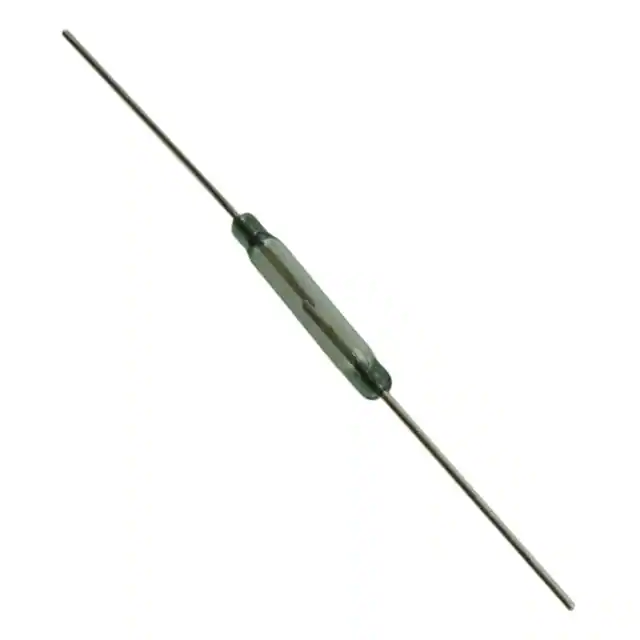

ORD 228VL/15-20 ATSWITCH REED SPST-NO 500MA 100V |
894 | 1.13 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 100 V | 100 V | 10W | 0.4 ms | 0.05 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | - | 0.3 pF | 1A (AC/DC) |
|

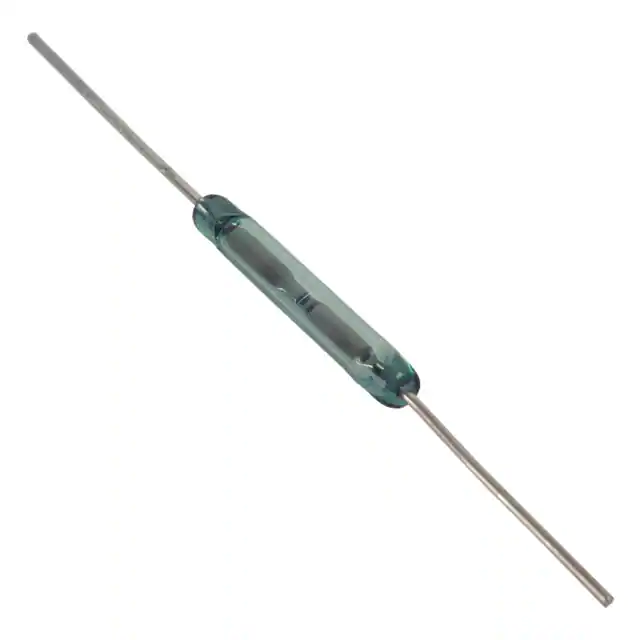

MACD-14-8-10SWITCH REED SPST-NO 350MA 140V |
1,602 | 1.51 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 8 ~ 10AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|

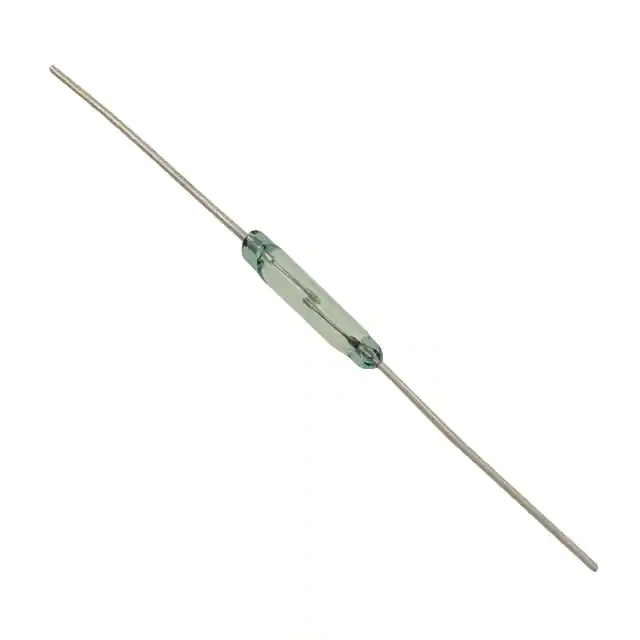

MDSR-10-20-25SWITCH REED SPST-NO 350MA 140V |
1,207 | 1.67 |
|
Datasheet |
MDSR-10 | Box | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
MS-108-5-4SWITCH REED SPST-NO 300MA 260V |
1,608 | 2.06 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 25 ~ 30AT | 4AT | 300mA (AC/DC) | 260 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | PC Pin | 0.878" (22.30mm) | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | - | 1.4A (AC/DC) |
|
MDSR-4-22-33SWITCH REED SPST-NO 500MA |
1,034 | 1.38 |
|
Datasheet |
MDSR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 33AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|

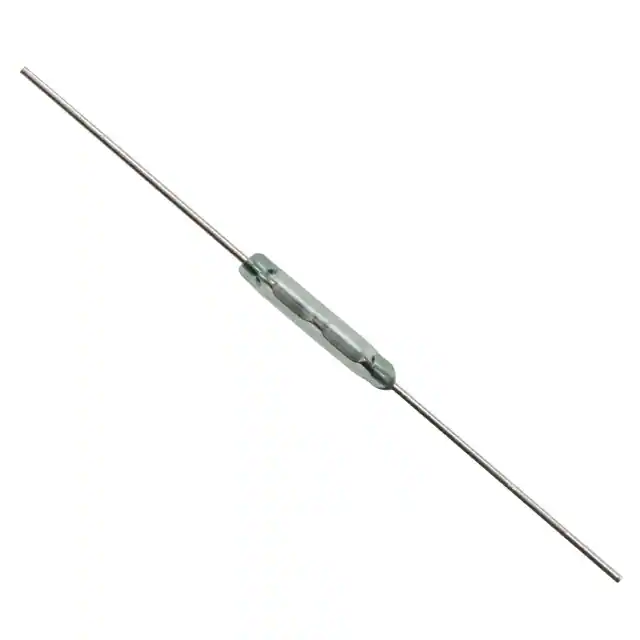

MDSR-10-15-20SWITCH REED SPST-NO 350MA 140V |
2,422 | 1.67 |
|
Datasheet |
MDSR-10 | Box | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
MDSR-10-30-35SWITCH REED SPST-NO 350MA 140V |
727 | 1.67 |
|
Datasheet |
MDSR-10 | Box | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
