Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMC-0701TS1520SWITCH REED SPST-NO 500MA 120V |
3,767 | 1.95 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | Axial | 0.394" (10.00mm) | 0.276" L x 0.079" W x 0.091" H (7.00mm x 2.00mm x 2.30mm) | - | -40°C ~ 125°C | - | 700mA (AC/DC) |
|
ORD 311/10-15 ATSWITCH REED SPST-NO 1A 100V |
5,650 | 1.72 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 1A (AC/DC) | 100 V | 100 V | 10W | 0.3 ms | 0.05 ms | Through Hole | Axial | 1.409" (35.80mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | - | 0.4 pF | 500mA (AC/DC) |
|

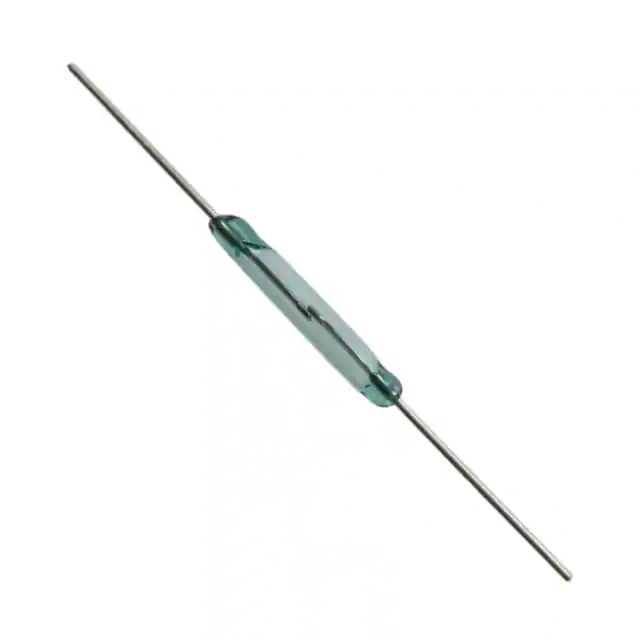

HA15-2-17-23SWITCH REED SPST-NO 300MA 265V |
988 | 2.22 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 300mA (AC), 400mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.4A (DC) |
|

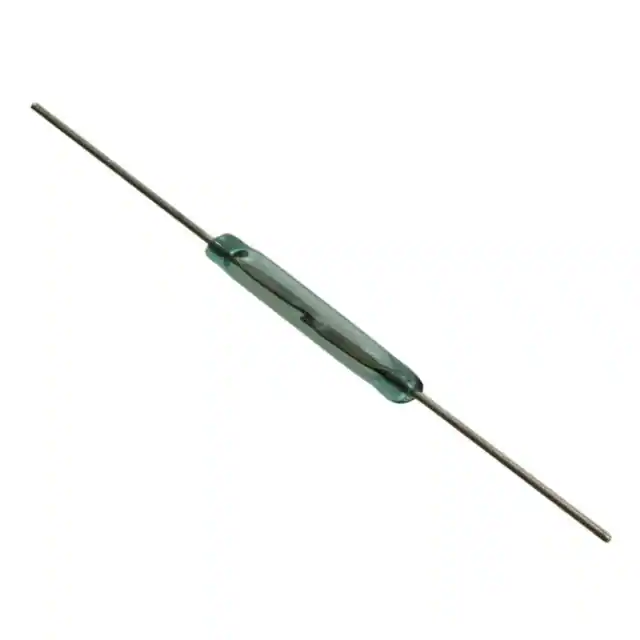

HA15-2-22-28SWITCH REED SPST-NO 350MA 265V |
402 | 2.22 |
|
Datasheet |
HA15-2 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 350mA (AC), 500mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.5A (DC) |
|

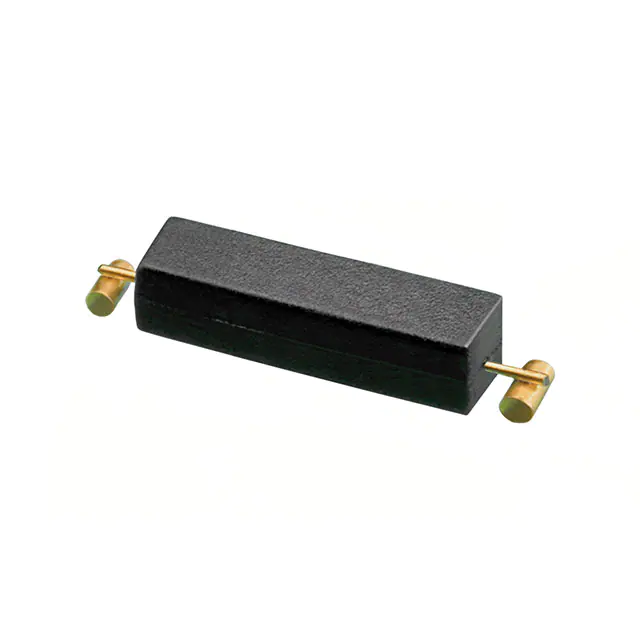

PMC-0701TH1015SWITCH REED SPST-NO 500MA 120V |
1,295 | 2.03 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | Axial | 0.492" (12.50mm) | 0.335" L x 0.110" W x 0.098" H (8.50mm x 2.80mm x 2.50mm) | - | -40°C ~ 125°C | - | 700mA (AC/DC) |
|

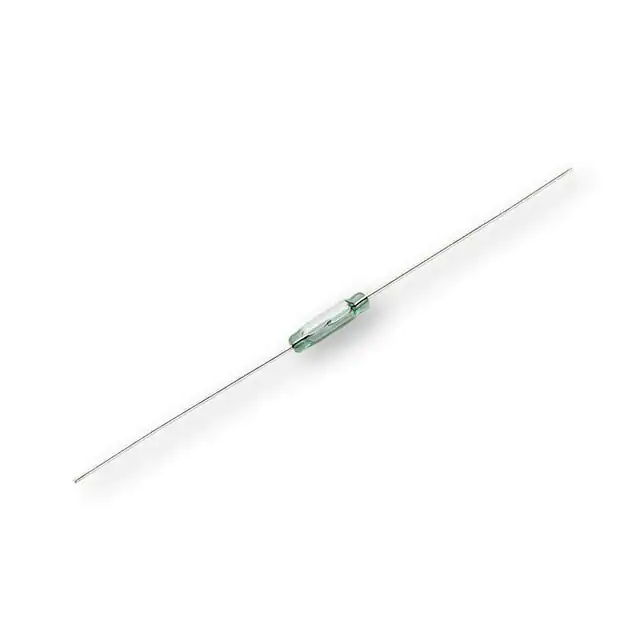

MITI-7-15-20SWITCH REED SPST-NO 180MA 120V |
4,442 | 2.51 |
|
Datasheet |
MITI-7 | Box | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 500 µs | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MITI-7-10-15SWITCH REED SPST-NO 180MA 120V |
957 | 2.51 |
|
Datasheet |
MITI-7 | Box | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 500 µs | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
PMC-2021T2530SWITCH REED SPST-NO 1.5A 250V |
1,800 | 1.88 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | 5AT | 1.5A (AC/DC) | 250 V | 200 V | 50W | 1 ms | 0.4 ms | Surface Mount | Axial | 1.126" (28.60mm) | 0.787" L x 0.100" W x 0.118" H (20.00mm x 2.54mm x 3.00mm) | - | -60°C ~ 125°C | - | 2A (AC/DC) |
|

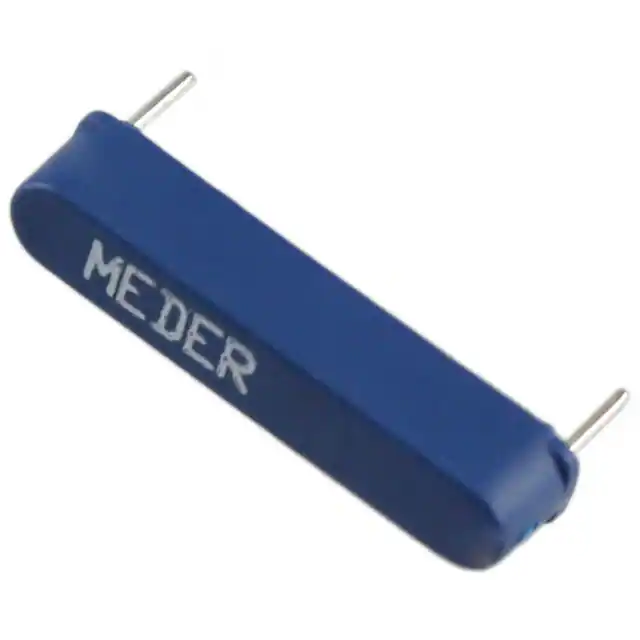

MK06-5-BSWITCH REED SPST-NO 400MA 200V |
1,268 | 2.07 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.05 ms | Through Hole | PC Pin | 0.563" (14.30mm) | 0.563" L x 0.110" W x 0.126" H (14.30mm x 2.80mm x 3.20mm) | 0.126" (3.20mm) | -20°C ~ 85°C | 0.2 pF | 500mA (AC/DC) |
|

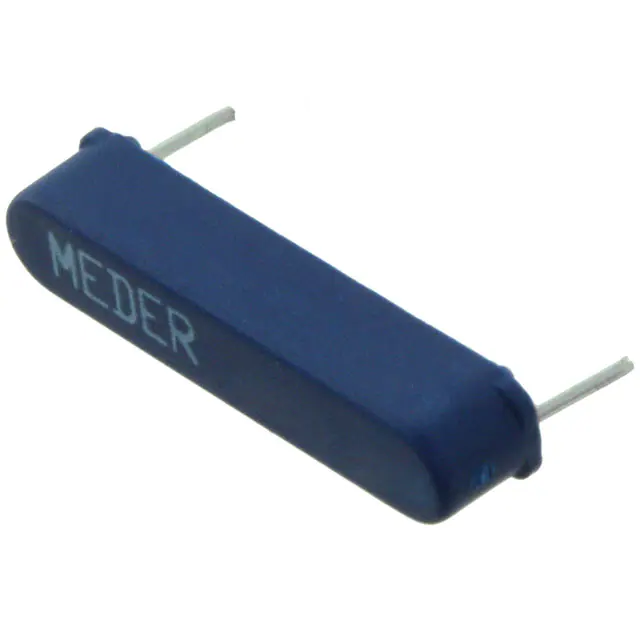

MK06-5-CSWITCH REED SPST-NO 400MA 200V |
135 | 2.07 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.05 ms | Through Hole | PC Pin | 0.563" (14.30mm) | 0.563" L x 0.110" W x 0.126" H (14.30mm x 2.80mm x 3.20mm) | 0.126" (3.20mm) | -20°C ~ 85°C | 0.2 pF | 500mA (AC/DC) |
|
59050-1-S-00-0SWITCH REED SPST-NO 350MA 140V |
382 | 2.06 |
|
Datasheet |
59050 | Box | Active | Molded Body Reed | SPST-NO | 12 ~ 18AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -40°C ~ 105°C | 0.3 pF | 1.2A (DC) |
|
PMC-0701FH1015SWITCH REED SPST-NO 500MA 120V |
4,734 | 2.02 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | J Lead | 0.484" (12.30mm) | 0.374" L x 0.110" W x 0.091" H (9.50mm x 2.80mm x 2.30mm) | 0.091" (2.30mm) | -40°C ~ 125°C | - | 700mA (AC/DC) |
|
|
PMC-0701FH1520SWITCH REED SPST-NO 500MA 120V |
539 | 2.02 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | J Lead | 0.484" (12.30mm) | 0.374" L x 0.110" W x 0.091" H (9.50mm x 2.80mm x 2.30mm) | 0.091" (2.30mm) | -40°C ~ 125°C | - | 700mA (AC/DC) |
|
59170-1-U-00-ASWITCH REED SPST-NO 350MA 140V |
2,680 | 2.09 |
|
Datasheet |
59170 | Box | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 0.5 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
59170-1-S-00-CSWITCH REED SPST-NO 350MA 140V |
1,480 | 2.09 |
|
Datasheet |
59170 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 0.5 ms | Surface Mount | Gull Wing | 0.640" (16.26mm) | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) | 0.095" (2.41mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|

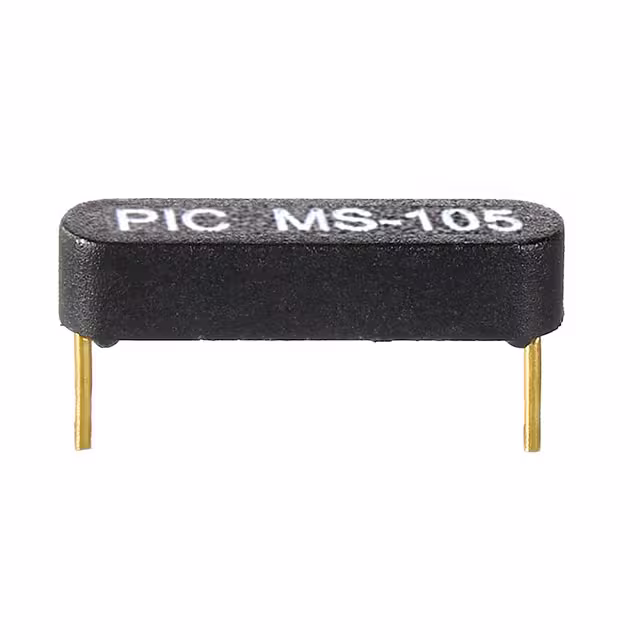

MS-105-3-2SWITCH REED SPST-NO 500MA 120V |
459 | 2.05 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Through Hole | PC Pin | 0.567" (14.40mm) | 0.567" L x 0.110" W x 0.126" H (14.40mm x 2.80mm x 3.20mm) | 0.126" (3.20mm) | -20°C ~ 85°C | - | 700mA (AC/DC) |
|
MISM-7R-15-20SWITCH REED SPST-NO 180MA 120V |
2,236 | 2.89 |
|
Datasheet |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

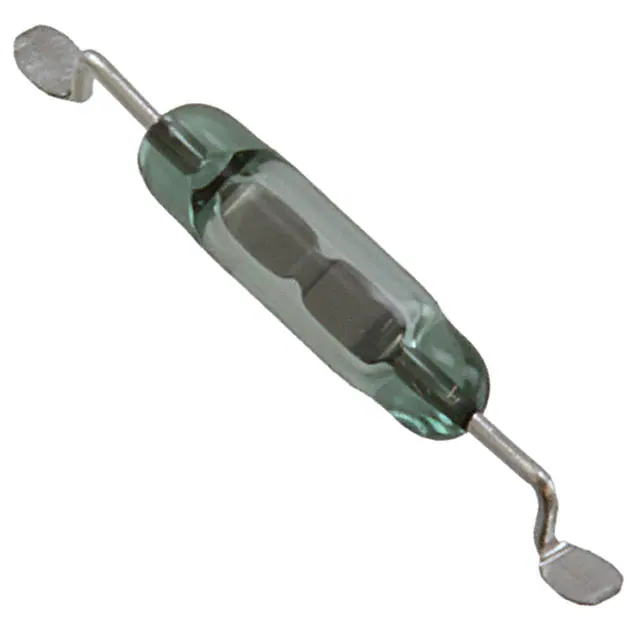

MK23-80-C-2SWITCH REED SPST-NO 500MA 170V |
6,200 | 2.12 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.1 ms | Surface Mount | Gull Wing | 0.512" (13.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|

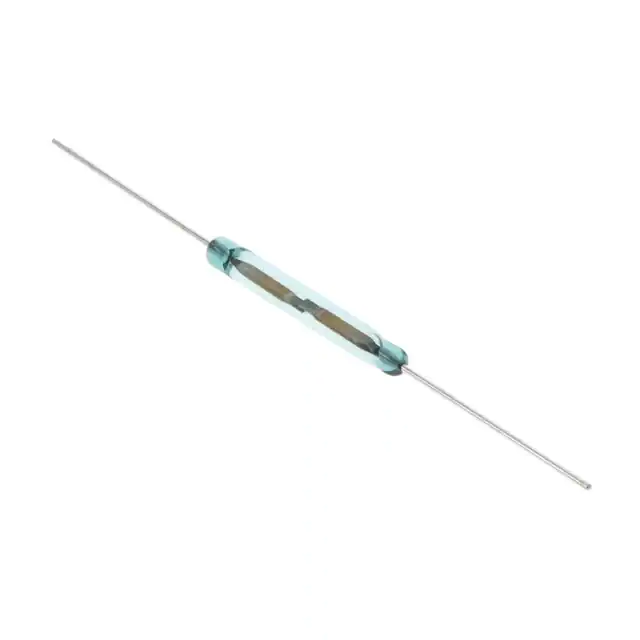

ORD 229/30-35 ATSWITCH REED SPST-NO 500MA 300V |
954 | 2.22 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | - | 500mA (AC), 700mA (DC) | 300 V | 350 V | 50W | 0.6 ms | 50 µs | Through Hole | Axial | 2.181" (55.40mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | - | - | 0.5 pF | 2.5A (AC/DC) |
|
MRPR-20-27-33SWITCH REED SPST-NO 1.1A 265V |
9,323 | 3.39 |
|
Datasheet |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
