Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRPR-20-27-38SWITCH REED SPST-NO 1.1A 265V |
5,801 | 3.39 |
|
Datasheet |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 27 ~ 38AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|
MS-104-3-1SWITCH REED SPST-NO 500MA 120V |
570 | 2.62 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Through Hole | PC Pin | 0.449" (11.40mm) | 0.449" L x 0.106" W x 0.110" H (11.40mm x 2.70mm x 2.80mm) | 0.110" (2.80mm) | -20°C ~ 85°C | - | 700mA (AC/DC) |
|
|
MRPR-20-17-43SWITCH REED SPST-NO 1.1A 265V |
300 | 3.39 |
|
Datasheet |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 43AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|
|
MRPR-20-37-43SWITCH REED SPST-NO 1.1A 265V |
293 | 3.39 |
|
Datasheet |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 37 ~ 43AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|
|
MRPR-20-22-28SWITCH REED SPST-NO 1.1A 265V |
1,000 | 3.39 |
|
Datasheet |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|
MVSR-20-22-33SWITCH REED SPST-NO 350MA 265V |
1,000 | 4.30 |
|
Datasheet |
MVSR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 33AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|

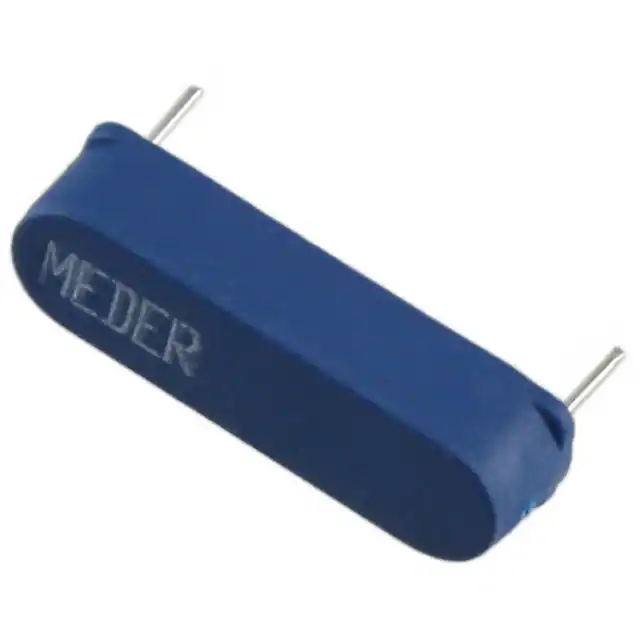

MK06-4-BSWITCH REED SPST-NO 500MA 200V |
648 | 3.51 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | PC Pin | 0.475" (12.06mm) | 0.475" L x 0.130" W x 0.130" H (12.06mm x 3.30mm x 3.30mm) | 0.130" (3.30mm) | -20°C ~ 85°C | 0.3 pF | 1A (AC/DC) |
|
59050-3-T-00-0SWITCH MAGNETIC SPDT 180MA 120V |
1,789 | 4.44 |
|
Datasheet |
59050 | Bulk | Active | Molded Body Reed | SPDT | 5 ~ 14AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 3 ms | 3 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -20°C ~ 105°C | 1 pF | 1.5A (DC) |
|
|
59050-3-S-00-0SWITCH MAGNETIC SPDT 180MA 120V |
422 | 4.47 |
|
Datasheet |
59050 | Bulk | Active | Molded Body Reed | SPDT | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 3 ms | 3 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -20°C ~ 105°C | 1 pF | 1.5A (DC) |
|

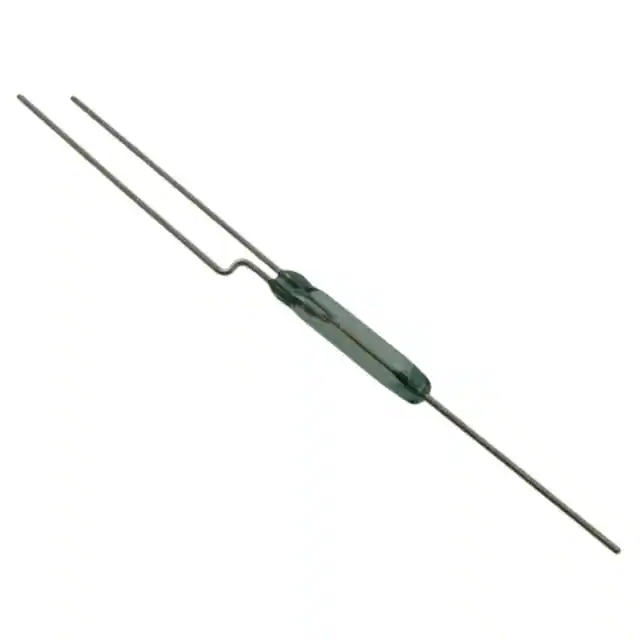

KSK-1C90F-1520SWITCH REED SPDT 500MA 175V |
2,650 | 4.22 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 20AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Through Hole | Axial | 2.169" (55.10mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | - | -40°C ~ 130°C | 1 pF | 1A (AC/DC) |
|
MDRR-DT-20-25-FSWITCH REED SPDT 180MA 120V |
272 | 5.17 |
|
Datasheet |
MDRR-DT | Box | Active | Glass Body Reed | SPDT | 20 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDRR-DT-15-20-USWITCH REED SPDT 180MA 120V |
941 | 5.08 |
|
Datasheet |
MDRR-DT | Box | Active | Glass Body Reed | SPDT | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MDRR-DT-25-30-USWITCH REED SPDT 180MA 120V |
1,000 | 4.99 |
|
Datasheet |
MDRR-DT | Box | Active | Glass Body Reed | SPDT | 25 ~ 30AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
GC3436 20/25SWITCH REED SPDT 1A 150V |
351 | 0.00 |
|
Datasheet |
GC | Box | Active | Glass Body Reed | SPDT | 20 ~ 25AT | 5AT | 1A (AC/DC) | 150 V | 150 V | 20VA | 2 ms | 2 ms | Through Hole | Axial | 2.165" (55.00mm) | 0.090" Dia x 0.551" L (2.29mm x 14.00mm) | - | -40°C ~ 125°C | 0.8 pF | 2A |
|
MK24-A-1SWITCH REED SPST-NO 100MA 30V |
1,948 | 4.65 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 22 ~ 55AT | - | 100mA (AC/DC) | 30 V | 30 V | 1W | 0.25 ms | 0.15 ms | Surface Mount | Axial, Flat | 0.303" (7.70mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | - | -40°C ~ 130°C | 0.1 pF | 300mA (AC/DC) |
|
MDSM-DTB-15-20SWITCH REED SPDT 180MA 120V |
1,000 | 5.10 |
|
Datasheet |
MDSM-DT | Box | Active | Glass Body Reed | SPDT | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
GC3336 15/20SWITCH REED SPDT 1A 150V |
324 | 0.00 |
|
Datasheet |
GC | Box | Active | Glass Body Reed | SPDT | 15 ~ 20AT | 5AT | 1A (AC/DC) | 150 V | 150 V | 20VA | 2 ms | 2 ms | Through Hole | Axial | 2.165" (55.00mm) | 0.090" Dia x 0.551" L (2.29mm x 14.00mm) | - | -40°C ~ 125°C | 0.8 pF | 2A |
|
|
GC3336 25/30SWITCH REED SPDT 1A 150V |
185 | 0.00 |
|
Datasheet |
GC | Box | Active | Glass Body Reed | SPDT | 25 ~ 30AT | 5AT | 1A (AC/DC) | 150 V | 150 V | 20VA | 2 ms | 2 ms | Through Hole | Axial | 2.165" (55.00mm) | 0.090" Dia x 0.551" L (2.29mm x 14.00mm) | - | -40°C ~ 125°C | 0.8 pF | 2A |
|
MK24-D-3SWITCH REED SPST-NO 300MA 30V |
3,419 | 5.07 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 46 ~ 90AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | J Lead | 0.217" (5.51mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | 0.071" (1.80mm) | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|

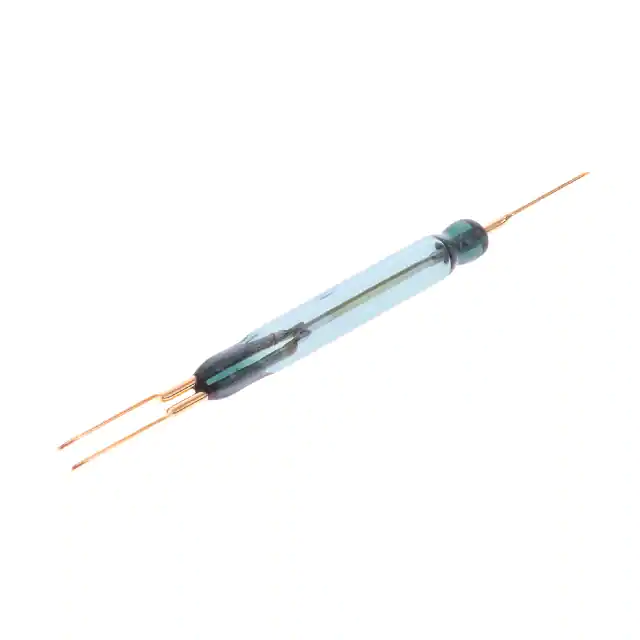

GC1917 - 6065SWITCH REED SPDT 1A 400V |
1,981 | 5.92 |
|
Datasheet |
GC1917 | Bulk | Active | Glass Body Reed | SPDT | 60 ~ 65AT | 20AT | 1A (AC/DC) | 400 V | 400 V | 60W | 2 ms | 1.5 ms | Surface Mount | Axial, Flat | 2.750" (69.85mm) | 0.220" Dia x 1.420" L (5.59mm x 36.07mm) | - | -40°C ~ 125°C | 1 pF | 2A (AC/DC) |
