Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

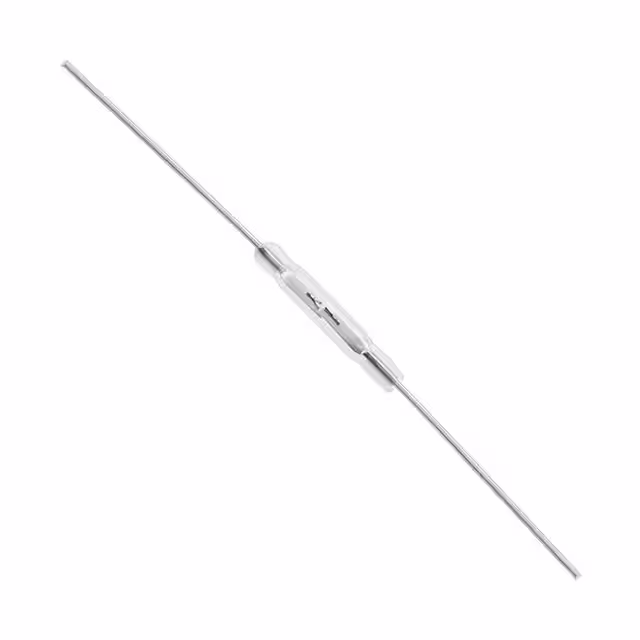

SW GP560/15-20 ATSWITCH REED SPST-NO 1A 125V |
767 | 0.59 |
|
Datasheet |
GP560 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 50AT | 6 ~ 21AT | 1A (AC/DC) | 125 V | 100 V | 10VA | 0.6 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -40°C ~ 125°C | 0.2 pF | 1.5A (AC/DC) |
|
MK24-D-2SWITCH REED SPST-NO 300MA 30V |
4,982 | 4.80 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 60 ~ 100AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | Gull Wing | 0.272" (6.91mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | 0.071" (1.80mm) | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|

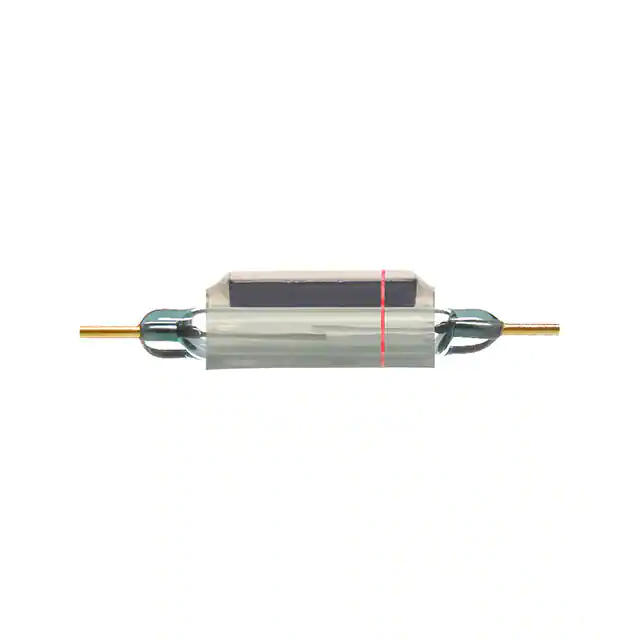

PMC-1401SXSWITCH REED LATCHING 500MA 100V |
3,545 | 7.07 |
|
Datasheet |
- | Bulk | Active | Glass Body Reed | SPST-NO, Latching | - | - | 500mA (AC/DC) | 100 V | 140 V | 5W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.138" Dia x 0.559" L (3.50mm x 14.20mm) | - | -40°C ~ 125°C | - | 700mA (AC/DC) |
|
FLEX-14-25-30SWITCH REED SPST-NO 350MA 140V |
478 | 1.22 |
|
Datasheet |
FLEX-14 | Box | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.55 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
MDCG-4-32-38SWITCH REED SPST-NO 350MA 140V |
935 | 1.38 |
|
Datasheet |
MDCG-4 | Bulk | Active | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDCG-4-12-38SWITCH REED SPST-NO 350MA 140V |
178 | 1.38 |
|
Datasheet |
MDCG-4 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 38AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
59166-1-T-00-DSWITCH REED SPST-NO 350MA 140V |
854 | 1.11 |
|
Datasheet |
59166 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.805" (20.45mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
59165-1-U-00-DSWITCH REED SPST-NO 350MA 140V |
1,918 | 1.14 |
|
Datasheet |
59165 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Surface Mount | Gull Wing | 0.795" (20.19mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
MLRR-3-17-23SWITCH REED SPST-NO 700MA 140V |
3,982 | 1.57 |
|
Datasheet |
MLRR-3 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|

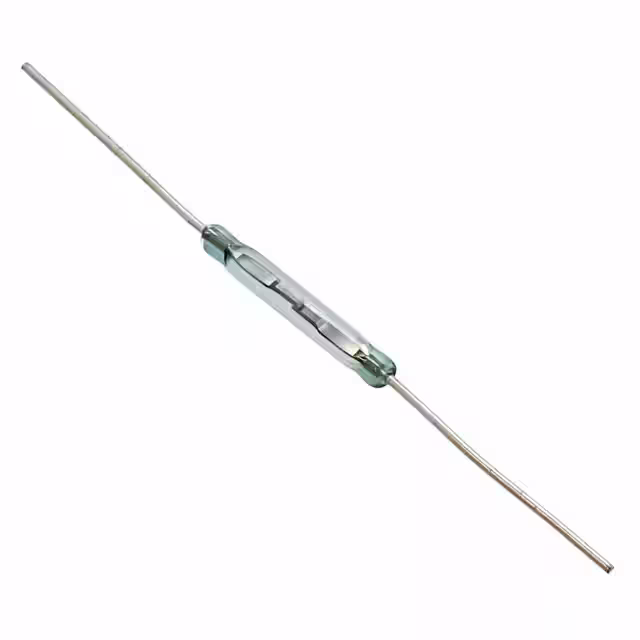

MDSR-7-15-20SWITCH REED SPST-NO 350MA 140V |
4,794 | 1.57 |
|
Datasheet |
MDSR-7 | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
MDSR-7-25-30SWITCH REED SPST-NO 350MA 140V |
858 | 1.57 |
|
Datasheet |
MDSR-7 | Box | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
MLRR-4-17-38SWITCH REED SPST-NO 700MA 140V |
796 | 1.67 |
|
Datasheet |
MLRR-4 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 38AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
|
MDCG-4-22-28SWITCH REED SPST-NO 350MA 140V |
442 | 1.38 |
|
Datasheet |
MDCG-4 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MLRR-3-27-33SWITCH REED SPST-NO 700MA 140V |
952 | 1.57 |
|
Datasheet |
MLRR-3 | Bulk | Active | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
MS-108-3-4SWITCH REED SPST-NO 1A 140V |
4,977 | 1.36 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 25 ~ 30AT | 5AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Through Hole | PC Pin | 0.878" (22.30mm) | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | - | 1.2A (AC/DC) |
|
HA15-2-42-48SWITCH REED SPST-NO 350MA 265V |
582 | 2.22 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 42 ~ 48AT | - | 350mA (AC), 500mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.5A (DC) |
|
59050-1-T-00-0SWITCH REED SPST-NO 350MA 140V |
390 | 2.06 |
|
Datasheet |
59050 | Box | Active | Molded Body Reed | SPST-NO | 17 ~ 23AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -40°C ~ 105°C | 0.3 pF | 1.2A (DC) |
|
GC3336 20/25SWITCH REED SPDT 1A 150V |
2,294 | 0.00 |
|
Datasheet |
GC | Box | Active | Glass Body Reed | SPDT | 20 ~ 25AT | 5AT | 1A (AC/DC) | 150 V | 150 V | 20VA | 2 ms | 2 ms | Through Hole | Axial | 2.165" (55.00mm) | 0.090" Dia x 0.551" L (2.29mm x 14.00mm) | - | -40°C ~ 125°C | 0.8 pF | 2A |
|
PMC-0508TH1015SWITCH REED SPST-NO 250MA 140V |
4,287 | 6.35 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 2AT | 250mA (AC/DC) | 140 V | 175 V | 5W | 0.35 ms | 0.1 ms | Surface Mount | Axial | 0.398" (10.11mm) | 0.256" L x 0.114" W x 0.091" H (6.50mm x 2.90mm x 2.30mm) | - | -40°C ~ 125°C | - | 500mA (AC/DC) |
|

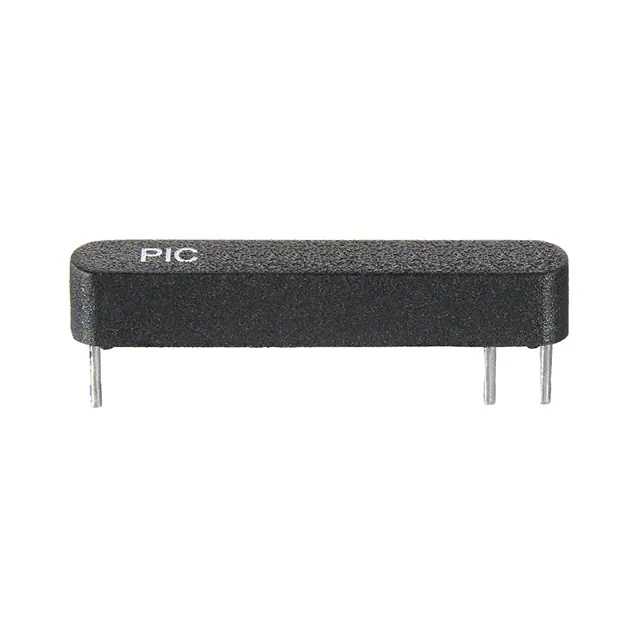

MS-108-4-2SWITCH REED SPDT 250MA 120V |
3,449 | 4.77 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPDT | 15 ~ 20AT | 5AT | 250mA (AC/DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | PC Pin | 0.878" (22.30mm) | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | - | 1.5A (AC/DC) |
