Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDSM-4R-22-33SWITCH REED SPST-NO 350MA 140V |
2,934 | 1.67 |
|
Datasheet |
MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 22 ~ 33AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSM-4R-27-33SWITCH REED SPST-NO 350MA 140V |
2,788 | 1.67 |
|
Datasheet |
MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MASM-14R-15-20SWITCH REED SPST-NO 350MA 140V |
1,498 | 1.67 |
|
Datasheet |
MASM-14 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
MASM-14R-20-25SWITCH REED SPST-NO 350MA 140V |
1,443 | 1.67 |
|
Datasheet |
MASM-14 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|

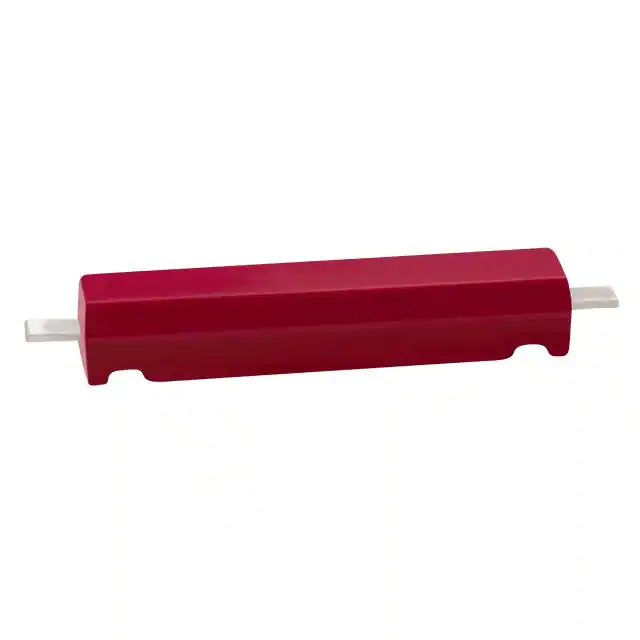

CT10-1030-A2SWITCH REED SPST-NO 500MA 140V |
2,000 | 0.81 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 30AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Axial, Flat | 0.614" (15.60mm) | 0.505" L x 0.095" W x 0.095" H (12.83mm x 2.41mm x 2.41mm) | - | -40°C ~ 125°C | - | 500mA (DC) |
|

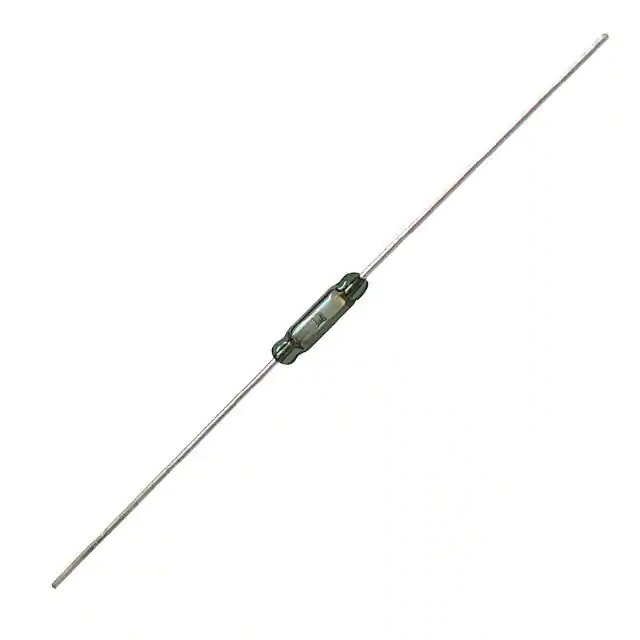

RI-80GP1015SWITCH REED SPST-NO 250MA 140V |
881 | 1.42 |
|
Datasheet |
RI-80 | Bulk | Discontinued at Digi-Key | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 250mA (AC), 350mA (DC) | 140 V | 200 V | 5W | 0.35 ms | 0.02 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.197" L (1.80mm x 5.00mm) | - | -55°C ~ 125°C | 0.45 pF | 500mA (AC/DC) |
|

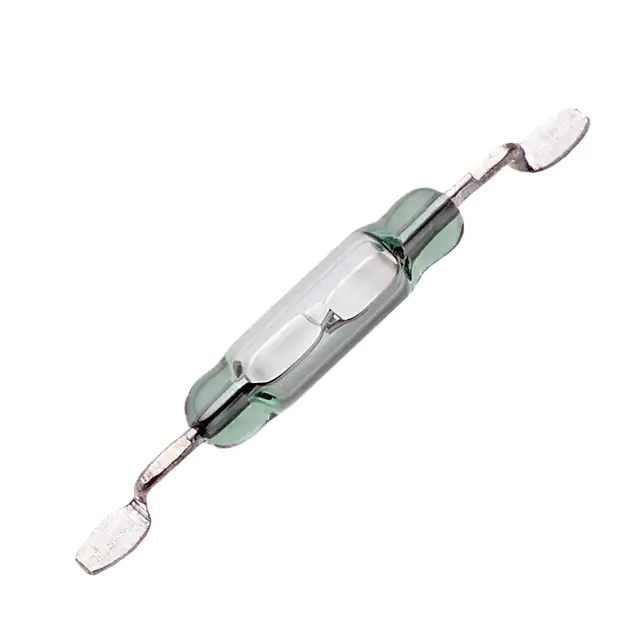

MISM-3V1R-8-12.5SWITCH REED SPST-NO 180MA 120V |
3,061 | 2.85 |
|
- |
MISM-3V1 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 8 ~ 12AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 0.45 ms | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
MDSM-DTR-15-20SWITCH REED SPDT 180MA 120V |
1,587 | 5.19 |
|
Datasheet |
MDSM-DT | Tape & Reel (TR) | Active | Glass Body Reed | SPDT | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|

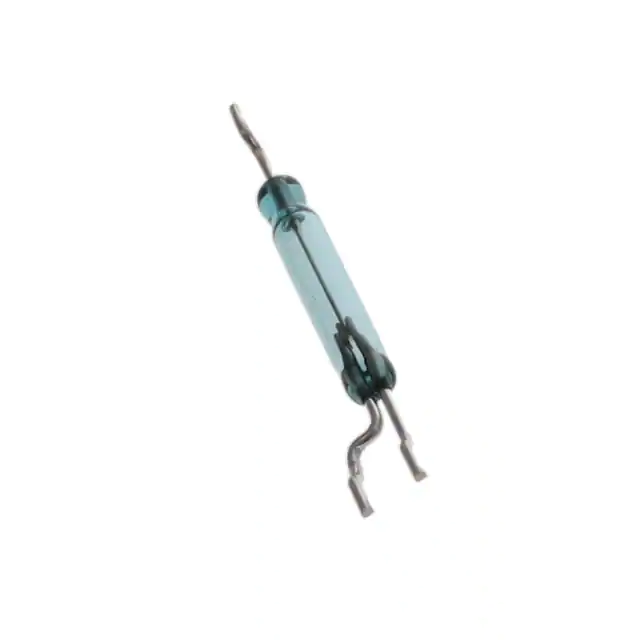

MDSM-DTR-10-15SWITCH REED SPDT 180MA 120V |
5,964 | 5.50 |
|
Datasheet |
MDSM-DT | Tape & Reel (TR) | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Axial | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.113" (2.87mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
DRS-50-87-93SWITCH REED SPST-NO 2.1A 280V |
147 | 5.67 |
|
Datasheet |
DRS-50 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 87 ~ 93AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
CT05-3050-G1SWITCH REED SPST-NO 250MA 100V |
245 | 2.87 |
|
Datasheet |
CT05 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 30 ~ 50AT | - | 250mA (AC), 350mA (DC) | 100 V | 140 V | 5W | - | - | Surface Mount | Gull Wing | 0.376" (9.55mm) | 0.252" L x 0.091" W x 0.091" H (6.40mm x 2.31mm x 2.31mm) | 0.094" (2.40mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
CT05-3050-J1SWITCH REED SPST-NO 250MA 100V |
1,668 | 2.87 |
|
Datasheet |
CT05 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 30 ~ 50AT | - | 250mA (AC), 350mA (DC) | 100 V | 140 V | 5W | - | - | Surface Mount | J Lead | 0.298" (7.57mm) | 0.252" L x 0.091" W x 0.091" H (6.40mm x 2.31mm x 2.31mm) | 0.094" (2.40mm) | -40°C ~ 125°C | - | 500mA (DC) |
|

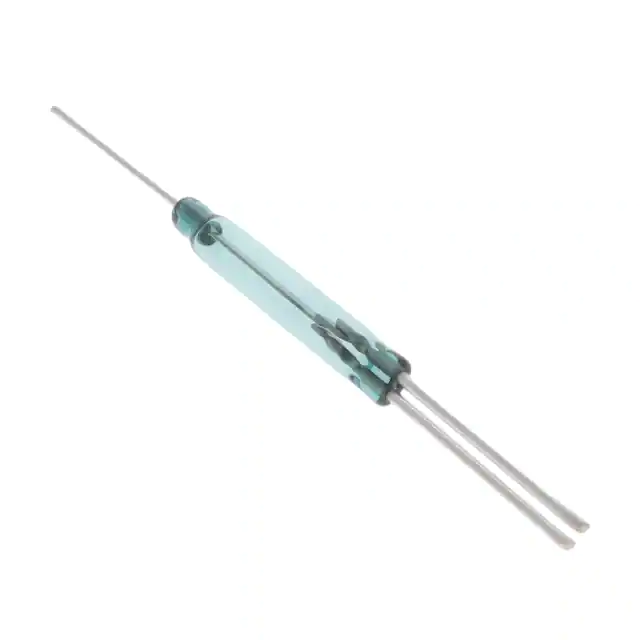

DRS-DTH-60-65SWITCH REED SPDT 350MA 350V |
1,926 | 19.32 |
|
Datasheet |
DRS-DTH | Box | Active | Glass Body Reed | SPDT | 60 ~ 65AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|
2230-1901-900SWITCH REED SPST-NC 1A 150V |
250 | 0.00 |
|
Datasheet |
2230 | Retail Package | Active | Glass Body Reed | SPST-NC | - | - | 1A (AC/DC) | 150 V | 150 V | 20W | 2 ms | 0.5 µs | - | Wire Leads | 2.165" (55.00mm) | - | - | -40°C ~ 105°C | - | 2A (AC/DC) |
|
|
2451-1901-900SWITCH REED SPST-NC 1A 150V |
250 | 0.00 |
|
Datasheet |
2451 | Retail Package | Active | Glass Body Reed | SPST-NC | - | - | 1A (AC/DC) | 150 V | 150 V | 20W | 2 ms | 0.5 µs | - | Wire Leads | 2.165" (55.00mm) | - | - | -40°C ~ 105°C | - | 2A (AC/DC) |
|
|
2450-1901-900SWITCH REED SPST-NC 1A 150V |
250 | 0.00 |
|
Datasheet |
2450 | Retail Package | Active | Glass Body Reed | SPST-NC | - | - | 1A (AC/DC) | 150 V | 150 V | 20W | 2 ms | 0.5 µs | - | Wire Leads | 2.165" (55.00mm) | - | - | -40°C ~ 105°C | - | 2A (AC/DC) |
|
|
2602-1901-900SWITCH REED SPST-NC 1A 150V |
250 | 0.00 |
|
Datasheet |
2602 | Retail Package | Active | Glass Body Reed | SPST-NC | - | - | 1A (AC/DC) | 150 V | 150 V | 20W | 2 ms | 0.5 µs | - | Wire Leads | 2.165" (55.00mm) | - | - | -40°C ~ 105°C | - | 2A (AC/DC) |
|
|
2501-1901-900SWITCH REED SPST-NC 1A 150V |
250 | 0.00 |
|
Datasheet |
2501 | Retail Package | Active | Glass Body Reed | SPST-NC | - | - | 1A (AC/DC) | 150 V | 150 V | 20W | 2 ms | 0.5 µs | - | Wire Leads | 2.165" (55.00mm) | - | - | -40°C ~ 105°C | - | 2A (AC/DC) |
|

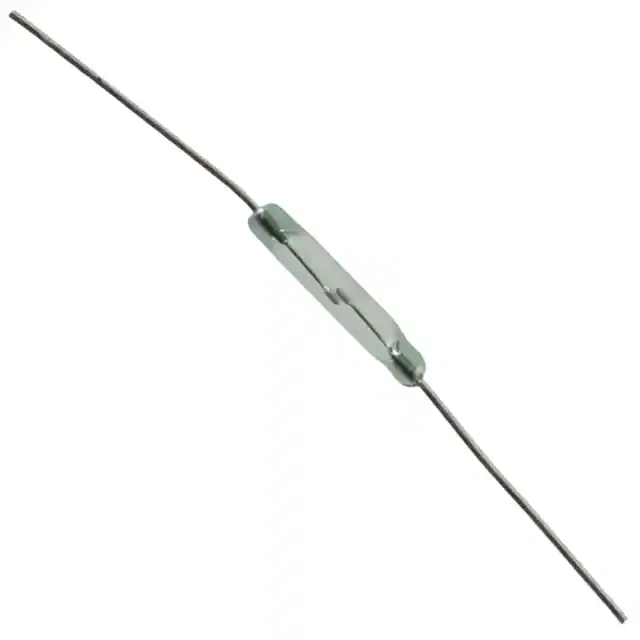

ORD 211/20-30 ATSWITCH REED SPST-NO 100MA 24V |
785 | 0.95 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 100mA (AC/DC) | 24 V | 24 V | 1VA | 0.3 ms | 0.05 ms | Through Hole | Axial | 1.406" (35.70mm) | 0.079" Dia x 0.394" L (2.00mm x 10.00mm) | - | - | 0.2 pF | 300mA (AC/DC) |
|

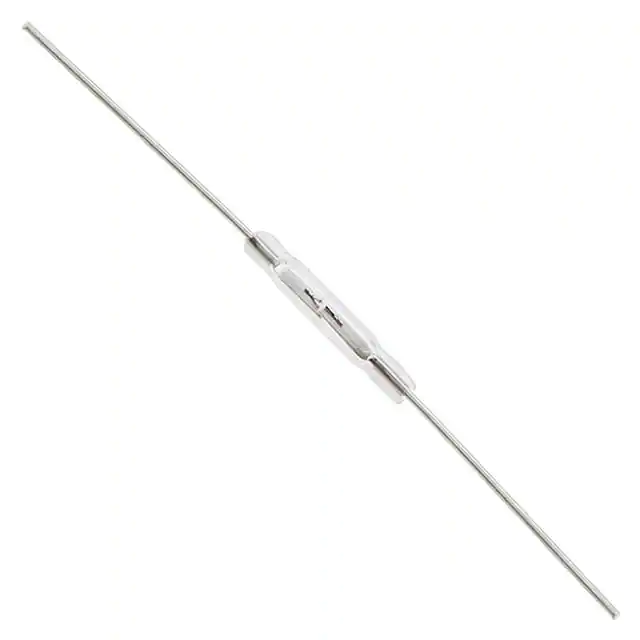

SW GP501/20-25 ATSWITCH REED SPST-NO 500MA 200V |
154 | 0.74 |
|
Datasheet |
GP501 | Bulk | Active | Glass Body Reed | SPST-NO | 7 ~ 30AT | 4 ~ 9AT | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.500" L (2.30mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (AC/DC) |
