Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

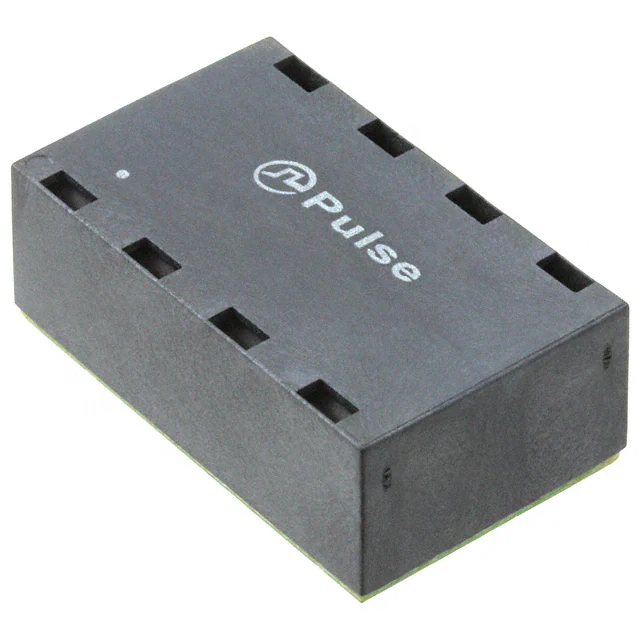

H5400NLMODULE XFORMR QUAD GIGABIT SMD |
549 | 22.29 |
|
Datasheet |
- | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.438" (11.12mm) | 0°C ~ 70°C | - | - |
|

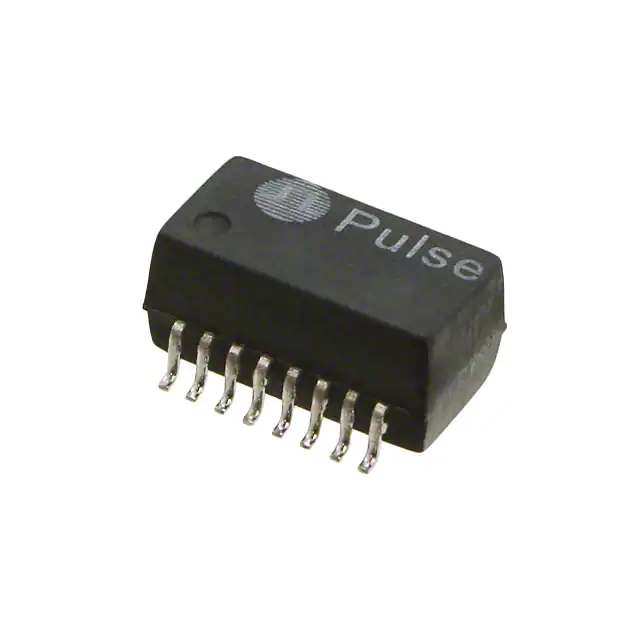

100B-1003XTRANSFORMER 10/100BASE SINGLE |
3,910 | 15.95 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | -55°C ~ 125°C | - | - |
|

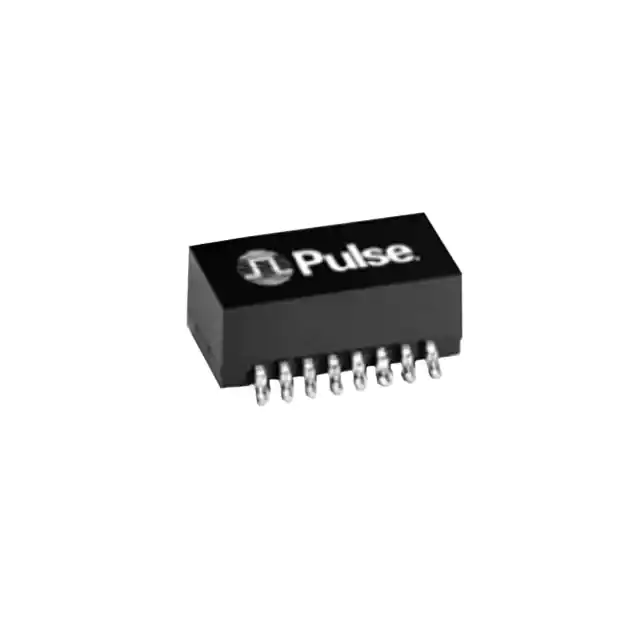

100B-1003XNLXFMR MODULE 100BT SMG COM NPB |
2,615 | 16.48 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | -55°C ~ 125°C | - | - |
|
|
HX5401NLXFRMR MODL 4PORT POE GIGABIT |
440 | 24.48 |
|
Datasheet |
- | Tray | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.438" (11.12mm) | -40°C ~ 85°C | - | - |
|
HX5400NLTXFRMR MODULE QUAD 1GP 1:1 BGA |
288 | 0.00 |
|
Datasheet |
HX5400NLT | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|
100B-1003FXNLEXTMP XFMR 100BT SMG COM NPB |
816 | 17.71 |
|
Datasheet |
- | Bulk | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | - | - | - |
|

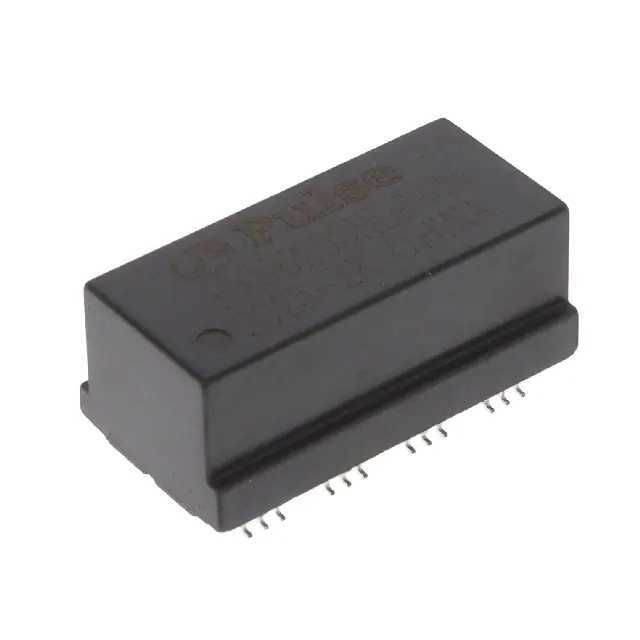

HXU6200NLTXFRMR MAGNETIC 1PORT 1GIG MED |
268 | 25.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.132" L x 0.600" W (28.75mm x 15.24mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|

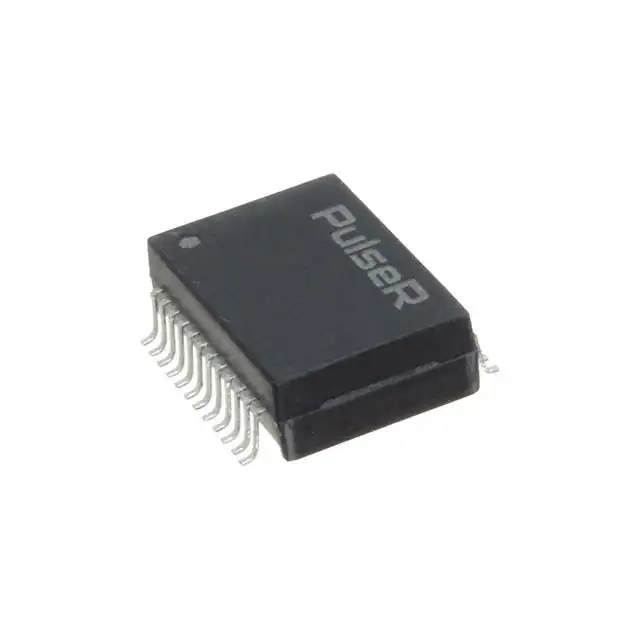

1000B-5001FXTXFMR MODULE SNGL 1000BT SMT PBC |
1,091 | 24.86 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.235" (5.97mm) | -55°C ~ 125°C | - | - |
|
1000B-5001FNLXFMR CHOKE SHUNT QUAD 100 NPB |
427 | 24.60 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.235" (5.97mm) | -55°C ~ 85°C | - | - |
|
|
1000B-5001FXXFMR MODULE SNGL 1000BT SMT PBC |
935 | 25.84 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.235" (5.97mm) | -55°C ~ 125°C | - | - |
|

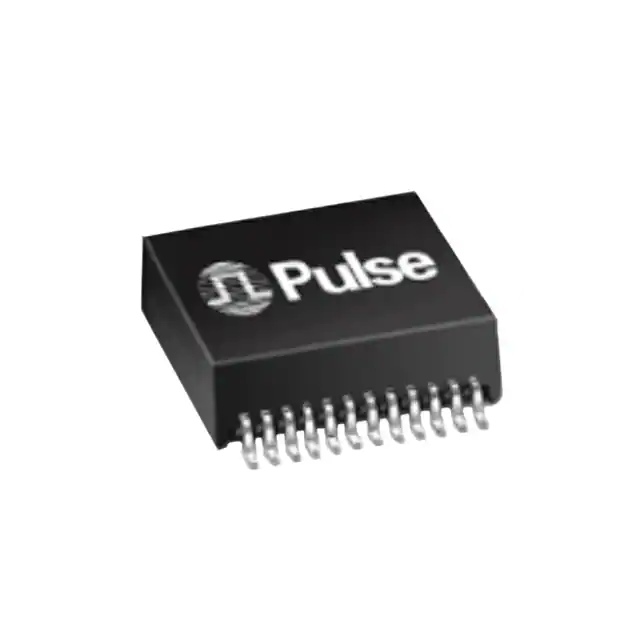

1000B-5003FXNLTXFMR MODULE DUAL 1GD SMT PBC |
170 | 33.24 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | -55°C ~ 125°C | - | - |
|
|
T-1062SCTXFMR DUAL 1062.5M BAUD |
167 | 38.08 |
|
Datasheet |
Copperhead™ | Bulk | Active | - | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.290" W (12.70mm x 7.37mm) | 0.180" (4.57mm) | -55°C ~ 125°C | - | - |
|

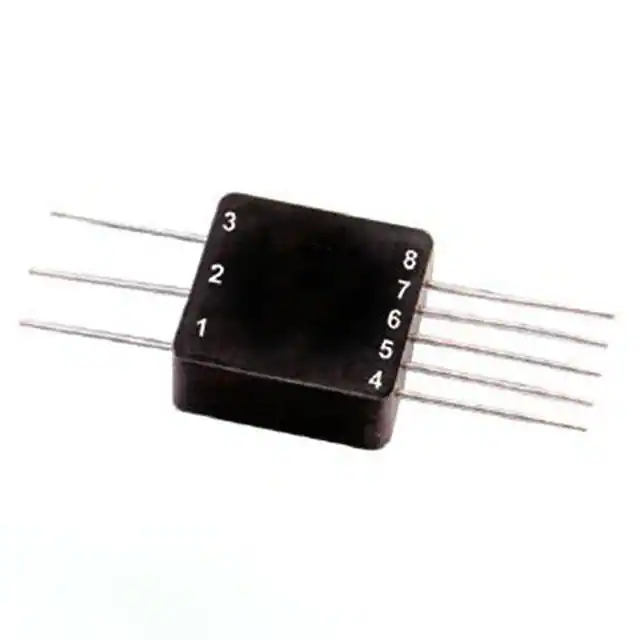

Q1553-20TRANSFORMER PBC |
967 | 35.83 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1:1.41 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
|
1000B-5003FXNLXFMR MODULE DUAL 1GD SMT PBC |
412 | 38.46 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | -55°C ~ 125°C | - | - |
|
T-1485SCTXFMR DUAL 1485M BAUD |
1,215 | 42.80 |
|
Datasheet |
Copperhead™ | Bulk | Active | - | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.290" W (12.70mm x 7.37mm) | 0.180" (4.57mm) | -55°C ~ 125°C | - | - |
|

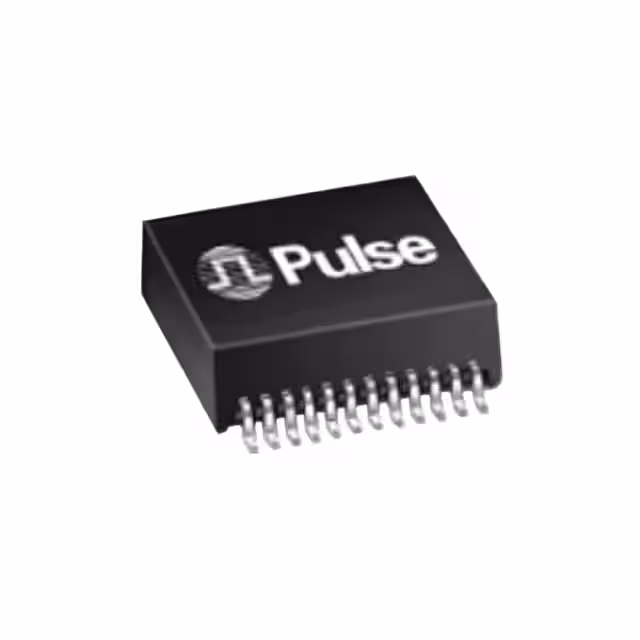

1000B-5014FTXFMR MODULE DUAL 1GD SMT PBC |
217 | 52.90 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.251" (6.38mm) | -40°C ~ 85°C | - | - |
|
SM453229-231N7YCHIP LAN,10/100/1G XFORMER,POE,4 |
1,743 | 0.86 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 200µH | - | 1:1 | Surface Mount | - | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|
DA102JC-RDIGITAL AUDIO TX 1:1 3MH DIP |
513 | 2.55 |
|
Datasheet |
DA100J | Tape & Reel (TR) | Active | - | 3.9mH | 20VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
78613/9JC-RPULSE XFMR 1CT:1 10MH |
1,952 | 2.79 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 10mH | 56VµS | 1CT:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/9JC-RPULSE XFMR 1:1:1 10MH |
4,713 | 2.79 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 10mH | 56VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
