Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA0264NLTPULSE XFMR 1:1:1 1.14MH |
4,944 | 3.17 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.14mH | 17.2VµS | 1:1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.140" (3.56mm) | -40°C ~ 130°C | - | - |
|

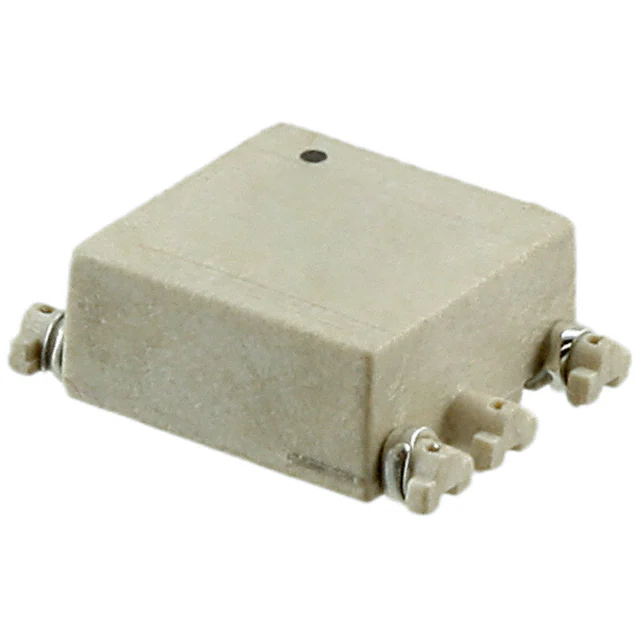

PA0185NLPULSE XFMR 1:1 980UH |
1,158 | 3.05 |
|
Datasheet |
- | Tube | Active | - | 980µH | 17.2VµS | 1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
|
|
PA0185NLTPULSE XFMR 1:1 980UH |
1,243 | 3.20 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 980µH | 17.2VµS | 1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
|
SM91525AL-ETRANSFORMER CMC BMS 4.3KVDC |
3,089 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
LTA1VS16B-351-RTRANSF ETHERNET LAN 350UH |
657 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.10mm) | 0.252" (6.40mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
PE-65723NLTRANSFORMER 2000VRMS 75UH SMD |
551 | 4.97 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 75µH | 1.8VµS | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|

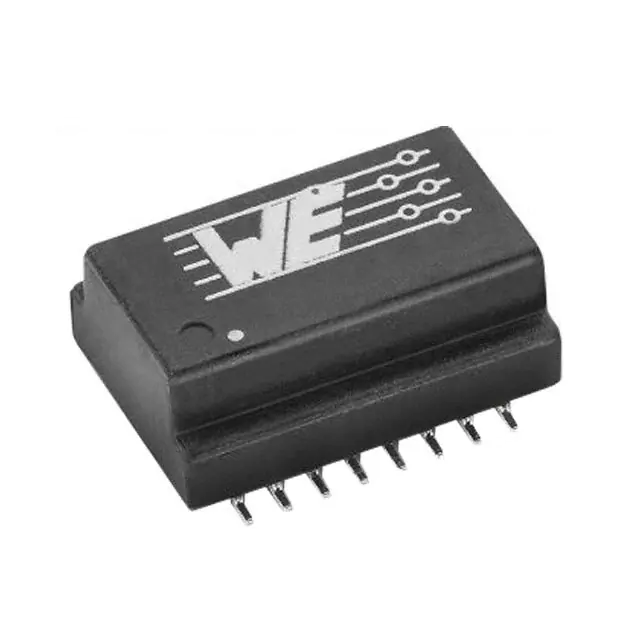

749010012AWE-LAN 10/100 BASE-T SMT TRANSFO |
781 | 3.92 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | - | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
P0544NLPULSE XFMR 1:1:1 3.3MH |
1,452 | 3.38 |
|
Datasheet |
- | Tube | Active | - | 3.3mH | 45.1VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PA0184NLPULSE XFMR 1:1 1.2MH |
944 | 3.51 |
|
Datasheet |
- | Tube | Active | - | 1.2mH | 27.2VµS | 1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PM2185.011NLTXFMR GATE-DR 1CT:1CT SM NPB |
309 | 2.67 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 1CT:1CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
PH9572.111ANLTGDT, FUNCTIONAL, EP7, SMT |
4,324 | 2.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 4mH | 84.7VµS | 1:1:1 | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
PA2467NLTPULSE XFMR 37UH |
1,170 | 3.81 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PH9572.233ANLTGDT, FUNCTIONAL, EP7, SMT |
624 | 2.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 1.8mH | 56.5VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|

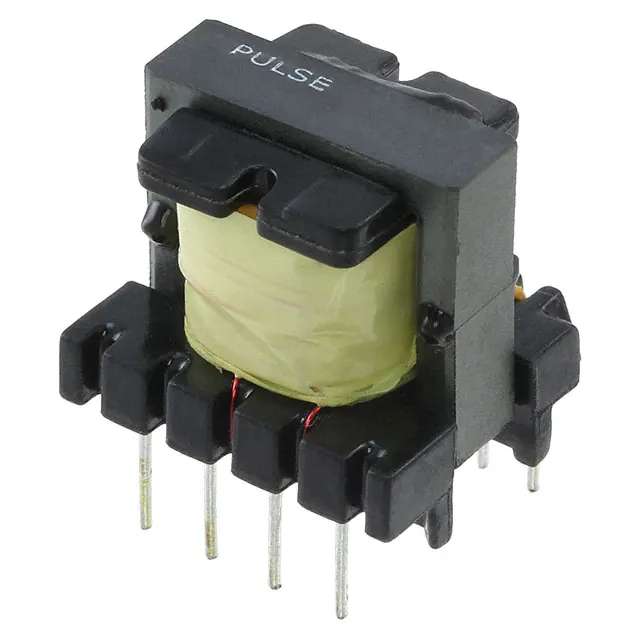

P5009NLPULSE XFMR 1:0.1:0.1 |
2,400 | 3.69 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.1:0.1 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9385.027NLTXFMR PUSH-PULL SIDE CAR 2:7 SMT |
139 | 3.75 |
|
Datasheet |
PH9385 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | 0.295" (7.50mm) | - | - | - |
|
|
ISNF-0135-D101ISNF PULSE TRANSFORMER SMD 0.1A |
4,778 | 3.92 |
|
Datasheet |
IS | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.1mH | 150VµS | 1:1:1 | Surface Mount | 0.512" L x 0.598" W (13.00mm x 15.20mm) | 0.433" (11.00mm) | -25°C ~ 100°C | - | - |
|
P0926NLPULSE XFMR 1:1:1 300UH |
1,380 | 3.94 |
|
Datasheet |
- | Tray | Active | - | 300µH | 23.8VµS | 1:1:1 | Surface Mount | 0.260" L x 0.315" W (6.60mm x 8.00mm) | 0.210" (5.33mm) | -40°C ~ 130°C | - | - |
|

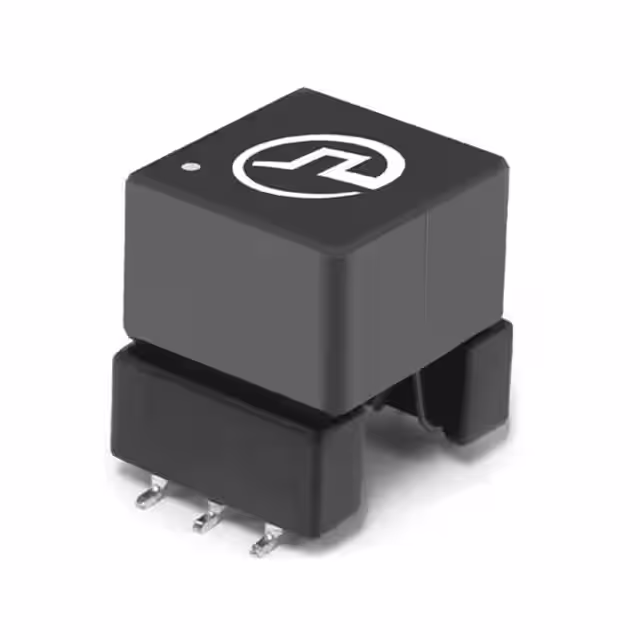

PM2190.011NLTXFMR PWR .750 UH EP7 SM NPB |
739 | 4.00 |
|
Datasheet |
PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 750µH | 66VµS | 1CT:1CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
PM2190.012NLTXFMR PWR .450 UH EP7 SM NPB |
848 | 2.21 |
|
Datasheet |
PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 450µH | 52VµS | 1CT:2CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|

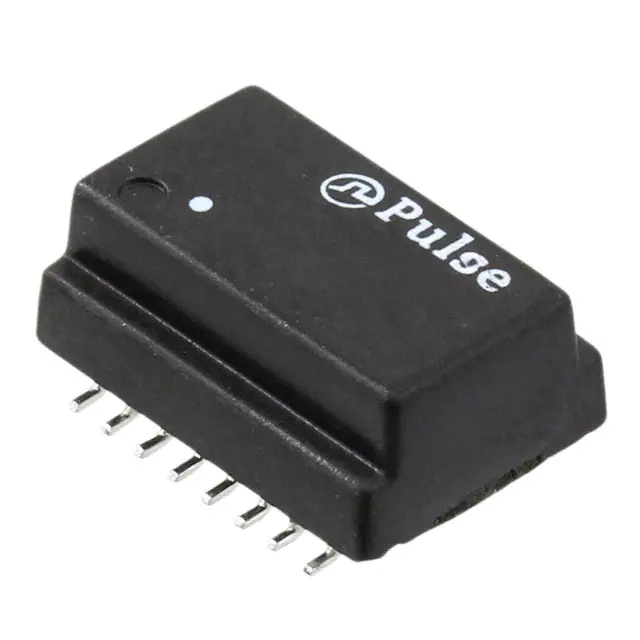

HX1260FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,515 | 5.49 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
