Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

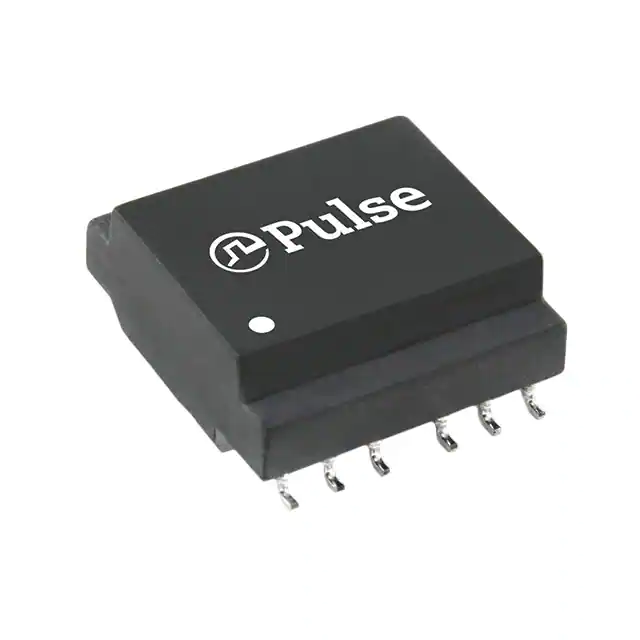

HX1224CNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
541 | 8.33 |
|
Datasheet |
µCom | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537" L x 0.570" W (13.64mm x 14.48mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

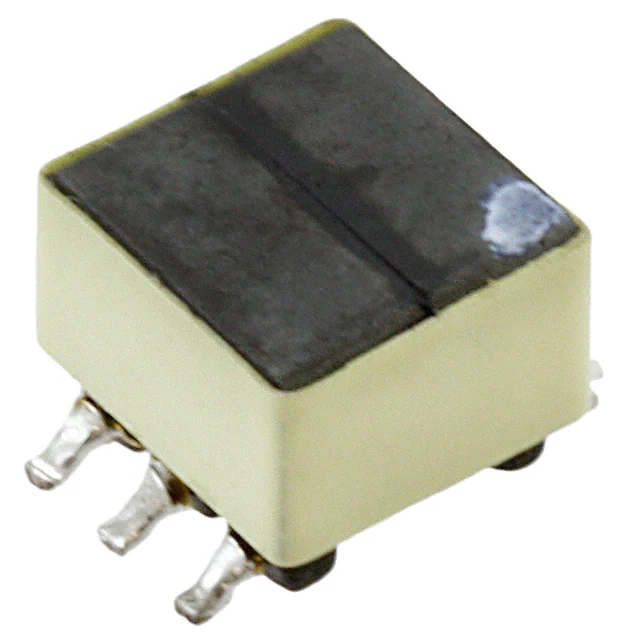

760301106XFRMR GATE DRIVE 1:1 SMD |
2,744 | 8.68 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 370µH | - | 1:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|

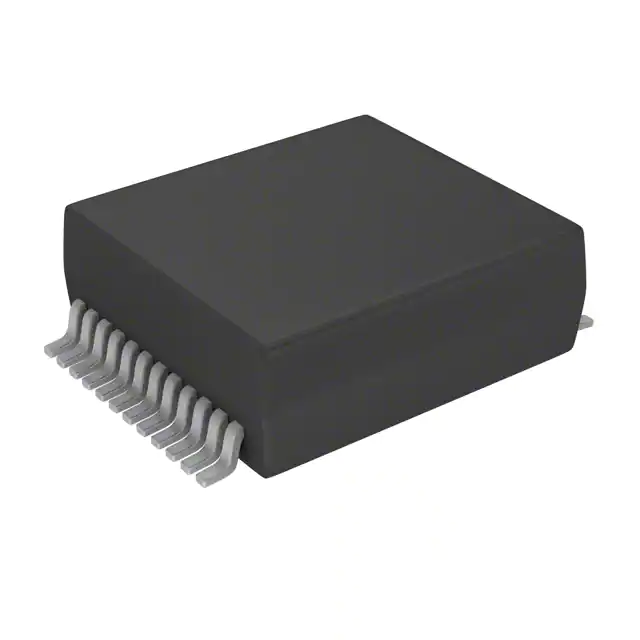

HX5008NLTTRANSFORMER MODULE GIGABIT 1PORT |
8,165 | 13.20 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | -40°C ~ 85°C | - | - |
|

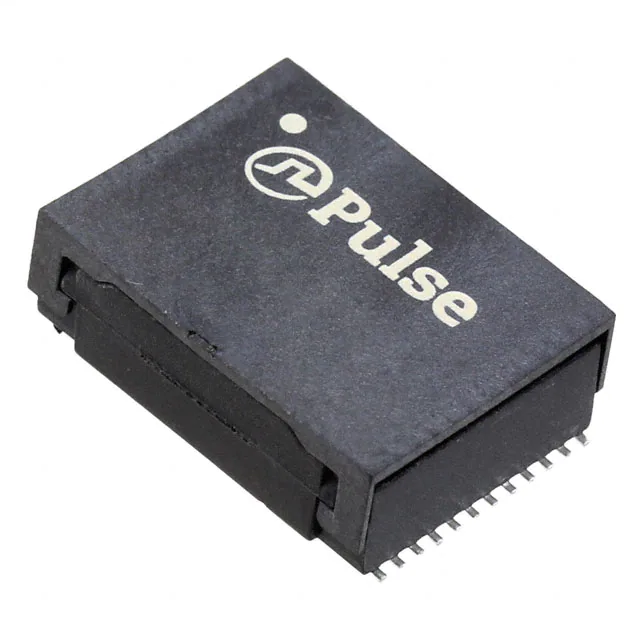

HX5008FNLTPULSE XFMR 1CT:1 TX 1CT:1 RX |
1,993 | 13.20 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 325µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|
H5004NLTTRANSFORMER MODULE GIGABIT 1PORT |
1,151 | 11.61 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|

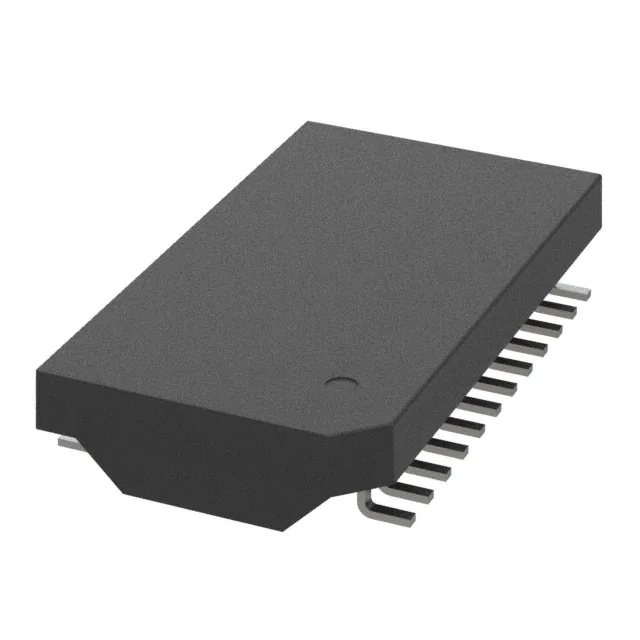

HX5149NLTPULSE XFMR 1 CT:1CT TX/RX 360UH |
2,929 | 8.21 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 360µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.390" W (17.78mm x 9.91mm) | 0.126" (3.20mm) | -40°C ~ 85°C | - | - |
|
749020112BTRANSFORMER LAN 10/100/1000 SMD |
2,012 | 0.00 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.703" L x 0.364" W (17.85mm x 9.25mm) | 0.094" (2.39mm) | -40°C ~ 105°C | - | - |
|
HX5062NLPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,084 | 8.29 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
HX6062NLTPULSE XFMR 1CT:1CT TX/RX |
13,147 | 9.33 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
H5007NLTTRANSFORMER MODULE GIGABIT 1PORT |
2,781 | 8.73 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|
|
HM0068BNLTMDL SIN 100D 1:1 SMT TR |
2,743 | 5.26 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 100 Base-T | - | - | 1:1CT, 1:1CT | Surface Mount | - | - | -40°C ~ 105°C | - | - |
|
HM0068ANLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
303 | 8.97 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | -40°C ~ 105°C | - | - |
|

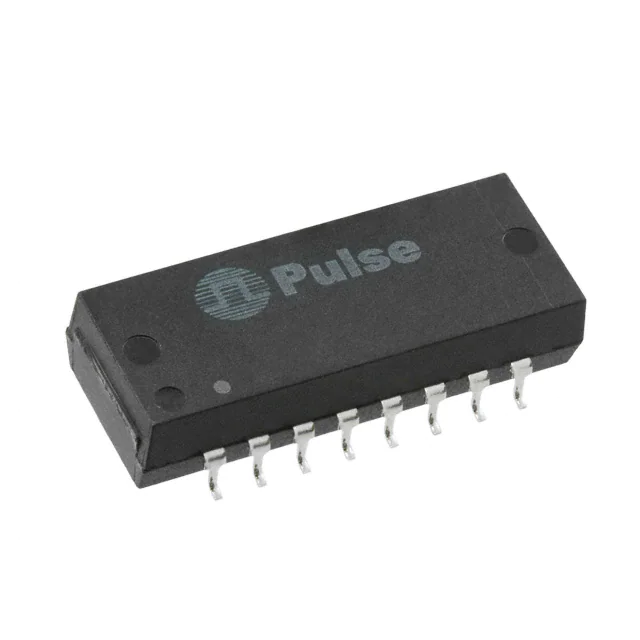

HX1148NLTXFRMR MODULE 1PORT 1:1 10/100 |
1,013 | 9.13 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

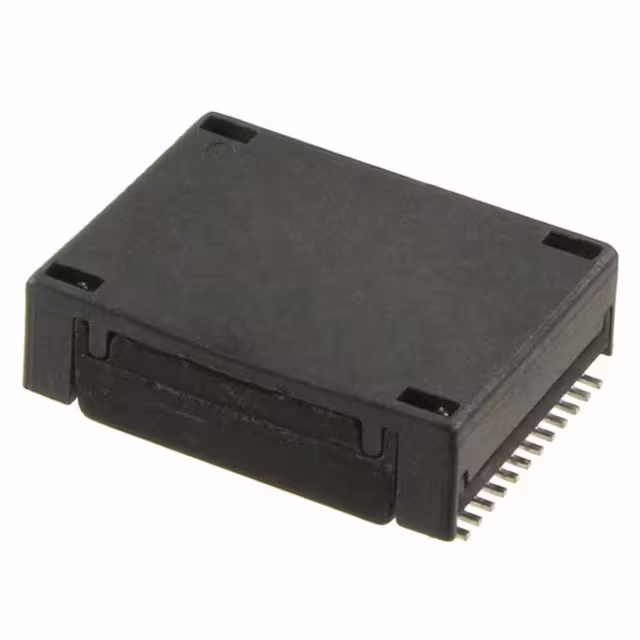

H5008FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,786 | 12.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743" L x 0.538" W (18.87mm x 13.67mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|

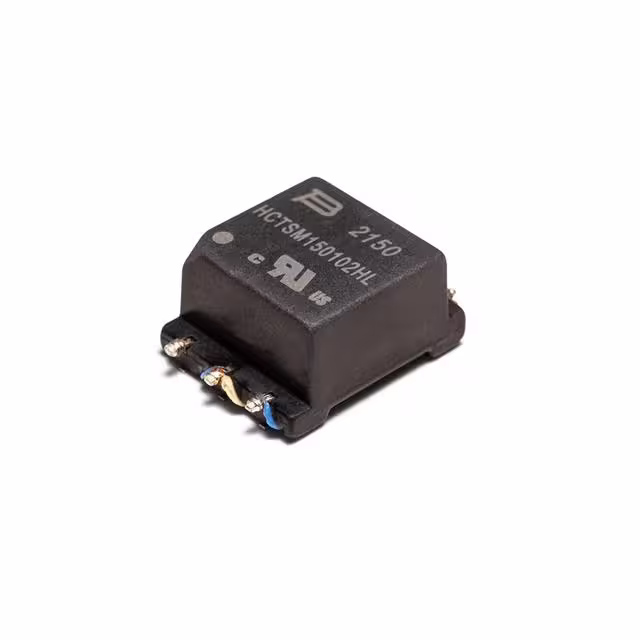

HCTSM150102HL-ETRANSF HIGH VOLTAGE ISOLATION |
626 | 9.97 |
|
Datasheet |
HCT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 80µH | 25VµS | - | Surface Mount | 0.839" L x 0.591" W (21.30mm x 15.00mm) | 0.380" (9.65mm) | -40°C ~ 125°C | - | - |
|
H1270FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,073 | 10.10 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.574" W (13.08mm x 14.58mm) | 0.145" (3.68mm) | 0°C ~ 70°C | - | - |
|
PE-63387NLPULSE XFMR 1:1:1 1.5MH |
662 | 9.72 |
|
Datasheet |
- | Tray | Active | - | 1.5mH | 320VµS | 1:1:1 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|

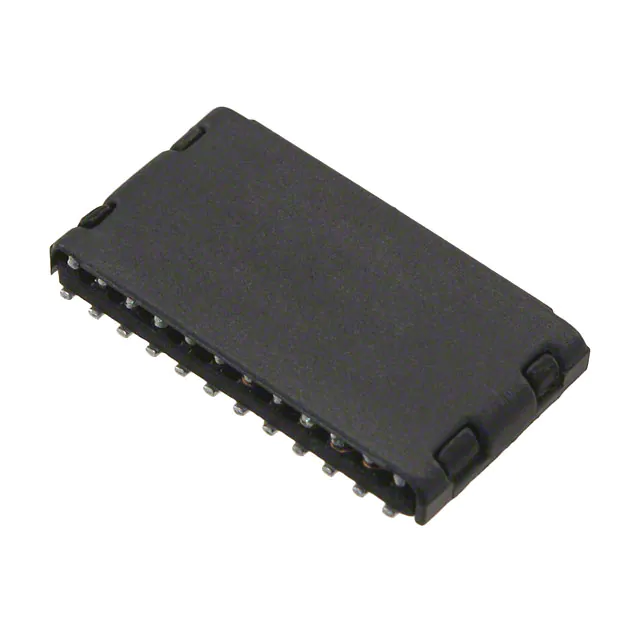

H5120NLTMODULE MAGNETIC 1PORT 1000BASE-T |
1,513 | 10.24 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.650" L x 0.365" W (16.51mm x 9.27mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
|
H5120NLMODULE XFORMR SNGL GIGABIT SMD |
962 | 10.49 |
|
Datasheet |
- | Tube | Active | - | - | - | 1CT:1CT | Surface Mount | 0.650" L x 0.365" W (16.51mm x 9.27mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
|
H5077NLTMODULE MINI-MAG 1PORT 1000BASE-T |
332 | 10.24 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.550" L x 0.495" W (13.97mm x 12.57mm) | 0.190" (4.82mm) | 0°C ~ 70°C | - | - |
