Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78601/2JC-RPULSE XFMR 1:1 350UH |
266 | 2.79 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 350µH | 10VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

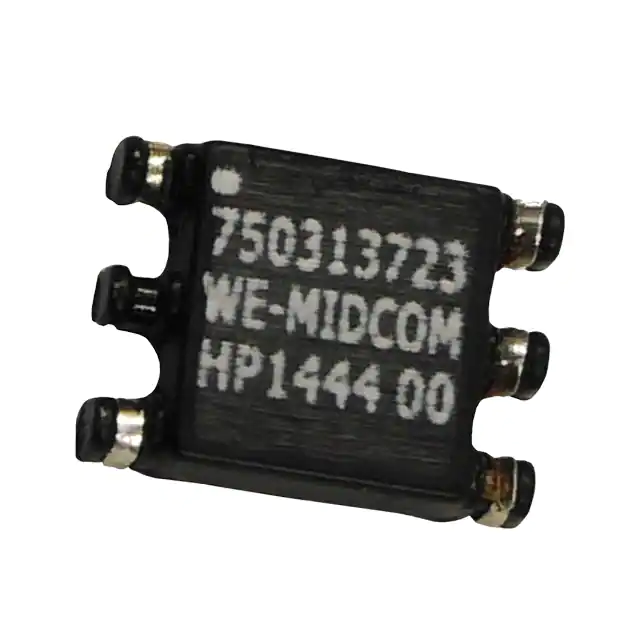

750313723PWR XFMR 1:1 GATE-DRIVE 700UH |
12,569 | 1.62 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
78601/9MCTRANSFORMER 1:1 10000UH 56VUS |
29,970 | 1.57 |
|
Datasheet |
786 | Tube | Not For New Designs | General Purpose | 10mH | 56VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/1JCPULSE XFMR 1:1 2MH |
9,317 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 2mH | 20VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/9JCXFRMR 1:1:1 56VUS SMD TOROID |
5,095 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 10mH | 56VµS | 1:1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

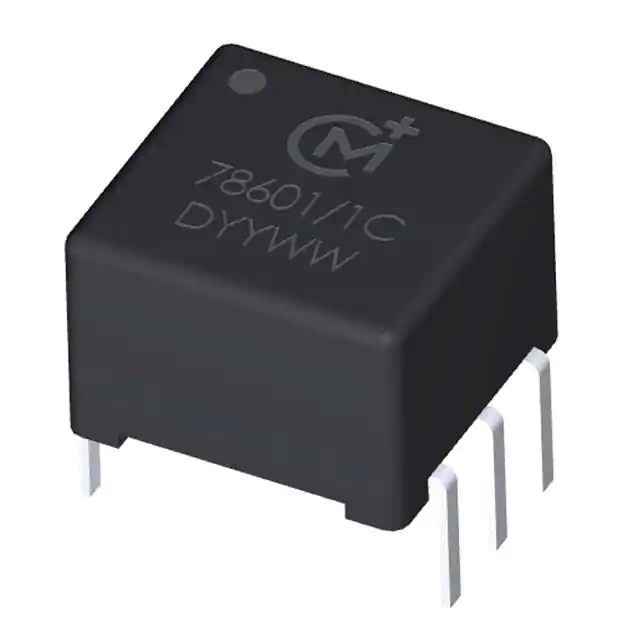

78601/1CTRANSFORMER 1:1 2000UH 20VUS |
873 | 1.57 |
|
Datasheet |
786 | Bulk | Active | General Purpose | 2mH | 20VµS | 1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78615/9CTRANSFORMER 1CT:1CT 10MH 56VUS |
348 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 10mH | 56VµS | 1CT:1CT | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/9JCXFRMR 2:1 56VUS SMD TOROID |
227 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 10mH | 56VµS | 2:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
78601/9CTRANSFORMER 1:1 10000UH 56VUS |
163 | 1.57 |
|
Datasheet |
786 | Bulk | Active | General Purpose | 10mH | 56VµS | 1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

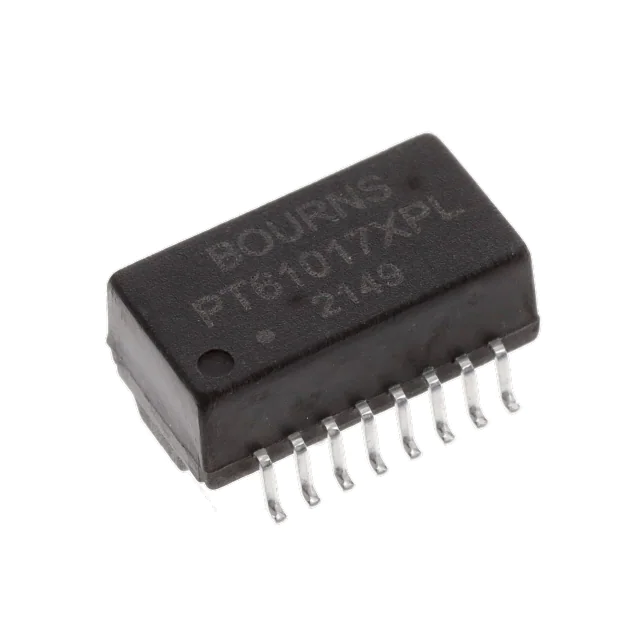

PT61017XPEL10/100 BASE T XFORMER,CMC(TX/RX) |
1,404 | 1.81 |
|
Datasheet |
PT | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|

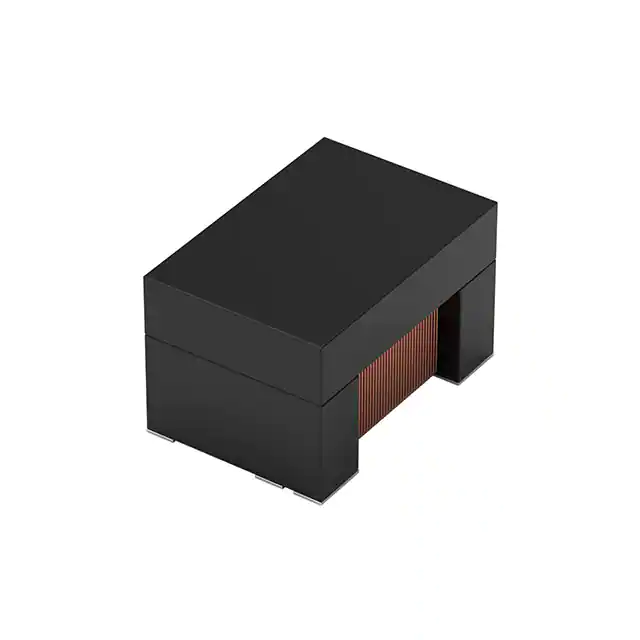

74930030WE-STST SMT SUPER TINY SIGNAL TR |
2,478 | 2.16 |
|
Datasheet |
WE-STST | Tape & Reel (TR) | Active | - | 350µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 105°C | - | - |
|

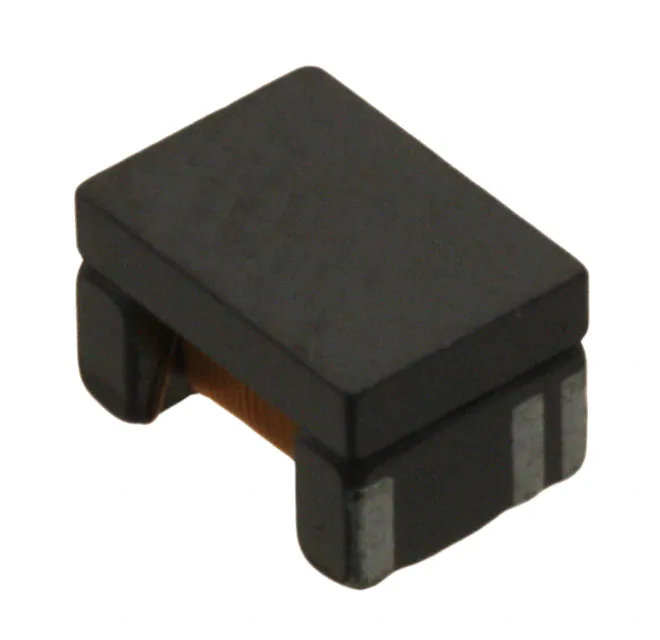

ALT4532-201-T001XFRMR LAN 1CT:1CT 200UH |
6,806 | 1.52 |
|
Datasheet |
ALT | Tape & Reel (TR) | Not For New Designs | LAN | 200µH | - | 1CT:1CT | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|

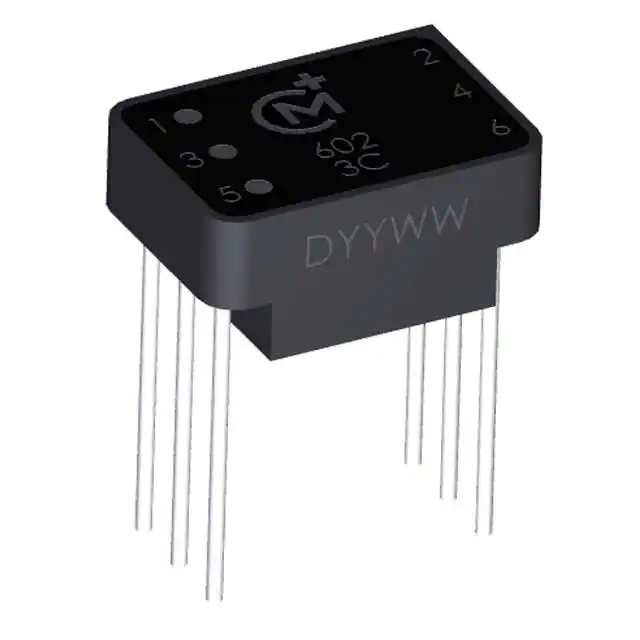

76601/1CXFRMR 1:1 1916UH 17.5VUS B |
389 | 2.05 |
|
Datasheet |
766 | Tube | Active | General Purpose | 1.9mH | 17.5VµS | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|

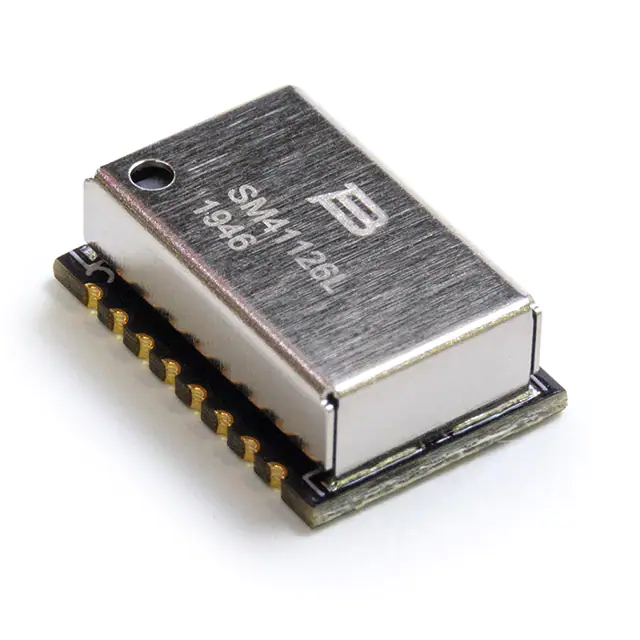

SM41126ELCHIP LAN XFMR MODULE,10/100 TX,W |
1,070 | 1.79 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.500" L x 0.341" W (12.70mm x 8.66mm) | 0.157" (3.99mm) | -40°C ~ 85°C | - | - |
|
ICI70CGI-222ISOLATION INDUCTORS 2.2 MH |
2,496 | 0.00 |
|
Datasheet |
ICI70CGI-222 | Tape & Reel (TR) | Active | - | 2.2mH | - | 1:1 | Surface Mount | 0.280" L x 0.236" W (7.10mm x 6.00mm) | 0.189" (4.80mm) | -40°C ~ 125°C | - | - |
|
PH9085.011NLTIND PWR 3.0X3.0X1.2 1.02MH SMT |
5,484 | 2.97 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | - | - | - |
|

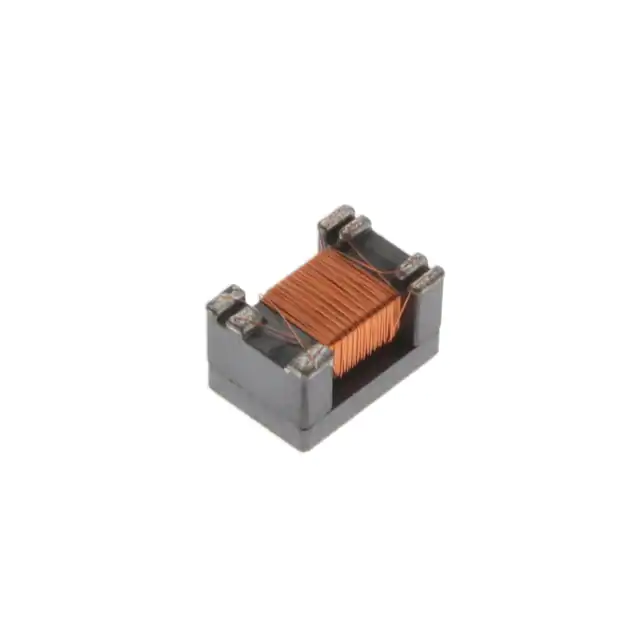

749302011XFRMR 1:4.5:4.5:1 2MH SMD |
3,523 | 2.76 |
|
Datasheet |
WE-STST | Tape & Reel (TR) | Active | - | 2mH | - | 1:4.5:4.5:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 105°C | - | - |
|

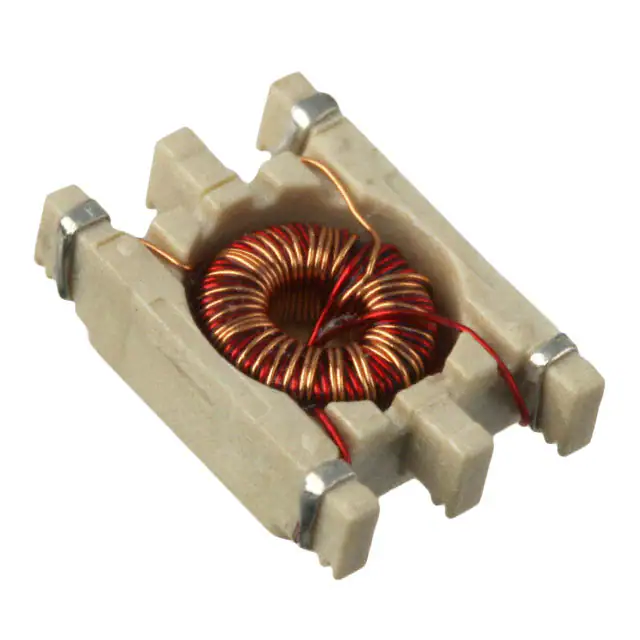

PA2001NLPULSE XFMR 1:1 403UH |
1,916 | 2.12 |
|
Datasheet |
- | Tube | Active | - | 403µH | 12VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|

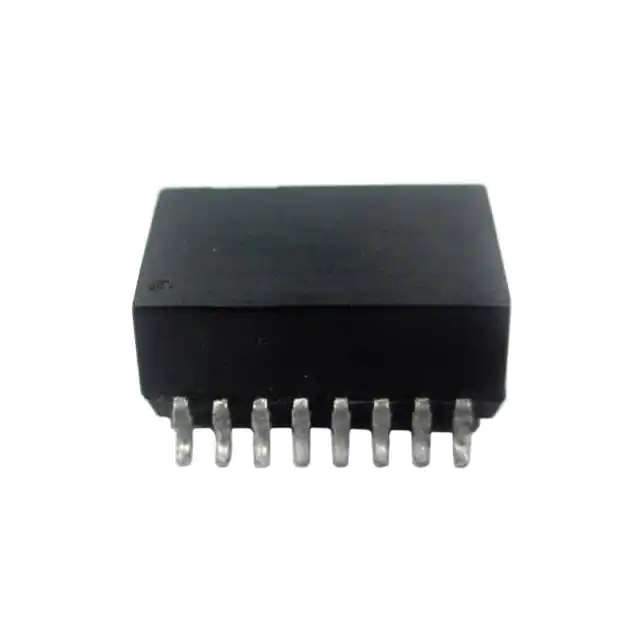

ALAN-101-TLAN XFRMR 10/100 1PORT EXT-TEMP |
5,700 | 3.10 |
|
Datasheet |
ALAN-101 | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.217" (5.51mm) | -40°C ~ 85°C | - | - |
|
SM42P01ELLAN TRANSFORMER |
153 | 2.61 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 230µH | - | - | Surface Mount | 0.650" L x 0.406" W (16.50mm x 10.30mm) | 0.161" (4.10mm) | -40°C ~ 85°C | - | - |
