Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

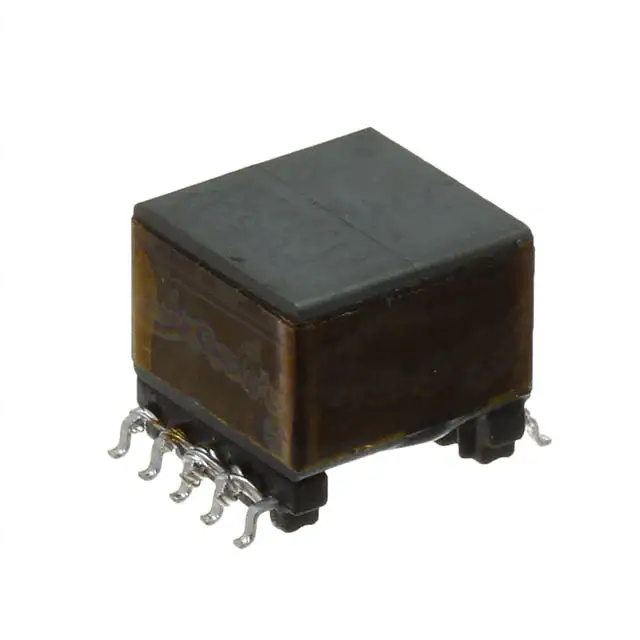

PA3342NLPULSE XFMR 90UH |
540 | 3.88 |
|
Datasheet |
- | Tray | Active | - | 90µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PA2467NLPULSE XFMR 37UH |
37,761 | 3.51 |
|
Datasheet |
- | Tray | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|

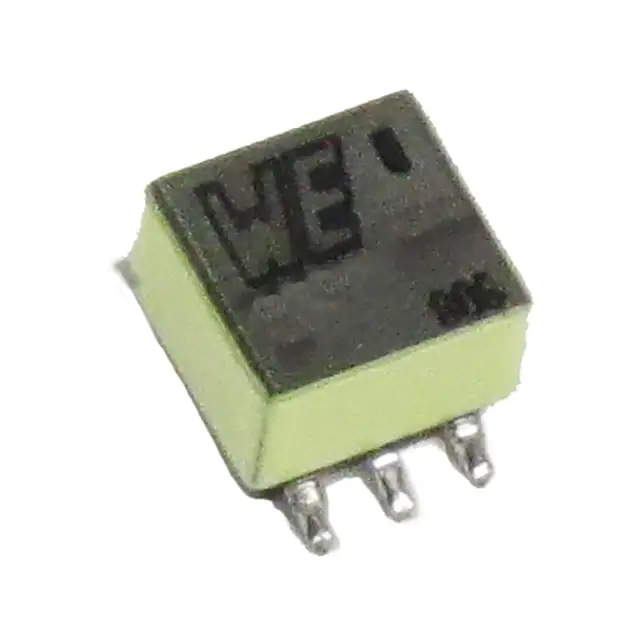

750317161POWER TRANSFORMER EP5 SMT; UI = |
3,081 | 3.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 3mH | - | - | Surface Mount | - | 0.220" (5.59mm) | - | - | - |
|

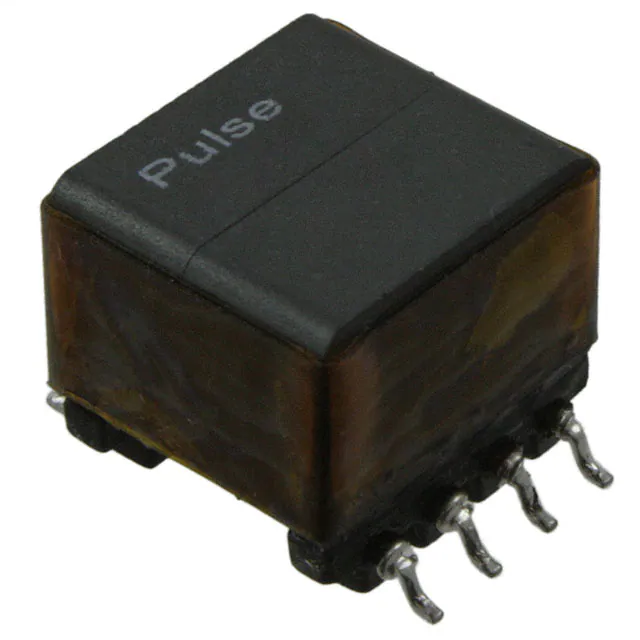

PA1277NLTXFRMR 3.3V 10W 20.4UH POE EP10 |
1,485 | 4.09 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 20.4µH | - | 1:0.222:0.555 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
750316928PUSH-PULL TRANSFORMER EP5 SMT; F |
850 | 3.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | 0.220" (5.59mm) | - | - | - |
|

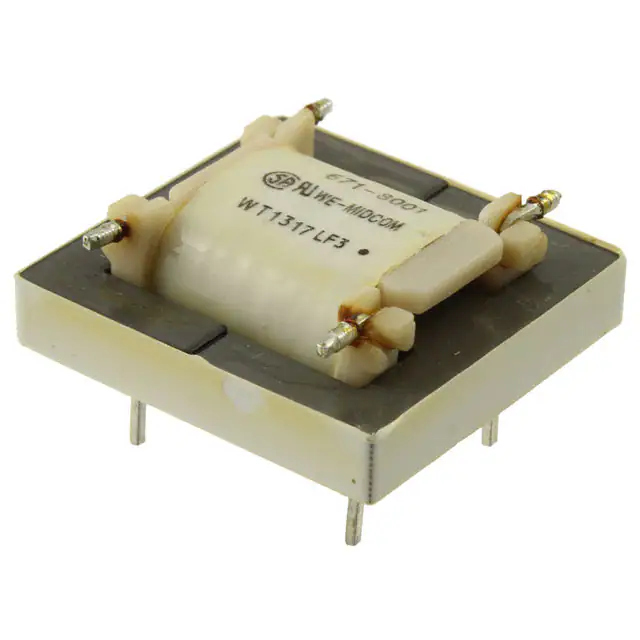

7500718001ANALOG MODEM XFRM WE-AMT |
274 | 2.63 |
|
Datasheet |
WE-AMT, MID-AMT | Tray | Active | Data/Voice Coupling | 185mH | - | 1:1 | Through Hole | 0.945" L x 0.906" W (24.00mm x 23.00mm) | 0.472" (11.99mm) | -40°C ~ 85°C | - | - |
|

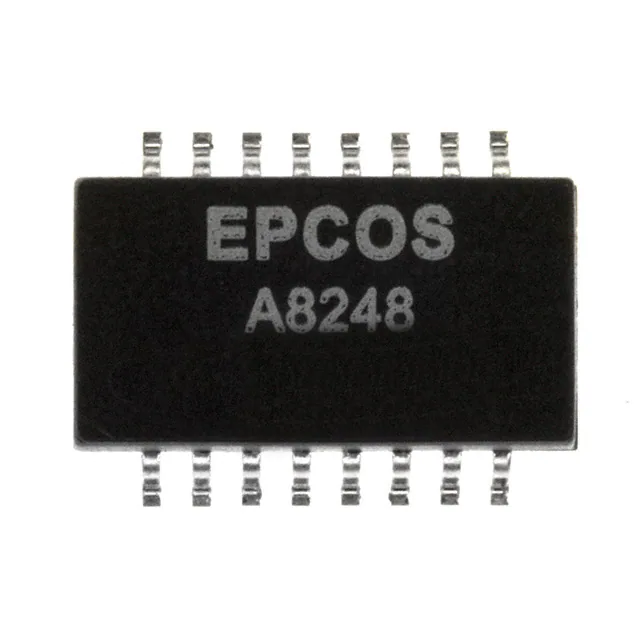

B78476A8248A003PULSE XFMR 1CT:1CT 350UH |
2,779 | 2.96 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.272" W (12.70mm x 6.90mm) | 0.230" (5.85mm) | -40°C ~ 85°C | - | - |
|

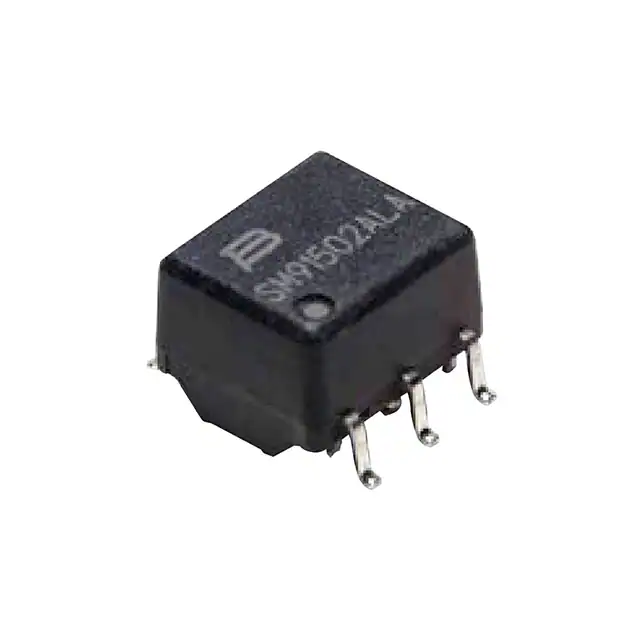

SM91502ALA-EBMS TRANSFORMER/CMC, 6PIN, SGL, |
5,125 | 332.00 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
PH9384.043NLTXFMR GATE-DR 4CT:3CT SM NPB |
814 | 2.80 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PM2180.034NLTXFMR GATE-DR 3CT:4CT SM NPB |
715 | 2.51 |
|
Datasheet |
PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 3CT:4CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
PH9185.012NLTRANSFORMER 450UH 1:2 SMD |
4,454 | 4.55 |
|
Datasheet |
PH9185 | Tray | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
PA2007NLTPULSE XFMR 1:1 1.49MH |
1,081 | 2.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.49mH | 53VµS | 1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PA0173NLPULSE XFMR 1:1:1 980UH |
1,045 | 2.97 |
|
Datasheet |
- | Tube | Active | - | 980µH | 17.2VµS | 1:1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
|
750316093GATE DRIVE TRANSFORMER |
1,403 | 2.23 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.71mH | - | 1:1 | Surface Mount | - | 0.212" (5.38mm) | - | - | - |
|

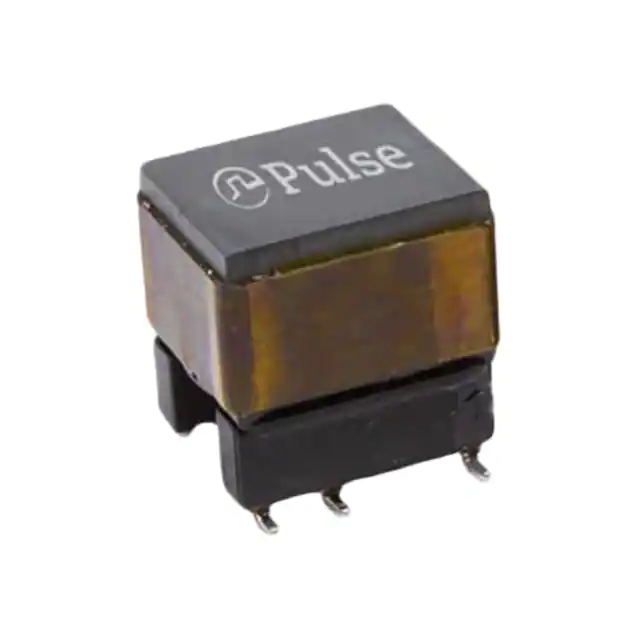

PH9572.111NLTGDT, FUNCTIONAL, EP7, SMT |
1,081 | 1.77 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 4mH | 84.7VµS | 1:1:1 | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
74941302WE-BMS SMT TRANSFORMER -40C TO + |
742 | 0.00 |
|
Datasheet |
WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.563" L x 0.374" W (14.30mm x 9.50mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
|
74941300WE-BMS SMT TRANSFORMER -40C TO + |
278 | 0.00 |
|
Datasheet |
WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.350" L x 0.299" W (8.90mm x 7.60mm) | 0.217" (5.50mm) | -40°C ~ 125°C | - | - |
|
750510231DIGITAL TRANSFORMER |
3,318 | 2.94 |
|
Datasheet |
- | Tray | Active | - | 1mH | - | 1:1 | Through Hole | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.530" (13.46mm) | - | - | - |
|

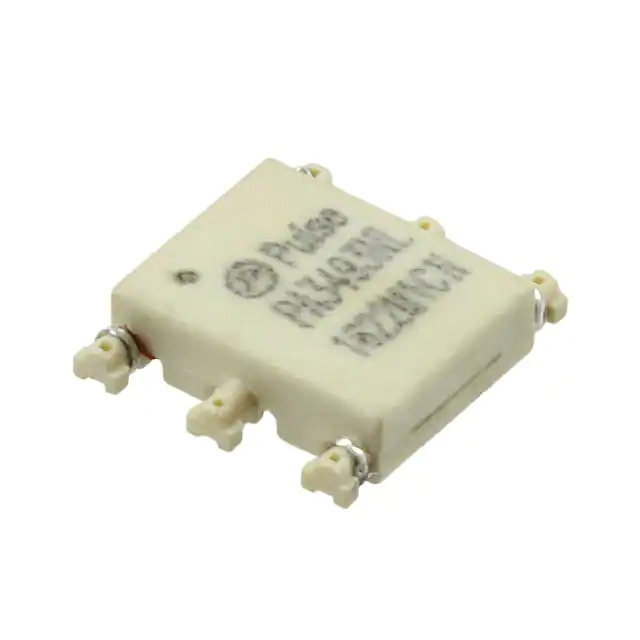

PA3493NLPULSE XFMR 1.25:1 656UH |
1,380 | 3.01 |
|
Datasheet |
- | Tube | Active | - | 656µH | 23VµS | 1.25:1 | Surface Mount | 0.430" L x 0.380" W (10.92mm x 9.65mm) | 0.105" (2.67mm) | -40°C ~ 130°C | - | - |
|
7490100110ATRANSFORMER LAN 10/100 SMD |
4,367 | 3.75 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
