Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

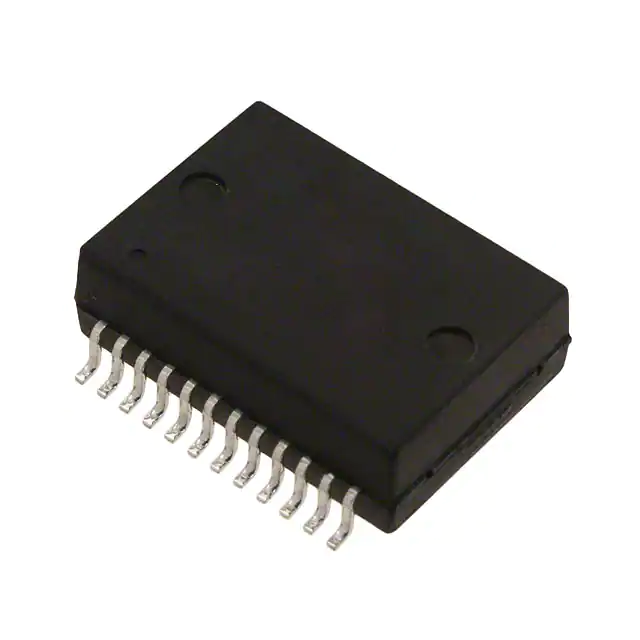

HX5004NLTTRANSFORMER MODULE GIGABIT 1PORT |
2,321 | 12.15 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|

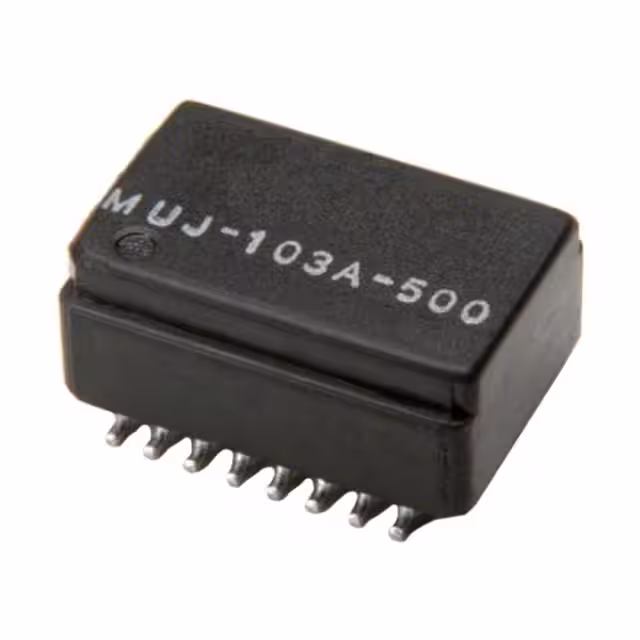

MUJ-103A-500INTERFACE MODULE 1:1:2:2 SMD |
3,692 | 8.27 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 25mH | - | 1:1:2:2 | Surface Mount | 0.504" L x 0.346" W (12.80mm x 8.80mm) | 0.246" (6.25mm) | -40°C ~ 85°C | - | - |
|

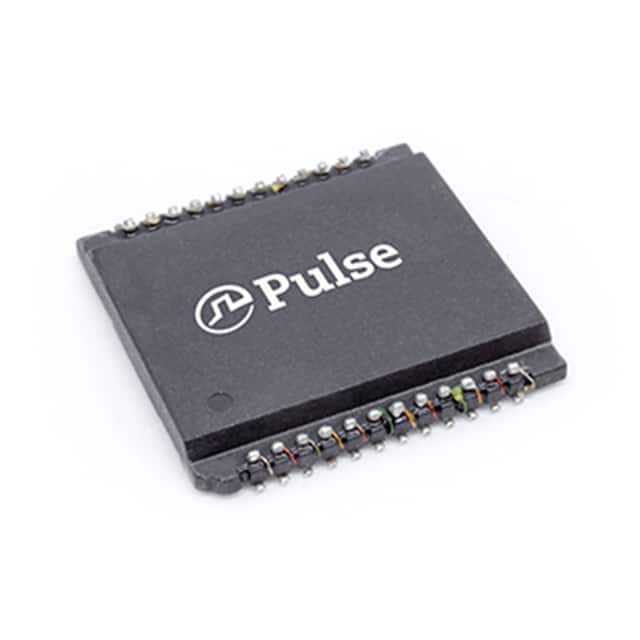

HX5019FNLTPULSE XFMR 1CT:1 TX 1CT:1 RX |
1,394 | 10.67 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.780" L x 0.750" W (19.81mm x 19.05mm) | 0.100" (2.54mm) | -40°C ~ 85°C | - | - |
|

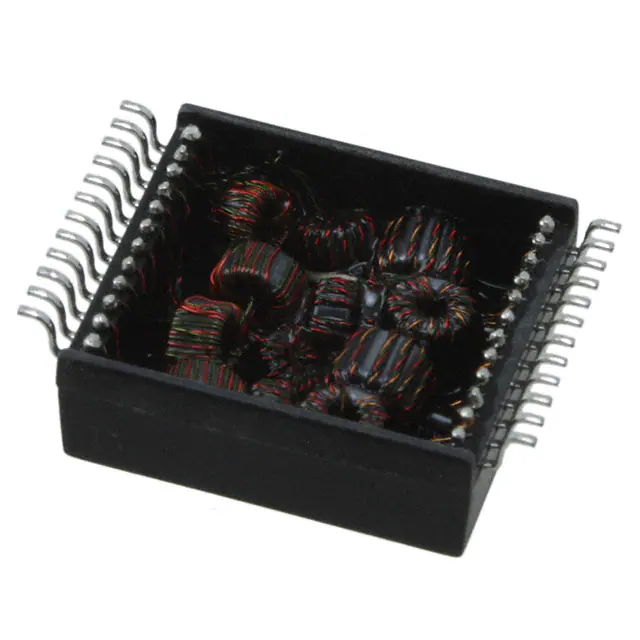

H5008NLTMODULE GIGABIT LAN 24SOIC 1PORT |
598 | 12.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743" L x 0.538" W (18.87mm x 13.67mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|
7490240142WE-LAN 10/100/1000 BASE-T SMT TR |
260 | 0.00 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.719" L x 0.600" W (18.25mm x 15.24mm) | - | -40°C ~ 85°C | - | - |
|
749014012TRANSFORMER WE-LAN MED 10/100BT |
1,370 | 12.25 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.967" L x 0.669" W (24.55mm x 17.00mm) | 0.427" (10.85mm) | 0°C ~ 70°C | - | - |
|
|
HX5004NLMODULE SINGLE GIGABIT LAN 24SOIC |
3,227 | 12.15 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
|
H5008NLMODULE GIGABIT LAN 24SOIC 1PORT |
753 | 12.74 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743" L x 0.538" W (18.87mm x 13.67mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|
|
HX4110NLTMDL SIN 2.5GD 1:1 SMT TR |
768 | 7.62 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 120µH | - | 1:1 | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
|
HX4110NLTRANSF MOD 2.55G 4CH 60W POE |
539 | 12.42 |
|
Datasheet |
- | Tube | Active | General Purpose | 120µH | - | 1CT:1CT | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | - | - | - |
|

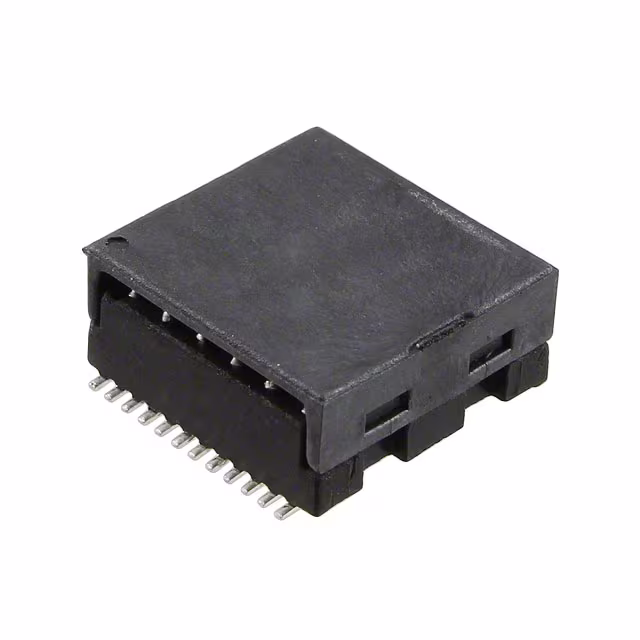

749050017TRANSFORMER LAN |
848 | 13.13 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.550" L x 0.532" W (13.97mm x 13.50mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|

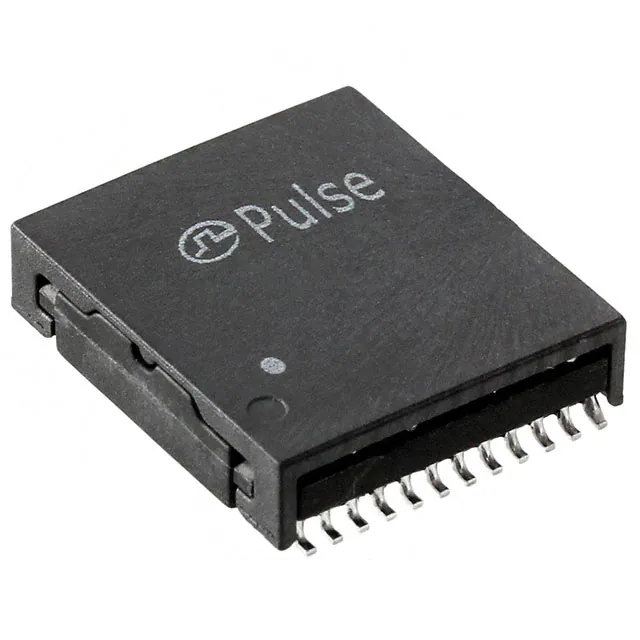

H1174FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,899 | 11.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.574" W (13.08mm x 14.57mm) | 0.145" (3.69mm) | 0°C ~ 70°C | - | - |
|

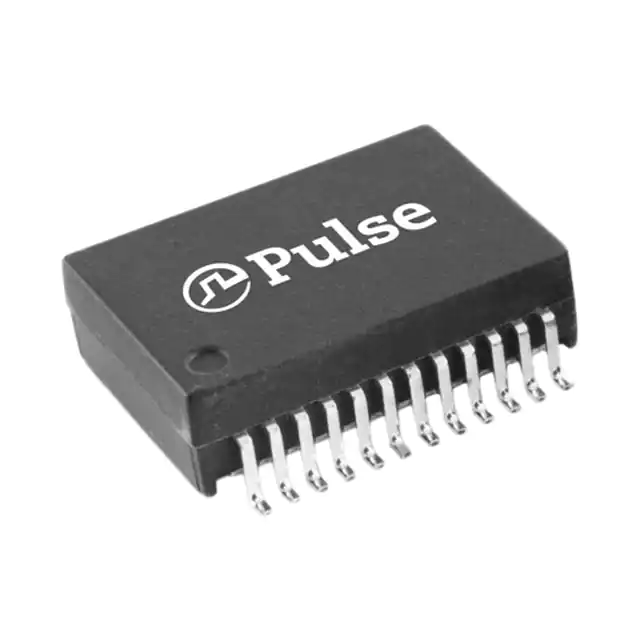

HM5004ENLXFMR MDL 1000BASE-T SMT AEC-Q200 |
535 | 12.69 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.695" L x 0.480" W (17.65mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 105°C | - | - |
|
HM5004ENLTMDL SIN 1GD 1:1 SMT TR |
1,200 | 12.81 |
|
Datasheet |
HX5004NL | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.695" L x 0.480" W (17.65mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 105°C | - | - |
|

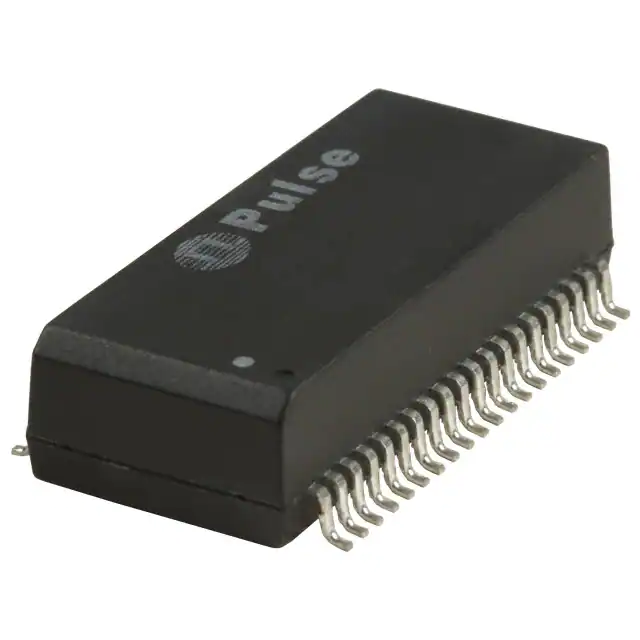

H1164NLMODULE XFRMR ETHERNET LAN 40SOIC |
1,283 | 13.12 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
HX5008FNLPULSE XFMR 1CT:1 TX 1CT:1 RX |
2,837 | 13.20 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 325µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|

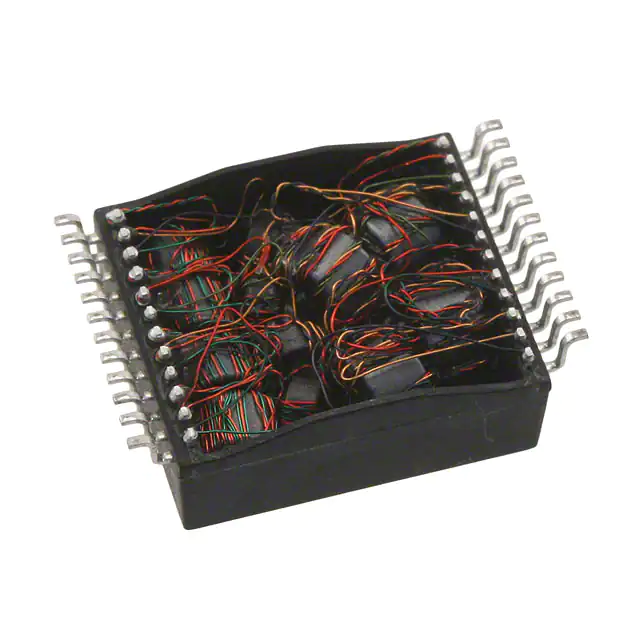

HX5008NLMODULE SINGLE GIGABIT LAN 24SOIC |
2,146 | 13.20 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | -40°C ~ 85°C | - | - |
|
|
H1164NLTXFRMR MODUL AUTO MDI/MDIX 10/100 |
2,007 | 13.12 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

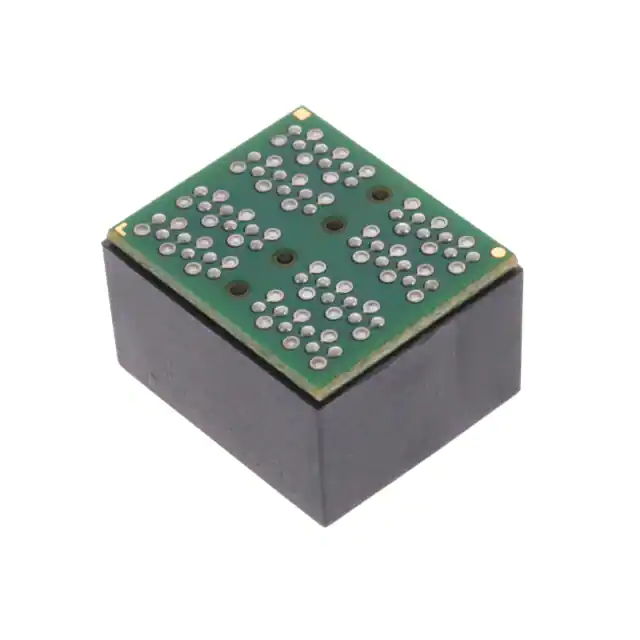

HX5200NLXFRMR MODL 2PORT POE GIGABIT |
1,709 | 15.99 |
|
Datasheet |
- | Tray | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | -40°C ~ 85°C | - | - |
|
|
HX5200NLTXFRMR MODULE DUAL1GP 1:1 . BGA |
300 | 0.00 |
|
Datasheet |
HX5200NLT | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
