Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1135NLTXFRMR 12V 7W 264UH POE EP10 SMD |
200 | 4.09 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 264.1µH | - | 1:0.286:0.204 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|

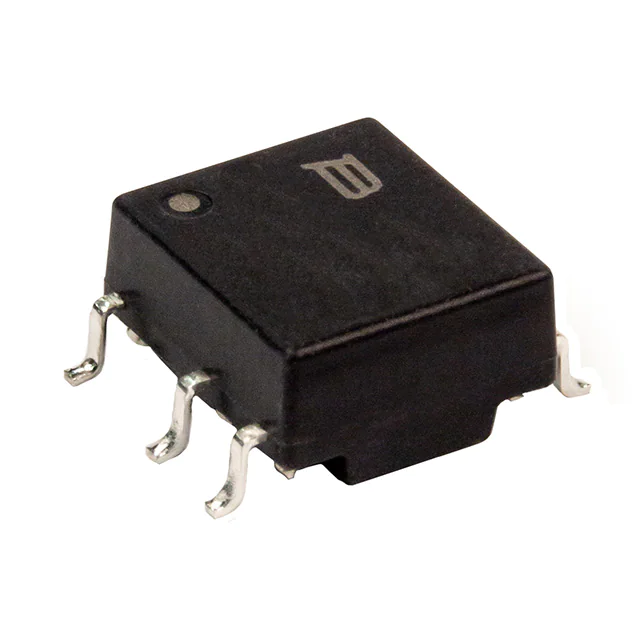

SM91508AL-EXFRMR PULSE 1:1 300UH SMD |
3,468 | 1.78 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | - | 300µH | - | 1:1 | Surface Mount | 0.330" L x 0.303" W (8.38mm x 7.69mm) | 0.167" (4.25mm) | -40°C ~ 150°C | Automotive | AEC-Q200 |
|
PA1276NLTXFRMR 12V 13.5W 77.4UH POE EP13 |
108 | 4.00 |
|
Datasheet |
EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 77.4µH | - | 1:0.682:0.682 | Surface Mount | 0.551" L x 0.695" W (14.00mm x 17.65mm) | 0.500" (12.70mm) | -40°C ~ 130°C | - | - |
|
B82804A0324A220PULSE XFMR 2:1:1 317UH |
578 | 4.52 |
|
Datasheet |
EP5 | Tape & Reel (TR) | Active | Gate Drive | 317µH | 24.5VµS | 2:1:1 | Surface Mount | 0.264" L x 0.240" W (6.70mm x 6.10mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
|

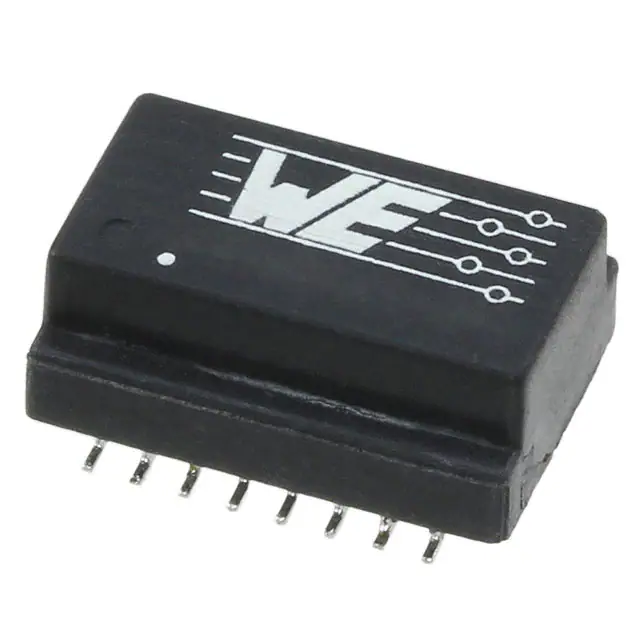

7490100161ATRANSFORMER 10/100 BASE-T SMD |
546 | 3.76 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.250" (6.35mm) | -40°C ~ 125°C | - | - |
|
BX4550NLXFMR SGL G.FAST TOR 1CT:1CT |
2,255 | 2.38 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - |
|

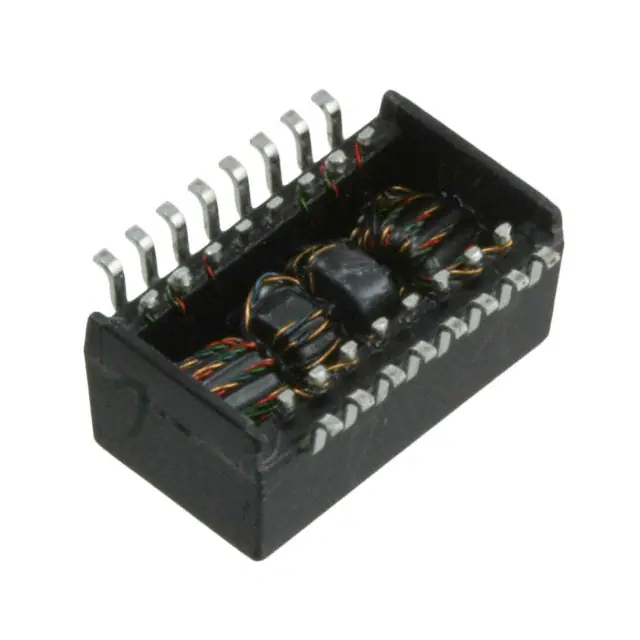

HX1260NLTXFRMR MODULE 1PORT 1:1 10/100 |
2,725 | 5.49 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH, 400µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|

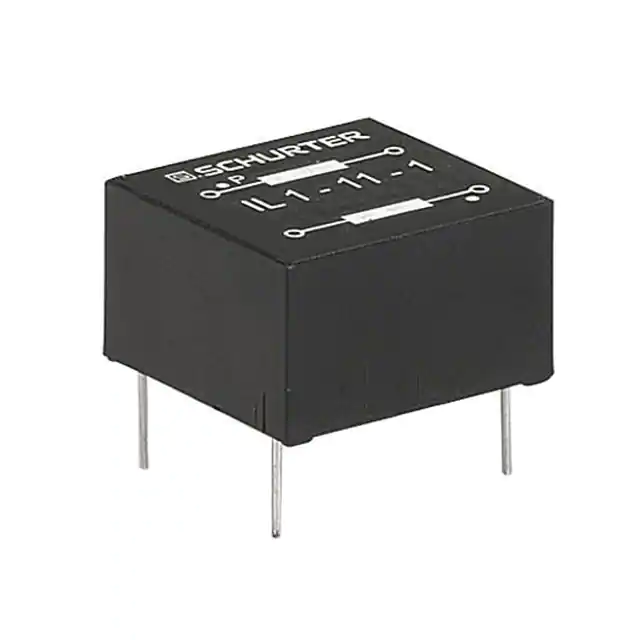

IL-20-0001IL5 PULSE TRANSFORMER THT 0.25A |
205 | 4.36 |
|
Datasheet |
IL | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 3mH | 300VµS | 1:1:1 | Through Hole | 1.102" L x 0.906" W (28.00mm x 23.00mm) | 0.571" (14.50mm) | -25°C ~ 70°C | - | - |
|
|
PA1528NLTXFRMR 15V 27W 28.9UH POE EP13 |
884 | 4.33 |
|
Datasheet |
EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 28.9µH | - | 1:0.470:0.294 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PH9185.011NLTTRANSFORMER 750UH 1:1 SMD |
6,383 | 4.55 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
|
PH9185.038NLTTRANSFORMER 310UH 3:8 SMD |
974 | 3.97 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|

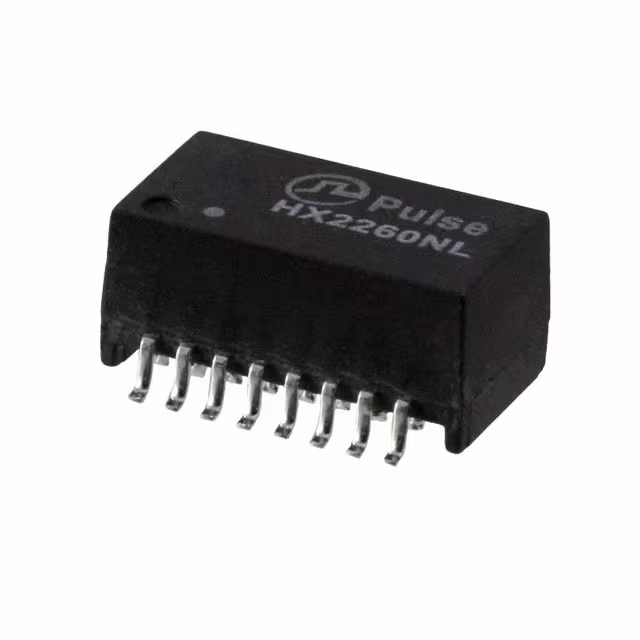

HX2260NLTXFRMR MODUL 1PORT POE 1:1 10/100 |
1,265 | 5.49 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
PH9185.021NLTTRANSFORMER 880UH 2:1 SMD |
436 | 4.55 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|

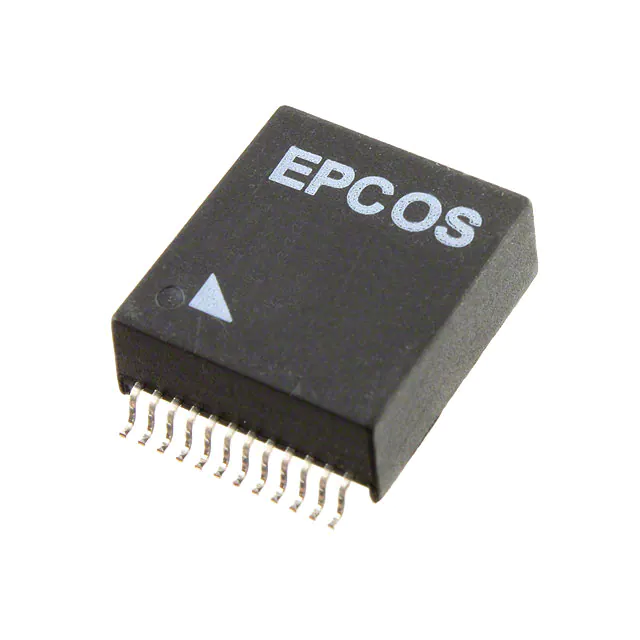

B78476A8135A003PULSE XFMR 1CT:1CT 350UH |
1,599 | 5.18 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.543" L x 0.598" W (13.80mm x 15.20mm) | 0.226" (5.75mm) | -40°C ~ 85°C | - | - |
|

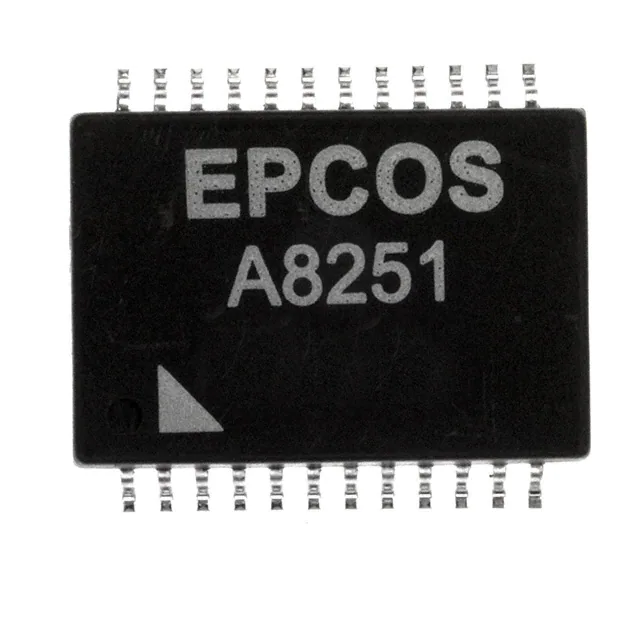

B78476A8251A003PULSE XFMR 1CT:1CT 350UH |
692 | 5.18 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.693" L x 0.476" W (17.60mm x 12.10mm) | 0.230" (5.85mm) | -40°C ~ 85°C | - | - |
|

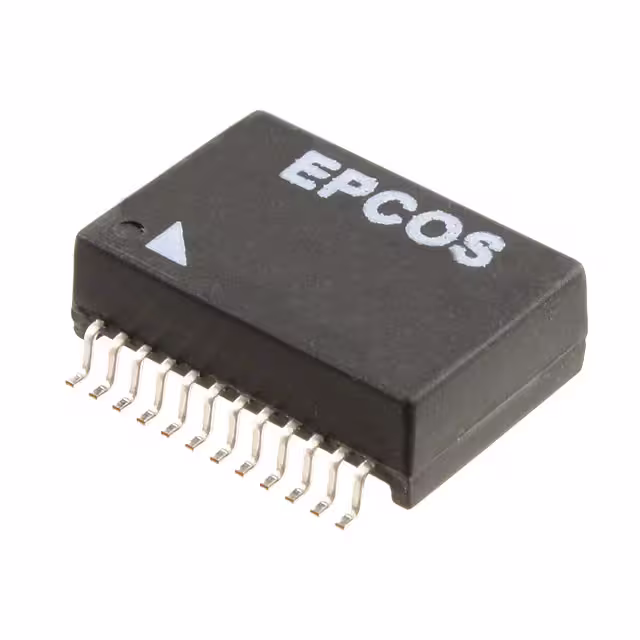

B78476A8317A003PULSE XFMR 1CT:1CT 350UH |
625 | 2.95 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.693" L x 0.476" W (17.60mm x 12.10mm) | 0.228" (5.80mm) | 0°C ~ 70°C | - | - |
|

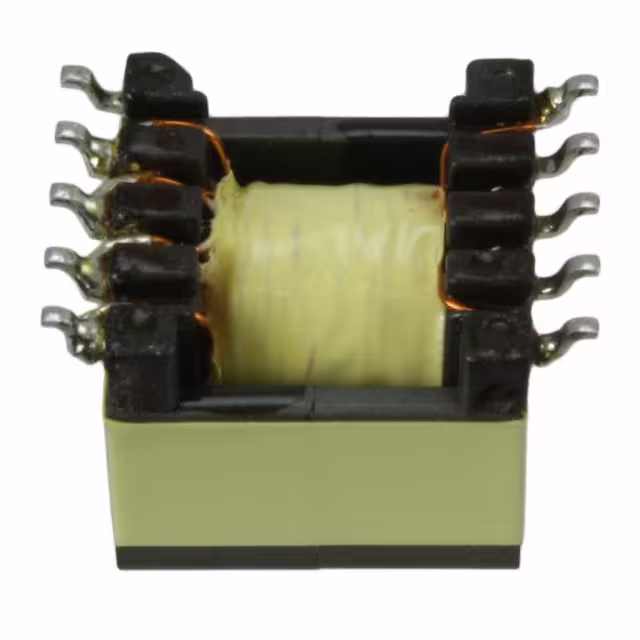

750031353TRANSFORMER SI3210 SI3211SMD |
548 | 4.36 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 11.3µH | - | 5:1 | Surface Mount | 0.530" L x 0.699" W (13.46mm x 17.75mm) | 0.500" (12.70mm) | - | - | - |
|

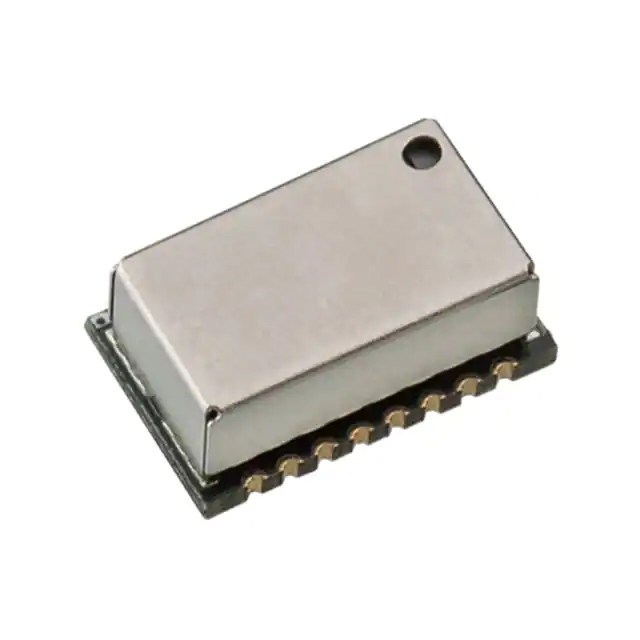

749012310WE-LAN AQ 10/100 BASE-T SMT TRAN |
800 | 5.28 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 150µH | - | 1:1 | Surface Mount | 0.500" L x 0.341" W (12.70mm x 8.67mm) | 0.157" (4.00mm) | -40°C ~ 85°C | - | - |
|
7490100111TRANSFORMER LAN 10/100 SMD |
6,419 | 5.30 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.510" L x 0.280" W (12.95mm x 7.11mm) | 0.210" (5.33mm) | -25°C ~ 105°C | - | - |
|

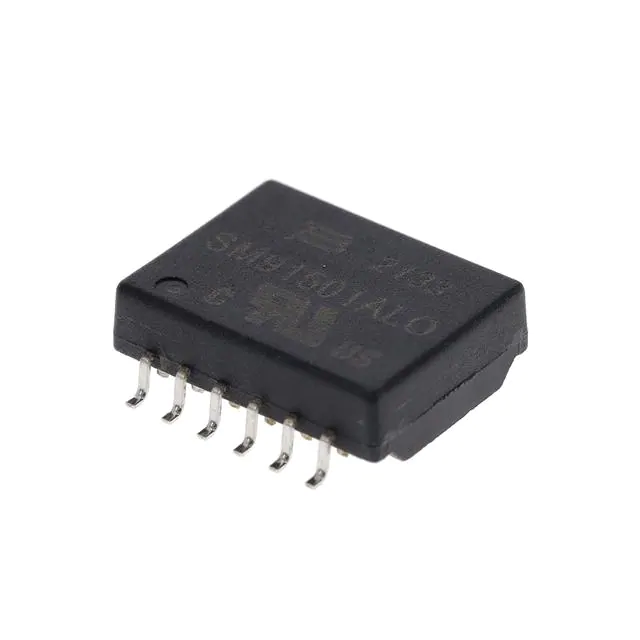

SM91501ALO-EBMS TRANSFORMER/CMC, 12PIN, DUAL |
2,000 | 4.83 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 125°C | - | - |
