Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

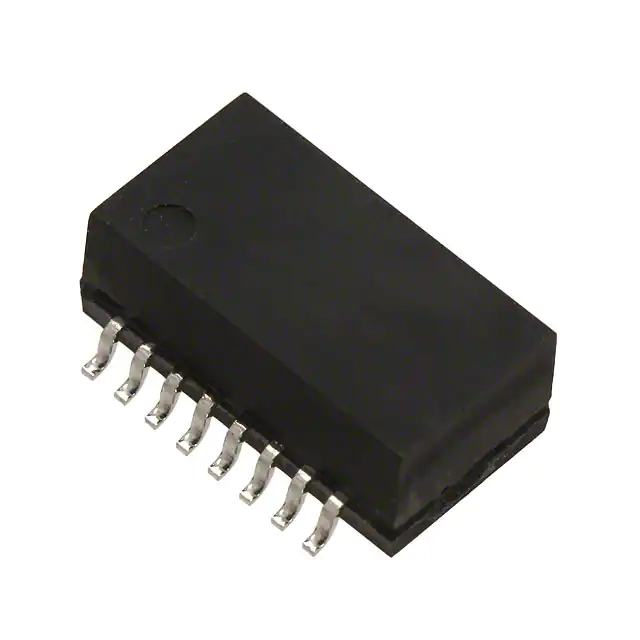

PE-65726NLTTRANSFORMER 2000VRMS 200UH SMD |
1,476 | 5.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|

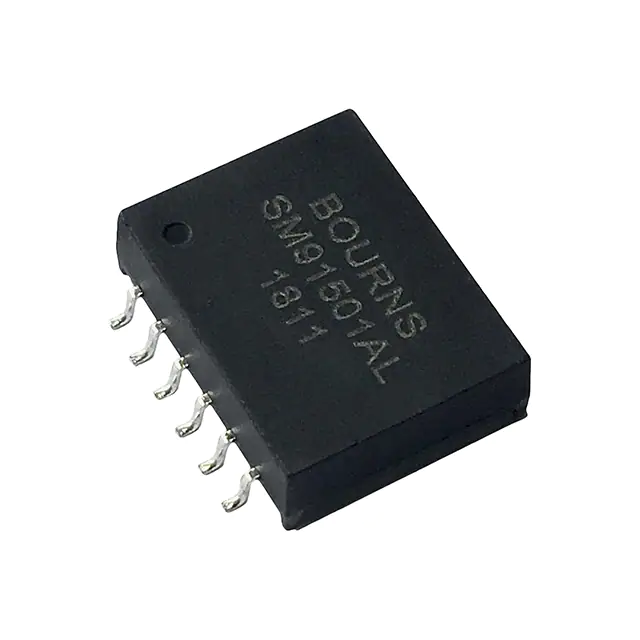

SM91501AL-EBMS XFORMER 2-CH 1600V AECQ +125 |
4,941 | 5.43 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | - | 150µH | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
B78416A2433A003P100953 EP6 SMD TRANSFORMER |
4,616 | 5.13 |
|
Datasheet |
B7416A | Tape & Reel (TR) | Active | - | 5mH | - | 1:1:10.1 | Surface Mount | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.280" (7.10mm) | -40°C ~ 125°C | - | - |
|
|
B78416A2430A003P301598 EP6 SMD TRANSFORMER |
3,348 | 5.13 |
|
Datasheet |
B7416A | Tape & Reel (TR) | Active | - | 4.2mH | - | 1:1:15 | Surface Mount | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.280" (7.10mm) | -40°C ~ 125°C | - | - |
|
|
B78416A2386A003EP6 SMD TRANSFORMER |
1,180 | 5.13 |
|
Datasheet |
B7416A | Tape & Reel (TR) | Active | - | 230µH | - | 1:1:9 | Surface Mount | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.280" (7.10mm) | -40°C ~ 85°C | - | - |
|
H1260NLMODULE XFRMR FST ETHR LAN 16SOIC |
380 | 5.38 |
|
Datasheet |
- | Tube | Active | LAN | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.240" (6.10mm) | 0°C ~ 70°C | - | - |
|

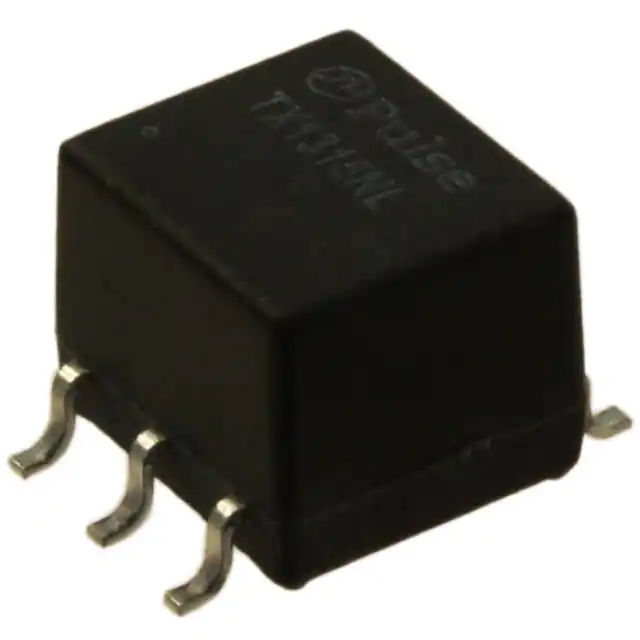

TX1315NLTRANSFORMER 1CT:1CT 1.2MH SMD |
538 | 5.11 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1CT | Surface Mount | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

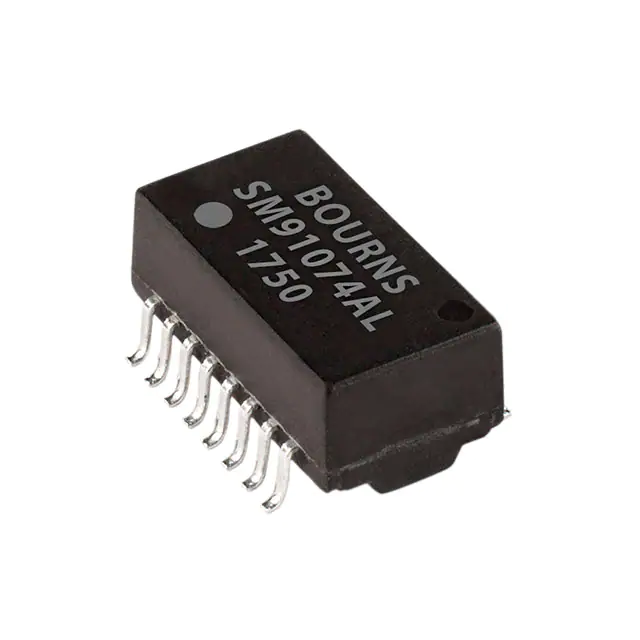

SM91074AL-E10/100 BASE T XFORMER AECQ +125 |
2,880 | 5.17 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | Automotive | AEC-Q200 |
|
HX1198FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,269 | 5.74 |
|
Datasheet |
- | Bulk | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|

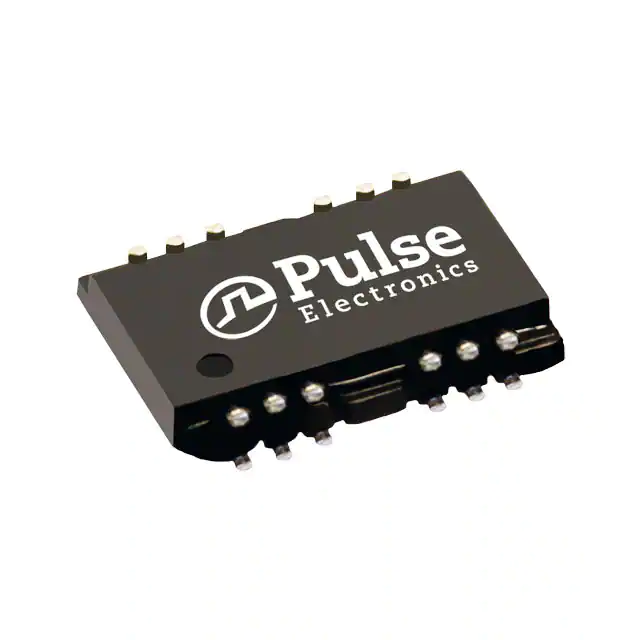

H0068ANLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,845 | 7.20 |
|
Datasheet |
- | Bulk | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|

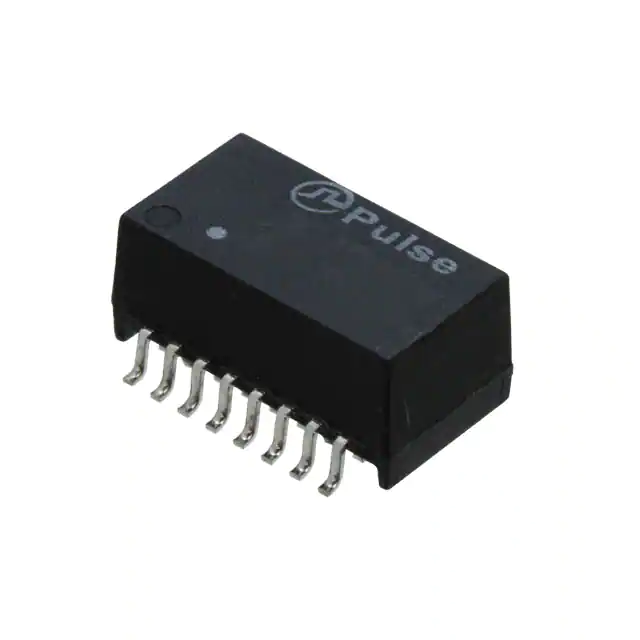

H1197NLTXFRMR MAGNT MOD 1PORT POE 10/100 |
539 | 5.72 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
HCTSM80102AAL-EXFMR 3.3-5V/3.3-15V,350MA PK TR |
1,745 | 3.13 |
|
Datasheet |
HCT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 250µH | 11.0VµS | 1:2 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|

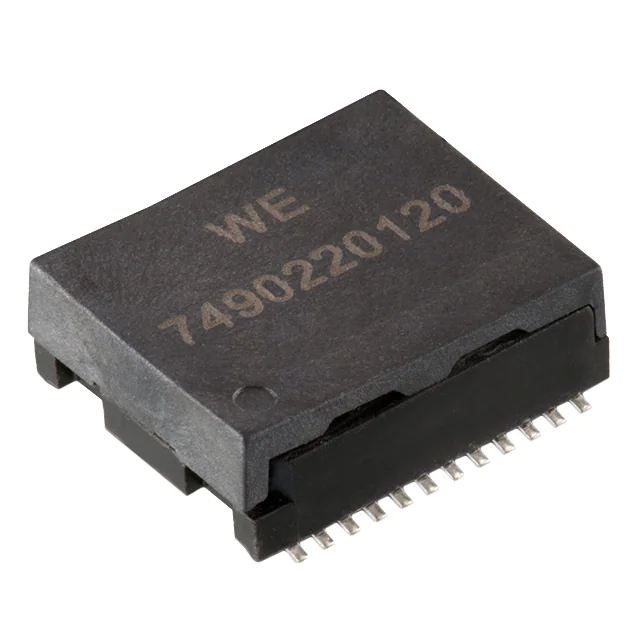

7490220120PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,182 | 5.94 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.242" (6.15mm) | -40°C ~ 85°C | - | - |
|
S22133TRANSFORMER FOR CS 8401,2:8411 |
1,169 | 5.43 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 225µH | - | 1:1 | Through Hole | 0.385" L x 0.650" W (9.78mm x 16.51mm) | 0.250" (6.35mm) | - | - | - |
|
|
HMU1228NLMDL,SIN,100D,1:1,SM,TU |
580 | 3.12 |
|
Datasheet |
HM | Tube | Active | - | - | - | - | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|
|
HM2113ZNLXFMR CMC SGL 150UH 1CT:1CT 4.3KV |
1,095 | 3.14 |
|
Datasheet |
- | Tube | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.354" L x 0.478" W (9.00mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
|
HX2326FNLPULSE XFMR 1CT:1CT TX/RX |
1,917 | 5.53 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
PA1558NLTPULSE XFMR 11.5UH |
698 | 3.33 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 11.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
T1144NLTXFRMR 1CT:1CT/1CT:2.4CT 1/1MH |
1,321 | 5.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1CT, 1CT:2.4CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | - | - | - |
|
T1090NLTRANSFORMER TELECOM DUAL T1/E2 |
762 | 3.31 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
