Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1094NLTRANSFORMER TELECOM DUAL T1/E2 |
406 | 5.52 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
PE-68678NLTRANSFORMER TELECOM DUAL T1/E2 |
347 | 5.52 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H1112NLTXFRMR MODULE 1PORT 1:1 10/100 |
3,235 | 5.62 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.202" (5.13mm) | 0°C ~ 70°C | - | - |
|
|
H1112NLMODULE TRANSFMR SNGL LAN 12P SMD |
961 | 5.62 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.202" (5.13mm) | 0°C ~ 70°C | - | - |
|
HX5004ENLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
600 | 7.60 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
7490140141WE-LAN 10/100 BASE-TX SMT TRANSF |
119 | 0.00 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN | 350µH | - | 1:1 | Surface Mount | - | 0.280" (7.10mm) | -40°C ~ 85°C | - | - |
|

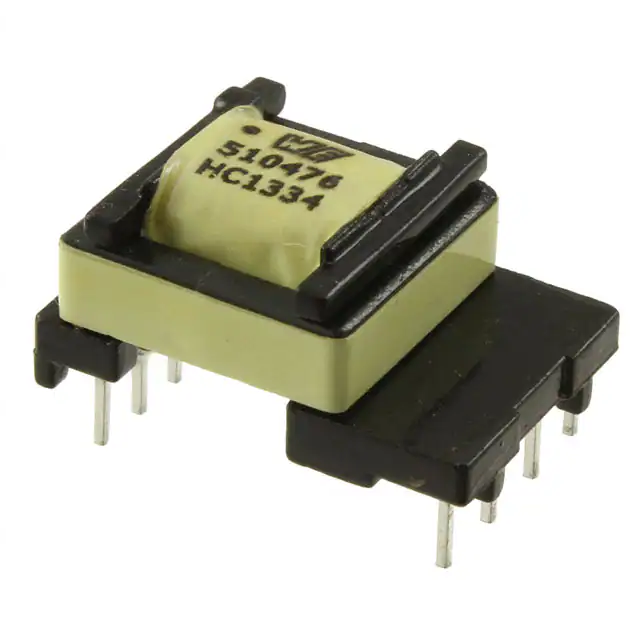

750510476PLC TRANSFORMER EE13 THT TI |
894 | 5.86 |
|
Datasheet |
MID-PLC | Tray | Active | Data/Voice Coupling | 870µH | - | 1.307:1, 1.125:1 | Through Hole | 0.540" L x 0.780" W (13.72mm x 19.80mm) | 0.400" (10.16mm) | - | - | - |
|
|
H5007ENLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
590 | 5.23 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
HX5164NLTRANS MOD 1G 70W POE SMD |
199 | 5.72 |
|
Datasheet |
HX5164NL | Tube | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | - | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

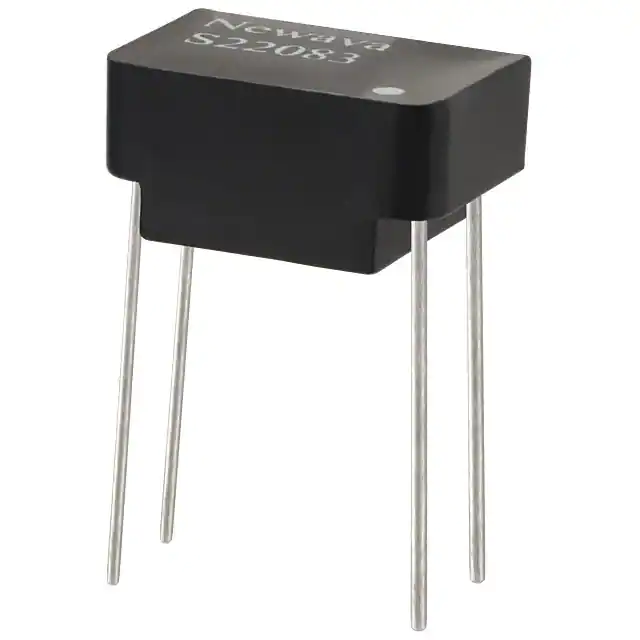

S22083TRANSFORMER ISOLATION DIG/AUDIO |
206 | 5.81 |
|
Datasheet |
- | Tube | Active | - | 225µH | - | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|

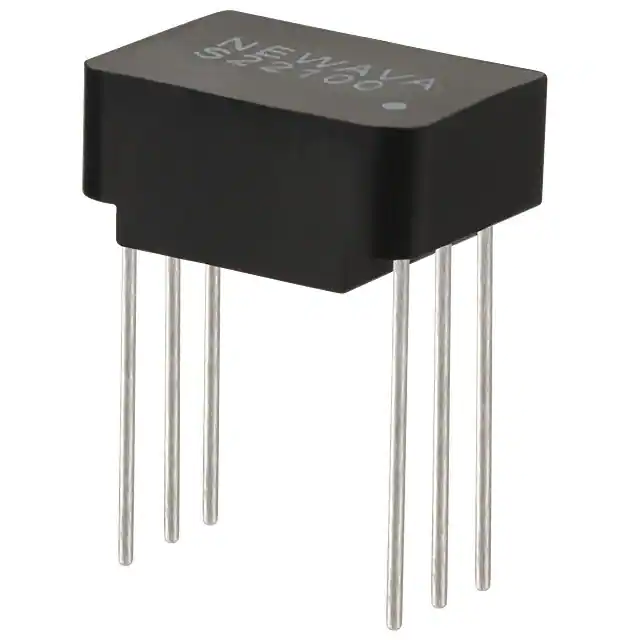

S22100TRANSFORMER FOR MAX 250/251 2MH |
382 | 5.81 |
|
Datasheet |
- | Tube | Active | - | 2mH | - | 1:1:1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
H1012NLTXFRMR MODULE 1PORT 1:1 10/100 |
675 | 6.01 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
H1012NLMODULE TRANSFMR SNGL LAN 16P SMD |
418 | 6.01 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
S558-5999-AC-FMODULE XFRMR LAN GIGABIT 24P SMD |
457 | 6.06 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.522" L x 0.600" W (13.26mm x 15.24mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
PA1836NLPULSE XFMR 4.5UH |
451 | 5.81 |
|
Datasheet |
- | Tray | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|

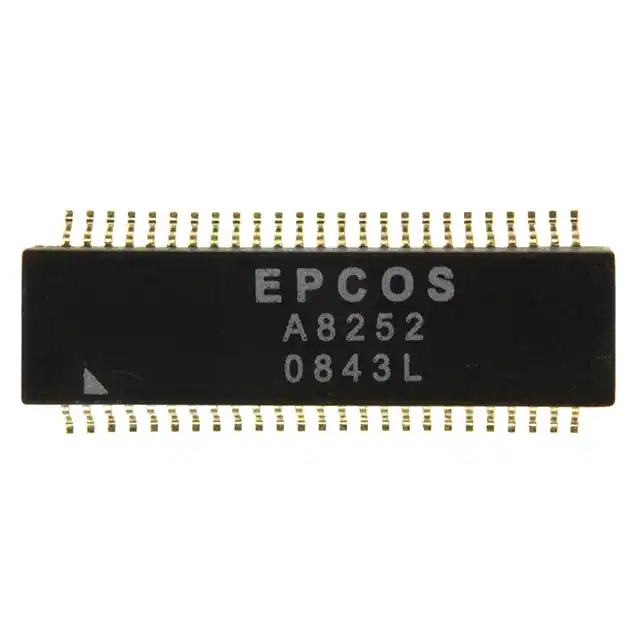

B78476A8252A003PULSE XFMR 1CT:1CT 350UH |
637 | 6.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.090" L x 0.287" W (27.69mm x 7.29mm) | 0.341" (8.66mm) | -40°C ~ 85°C | - | - |
|
2337822-1DISCRETE ETHERNET MAGNETICS SING |
411 | 4.61 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.376" W (12.70mm x 9.55mm) | 0.244" (6.20mm) | -40°C ~ 105°C | - | - |
|
H6096NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,146 | 8.29 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
HX5062FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
319 | 8.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
H0013NLMODULE MAGNETIC LAN 1:1 10/100 |
574 | 6.34 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
