Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

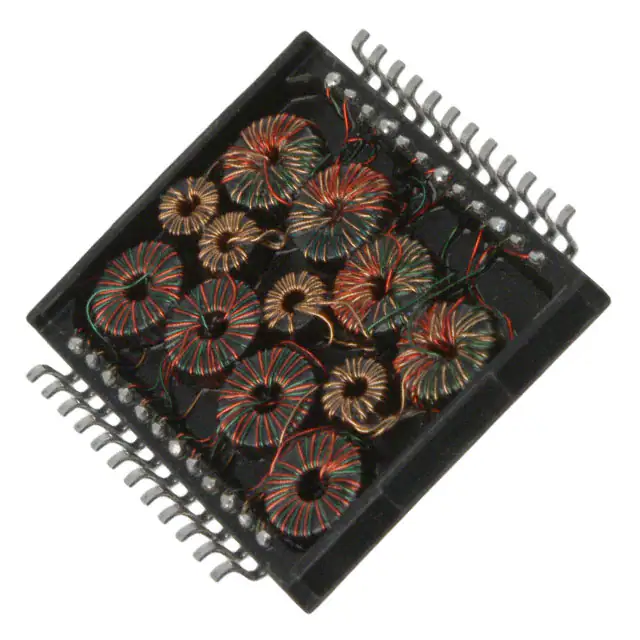

H5019NLTTRANSFORMER MODULE GIGABIT 1PORT |
4,604 | 9.37 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.780" L x 0.655" W (19.81mm x 16.64mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
HX6062NLPULSE XFMR 1CT:1CT TX/RX |
123 | 9.33 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
HX1148NLMODULE TRANSFMR SNGL LAN 16P SMD |
523 | 9.13 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

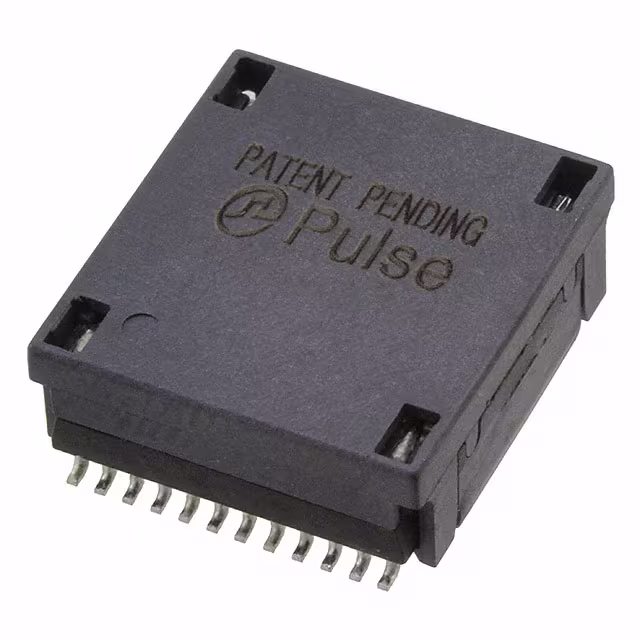

H7008FNLTTRANSFORMER MODULE 10GBASE-T |
3,021 | 9.90 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.591" L x 0.539" W (15.00mm x 13.70mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|

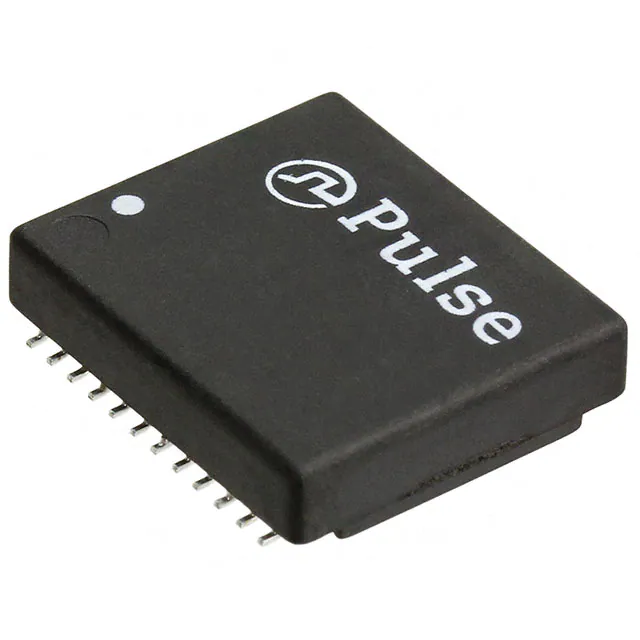

H5015FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,782 | 9.59 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.695" L x 0.596" W (17.66mm x 15.14mm) | 0.180" (4.57mm) | 0°C ~ 70°C | - | - |
|

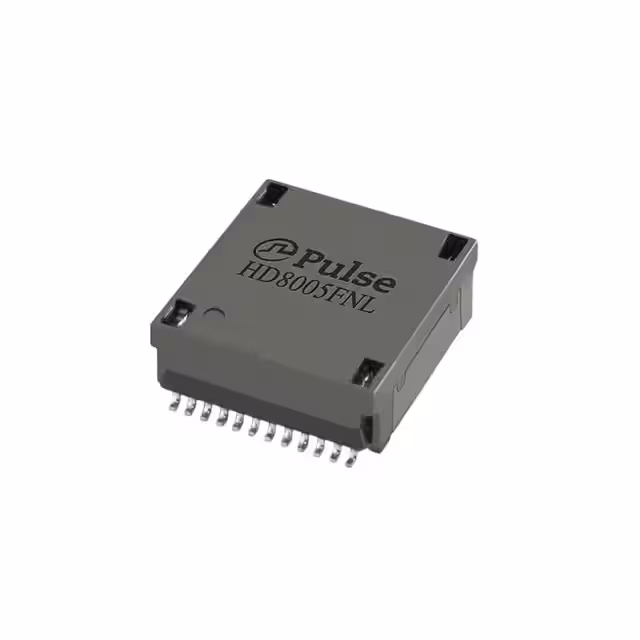

HD8005FNLTTRANSFORMER HDBASE-T 57W |
900 | 10.61 |
|
Datasheet |
- | Tape & Reel (TR) | Active | HDBase-T | 100µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|

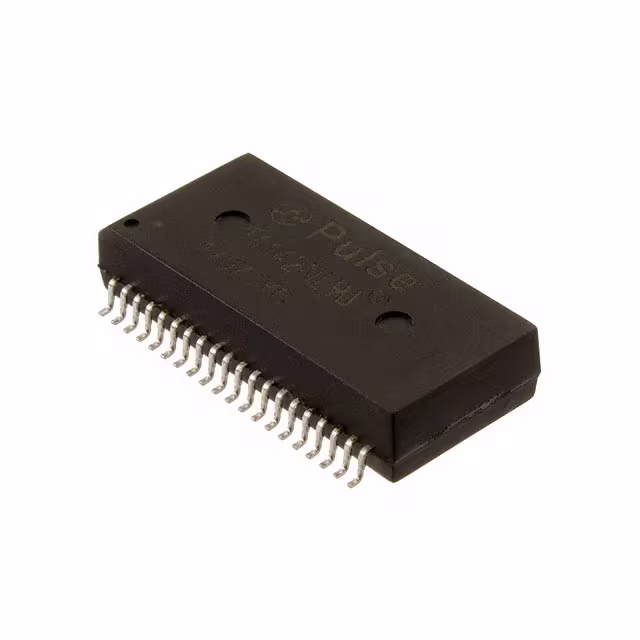

T1142NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2.4 |
362 | 10.64 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1mH, 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
HX1332CNLXFRMR MODULE 100B-TX 16 PIN SMT |
208 | 6.01 |
|
Datasheet |
HX1332CNL | Tube | Active | LAN 100 Base-TX | 350µH | - | 1:1 | Surface Mount | 1.000" L x 0.677" W (25.40mm x 17.20mm) | 0.406" (10.30mm) | -40°C ~ 85°C | - | - |
_iNRCORE_Product.-Image.jpg)
|

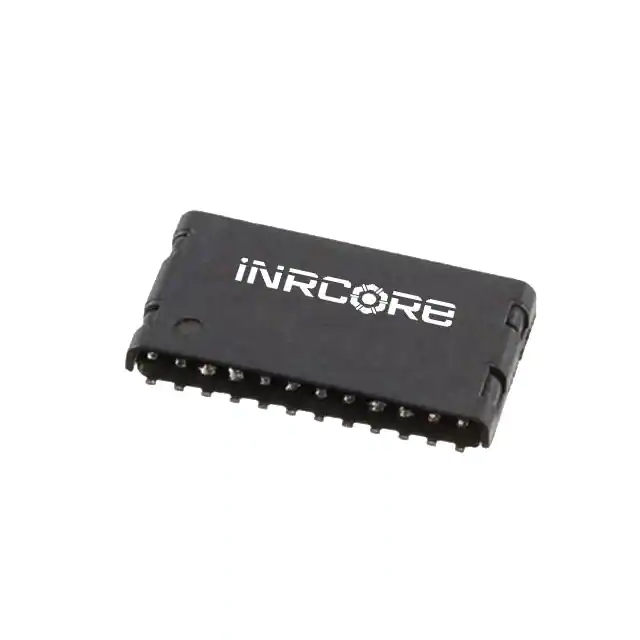

R5032NLXFRMR ETHERNET MOD IND 1000B-T |
537 | 10.11 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.650" L x 0.370" W (16.51mm x 9.41mm) | 0.088" (2.24mm) | -40°C ~ 85°C | - | - |
|

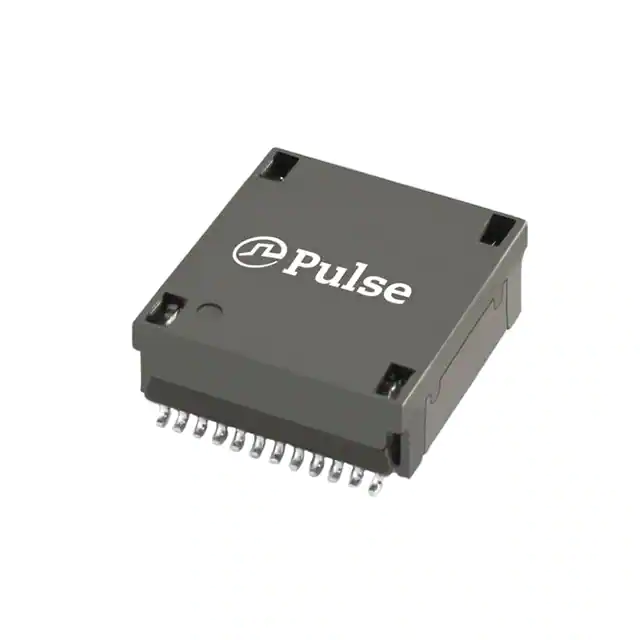

HD8006FNLTRANSFORMER HDBASET 140W |
260 | 11.19 |
|
Datasheet |
- | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.698" L x 0.625" W (17.73mm x 15.88mm) | 0.320" (8.12mm) | 0°C ~ 70°C | - | - |
|

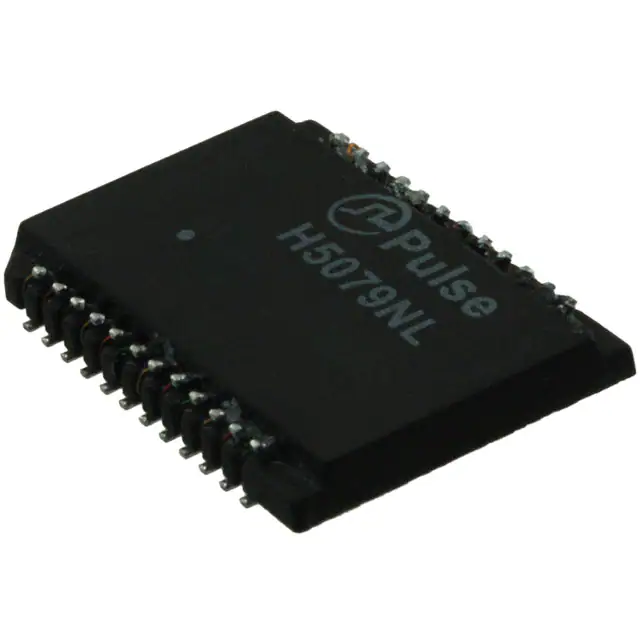

H5079NLTMODULE MINI-MAG 1PORT 1000BASE-T |
2,582 | 11.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.785" L x 0.551" W (19.94mm x 14.00mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|

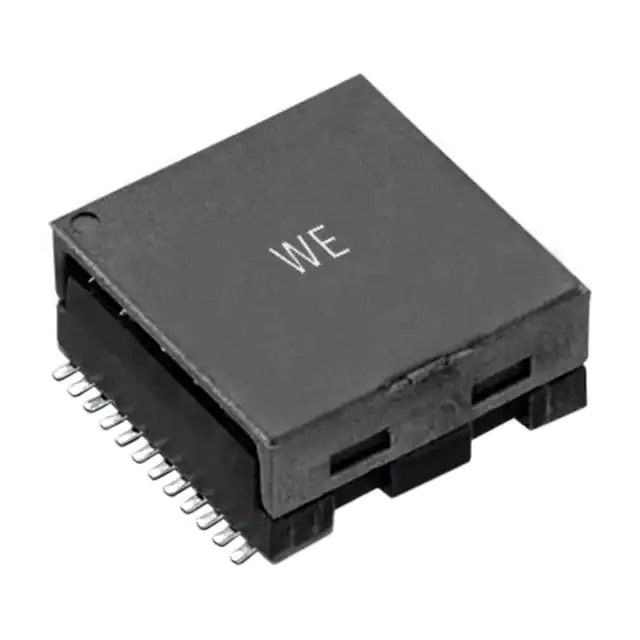

749052051XFRMR LAN 10G BASE-T 1:1 120UH |
164 | 11.67 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|
H5004NLMODULE SINGLE GIGABIT LAN 24SOIC |
1,094 | 11.61 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|

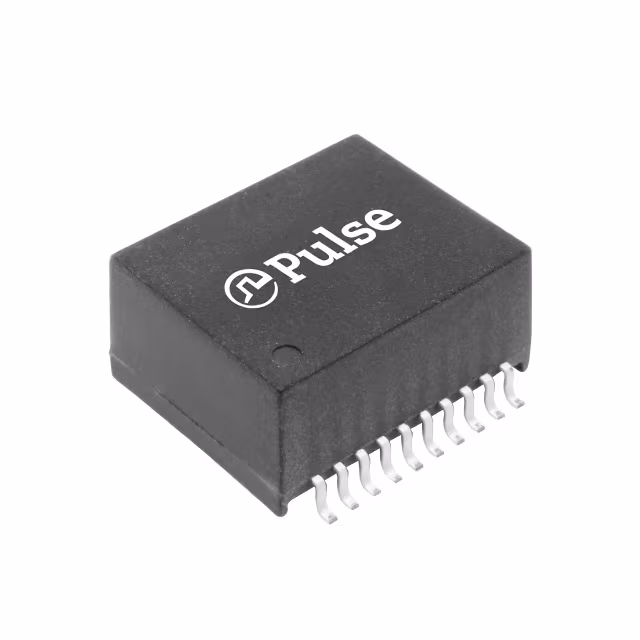

HM1331NLMDL,SIN,100D,1:1,SMT |
245 | 11.70 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.600" W (12.70mm x 15.24mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
H1664NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
143 | 13.07 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.480" W (28.19mm x 12.19mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
HX5G1010NLTRANSF MODULE 5G 4 CH 60W POE |
290 | 11.45 |
|
Datasheet |
- | Tube | Active | General Purpose | 120µH | - | 1CT:1CT | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | - | - | - |
|

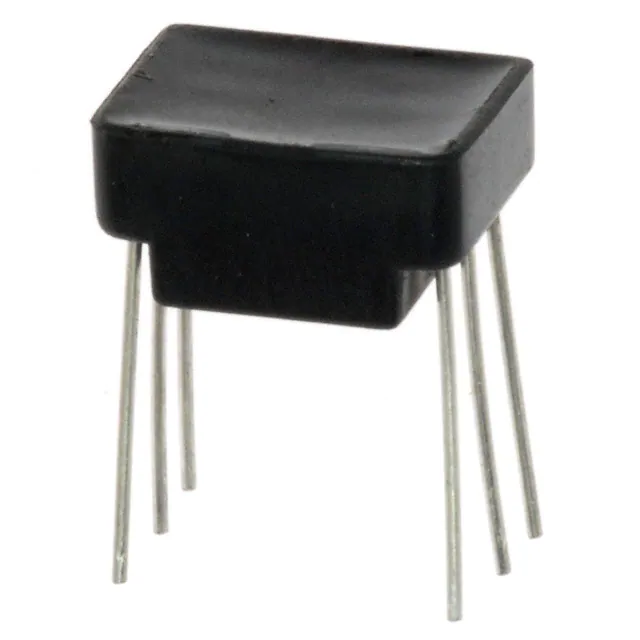

G500TRANSFORMER 5.0MH 1:1:1 PULSE |
2,518 | 11.27 |
|
Datasheet |
G5 | Tube | Active | Isolation and Data Interface (Encapsulated) | 5mH | 25VµS | 1:1:1 Ter | Through Hole | 0.350" L x 0.500" W (8.90mm x 12.70mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

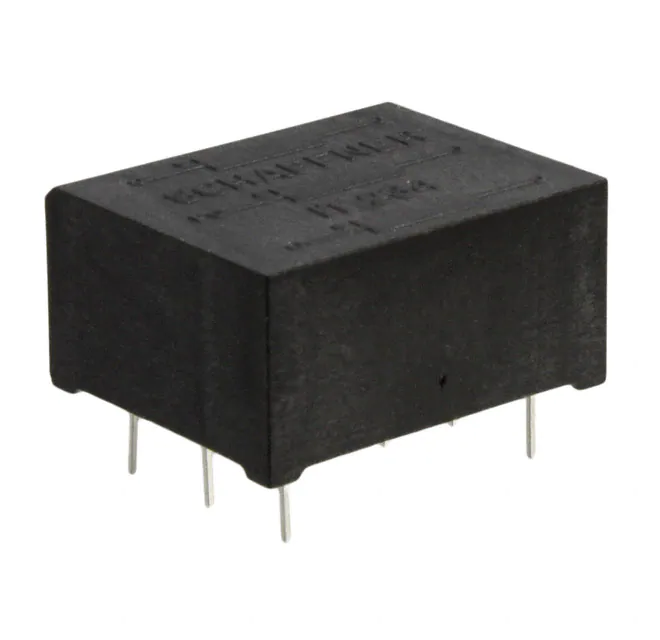

IT239XFRMR PULSE 1:1 SGL 3MH .25A |
420 | 11.60 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 3mH | - | 1:1 | Through Hole | 1.063" L x 0.886" W (27.00mm x 22.50mm) | - | -25°C ~ 70°C | - | - |
|

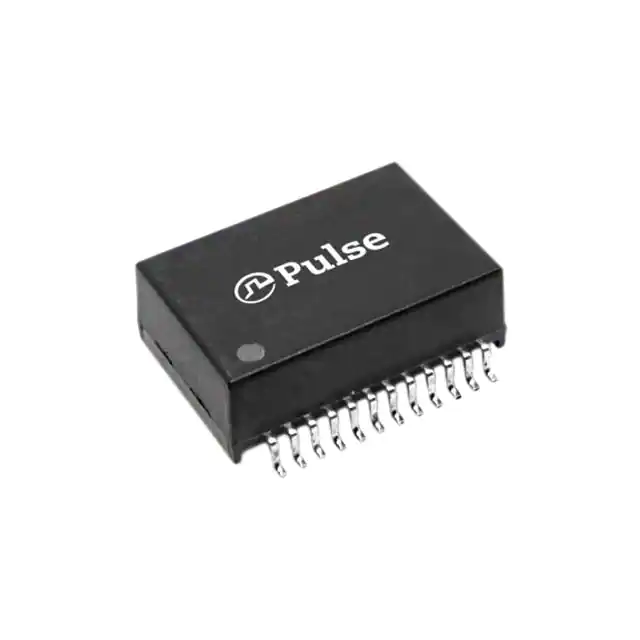

HX5026NLXFRMR MODULE 1000B-T 1 CH SMT |
503 | 12.26 |
|
Datasheet |
- | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.19mm) | 0.260" (6.60mm) | - | - | - |
|

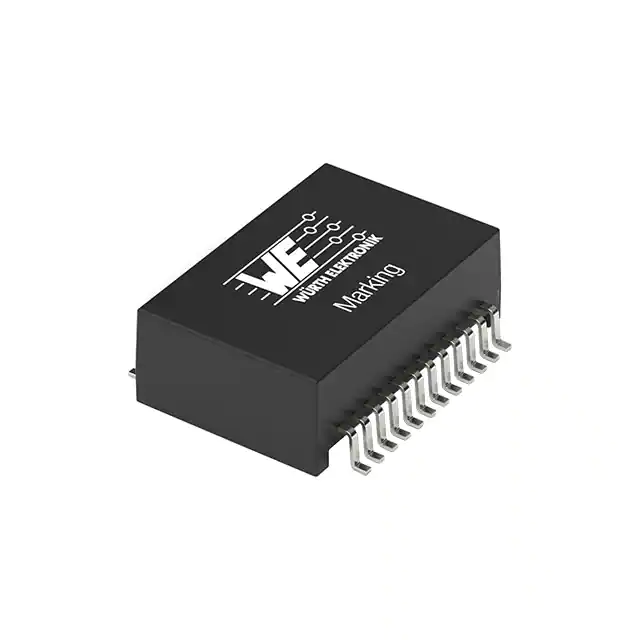

7490220115XFRMR LAN 1CT:1CT 350UH |
400 | 13.31 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.480" W (18.30mm x 12.20mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
