Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H0068ANLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,134 | 7.20 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
H6062FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,046 | 7.38 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

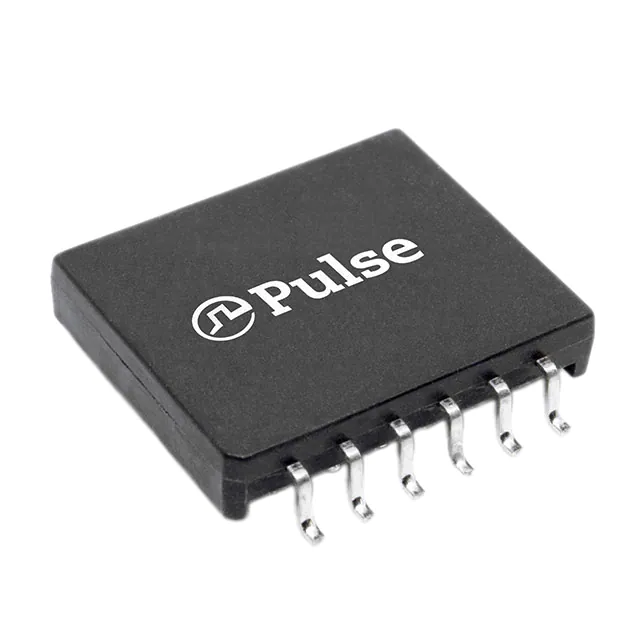

HM2112ZNLTXFMR CMC MODULE AECQ BATT MNGT |
1,063 | 6.75 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.579" L x 0.478" W (14.70mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|

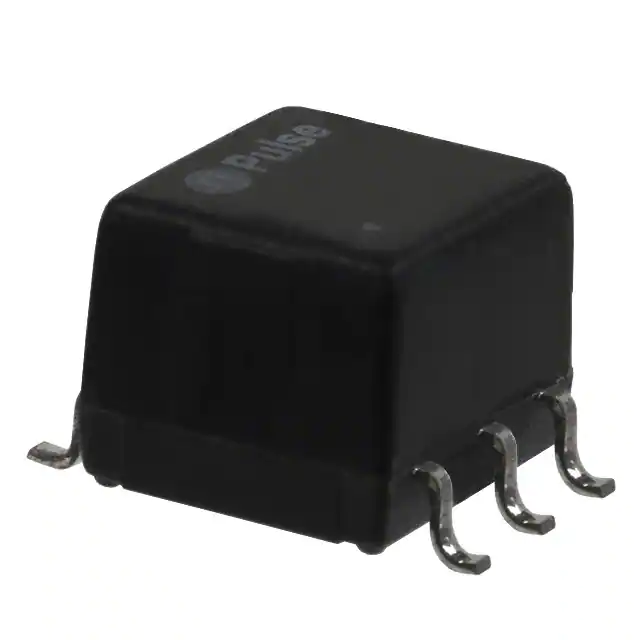

T3001NLTXFRMR T3/DS3/E3/STS-1 1:1 SMD |
2,214 | 6.86 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 100µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PE-65968NLTXFRMR T3/DS3/E3/STS-1 1:2CT SMD |
1,003 | 6.80 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 19µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|

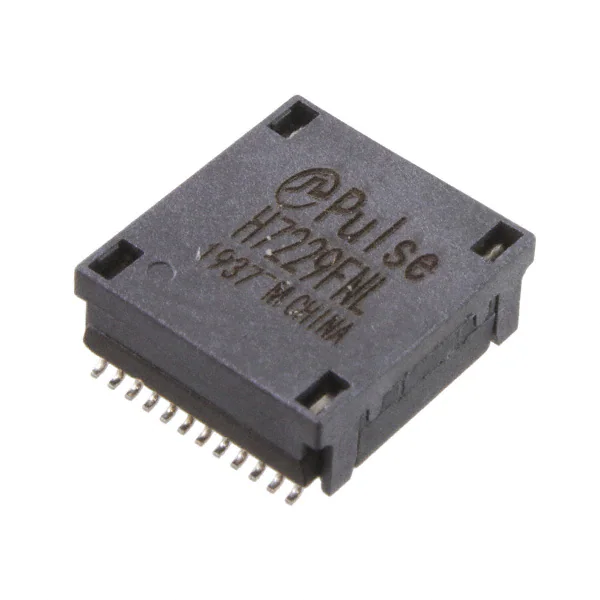

H7229FNLTRANSFORMER MODULE 10GBASE-T |
2,736 | 8.89 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.545" L x 0.591" W (13.84mm x 15.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
IT245XFRMR PULSE 1:1 SGL 8MH .1A |
772 | 6.84 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 8mH | - | 1:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
HM2112ZNLXFMR-CMC DUAL 4.3KV 1CT:1C |
161 | 7.19 |
|
Datasheet |
- | Tube | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.579" L x 0.478" W (14.70mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
H5077NLMODULE MINI-MAG 1PORT 1000BASE-T |
1,187 | 10.24 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.550" L x 0.495" W (13.97mm x 12.57mm) | 0.190" (4.82mm) | 0°C ~ 70°C | - | - |
|
S558-5999-Q9-FMODULE XFRMR LAN 10/100B-TX SMD |
853 | 7.21 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.476" W (27.94mm x 12.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
SM91534AL-ETRANSF BMS CMC 6.4KVDC 6 PIN |
450 | 0.00 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 1.102" L x 0.492" W (28.00mm x 12.50mm) | 0.374" (9.50mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
H6062NLTRANSFORMER MODULE GIGABIT POE |
892 | 7.38 |
|
Datasheet |
Star Magnetics™ | Tube | Active | - | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|
760301305XFRMR GATE DRIVE SMD |
445 | 7.85 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 735µH | 99VµS | 1.5:1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
H6062FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
408 | 7.38 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
IT255XFRMR PULSE 1:1 SGL 2.2MH .25A |
1,988 | 7.12 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 2.2mH | - | 1:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
|
IT242XFRMR PULSE 1:1:1 DL 2.5MH .1A |
1,622 | 7.12 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 2.5mH | - | 1:1:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
|
IT243XFRMR PULSE 1:1:1 DL 2.5MH .1A |
274 | 7.15 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 2.5mH | - | 1:1:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
S558-5999-Q2-FMODULE XFRMR LAN GIGABIT 48P SMD |
884 | 7.45 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
SM91527L-EBMS TRANSFOMER/CMC, 6PIN,SIN, DC |
157 | 5.80 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.374" (9.50mm) | -40°C ~ 125°C | - | - |
|
|
IT253XFRMR PULSE 1:1:1 DL 1.1MH .25A |
140 | 7.27 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 1.1mH | - | 1:1:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
