Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

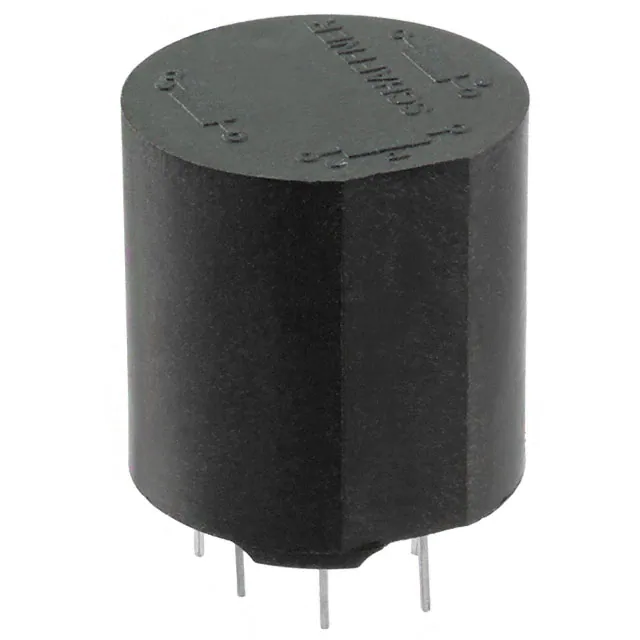

IT213XFRMR PULSE 1:1:1 DL 6.5MH .25A |
157 | 16.62 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 6.5mH | - | 1:1:1 | Through Hole | 0.748" Dia (19.00mm) | 0.787" (20.00mm) | -25°C ~ 70°C | - | - |
|
GDE25-1TRANSF .350 OHM SINGL GATE DRIVE |
382 | 17.31 |
|
Datasheet |
GDE25 | Bulk | Active | Gate Drive | 680µH | 540VµS | 1:1 | Through Hole | 1.100" L x 1.040" W (27.94mm x 26.42mm) | 1.200" (30.48mm) | -40°C ~ 80°C | - | - |
|
HX5014FNLPULSE XFMR 1 CT:1CT TX/RX 350UH |
135 | 17.31 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|

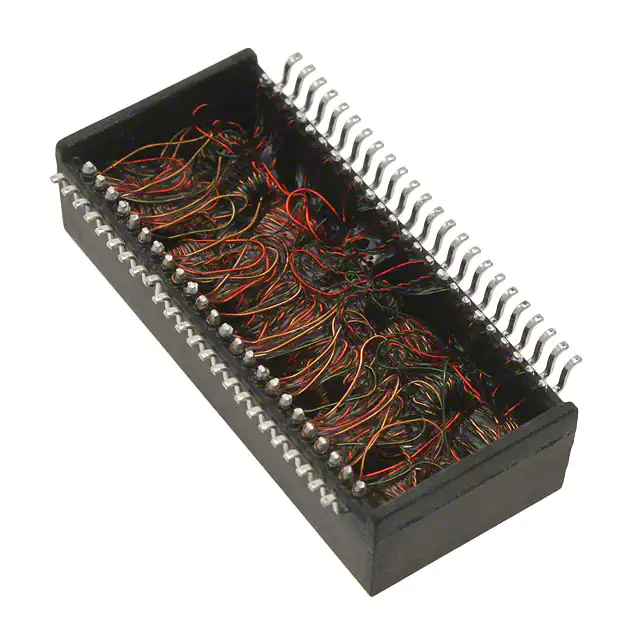

HX5014NLMODULE DL GIGABIT ETHER LAN 48P |
424 | 18.05 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
HX4019NLTRANSF MOD 2.5G 4CH 60W POE |
180 | 12.11 |
|
Datasheet |
- | Tube | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | - | - | - |
|
|
HX5014NLTTRANSFORMER MODULE GIGABIT 2PORT |
369 | 18.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
100B-1003NLEXTMP XFMR 100BT SMG COM NPB |
154 | 16.00 |
|
Datasheet |
- | Bulk | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | - | - | - |
|

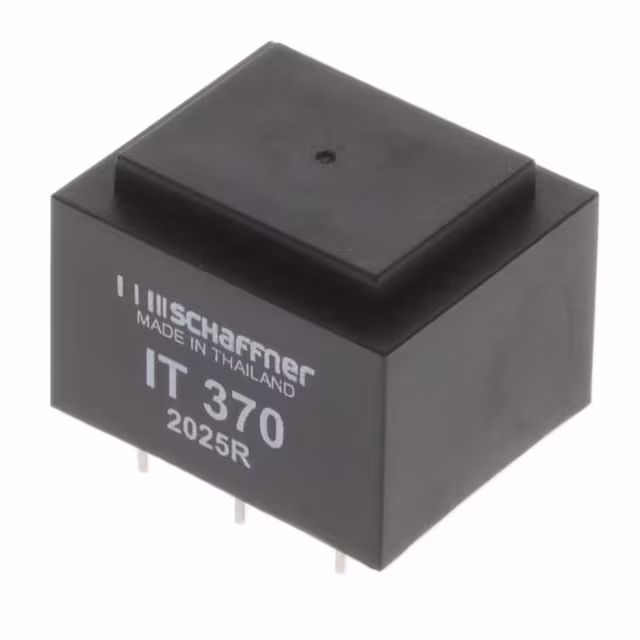

IT370XFRMR PULSE 1:1 SINGLE 0.3MH 1A |
216 | 26.24 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 300µH | - | 1:1 | Through Hole | 1.063" L x 1.268" W (27.00mm x 32.20mm) | 0.933" (23.70mm) | -25°C ~ 70°C | - | - |
|
T-330SCTXFMR DUAL 265.6M BAUD |
1,035 | 36.81 |
|
Datasheet |
Copperhead™ | Bulk | Active | - | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.290" W (12.70mm x 7.37mm) | 0.180" (4.57mm) | -55°C ~ 125°C | - | - |
|

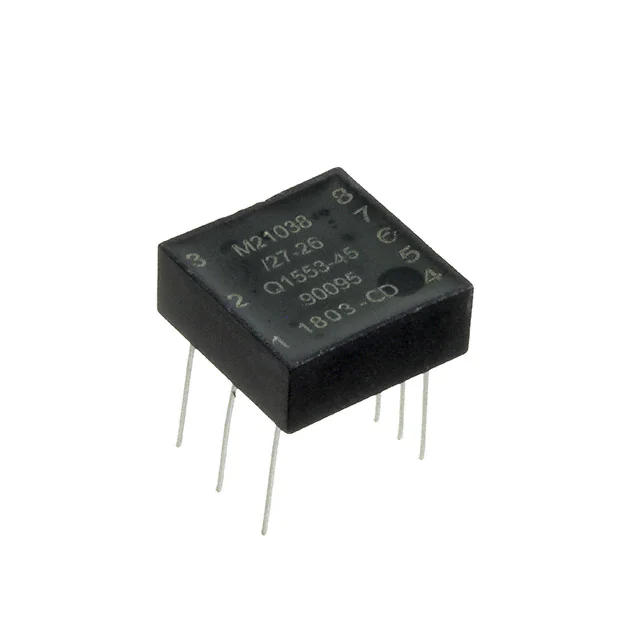

Q1553-45TRANSFORMER PULSE LVL:M PKG:A |
1,933 | 42.19 |
|
Datasheet |
- | Bulk | Active | Interface, MIL-STD-1553 | - | - | 1CT:2.5CT, 1CT:1.79CT | Through Hole | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | -55°C ~ 130°C | - | - |
|

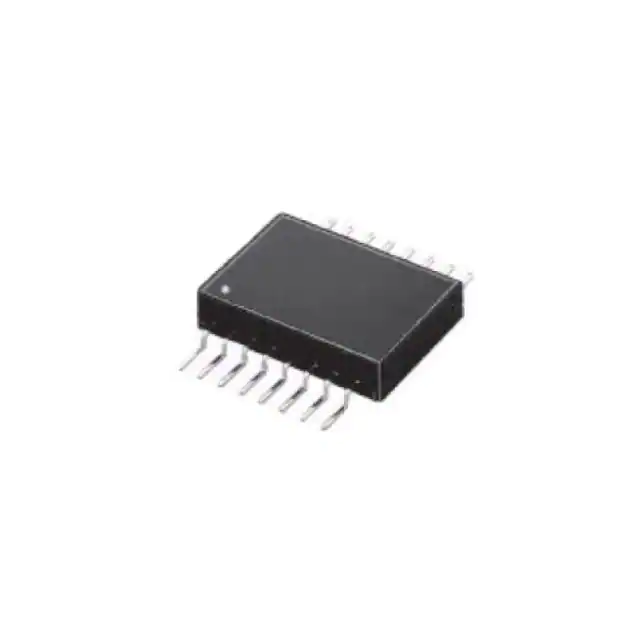

DGL1553-45TRANSFORMER MODULE INTERFACE |
1,063 | 86.04 |
|
Datasheet |
- | Tube | Active | Interface, MIL-STD-1553 | - | - | 1CT:2.5CT, 1CT:1.79CT | Surface Mount | 0.930" L x 0.630" W (23.62mm x 16.00mm) | 0.159" (4.04mm) | -55°C ~ 125°C | - | - |
|

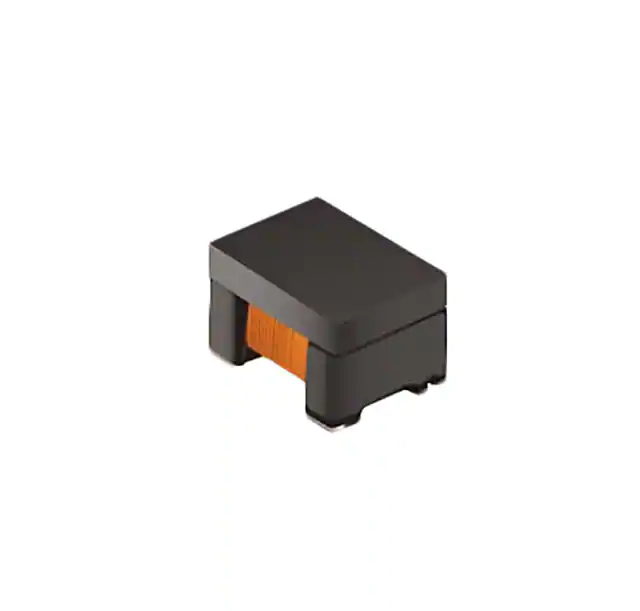

SM353230-181N7YCHIP LAN XFMR,1 /2.5/5G,3.5X3.2X |
312 | 0.91 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 1/2.5/5G Base-T | 180µH | - | 1:1 | Surface Mount | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|
78602/3MC-RPULSE XFMR 1:1:1 200UH |
377 | 1.16 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 200µH | 6VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78601/1JC-RPULSE XFMR 1:1 2MH |
233 | 2.79 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 2mH | 20VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/2MC-RPULSE XFMR 1:1 500UH |
34,189 | 1.16 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 500µH | 10VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/1JC-RPULSE XFMR 1:1:1 1.89MH |
1,302 | 2.79 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 1.89mH | 20VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/8JC-RPULSE XFMR 1:1 850UH |
1,119 | 2.79 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 850µH | 15VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/4MC-RPULSE XFMR 1:1 67UH |
301 | 1.16 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 67µH | 4VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/9MC-RPULSE XFMR 2:1 10MH |
300 | 1.16 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 10mH | 56VµS | 2:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/1MCTRANSFORMER 1:1:1 2000UH 20VUS |
13,835 | 1.57 |
|
Datasheet |
786 | Bulk | Not For New Designs | General Purpose | 2mH | 20VµS | 1:1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
