Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
_iNRCORE_Product-Image.jpg)
|
R1035NLXFRMR ETHERNET MOD IND 10/100BTX |
113 | 7.02 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.510" L x 0.380" W (12.95mm x 9.65mm) | 0.088" (2.24mm) | -40°C ~ 85°C | - | - |
|

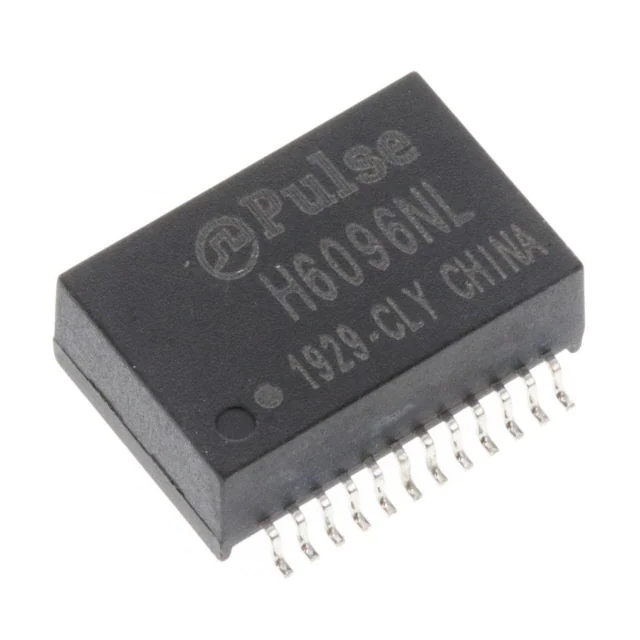

H6096NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,100 | 8.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|

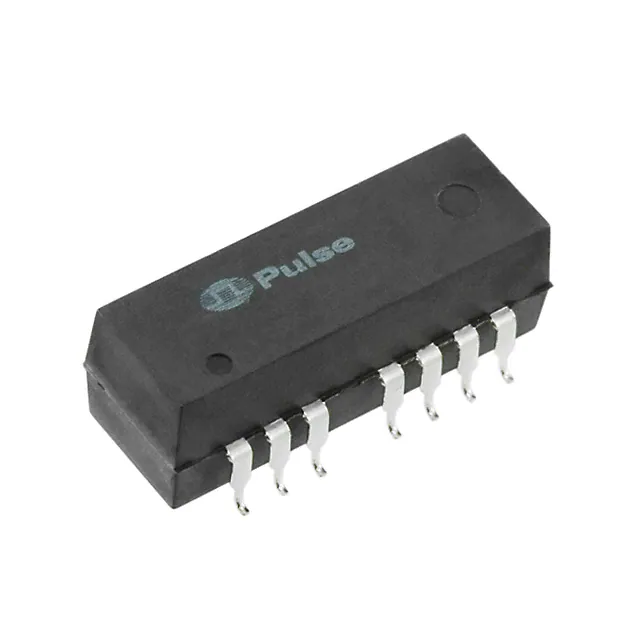

PE-68515LNLTXFRMR MODULE 1PORT 1:1 10/100B-T |
6,678 | 7.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
|
PE-68515LNLXFRMR MODULE 1PORT 1:1 10/100B-T |
532 | 7.56 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
749023113CWE-LAN 10/100/1000 BASE-T SMT TR |
695 | 0.00 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | - | 0.094" (2.39mm) | -40°C ~ 85°C | - | - |
|
H5062NLXFRMR MODULE GIGABIT 1PORT 1:1 |
304 | 7.89 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|

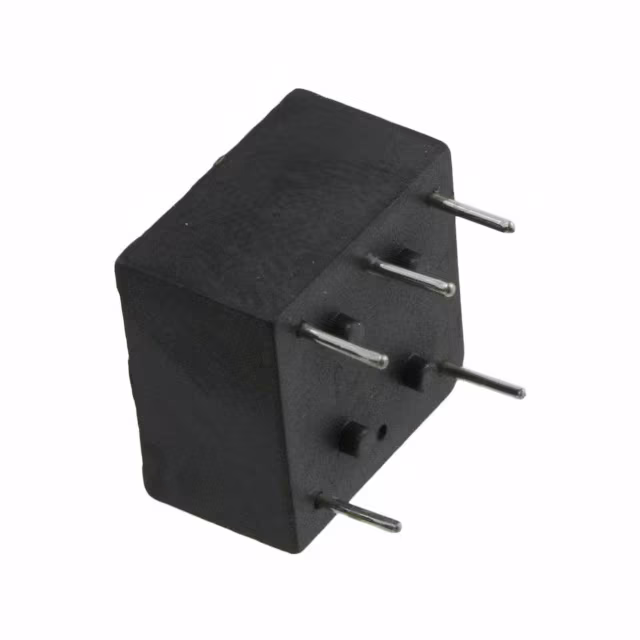

PE-65535NLXFRMR 64KBPS 1:2CT 20MH T/H |
817 | 7.95 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT | Through Hole | 0.559" L x 0.559" W (14.20mm x 14.20mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
760301107XFRMR GATE DRIVE 1.5:1 SMD |
280 | 8.68 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 650µH | 40.8VµS | 1.5:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
H2019FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
882 | 7.83 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
GST5009 LFMDL 1G SINGLE PORT N/A |
3,271 | 4.75 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | 0°C ~ 70°C | - | - |
|
T60403F5046X008GATE DRIVE TRANSFORMER SMD 1:1:1 |
5,024 | 11.32 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 2.32mH | 110VµS | 1:1:1:1 | Surface Mount | 0.791" L x 0.591" W (20.10mm x 15.00mm) | 0.413" (10.50mm) | -40°C ~ 85°C | - | - |
|
|
TM82440ANLLAN XFMR 1G BASE-T SINGLE |
2,624 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.595" L x 0.279" W (15.11mm x 7.09mm) | 0.158" (4.01mm) | -40°C ~ 85°C | - | - |
|

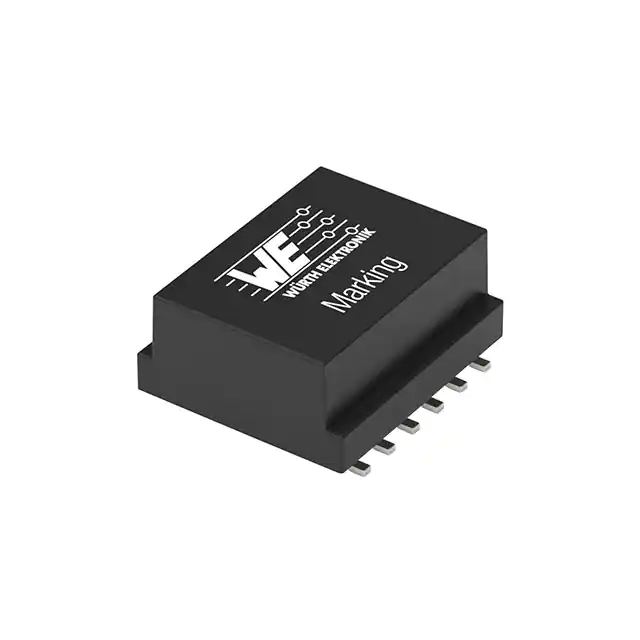

7490140122BXFMR LAN 10/100 BASE-T 1:1 350UH |
719 | 9.17 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.331" (8.40mm) | -40°C ~ 85°C | - | - |
|
HX5004ENLPULSE XFMR 1 CT:1CT TX/RX 350UH |
480 | 12.15 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|

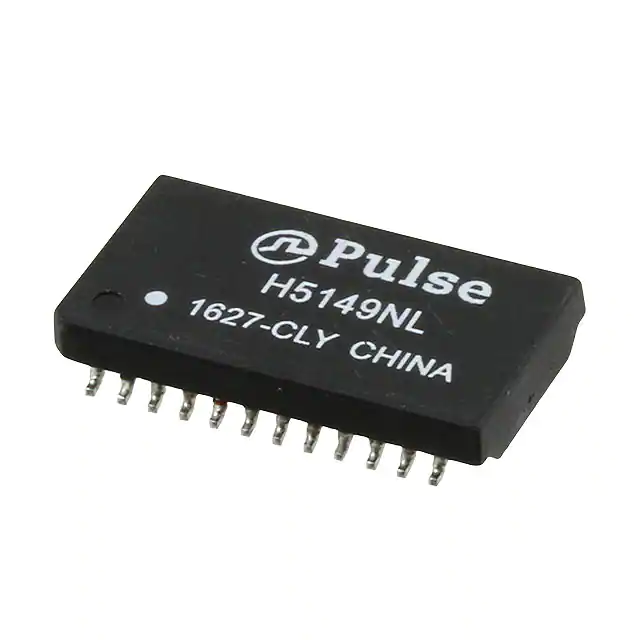

H5149NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
147 | 8.73 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.701" L x 0.390" W (17.80mm x 9.91mm) | 0.126" (3.20mm) | 0°C ~ 70°C | - | - |
|

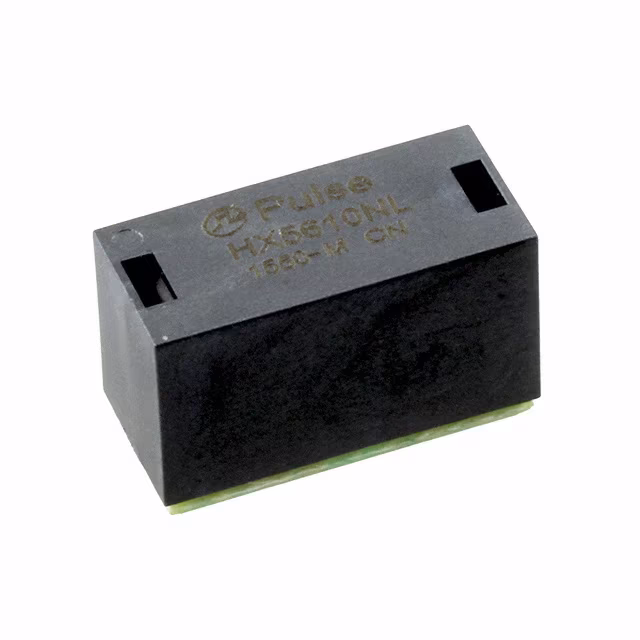

HX5610NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
559 | 10.33 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|

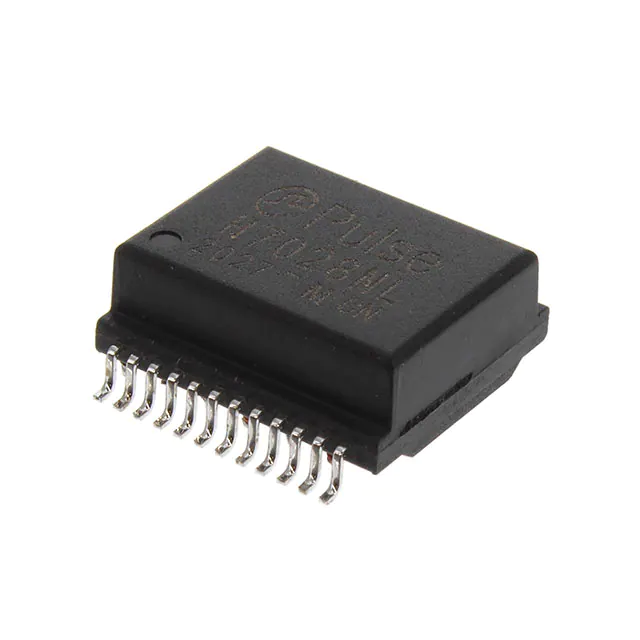

H7028NL10GBASE-T DISCRETE 4CH BCM PHY |
131 | 8.65 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 120µH | - | 1:1 | - | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PE-63385NLPULSE XFMR 1:1 1.5MH |
914 | 8.77 |
|
Datasheet |
- | Tray | Active | - | 1.5mH | 200VµS | 1:1 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|
HX6096NLPULSE XFMR 1CT:1CT TX/RX |
2,461 | 8.93 |
|
Datasheet |
- | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
S558-5999-Q3-FMODULE XFRMR LAN GIGABIT 48P SMD |
2,004 | 9.49 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
