Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78601/2MCPULSE XFMR 1:1 500UH |
6,074 | 1.57 |
|
Datasheet |
786 | Tube | Not For New Designs | General Purpose | 500µH | 10VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78601/2CTRANSFORMER 1:1 500UH 10VUS |
608 | 1.57 |
|
Datasheet |
786 | Bulk | Active | General Purpose | 500µH | 10VµS | 1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78615/2JCPULSE XFMR 1CT:1CT 500UH |
175 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 500µH | 10VµS | 1CT:1CT | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/8CPULSE XFMR 1:1 1MH |
172 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 1mH | 15VµS | 1:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78613/4CPULSE XFMR 1CT:1 67UH |
158 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 67µH | 4VµS | 1CT:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/4CPULSE XFMR 1:1 67UH |
149 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 67µH | 4VµS | 1:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78615/3JCPULSE XFMR 1CT:1CT 190UH |
141 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 190µH | 6VµS | 1CT:1CT | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/9MCTRANSFORMER 1:1:1 10000UH 56VUS |
140 | 1.57 |
|
Datasheet |
786 | Tube | Not For New Designs | General Purpose | 10mH | 56VµS | 1:1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/1CPULSE XFMR 1:1:1 2MH |
128 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 2mH | 20VµS | 1:1:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/9CTRANSFORMER 1:1:1 10MH 56VUS |
122 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 10mH | 56VµS | 1:1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/1JCPULSE XFMR 2:1 1.84MH |
120 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 1.84mH | 20VµS | 2:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78615/1CPULSE XFMR 1CT:1CT 2MH |
117 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 2mH | 20VµS | 1CT:1CT | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78613/2JCPULSE XFMR 1CT:1 490UH |
108 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 490µH | 10VµS | 1CT:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
74930120WE-STST SMT SUPER TINY SIGNAL TR |
596 | 2.16 |
|
Datasheet |
WE-STST | Tape & Reel (TR) | Active | - | 110µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 105°C | - | - |
|
76601/2CXFRMR 1:1 492UH 8.5VUS B |
763 | 2.05 |
|
Datasheet |
766 | Tube | Active | General Purpose | 492µH | 8.5VµS | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|

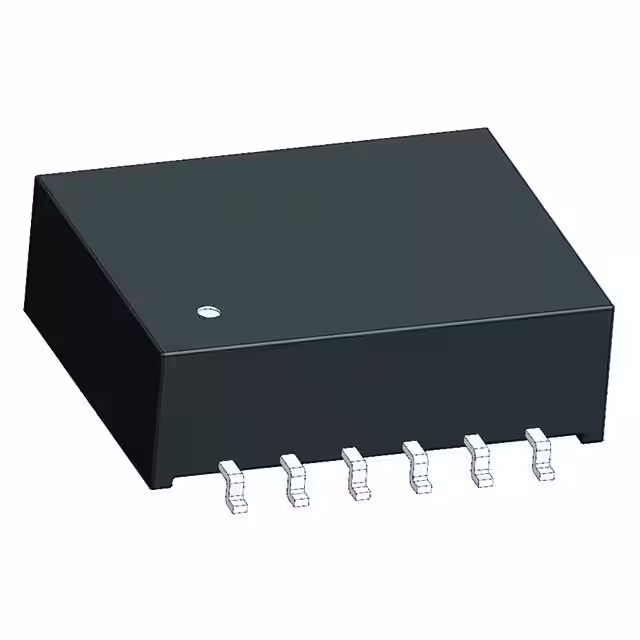

ALANS100X1-2F00DTLAN SGL 100B XFMR&CMC 16PIN |
445 | 1.97 |
|
Datasheet |
ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
|
76601/3CXFRMR 1:1 219UH 5.5VUS B |
164 | 2.05 |
|
Datasheet |
766 | Tube | Active | General Purpose | 219µH | 5.5VµS | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|

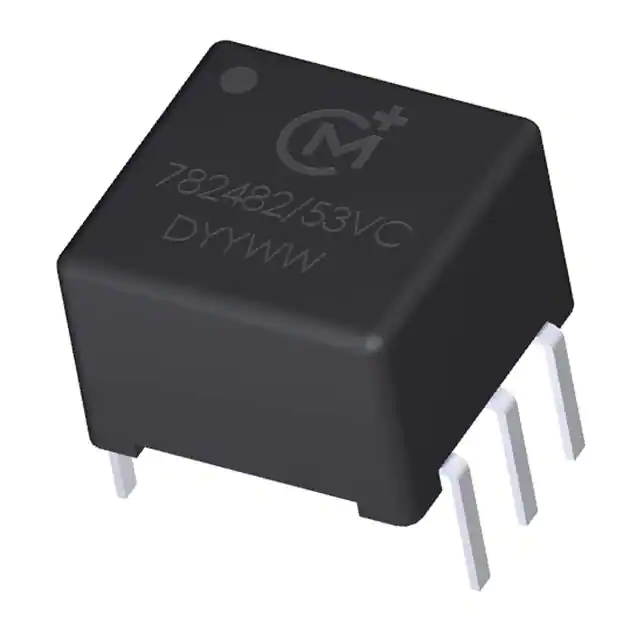

782482/53VCXFRMR CONV ADM2482 5.0V IN |
3,344 | 2.10 |
|
Datasheet |
782482 | Tube | Active | Isolation and Data Interface (Encapsulated) | 260µH | - | 1.14CT:1CT | Through Hole | 0.360" L x 0.385" W (9.14mm x 9.77mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
749302010XFRMR 1:4.5:4.5:1 300UH SMD |
3,804 | 2.54 |
|
Datasheet |
WE-STST | Tape & Reel (TR) | Active | - | 300µH | - | 1:4.5:4.5:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 105°C | - | - |
|
750110056TRANSFORMER 70/80UH SMD |
3,201 | 4.30 |
|
Datasheet |
WE-AMT, MID-PMA | Tape & Reel (TR) | Active | Data/Voice Coupling | 70µH | - | 1.08:1 | Surface Mount | 0.265" L x 0.340" W (6.73mm x 8.64mm) | 0.140" (3.55mm) | -20°C ~ 85°C | - | - |
