Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750510185XFRM VX180-IFE6 POTS DAUGHTERBRD |
427 | 2.43 |
|
Datasheet |
MID-DSLIKN | Tape & Reel (TR) | Active | VDSL | 400µH | - | 1:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | -40°C ~ 85°C | - | - |
|
PE-65728NLTRANSFMR AUI ETHERNET LAN 16SOIC |
483 | 5.52 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
H1260NLTXFRMR MODULE 1PORT 1:1 10/100 |
1,430 | 5.38 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|

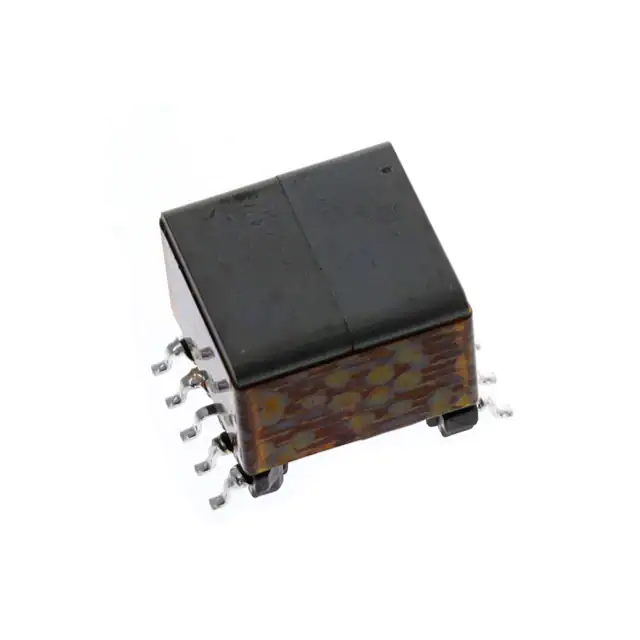

PA2649NLTRANSFMR 33-57VIN 12VOUT 2.5ASMD |
3,852 | 4.71 |
|
Datasheet |
- | Tray | Active | - | 100.5µH | - | - | Surface Mount | 0.690" L x 0.529" W (17.53mm x 13.44mm) | 12.45mm | -40°C ~ 130°C | - | - |
|
HM1238NLXFMR CMC MODULE AECQ BATT MNGT |
667 | 2.57 |
|
Datasheet |
- | Tube | Active | - | 300µH | - | 1:1 | Surface Mount | 0.413" L x 0.330" W (10.50mm x 8.38mm) | 0.167" (4.25mm) | - | - | - |
|

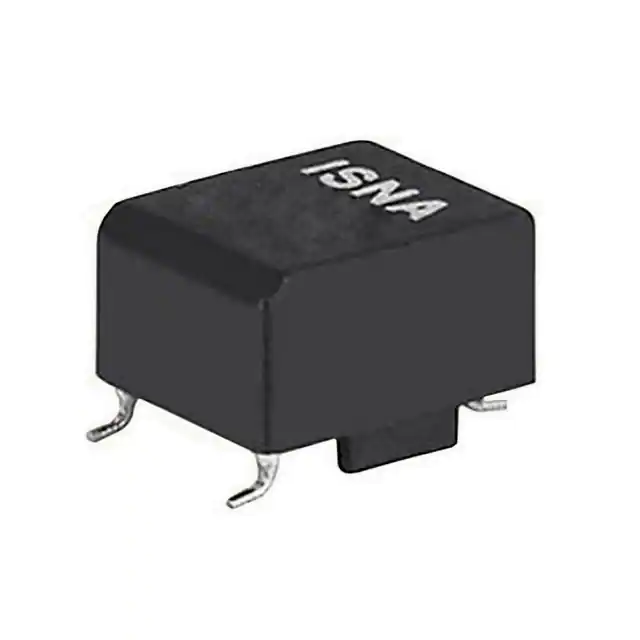

ISNA-0249-D104ISNA PULSE TRANSFORMER SMD 0.1A |
103 | 3.73 |
|
Datasheet |
IS | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 3.5mH | 300VµS | 1:1 | Surface Mount | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.532" (13.50mm) | -25°C ~ 100°C | - | - |
|

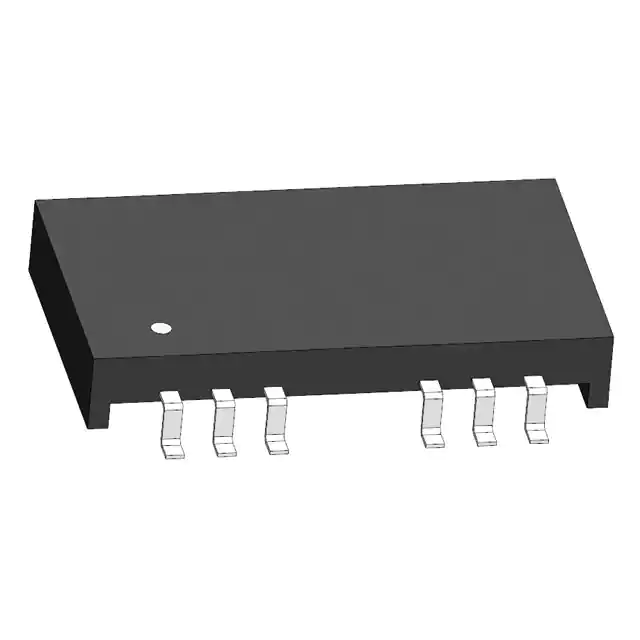

ALANL100X1-EF62DT10/100BASE-TX LAN XFMR |
3,627 | 4.83 |
|
Datasheet |
ALANL100X1-E | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.16mm) | -40°C ~ 85°C | - | - |
|
PH9572.122ANLTGDT, FUNCTIONAL, EP7, SMT |
11,803 | 2.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 1mH | 42.4VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
PH9572.322ANLTGDT, FUNCTIONAL, EP7, SMT |
10,026 | 2.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | - | - | - | Surface Mount | - | - | - | - | - |
|

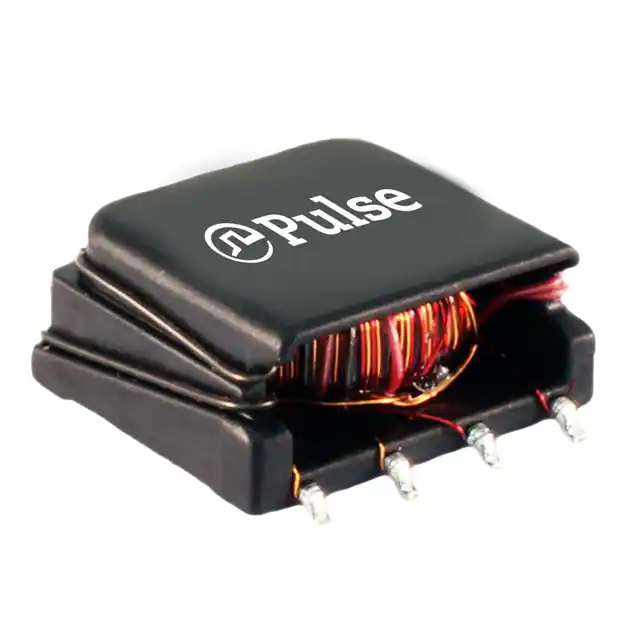

PM2155.011NLTXFMR PUSH-PULL SIDE CAR S NPB |
681 | 3.81 |
|
Datasheet |
PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.2mH | 109VµS | 1CT:1CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|

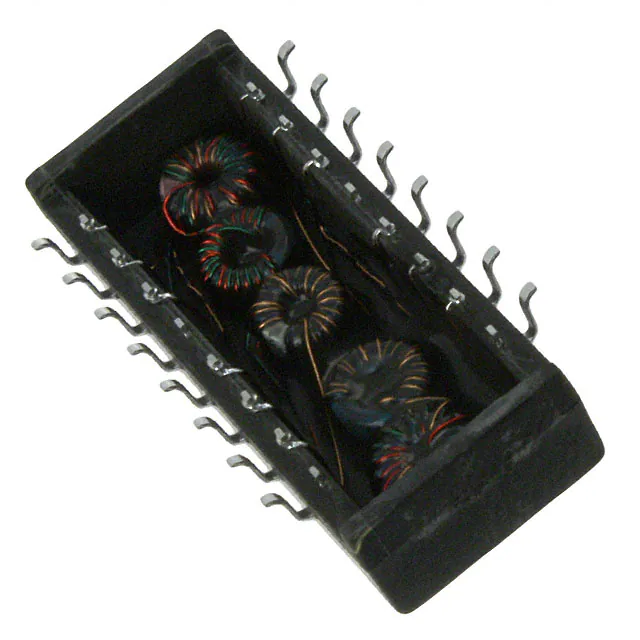

S558-5999-46-FMODULE XFRMR LAN 10/100B-TX SMD |
907 | 4.10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 420µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
PA2417NLPULSE XFMR 530UH |
2,230 | 3.95 |
|
Datasheet |
- | Tray | Active | - | 530µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PA1138NLTXFRMR 12V 13.5W 127UH POE EP13 |
1,410 | 4.00 |
|
Datasheet |
EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 127µH | - | 1:0.292:0.208 | Surface Mount | 0.551" L x 0.695" W (14.00mm x 17.65mm) | 0.500" (12.70mm) | -40°C ~ 125°C | - | - |
|
PM2190.034NLTXFMR PWR .750 UH EP7 SM NPB |
1,137 | 4.00 |
|
Datasheet |
PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 750µH | 66VµS | 3CT:4CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
_R1022NL(T)_iNRCORE_Product-Image.jpg)
|

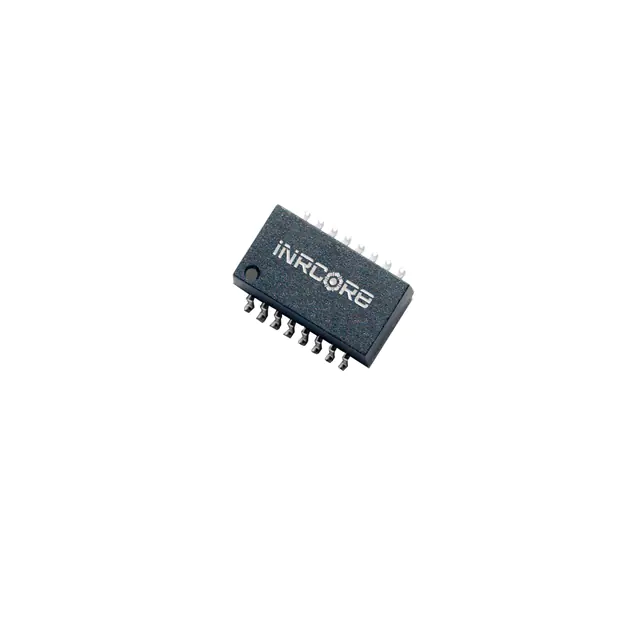

R1003NLXFRMR ETHERNET MOD IND 10/100B-T |
679 | 3.66 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.510" L x 0.280" W (12.95mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
HM2147NLTXFMR SGL 1CT:1CT 500UH 4.3KV |
2,590 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 500µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
|
PA1131NLTXFRMR 5.0V 3W 500UH POE EP7 SMD |
260 | 4.01 |
|
Datasheet |
EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 500µH | - | 1:0.125:0.208 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|

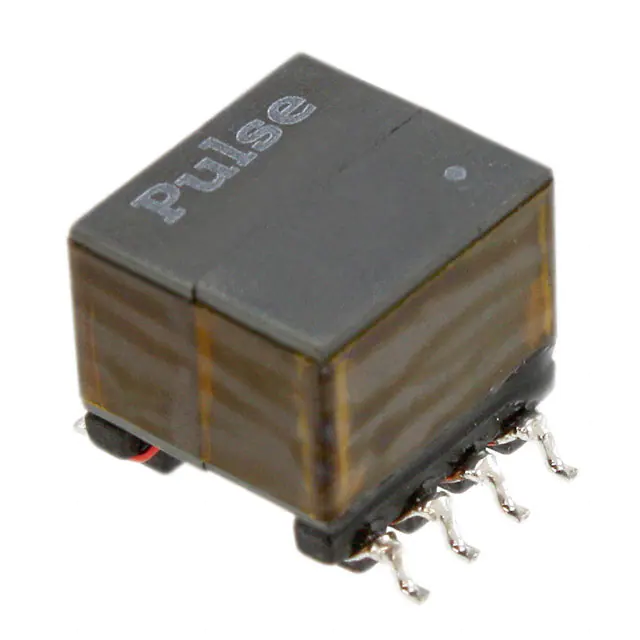

PA1134NLTXFRMR 5V 7W 253UH POE EP10 SMD |
1,431 | 4.09 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 253µH | - | 1:0.125:0.208 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|

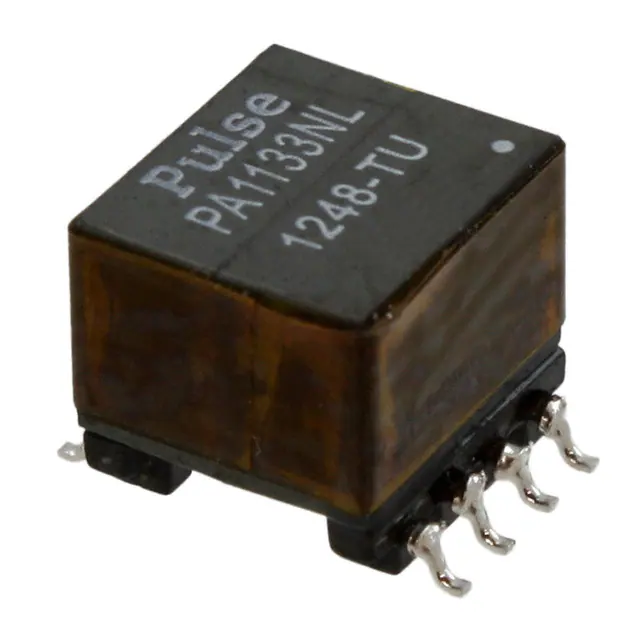

PA1133NLTXFRMR 3.3V 7W 253UH POE EP10 SMD |
562 | 4.16 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 253.4µH | - | 1:0.083:0.208 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
PA1260NLTXFRMR 5V 13.5W 77.4UH POE EP13 |
259 | 4.10 |
|
Datasheet |
EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 77.4µH | - | 1:0.273:0.682 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
