Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82804A0474A125PULSE XFMR 2.5:1 473UH |
9,629 | 4.52 |
|
Datasheet |
EP5 | Tape & Reel (TR) | Active | Gate Drive | 473µH | 30.6VµS | 2.5:1 | Surface Mount | 0.264" L x 0.240" W (6.70mm x 6.10mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
|
|
B82804A0694A115PULSE XFMR 1.5:1 690UH |
6,283 | 4.52 |
|
Datasheet |
EP5 | Tape & Reel (TR) | Active | Gate Drive | 690µH | 40.8VµS | 1.5:1 | Surface Mount | 0.264" L x 0.240" W (6.70mm x 6.10mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
.00xNL-Series.jpg)
|
PA3855.006NLPULSE XFMR 21UH |
1,355 | 4.22 |
|
Datasheet |
- | Tray | Active | - | 21µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|

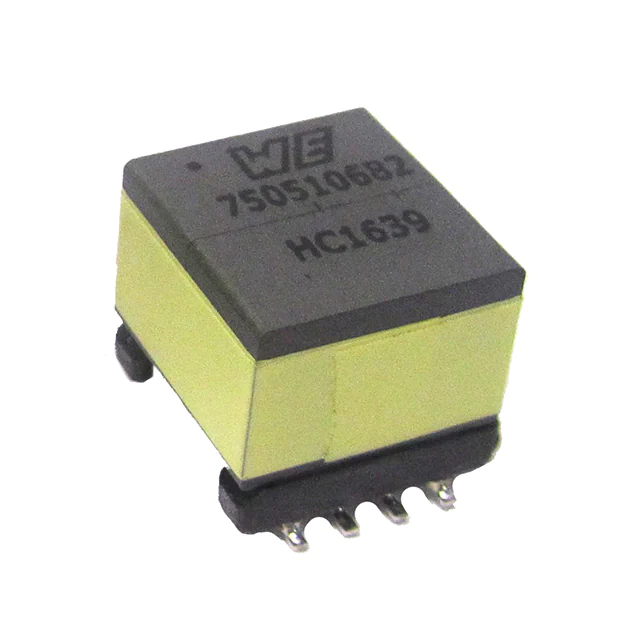

750510682DIGITAL TRANSFORMER |
1,156 | 3.96 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1µH | - | 1:1 | Surface Mount | - | 0.520" (13.20mm) | - | - | - |
|

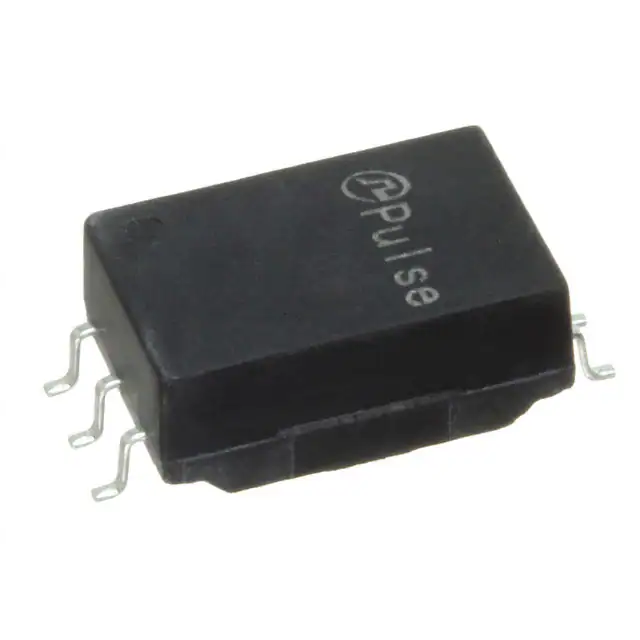

HM2106NLXFMR MODULE AECQ BATT MNGT |
873 | 4.42 |
|
Datasheet |
- | Tube | Active | - | 135µH | - | - | Surface Mount | 0.335" L x 0.663" W (8.50mm x 16.84mm) | 0.226" (5.75mm) | - | - | - |
|
PE-65351NLXFRMR T1/CEPT/ISDN-PRI 1:2CT T/H |
1,124 | 5.20 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
HM2146NLXFMR SGL 1CT:1CT 150UH 3KV |
438 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 150µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
|
HM2147NLXFMR SGL 1CT:1CT 500UH 4.3KV |
297 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 500µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
BMU6201NLTRANSFORMER 5UH 1:1:1 500V SMT |
526 | 4.53 |
|
Datasheet |
- | Tube | Active | - | 5µH | - | 1:1:1 | Surface Mount | 0.295" L x 0.198" W (7.49mm x 5.03mm) | 0.155" (3.94mm) | -40°C ~ 125°C | - | - |
|
PH9185.043NLTTRANSFORMER 1260UH 4:3 SMD |
357 | 4.55 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
|
PA3855.005NLPULSE XFMR 21UH |
1,324 | 0.00 |
|
Datasheet |
- | Tray | Active | - | 21µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|

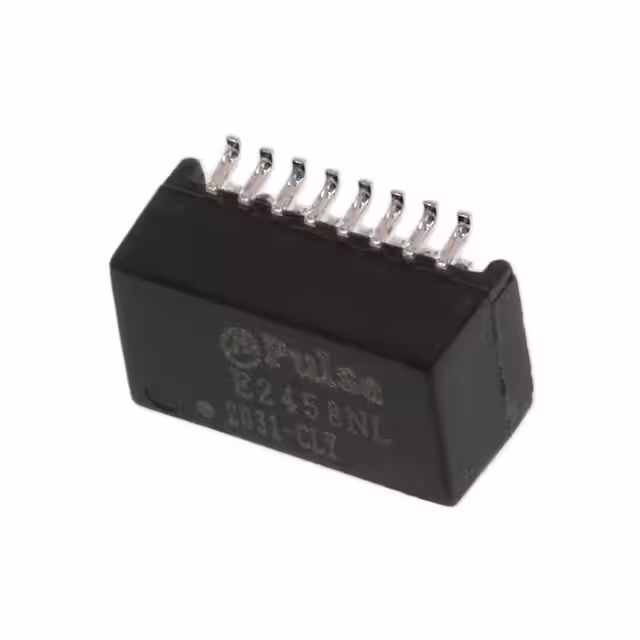

E2458NLXFRMR ISOL 10BASE-T 1:1.41 SMD |
560 | 5.38 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 160µH, 160µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|

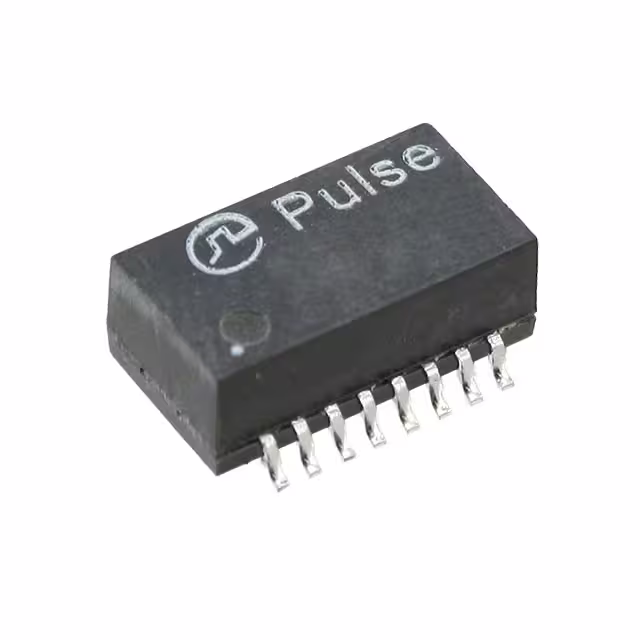

PE-65745NLXFRMR LAN ISOL 1CT:1.414CT 10B-T |
1,023 | 4.90 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|

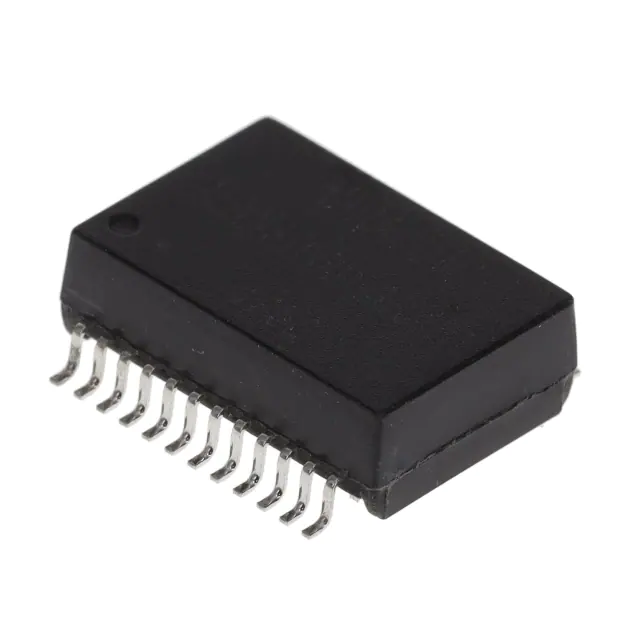

ALAN310001-3J61DTXFRMR LAN 1CT:1CT 350UH |
361 | 7.35 |
|
Datasheet |
ALAN310001 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.724" L x 0.490" W (18.38mm x 12.44mm) | 0.254" (6.45mm) | -40°C ~ 85°C | - | - |
|

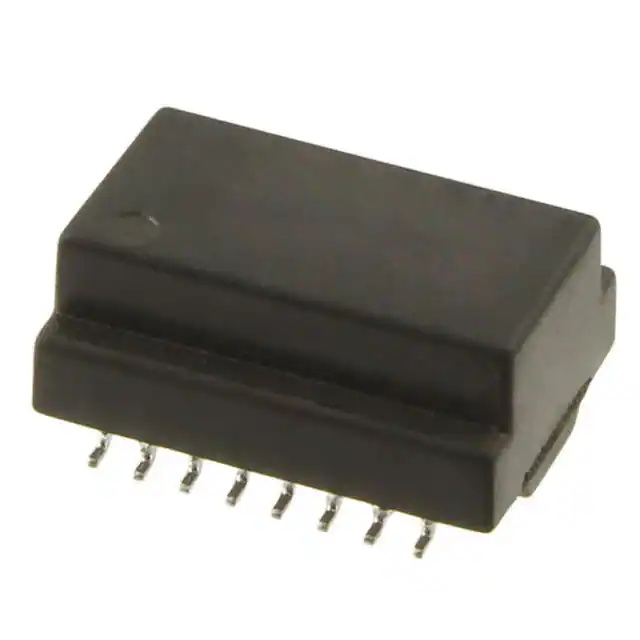

H1260FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,800 | 5.49 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
PA2369NLTPULSE XFMR 37UH |
3,112 | 4.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|

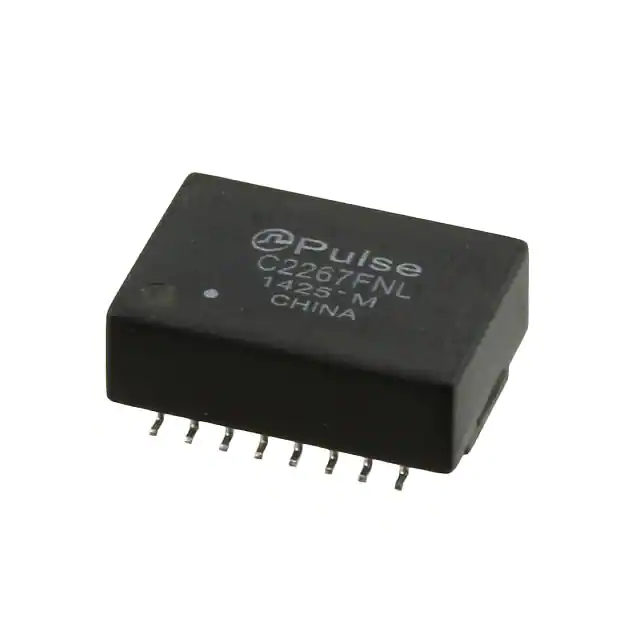

C2267FNLPULSE XFMR 1:1 15UH |
1,453 | 4.72 |
|
Datasheet |
- | Tube | Active | - | 15µH | - | 1:1 | Surface Mount | 0.386" L x 0.354" W (9.80mm x 9.00mm) | 0.425" (10.80mm) | 0°C ~ 70°C | - | - |
|

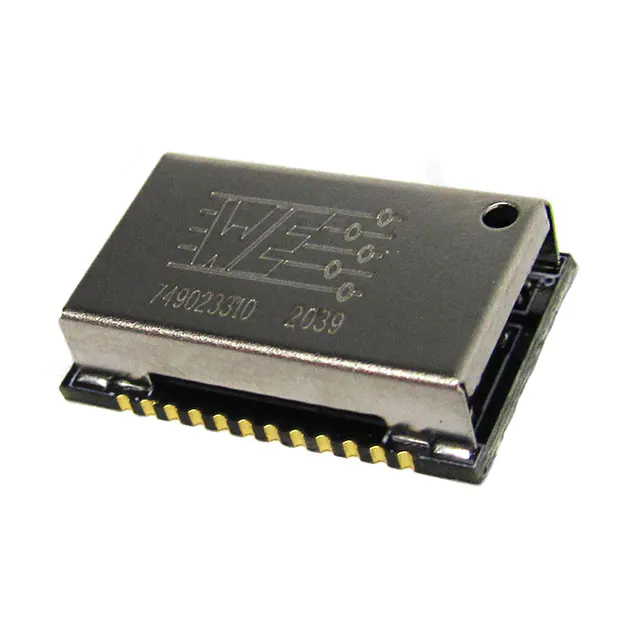

749023310WE-LAN AQ 10/100/1000 BASE-T SMT |
818 | 5.28 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1 | Surface Mount | 0.650" L x 0.406" W (16.50mm x 10.30mm) | 0.161" (4.10mm) | -40°C ~ 105°C | - | - |
|
749013310WE-LAN AQ 10/100 BASE-T SMT TRAN |
234 | 5.28 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1 | Surface Mount | 0.500" L x 0.341" W (12.70mm x 8.67mm) | 0.157" (4.00mm) | -40°C ~ 85°C | - | - |
|

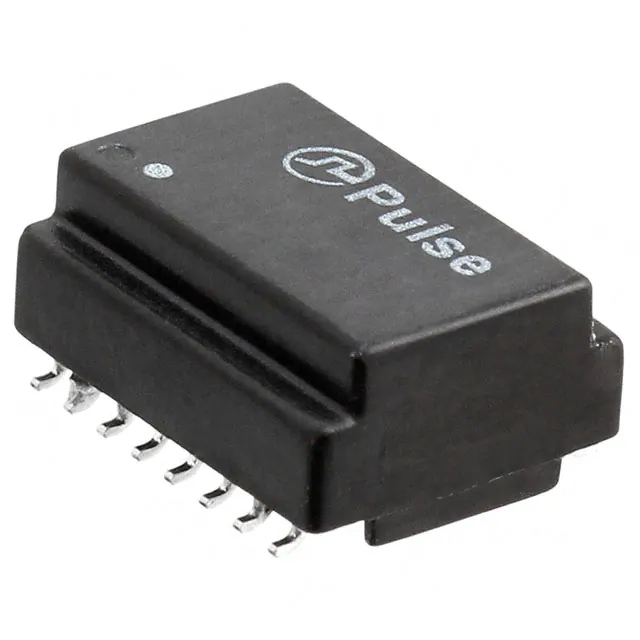

HX2260FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
2,243 | 5.49 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
