Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

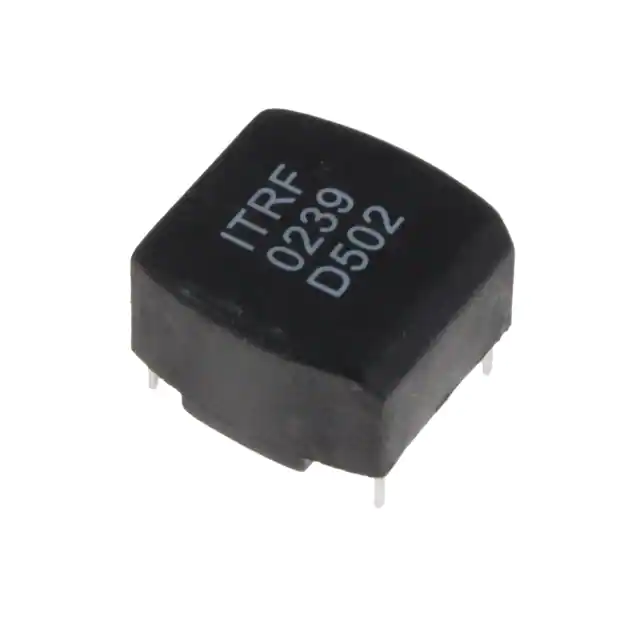

ITRF-0239-D502ITRF PULSE TRANSFORMER THT 0.5A |
280 | 4.86 |
|
Datasheet |
IT | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.6mH | 350VµS | 1:1:1 | Through Hole | 0.878" L x 0.894" W (22.30mm x 22.70mm) | 0.535" (13.60mm) | -25°C ~ 100°C | - | - |
|
74942301WE-BMS SMT TRANSFORMER -40C TO + |
510 | 0.00 |
|
Datasheet |
WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.594" L x 0.559" W (15.10mm x 14.20mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
1017CTRANSFORMER PULSE 1:1 .8MH |
3,049 | 4.88 |
|
Datasheet |
1000 | Bulk | Active | - | 800µH | 130VµS | 1:1 | Through Hole | 0.593" L x 0.593" W (15.06mm x 15.06mm) | 0.640" (16.25mm) | 0°C ~ 70°C | - | - |
|

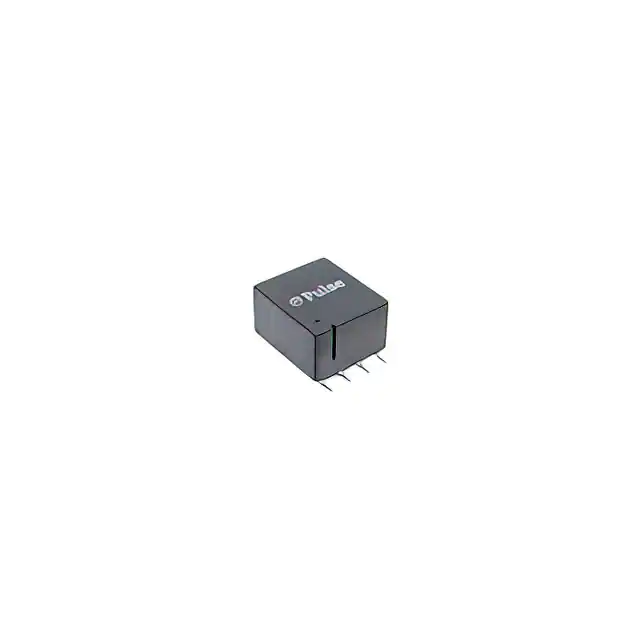

BX6152NLTRANSFORMER 7UH 1:1:2 3KV SMT |
286 | 5.27 |
|
Datasheet |
- | Tube | Active | - | 7µH | - | 1:1:2 | Surface Mount | 0.445" L x 0.406" W (11.30mm x 10.30mm) | 0.300" (7.62mm) | -40°C ~ 125°C | - | - |
|
|
BX6153NLTRANSFORMER 7UH 1:1 4KV SMT |
149 | 5.27 |
|
Datasheet |
- | Tube | Active | - | 7µH | - | 1:1 | Surface Mount | 0.445" L x 0.406" W (11.30mm x 10.30mm) | 0.300" (7.62mm) | -40°C ~ 125°C | - | - |
|
|
74942302WE-BMS SMT TRANSFORMER -40C TO + |
281 | 0.00 |
|
Datasheet |
WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.594" L x 0.579" W (15.10mm x 14.70mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
750510730DIGITAL TRANSFORMER |
1,427 | 5.04 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1mH | - | 1:1 | Surface Mount | - | 0.520" (13.20mm) | - | - | - |
|
SM91047ELPULSE XFMR 11.875:1 5MH |
378 | 5.15 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 5mH | - | 11.875:1 | Surface Mount | 0.531" L x 0.701" W (13.50mm x 17.80mm) | 0.500" (12.70mm) | -40°C ~ 125°C | - | - |
|

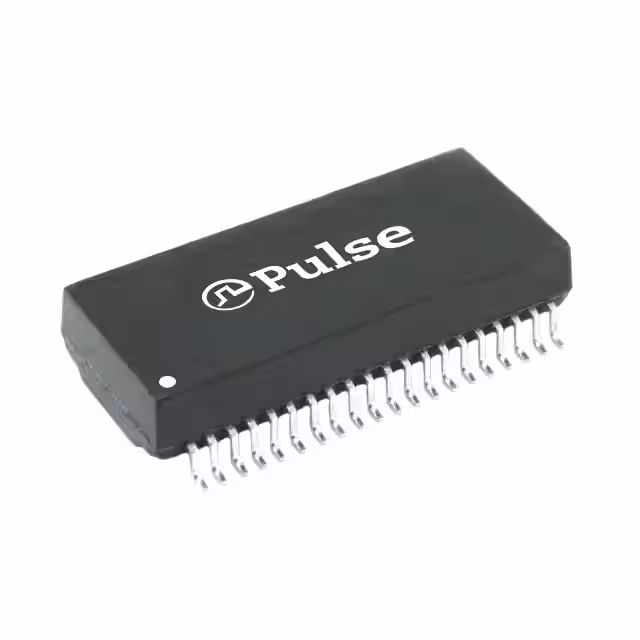

HX1344NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
408 | 7.34 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.106" L x 0.480" W (28.10mm x 12.20mm) | 0.225" (5.72mm) | - | - | - |
|

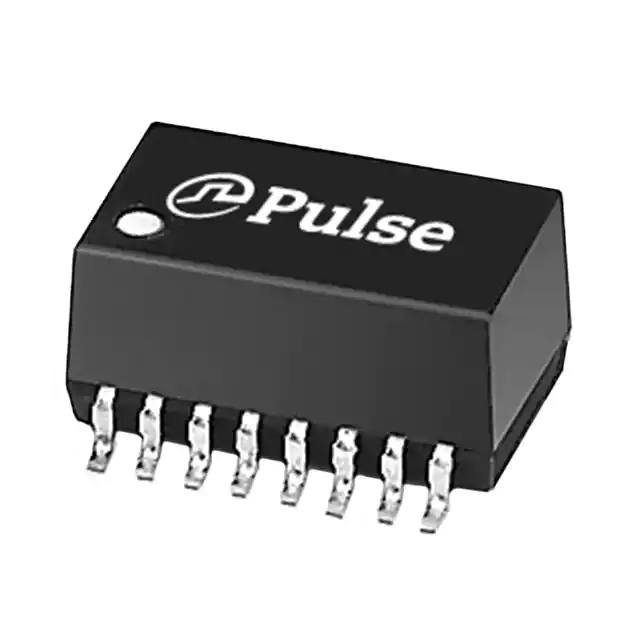

23Z356SMQNLTTRANSFORMER 10BASE-T LAN 16SOIC |
627 | 5.18 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

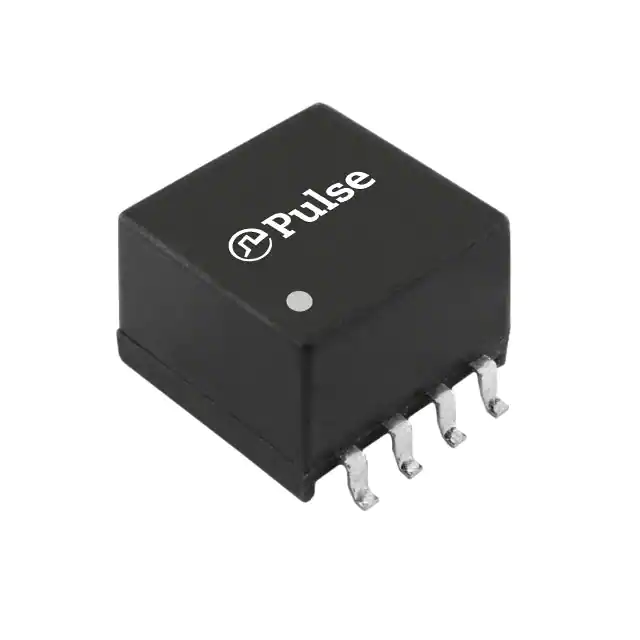

PE-65848NLXFRMR 1CS:1CS FOR ECHELON/NEURON |
619 | 8.04 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS | Surface Mount | 0.475" L x 0.475" W (12.06mm x 12.06mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
BM6154NLTTRANSFORMER 8UH 1:1:1 3KV SMT |
1,749 | 6.01 |
|
Datasheet |
BM615xNL | Tape & Reel (TR) | Active | - | 8µH | - | 1:1:1 | Surface Mount | 0.417" L x 0.357" W (10.60mm x 9.08mm) | 0.394" (10.00mm) | -40°C ~ 125°C | - | - |
|

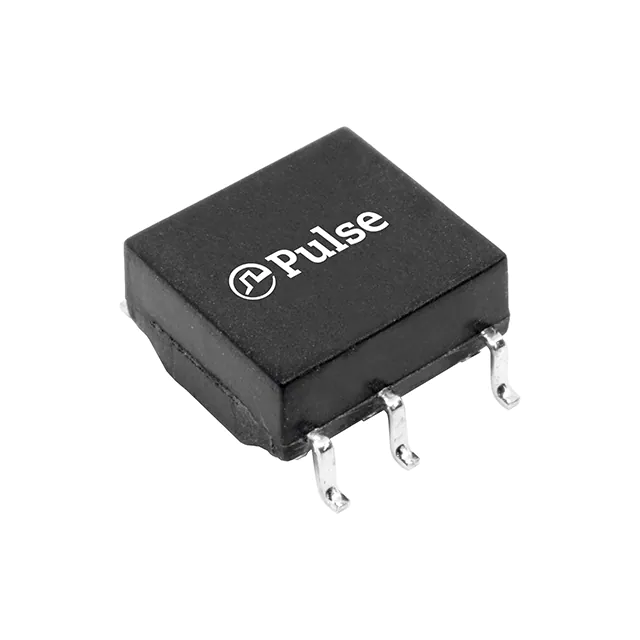

HM1238NLTMDL, SIN, XFMR-CMC, 1:1, 4.3KV, |
3,132 | 1600.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 300µH | - | 1:1 | Surface Mount | 0.330" L x 0.303" W (8.38mm x 7.69mm) | 0.167" (4.25mm) | -40°C ~ 150°C | - | - |
|

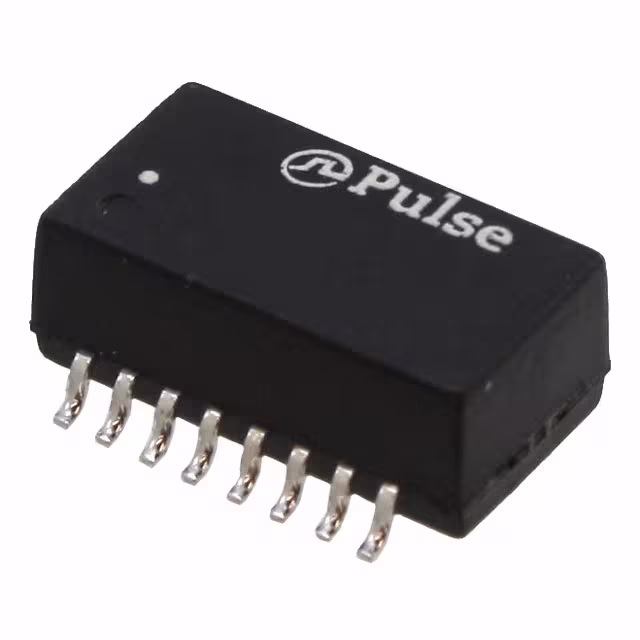

E4001NLXFRMR LAN ISOL 10BASE-T 1:2 SMD |
720 | 5.85 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 112µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|

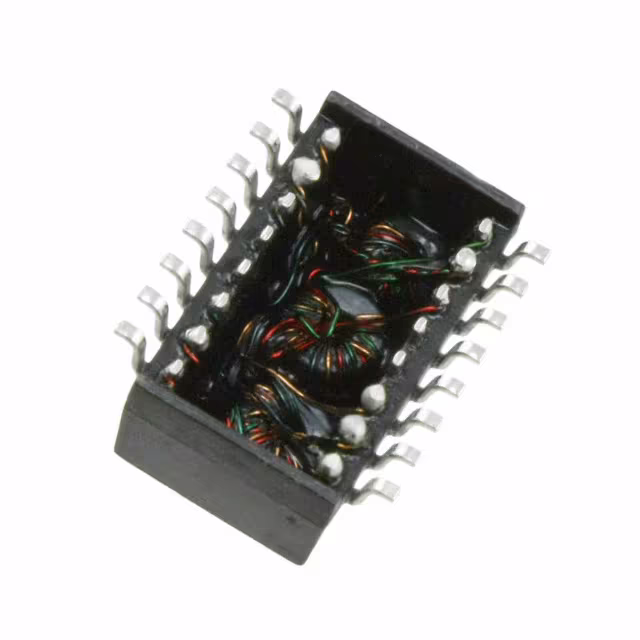

23Z467SMNLTTRANSFORMER 10BASE-T LAN 16SOIC |
1,708 | 5.14 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
E2023NLTXFRMR LAN ISOL 10BASET 1:2.5 SMD |
675 | 5.14 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.495" L x 0.280" W (12.57mm x 7.11mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|

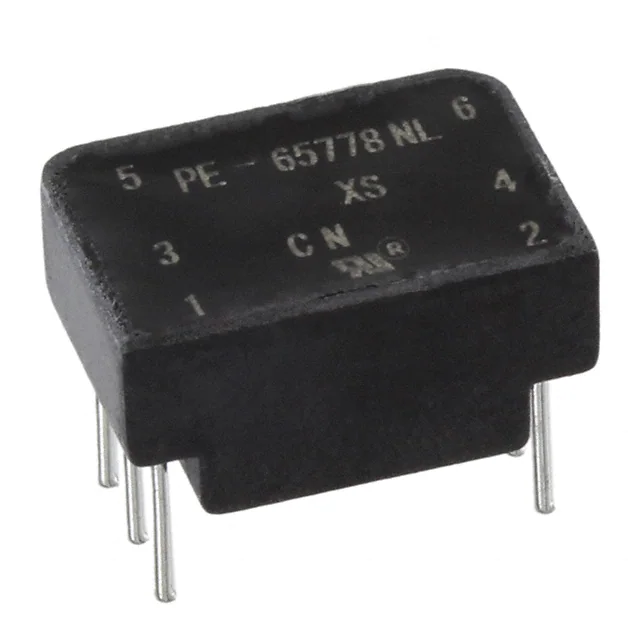

PE-65778NLXFRMR 1CT:1CT 1.20MH T/H |
194 | 5.26 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

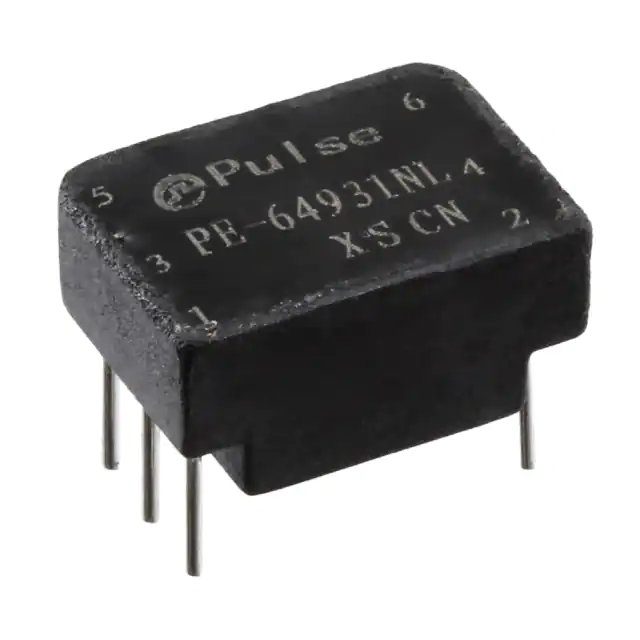

PE-64931NLXFRMR T1/CEPT/ISDN-PRI 1:1:1 |
446 | 5.28 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1:1, 1:2CS | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
TX1089NLXFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH |
133 | 5.52 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:1CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

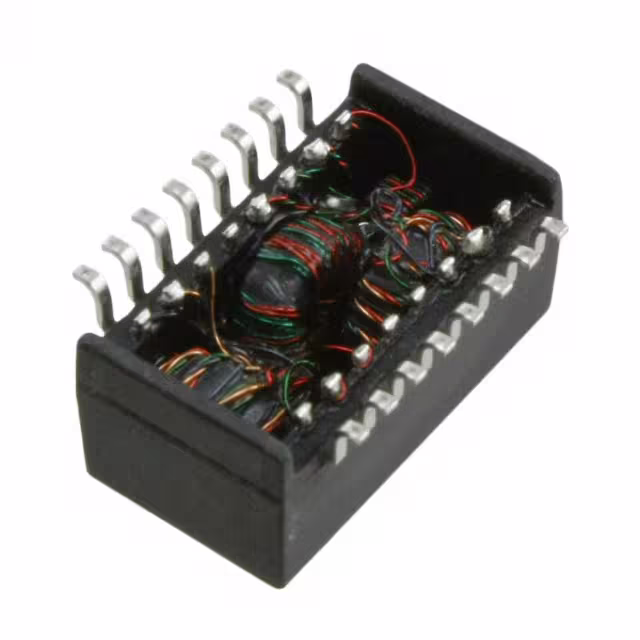

H1302NLXFRMR MAGNETIC 1PORT 1:1 10/100 |
560 | 5.37 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
