Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S22523TRANSFORMER FOR CS 8401,2:8411 |
201 | 5.43 |
|
Datasheet |
- | Bulk | Active | - | 225µH | - | - | Through Hole | 0.385" L x 0.650" W (9.78mm x 16.51mm) | 0.250" (6.35mm) | - | - | - |
|
PA1736NLPULSE XFMR 20.5UH |
426 | 5.36 |
|
Datasheet |
- | Tray | Active | - | 20.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|

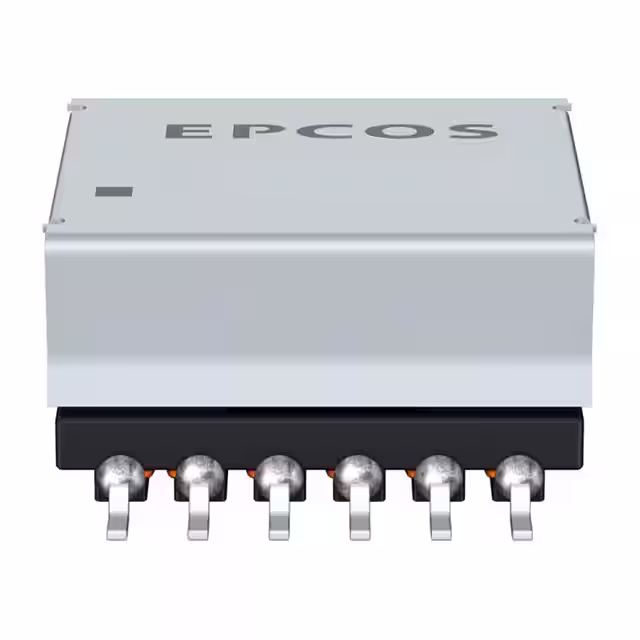

B82806D0060A050P300869 EFD20 POE TRANSFORMER |
116 | 6.13 |
|
Datasheet |
B82806D | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.866" L x 1.181" W (22.00mm x 30.00mm) | - | -40°C ~ 125°C | - | - |
|
T1144NLTRANSFORMER TELECOM DUAL T1/E1 |
603 | 5.52 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1CT, 1CT:2.4CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | - | - | - |
|
T1137NLTXFRMR 1CT:2.42CT/1CT:2.42CT SMD |
600 | 5.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
TX1089NLTXFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH |
232 | 5.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:1CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

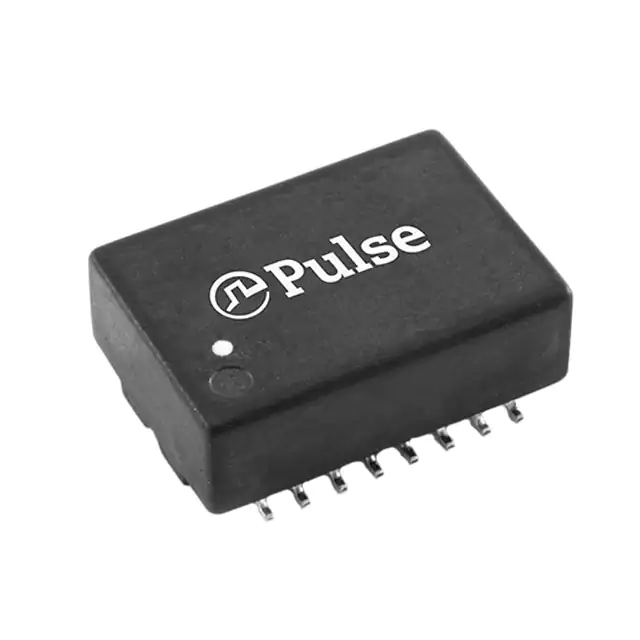

EX2024FNLPULSE XFMR 1CT:2.5CT 1CT:1CT |
1,396 | 5.53 |
|
Datasheet |
- | Tube | Active | LAN 10 Base-T | 35µH, 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
T3002NLTRANSFORMER TELECOM SINGLE T3/E3 |
695 | 7.44 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
PE-68517LNLXFRMR MODULE 1PORT 1:1 10/100B-T |
255 | 7.28 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
S558-5999-T3-FXFRMR MODULE LAN GIGABIT 24P SMD |
1,102 | 5.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.522" L x 0.600" W (13.26mm x 15.24mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

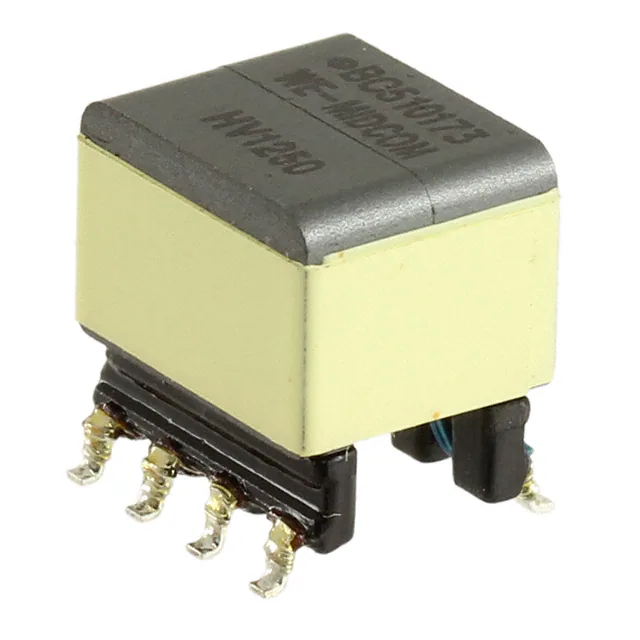

750510173XFRM WE-DSL ISDN DAUGHTERBRD |
868 | 5.06 |
|
Datasheet |
MID-DSLIKN | Tape & Reel (TR) | Active | VDSL | 220µH | - | 1:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | -40°C ~ 85°C | - | - |
|
HM1236NLXFMR CMC MODULE AECQ BATT MNGT |
153 | 5.67 |
|
Datasheet |
- | Tube | Active | - | 500µH | - | 1:1 | Surface Mount | 0.340" L x 0.430" W (8.64mm x 10.92mm) | 0.160" (4.06mm) | - | - | - |
|

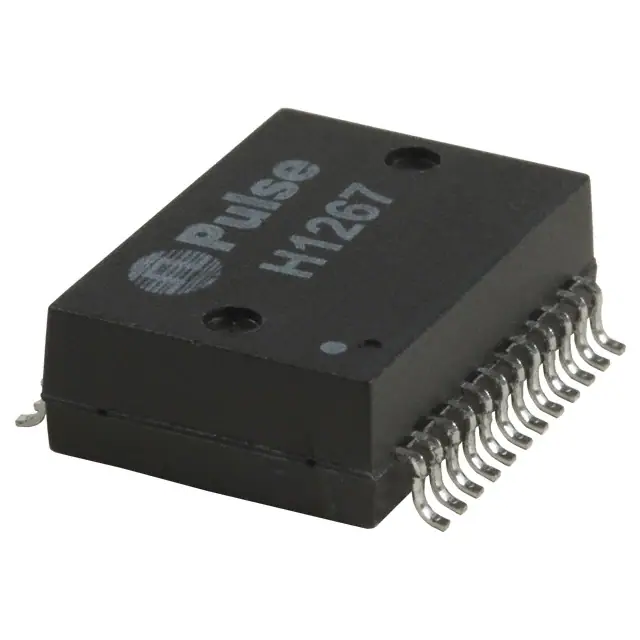

H1267NLTXFRMR 1PORT 1:1 10/100 SMD |
994 | 5.71 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|

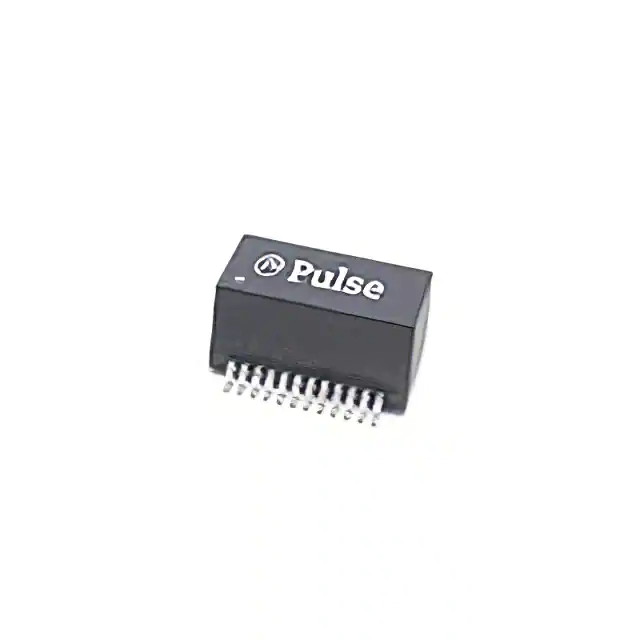

HX5164NLTTRANS MOD 1G 70W POE SMD |
964 | 5.72 |
|
Datasheet |
HX5164NL | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | - | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
HX6164NLTTRANS MOD 1G 70W POE SMD |
870 | 7.50 |
|
Datasheet |
HX6164NL | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 120µH | - | 1:1 | Surface Mount | - | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
HX6164NLTRANS MOD 1G 70W POE SMD |
500 | 5.72 |
|
Datasheet |
HX6164NL | Tube | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 120µH | - | 1:1 | Surface Mount | - | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
PA1735NLPULSE XFMR 28.5UH |
107 | 5.89 |
|
Datasheet |
- | Tray | Active | - | 28.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|

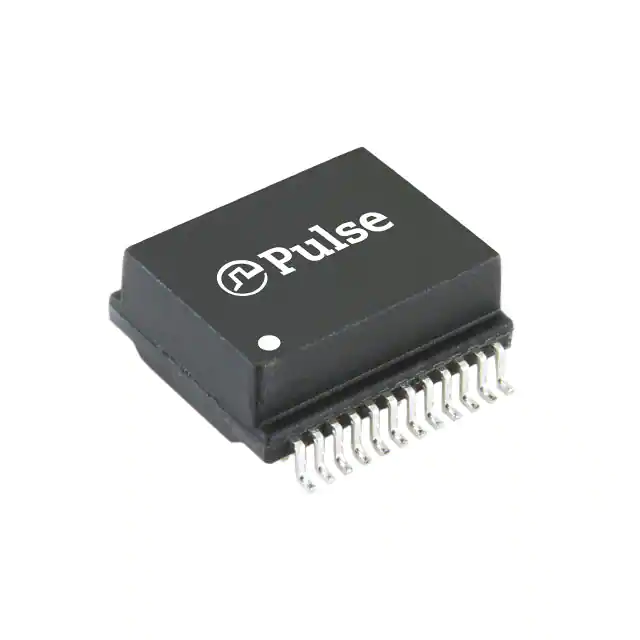

HD8008NLMOD,SIN,HDBT,1:1, SMD, NPB |
7,725 | 7.92 |
|
Datasheet |
- | Tube | Active | HDBase-T | 100µH | - | 1CT:1CT | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|

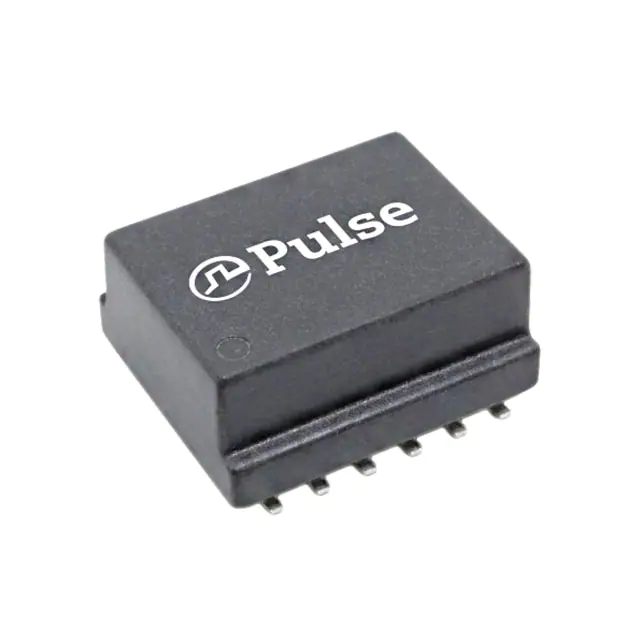

HX1333NLXFRMR MODULE 100B-TX 2 CH SMT |
843 | 6.22 |
|
Datasheet |
- | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.331" (8.40mm) | - | - | - |
|

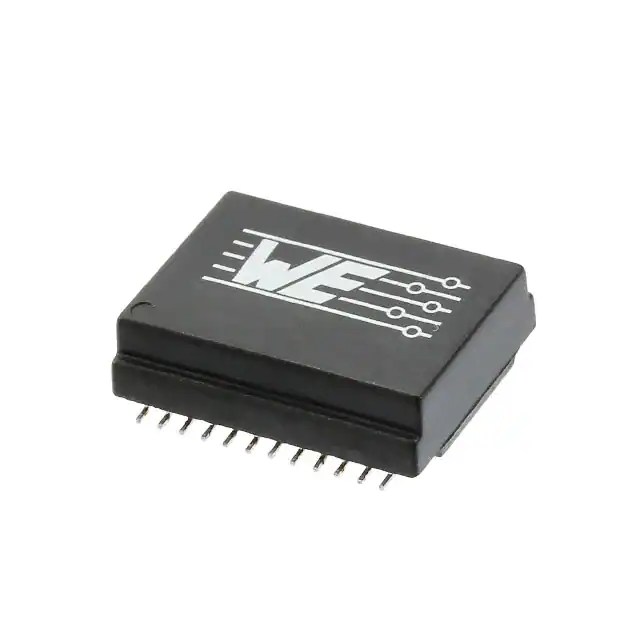

749023010ATRANSFORMER LAN 10/100/1000 SMD |
182 | 6.92 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
