Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALAN-2204PULSE XFMR 1CT:1CT 350UH |
190 | 6.44 |
|
Datasheet |
ALAN-2204 | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.234" (5.95mm) | -40°C ~ 85°C | - | - |
|

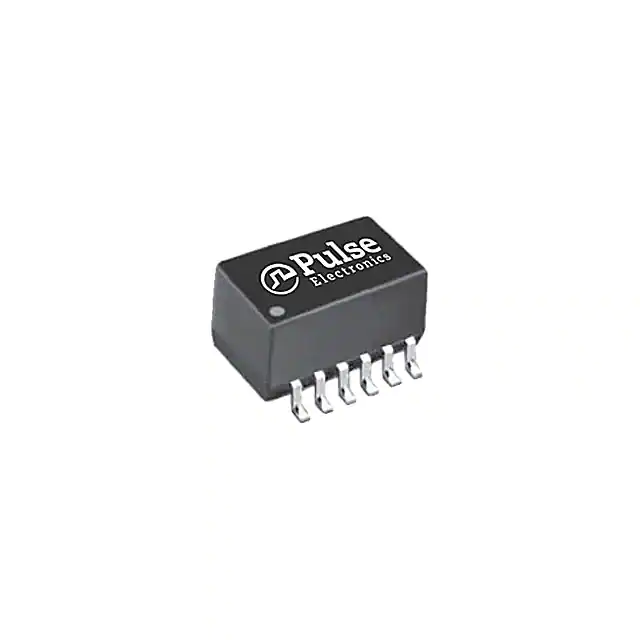

T1146NLTXFRMR 1:2/2.4 / 1:0.79/1 1/1MH |
1,200 | 6.94 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1:2/2.4, 1:0.79/1 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
S558-5999-AM-FXFRMR MODULE LAN GIGABT MINIPCI |
2,444 | 7.07 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.880" L x 0.540" W (22.35mm x 13.72mm) | 0.084" (2.13mm) | 0°C ~ 70°C | - | - |
|
S558-5999-AA-FMODULE XFRMR LAN 10/100B-TX SMD |
1,180 | 7.07 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.476" W (27.94mm x 12.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
760301306XFRMR GATE DRIVE SMD |
474 | 7.85 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 750µH | 140VµS | 3:1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
760301303XFRMR GATE DRIVE SMD |
198 | 7.85 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 750µH | 102VµS | 2:1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
IT244XFRMR PULSE 3:1:1 DL 15MH .1A |
1,658 | 7.17 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 15mH | - | 3:1:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
T3001NLTRANSFORMER TELECOM SINGLE T3/E4 |
370 | 7.44 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 100µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
IT249XFRMR PULSE 2:1:1 DL 17MH .25A |
489 | 7.37 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 17mH | - | 2:1:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|

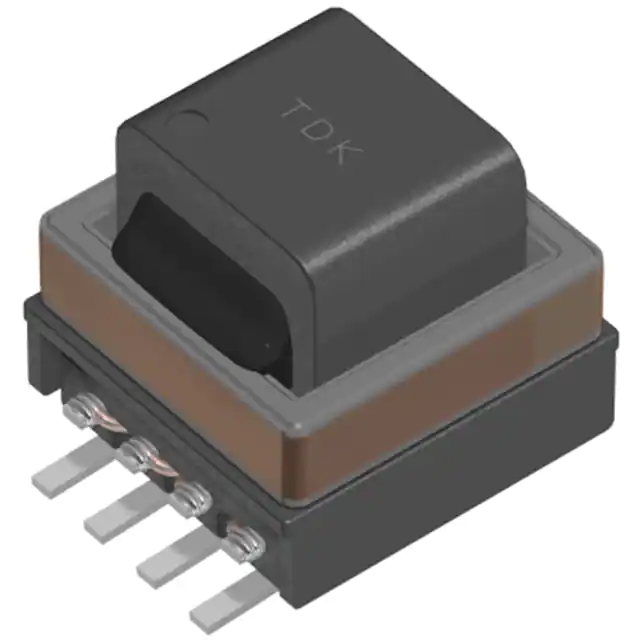

VGT10/9EE-X03S2P4PULSE TRANSFORMERS FOR BMS (BATT |
1,219 | 7.52 |
|
Datasheet |
VGT | Tape & Reel (TR) | Active | - | 350µH | - | 1:1:1:1 | Surface Mount | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.417" (10.60mm) | -40°C ~ 130°C | - | - |
|
|
IT248XFRMR PULSE 2:1 SGL 17MH .25A |
893 | 7.50 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 17mH | - | 2:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|

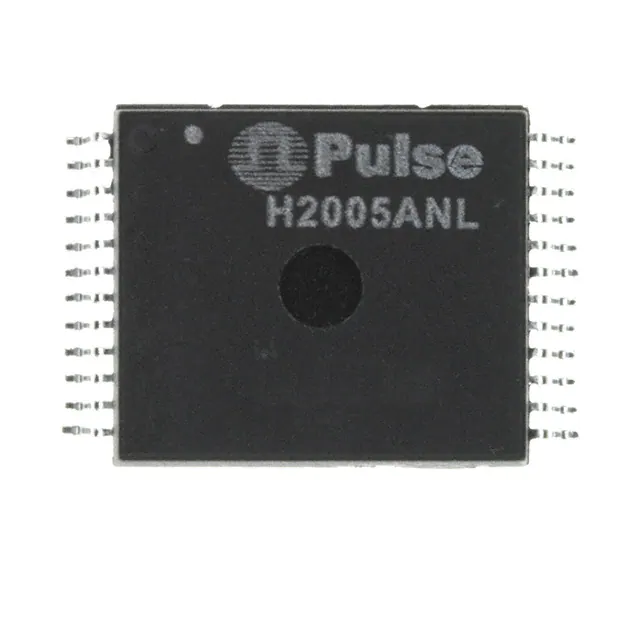

H2005ANLTXFRMR MAGNT MOD 2PORT POE 10/100 |
1,500 | 7.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.510" L x 0.600" W (12.95mm x 15.24mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
PE-65834NLXFRMR T1/CEPT/ISDN 1:1 1.2MH T/H |
290 | 9.51 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1 | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
PE-65848NLTXFRMR 1CS:1CS FOR ECHELON/NEURON |
407 | 7.66 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS | Surface Mount | 0.475" L x 0.475" W (12.06mm x 12.06mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
760301105XFRMR GATE DRIVE 1:1:1 SMD |
1,341 | 8.68 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 260µH | 25.2VµS | 1:1:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
|
760301103XFRMR GATE DRIVE 2.5:1:1 SMD |
771 | 8.14 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 350µH | 29.4VµS | 2.5:1:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|

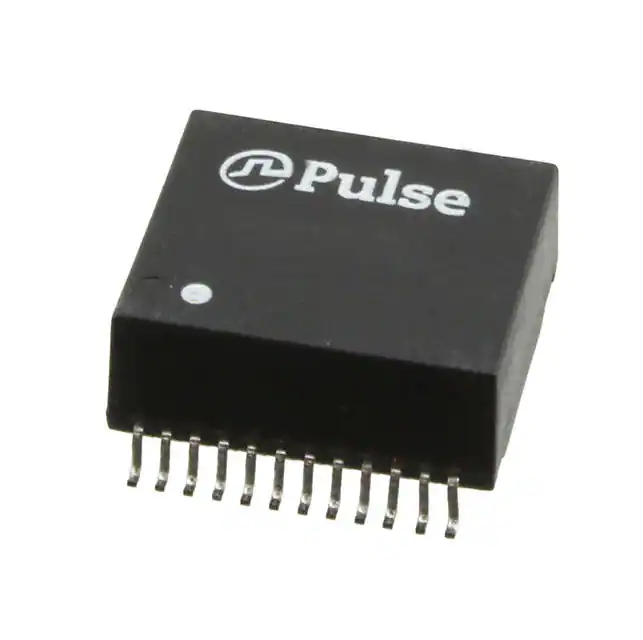

HX5181NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
2,186 | 8.47 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.545" L x 0.480" W (13.84mm x 12.19mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
HX5181NLPULSE XFMR 1 CT:1CT TX/RX 350UH |
267 | 8.47 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.545" L x 0.480" W (13.84mm x 12.19mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
H5149NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,108 | 8.73 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.701" L x 0.390" W (17.80mm x 9.91mm) | 0.126" (3.20mm) | 0°C ~ 70°C | - | - |
|

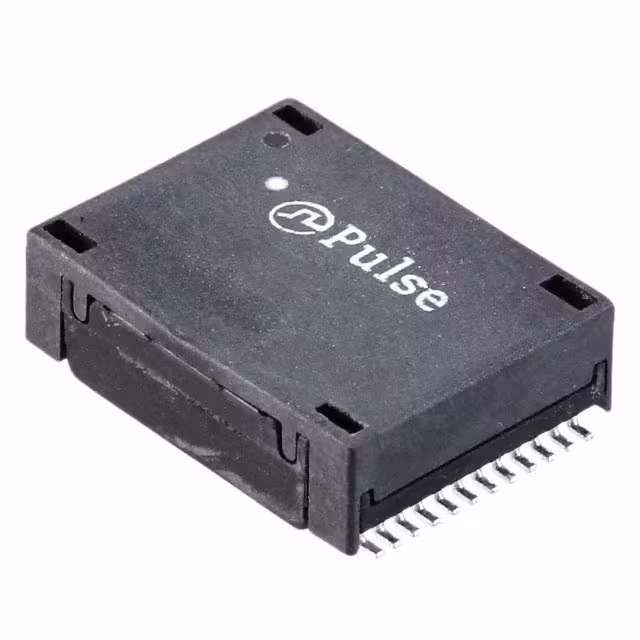

HX1294FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,069 | 9.02 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.538" L x 0.726" W (13.67mm x 18.44mm) | 0.231" (5.87mm) | -40°C ~ 85°C | - | - |
