Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

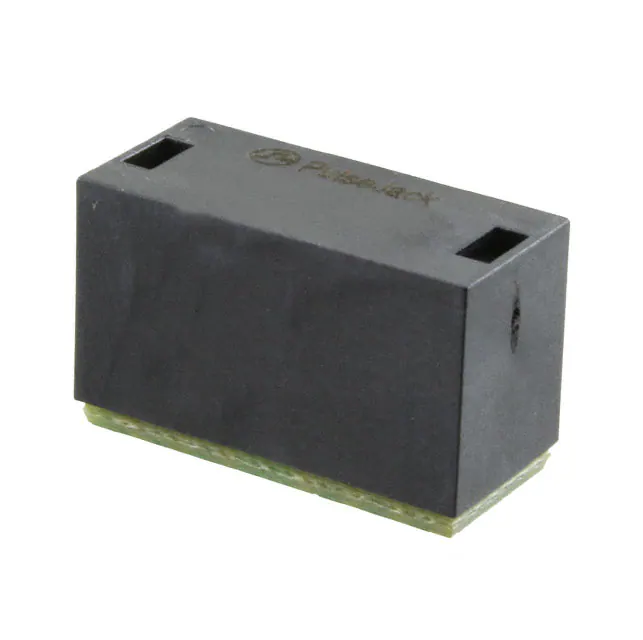

HX5610NLPULSE XFMR 1 CT:1CT TX/RX 350UH |
171 | 10.33 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|

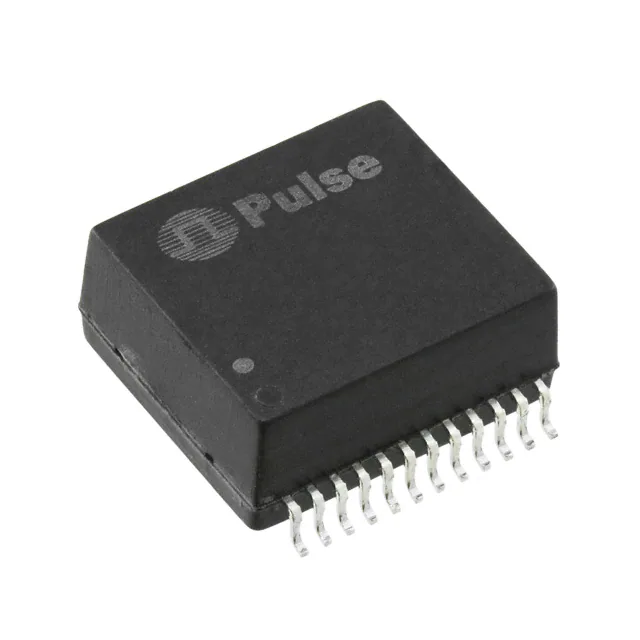

H2006ANLTXFRMR MAGNT MOD 2PORT POE 10/100 |
832 | 8.81 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|

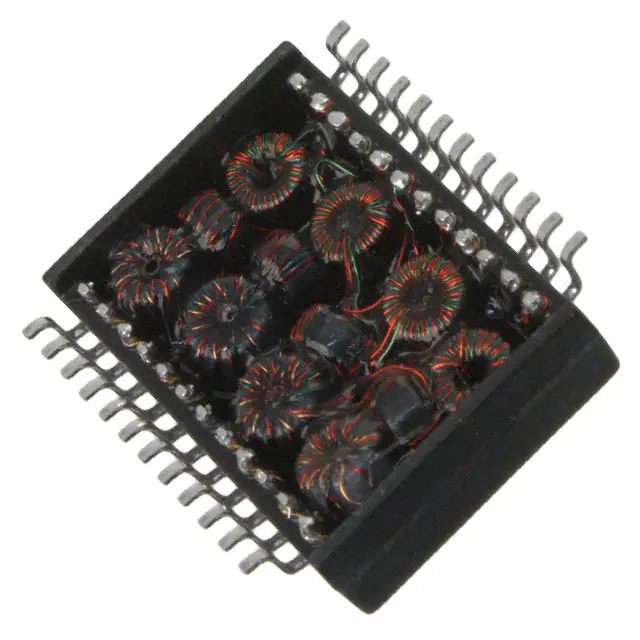

H5015NLTTRANSFORMER MODULE GIGABIT 1PORT |
445 | 9.59 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.697" L x 0.480" W (17.70mm x 12.20mm) | 0.185" (4.70mm) | 0°C ~ 70°C | - | - |
|
HX1294FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
489 | 9.02 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.538" L x 0.726" W (13.67mm x 18.44mm) | 0.231" (5.87mm) | -40°C ~ 85°C | - | - |
|
HX6098NLPULSE XFMR 1 CT:1CT TX/RX 120UH |
369 | 9.70 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
HX6098FNLPULSE XFMR 1 CT:1CT TX/RX 120UH |
330 | 9.70 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
H7008NLTRANSFORMER MODULE 10GBASE-T |
244 | 9.90 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|

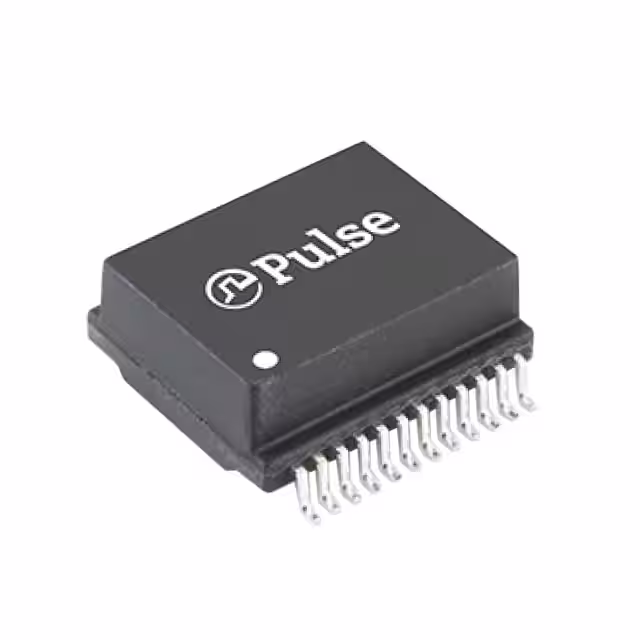

HDX8008NLMDL,SIN, HDBASET, 60W, SMT |
366 | 10.07 |
|
Datasheet |
- | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | - | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|

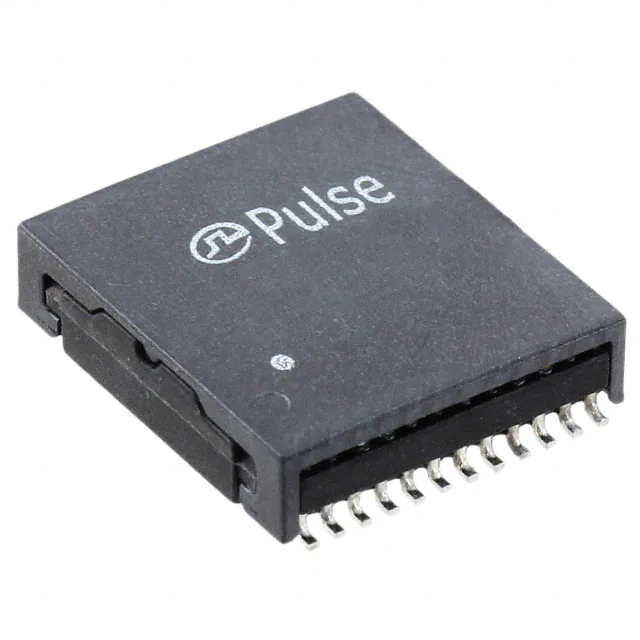

H1270FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,292 | 10.10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.574" W (13.08mm x 14.58mm) | 0.145" (3.68mm) | 0°C ~ 70°C | - | - |
|

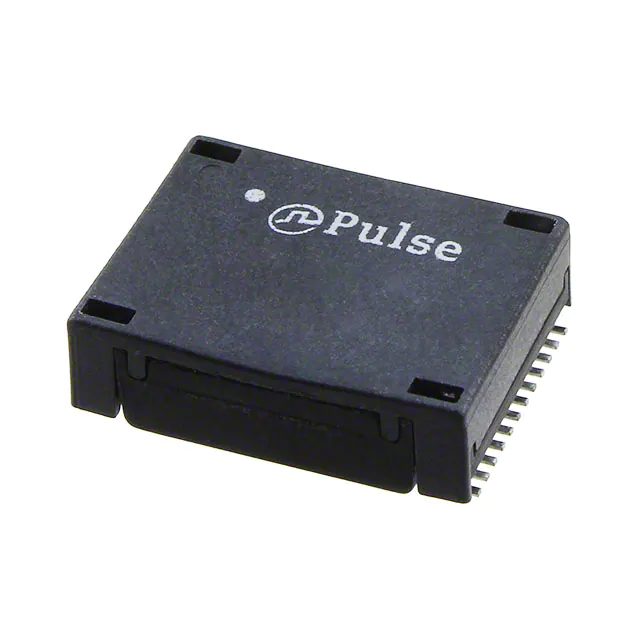

H5008FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,265 | 12.74 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743" L x 0.538" W (18.87mm x 13.67mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|
IT234XFRMR PULSE 3:1:1 DL 17MH .25A |
237 | 9.87 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 17mH | - | 3:1:1 | Through Hole | 1.063" L x 0.886" W (27.00mm x 22.50mm) | - | -25°C ~ 70°C | - | - |
|

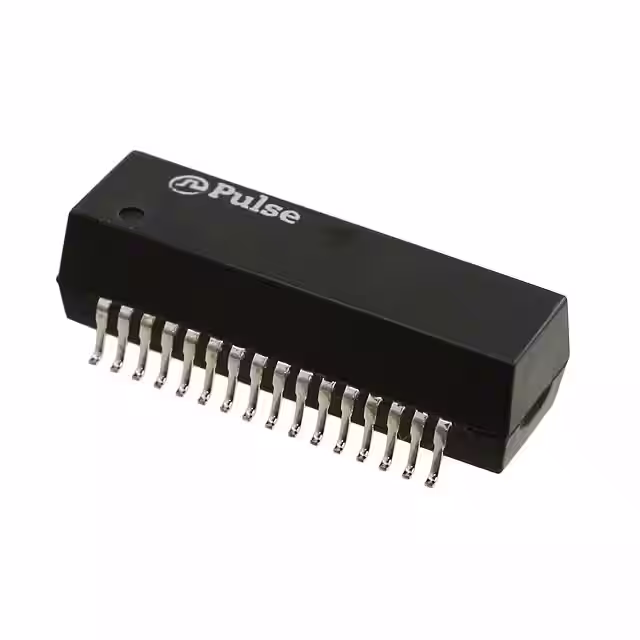

TX1471NLXFRMR OCTAL 1:1 1.2MH SMD |
575 | 10.64 |
|
Datasheet |
- | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|

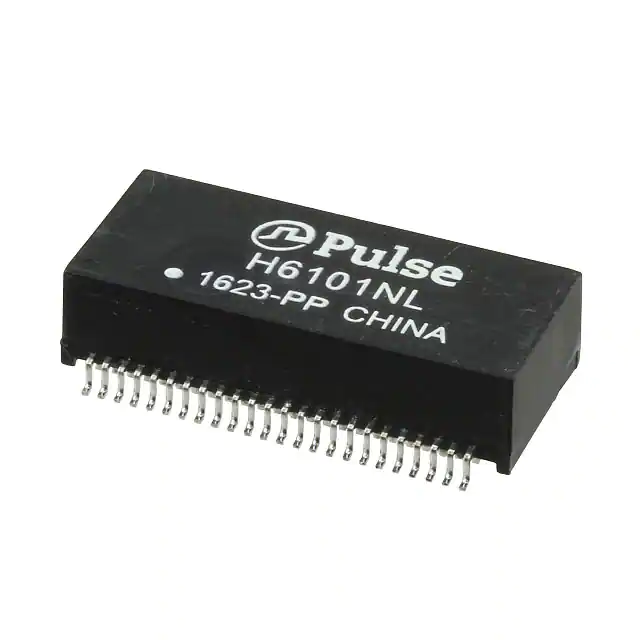

H6101NLTPULSE XFMR 1CT:1CT TX/RX |
854 | 14.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
TX1472NLTXFRMR OCTAL 1:2.4/1:1 1.2MH SMD |
458 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:2.4, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
PE-63388NLXFRMR MOSFET GATE DRIV 1:1.5:1.5 |
419 | 10.54 |
|
Datasheet |
- | Tray | Active | Gate Drive | 1.5mH | - | 1:1.5:1.5 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|

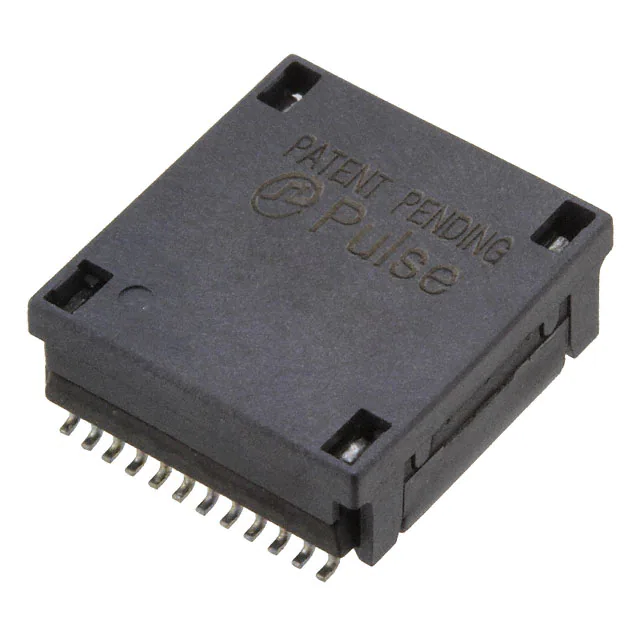

H7019FNLTTRANSFORMER MODULE 10GBASE-T SMD |
729 | 10.87 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|

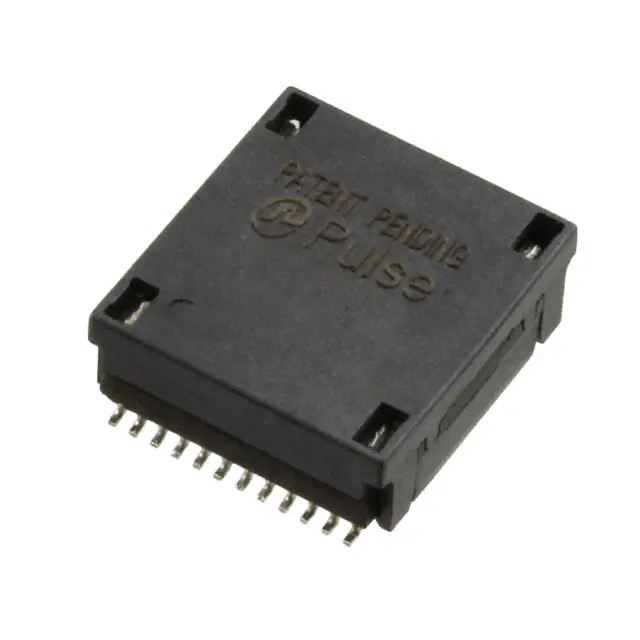

H7018FNLTMODULE 10GBASE-T 1.5KVRMS SMD |
648 | 11.01 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
|
T1219NLXFRMR 1CT:2.4CT/1CT:1CT 1.20MH |
223 | 11.08 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2.4CT, 1CT:1CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

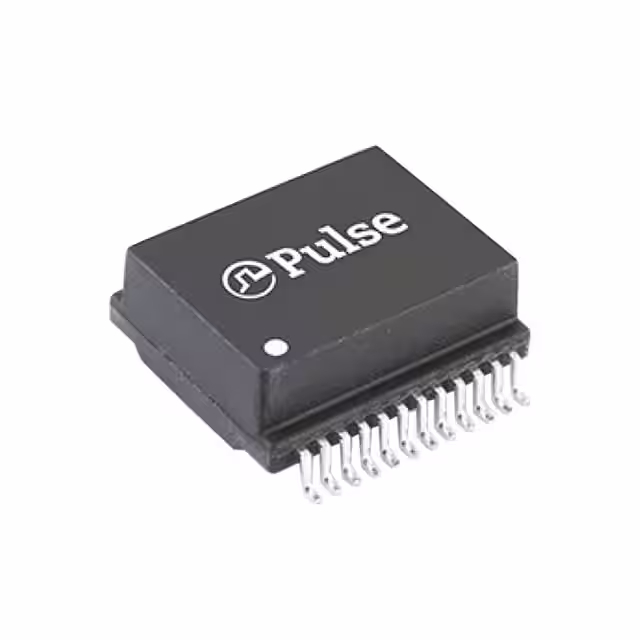

HDX8005NLMDL,SIN, HDBASET, 100W, SMT |
195 | 11.73 |
|
Datasheet |
- | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | - | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
HD8005FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
175 | 10.61 |
|
Datasheet |
- | Tube | Active | HDBase-T | 100µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
