Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

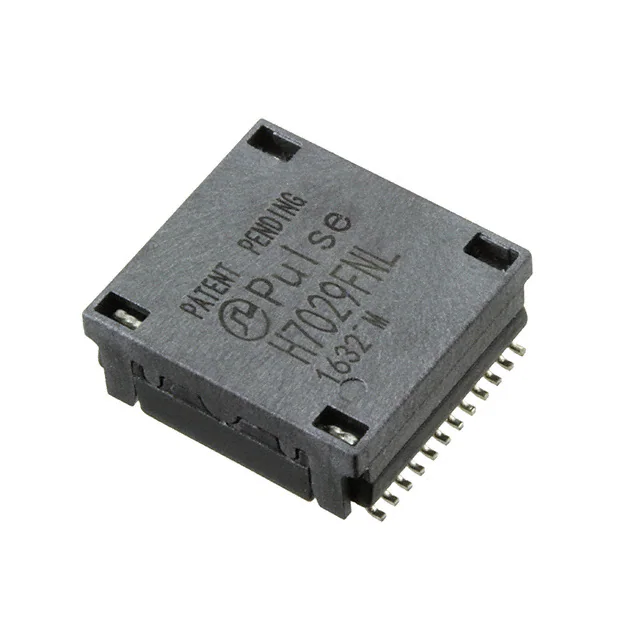

H7029FNLT10GBASE-T DISCRETE 4CH MAR/SOL P |
5,974 | 11.73 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
7490140123BWE-LAN 10/100 BASE-T SMT TRANSFO |
346 | 11.95 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.331" (8.40mm) | -40°C ~ 85°C | - | - |
|
IT260XFRMR PULSE 3:1 SGL 12MH .1A |
266 | 11.70 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 12mH | - | 3:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
H6080FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
143 | 15.80 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|

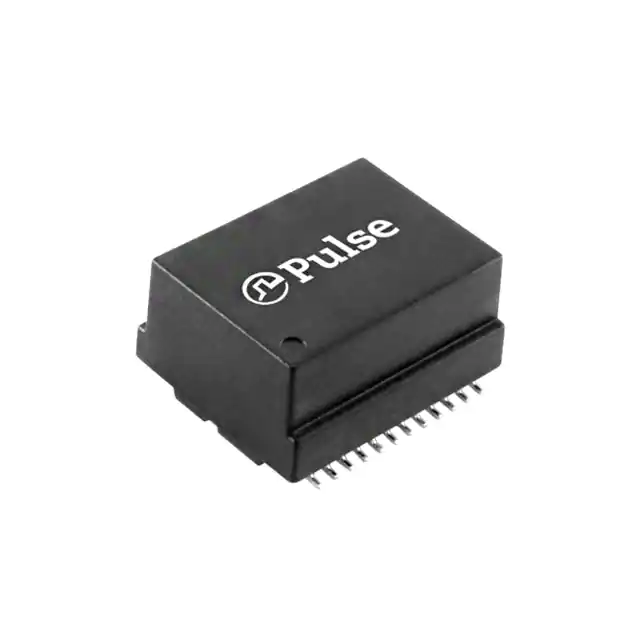

H5187NLXFRMR MODULE 1000B-T 1 CH SMT |
297 | 11.14 |
|
Datasheet |
- | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | - | 0.385" (9.77mm) | - | - | - |
|
G508TRANSFORMER 2.0MH 1CT:1CT PULSE |
480 | 11.27 |
|
Datasheet |
G5 | Tube | Active | Isolation and Data Interface (Encapsulated) | 2mH | 16VµS | 1CT:1CT | Through Hole | 0.350" L x 0.500" W (8.90mm x 12.70mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
749052011TRANSFORMER LAN |
185 | 11.79 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.283" (7.20mm) | 0°C ~ 70°C | - | - |
|
H1259NLTXFRMR MODULE 4PORT 1:1 10/100 |
918 | 11.94 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
TX1267NLXFRMR 4PORT 1:2 1.2MH SMD |
140 | 11.98 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.275" (6.99mm) | -40°C ~ 85°C | - | - |
|
H5020FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
290 | 18.23 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
749050018TRANSFORMER LAN |
372 | 13.13 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.550" L x 0.532" W (13.97mm x 13.50mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
MGDT100100PLANAR GATE-DRIVE XFMR, 1 : 1 : |
137 | 12.44 |
|
Datasheet |
- | Tray | Active | Gate Drive | 240µH | - | 1:1:1 | Through Hole | 0.810" L x 0.725" W (20.57mm x 18.42mm) | 0.450" (11.43mm) | -55°C ~ 125°C | - | - |
|

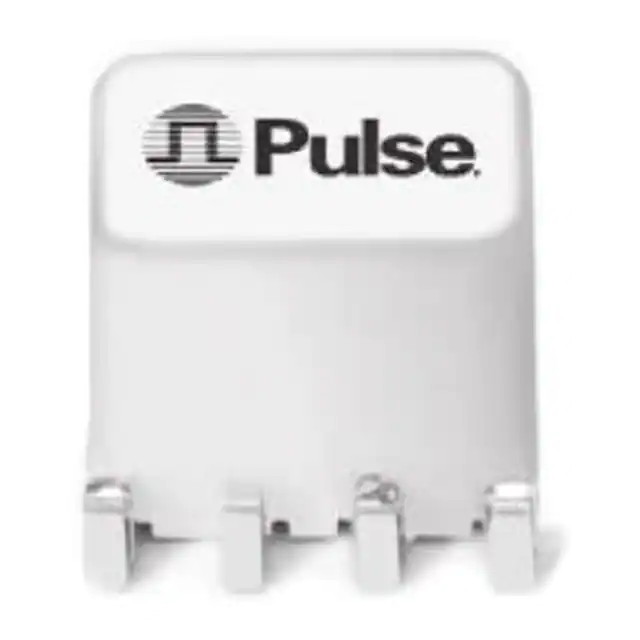

X-1569TXFMR GATE DRIVE 1500VDC ISO |
948 | 11.27 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 3.3mH | 45.1VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.01mm x 8.63mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
|
TX1263NLTXFRMR 4PORT 1:2 1.2MH SMD |
559 | 13.80 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.275" (6.99mm) | -40°C ~ 85°C | - | - |
|

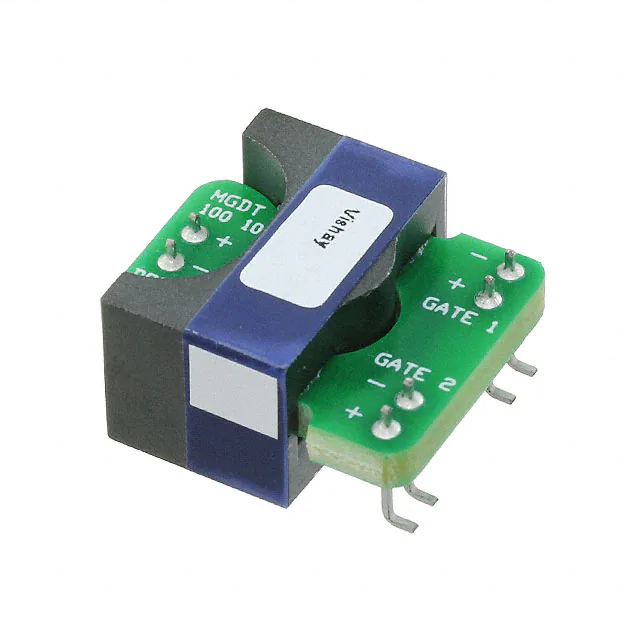

MGDT100100-SMPLANAR GATE-DRIVE XFMR, 1 : 1 : |
126 | 13.67 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 240µH | - | 1:1:1 | Surface Mount | 0.810" L x 0.725" W (20.57mm x 18.42mm) | 0.450" (11.43mm) | -55°C ~ 125°C | - | - |
|

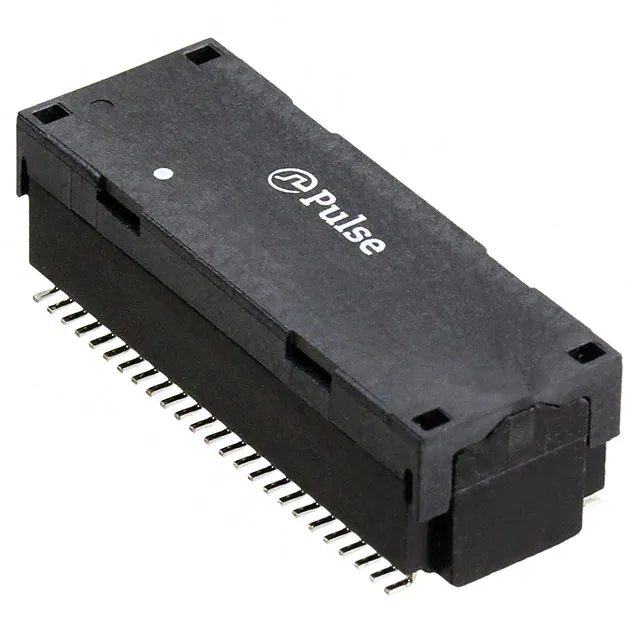

HX5020FNLPULSE XFMR 1 CT:1CT TX/RX 350UH |
367 | 18.05 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
T1176NLMODULE INTERFACE 1CT:2.4CT SMD |
726 | 16.13 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2.4CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
GDE25-6TRANSF 1.75 OHM DUAL GATE DRIVE |
304 | 17.31 |
|
Datasheet |
GDE25 | Bulk | Active | Gate Drive | 680µH | 540VµS | 1:1.5:1.5 | Through Hole | 1.100" L x 1.040" W (27.94mm x 26.42mm) | 1.200" (30.48mm) | -40°C ~ 80°C | - | - |
|
|
GDE25-3TRANSF .350 OHM SINGL GATE DRIVE |
184 | 17.31 |
|
Datasheet |
GDE25 | Bulk | Active | Gate Drive | 1.5mH | 840VµS | 1.5:1 | Through Hole | 1.100" L x 1.040" W (27.94mm x 26.42mm) | 1.200" (30.48mm) | -40°C ~ 80°C | - | - |
|
|
HX7137NLMDL SIN 10GD 1:1 SM CMS 18 |
126 | 16.55 |
|
Datasheet |
HX7137NL | Tube | Active | LAN 10 Base-T | 120µH | - | 1:1 | Surface Mount | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
