Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760301304XFRMR GATE DRIVE SMD |
572 | 7.85 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 1.08mH | 120VµS | 2.5:1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|

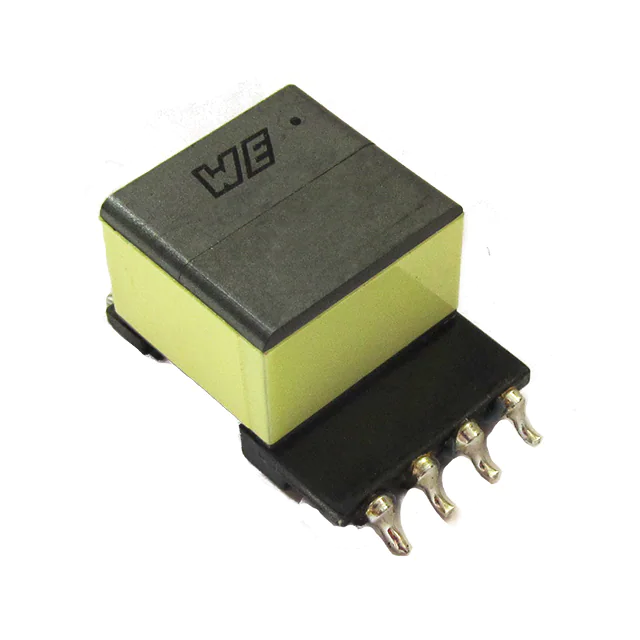

750510719DIGITAL TRANSFORMER |
130 | 7.68 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1µH | - | 1:1 | Surface Mount | - | 0.532" (13.50mm) | - | - | - |
|
TM41229ANLXFMR CMC MODULE AECQ BATT MNGT |
2,398 | 0.00 |
|
Datasheet |
Stratos | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.583" L x 0.461" W (14.81mm x 11.70mm) | 0.179" (4.55mm) | -40°C ~ 125°C | - | - |
|

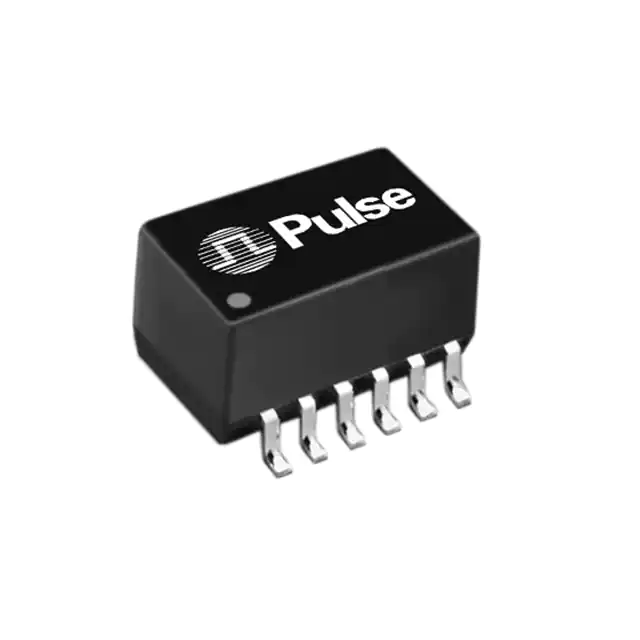

T7015NLXFRMR 64KBPS 1:2CT/1:2CT 20MH |
275 | 10.37 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT, 1:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|

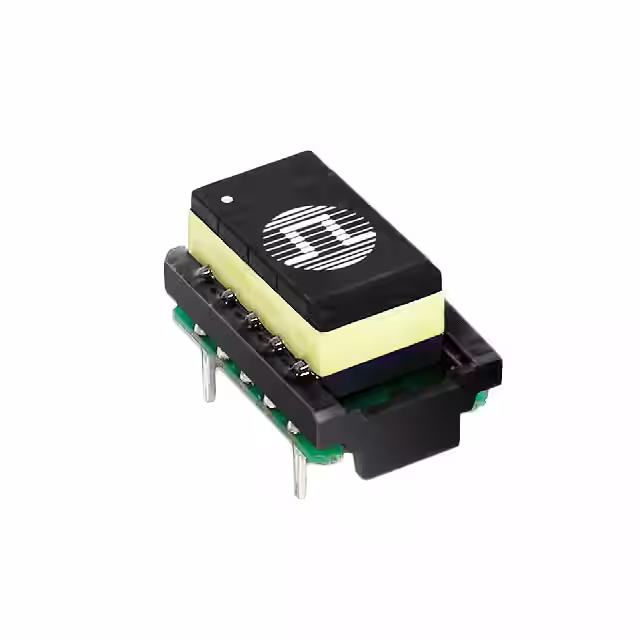

B8845NLPULSE XFMR ADSL/VDSL2 4B3T |
293 | 13.34 |
|
Datasheet |
SmartER Splitter™ | Tray | Active | ADSL, VDSL | - | - | - | Through Hole | 0.531" L x 0.839" W (13.50mm x 21.30mm) | 0.453" (11.50mm) | - | - | - |
|
IT246XFRMR PULSE 2:1 SGL 7MH .1A |
874 | 7.21 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 7mH | - | 2:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|

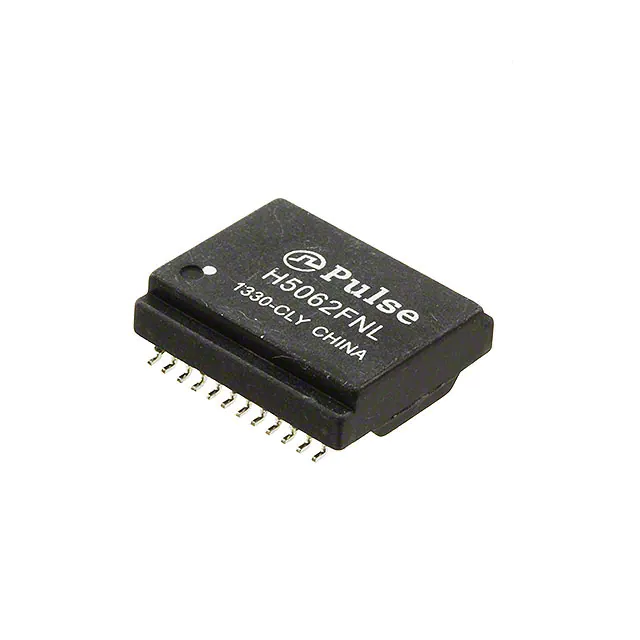

H5062FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
400 | 7.89 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
TX1344NLTXFRMR OCTAL 1:1/1:2 1.2MH SMD |
586 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:1, 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1472NLXFRMR OCTAL 1:2.4/1:1 1.2MH SMD |
363 | 10.64 |
|
Datasheet |
- | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2.4, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
HX1294NLTMODULE XFRMR LAN 10/100 SMD |
2,348 | 7.83 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT | Surface Mount | 0.538" L x 0.599" W (13.67mm x 15.21mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|

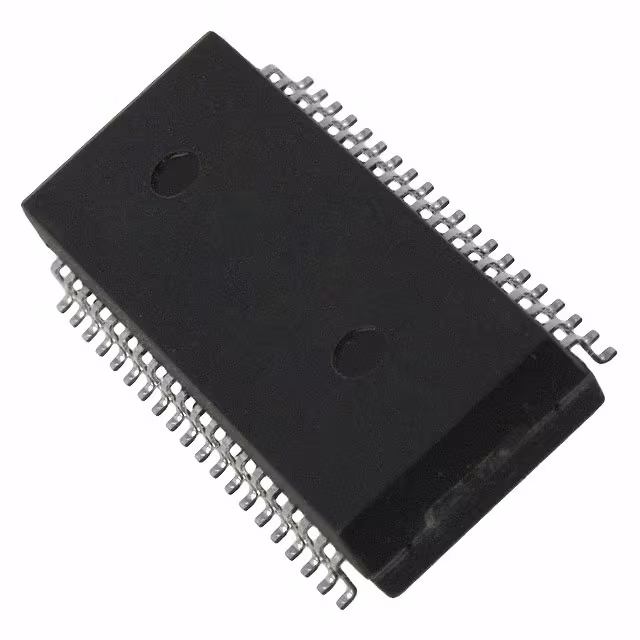

T1068NLXFRMR 4PORT 1:2CT 1.2MH SMD |
468 | 10.64 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:1CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1081NLTXFRMR MODUL 1PORT 1:1.141 10/100 |
603 | 7.72 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1.141 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.395" W (25.40mm x 10.03mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
HD8008NLTMDL,SIN,10G,P,1:1,SM,TR |
3,814 | 7.92 |
|
Datasheet |
- | Tape & Reel (TR) | Active | HDBase-T | 100µH | - | 1CT:1CT | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
2337822-4DISCRETE ETHERNET MAGNETICS SING |
522 | 8.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | - | -40°C ~ 105°C | - | - |
|
760301108XFRMR GATE DRIVE 2.5:1 SMD |
745 | 8.14 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 460µH | 33.6VµS | 2.5:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|

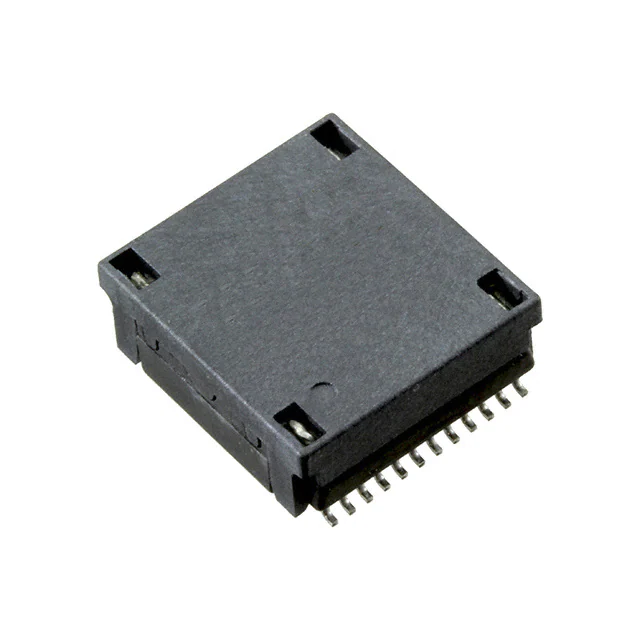

H7028FNL10GBASE-T DISCRETE 4CH BCM PHY |
341 | 11.24 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 120µH | - | 1:1 | - | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|

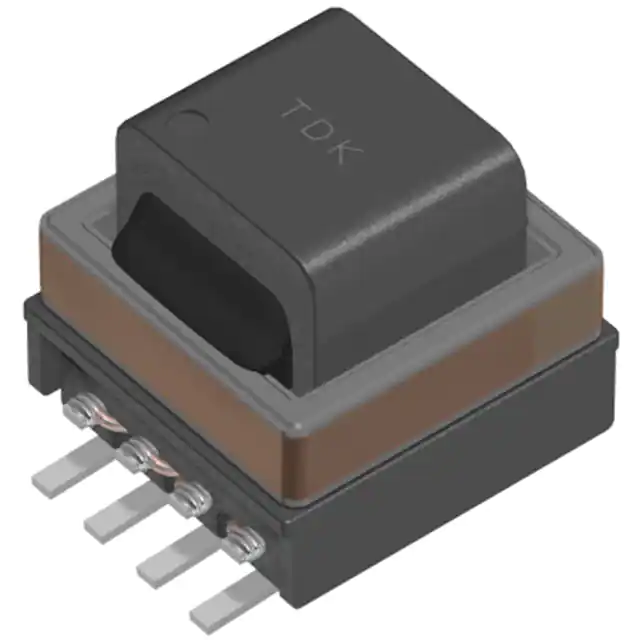

VGT10/9EE-X01S1P4PULSE TRANSFORMERS FOR BMS (BATT |
130 | 7.96 |
|
Datasheet |
VGT | Tape & Reel (TR) | Active | - | 140µH | - | 1:1:1:1 | Surface Mount | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.417" (10.58mm) | -40°C ~ 130°C | - | - |
|
|
TM7008ANLLAN XFMR 10G BASE-T (POE+) |
1,795 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
HX1178NLXFRMR MODULE 1PORT 1:1 10/100 |
191 | 8.44 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
G503TRANSFORMER 0.20MH 1:1:1 PULSE |
376 | 11.27 |
|
Datasheet |
G5 | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | 5VµS | 1:1:1 Ter | Through Hole | 0.350" L x 0.500" W (8.90mm x 12.70mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
