Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

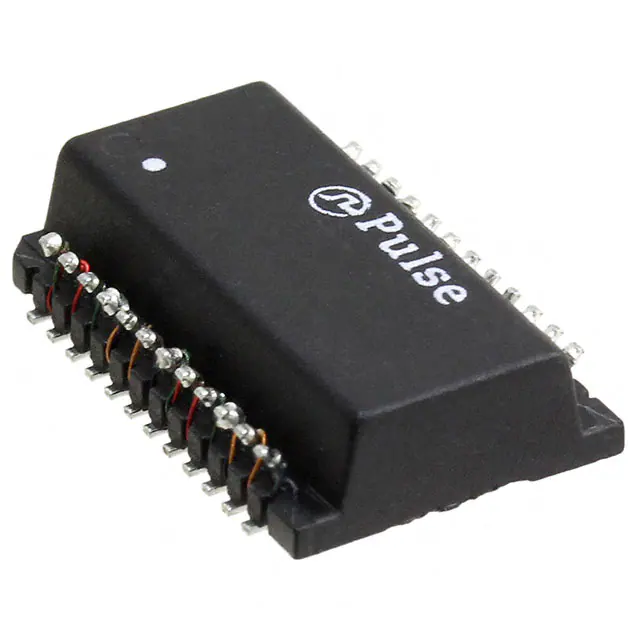

H5084FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,814 | 5.65 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
ITRB-0239-D502ITRB PULSE TRANSFORMER THT 0.5A |
272 | 3.70 |
|
Datasheet |
IT | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.8mH | 350VµS | 2:1 | Through Hole | 0.878" L x 0.894" W (22.30mm x 22.70mm) | 0.535" (13.60mm) | -25°C ~ 100°C | - | - |
|

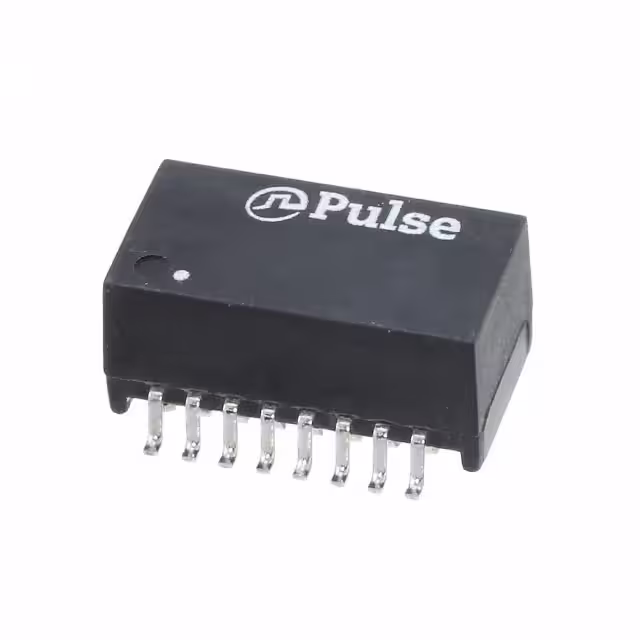

HM1225NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
270 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 200µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 95°C | - | - |
|
|
HM2171HLTDUAL XFMR CMC 150UH 1:1 4.3KV |
950 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 125°C | - | - |
|
PE-65728NLTTRANSFORMER 2000VRMS 100UH SMD |
4,657 | 5.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 100µH | 1.8VµS | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|

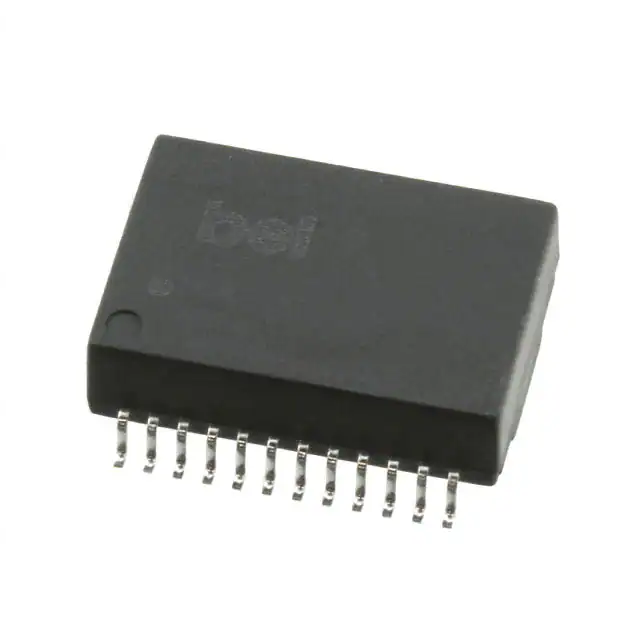

S558-5500-JVXFRMR LAN 5G 60W POE SMD |
760 | 3.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1CT:1CT | Surface Mount | 0.690" L x 0.600" W (17.53mm x 15.24mm) | 0.225" (5.71mm) | -40°C ~ 85°C | - | - |
|
|
74942300WE-BMS SMT TRANSFORMER -40C TO + |
445 | 0.00 |
|
Datasheet |
WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.594" L x 0.559" W (15.10mm x 14.20mm) | 0.187" (4.75mm) | -40°C ~ 125°C | - | - |
|
HM2108NLTMDL, SIN, XFMR-CMC, 1:1, 4.3KV, |
119 | 1200.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 135µH | - | 1:1 | Surface Mount | 0.335" L x 0.524" W (8.50mm x 13.31mm) | 0.226" (5.75mm) | -40°C ~ 125°C | - | - |
|

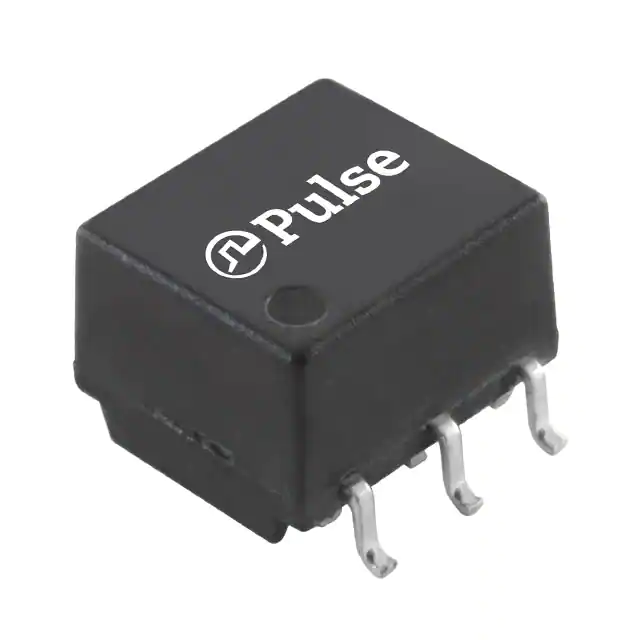

HMU2103NLTMDL, SIN, XFMR-CMC, 1:1, 4.3KV, |
1,536 | 1675.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
23Z467SMNLTRANSFORMER 10BASE-T LAN 16SOIC |
266 | 5.14 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
E2023NLXFRMR LAN ISOL 10BASET 1:2.5 SMD |
189 | 5.14 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.495" L x 0.280" W (12.57mm x 7.11mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|

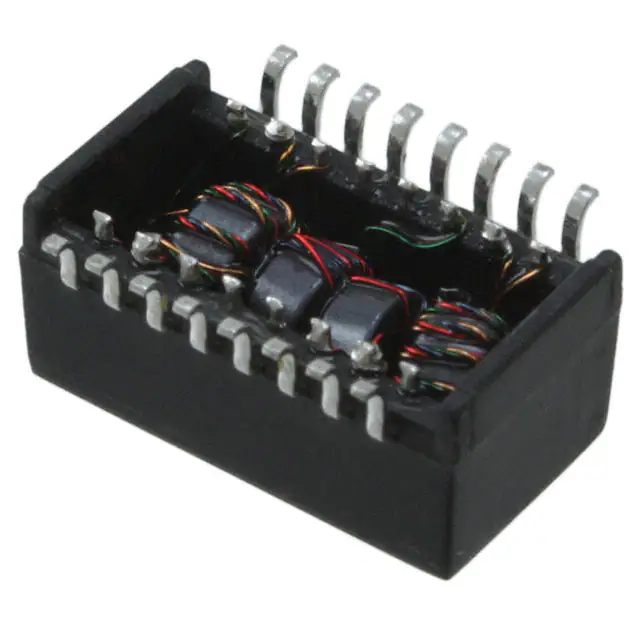

H2260NLXFRMR MODUL 1PORT POE 1:1 10/100 |
180 | 5.18 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.240" (6.10mm) | 0°C ~ 70°C | - | - |
|

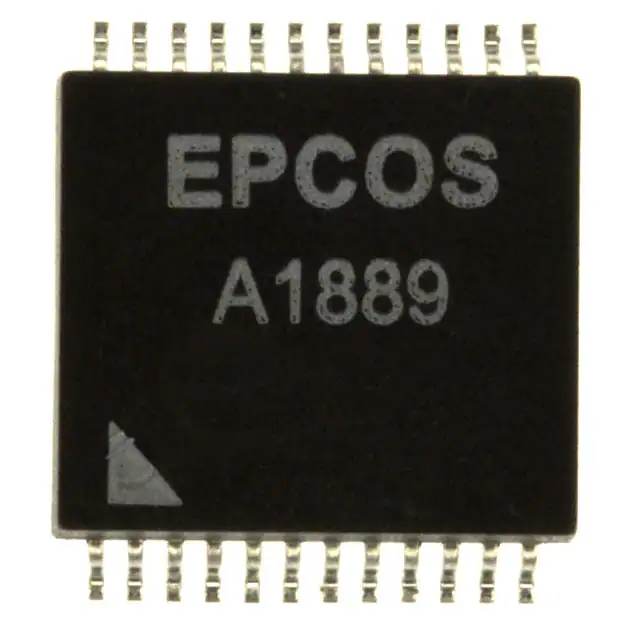

B78476A1889A003MODULE MAGNETIC LAN 2-PORT SMD |
750 | 5.21 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | - | - | - | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.255" (6.47mm) | 0°C ~ 70°C | - | - |
|

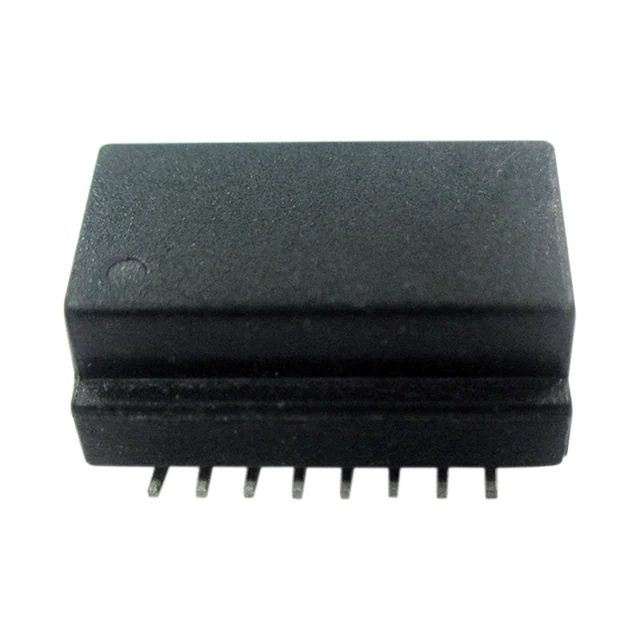

ALAN-508PULSE XFMR 1CT:1CT 350UH |
4,691 | 5.07 |
|
Datasheet |
ALAN-508 | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.234" (5.95mm) | -40°C ~ 85°C | - | - |
|

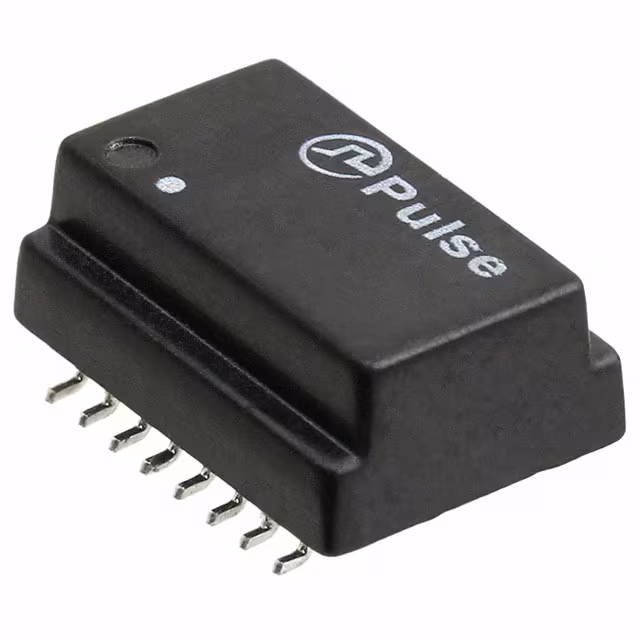

H1197FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
968 | 5.07 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 1.2mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
HMU2103NLXFMR CMC MODULE AECQ BATT MNGT |
255 | 5.17 |
|
Datasheet |
- | Tube | Active | - | 150µH | - | - | Surface Mount | 0.300" L x 0.365" W (7.62mm x 9.27mm) | 0.225" (5.72mm) | - | - | - |
_R5001NL(T)_iNRCORE_Product-Image.jpg)
|
R1001NLXFRMR ETHERNET MOD IND 10/100B-T |
192 | 6.21 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
|
SM91509AL-EXFRMR PULSE 1:1 600UH SMD |
4,313 | 5.17 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | - | 600µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
_R5012NL(T)_iNRCORE_Product-Image.jpg)
|
R5012NLXFRMR ETHERNET MOD IND 1000B-T |
210 | 7.24 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.605" L x 0.528" W (15.37mm x 13.41mm) | 0.251" (6.38mm) | -40°C ~ 85°C | - | - |
|
TX1099NLTXFRMR 1CT:1:0.8/1CT:1:0.8 SMD |
1,200 | 5.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1:0.8, 1CT:1:0.8 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
