Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2008NLPULSE XFMR 2:1:1 1.43MH |
2,499 | 3.19 |
|
Datasheet |
- | Tube | Active | - | 1.43mH | 52VµS | 2:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|

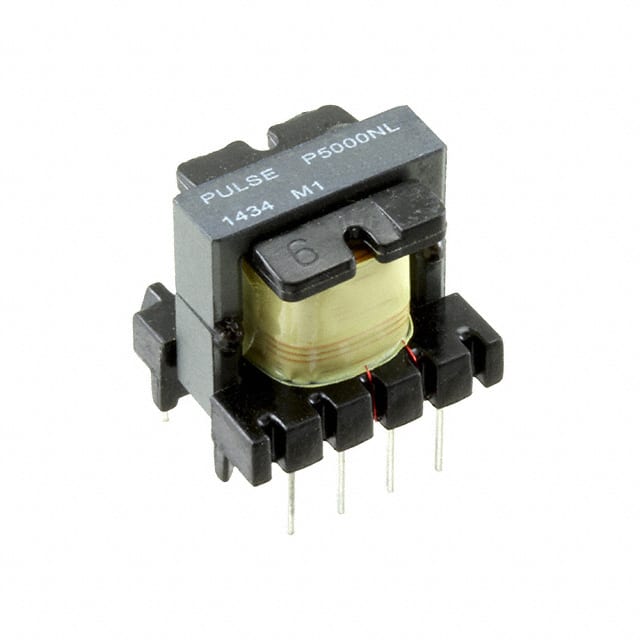

P5000NLPULSE XFMR 1:0.07:0.07 |
102 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.07:0.07 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9384.083NLTXFMR GATE-DR 8CT:3CT SM NPB |
154 | 2.80 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PM2185.034NLTXFMR GATE-DR 3T:4CT SMT NPB |
270 | 2.67 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 680µH | 27VµS | 3CT:4CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|

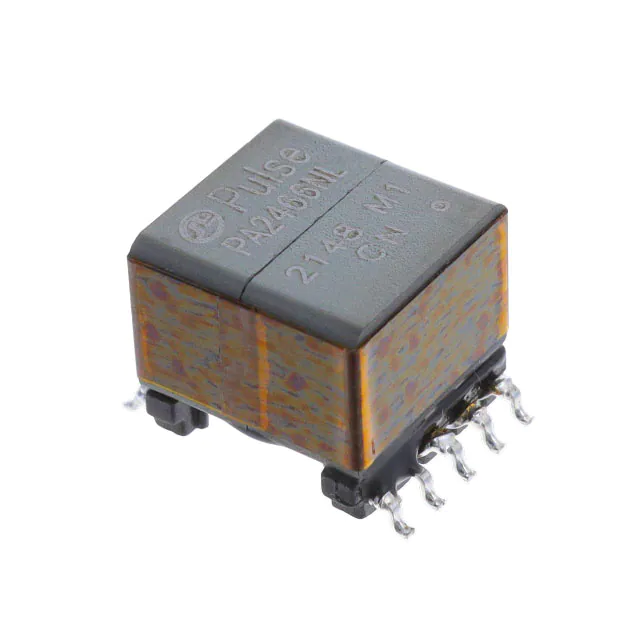

PA2466NLPULSE XFMR 37UH |
2,205 | 3.57 |
|
Datasheet |
- | Tray | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PH9384.035NLTXFMR GATE-DR 3CT:5CT SM NPB |
264 | 2.80 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PH9572.122NLTGDT, FUNCTIONAL, EP7, SMT |
1,295 | 1.77 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 1mH | 42.4VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
TM1198NLLAN XFMR 10/100 BASE-T SINGLE |
2,983 | 0.00 |
|
Datasheet |
Exos | Tray | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.191" (4.85mm) | -40°C ~ 85°C | - | - |
|
PM2155.045NLTXFMR PUSH-PULL SIDE CAR S NPB |
886 | 3.81 |
|
Datasheet |
PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.2mH | 109VµS | 4CT:5CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
|
TX1188NLXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
1,360 | 5.52 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
PE-68678NLTXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH |
1,252 | 5.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
PE-65861NLTRANSFORMER TELECOM DUAL T1/E2 |
1,218 | 5.52 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
HM2146NLTXFMR SGL 1CT:1CT 150UH 3KV |
900 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|

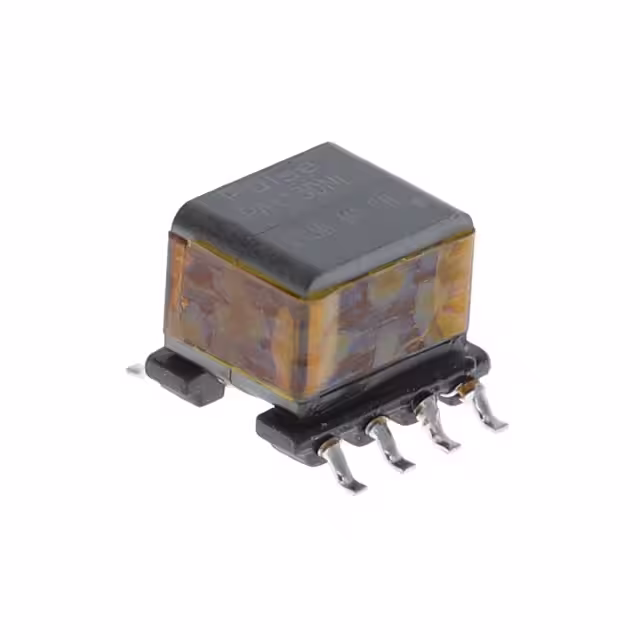

PA1130NLTXFRMR 3.3V 3W 500UH POE EP7 SMD |
340 | 4.01 |
|
Datasheet |
EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 500µH | - | 1:0.083:0.208 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|
B82804A0304A225PULSE XFMR 2.5:1:1 300UH |
814 | 4.52 |
|
Datasheet |
EP5 | Tape & Reel (TR) | Active | Gate Drive | 300µH | 23.8VµS | 2.5:1:1 | Surface Mount | 0.264" L x 0.240" W (6.70mm x 6.10mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
|

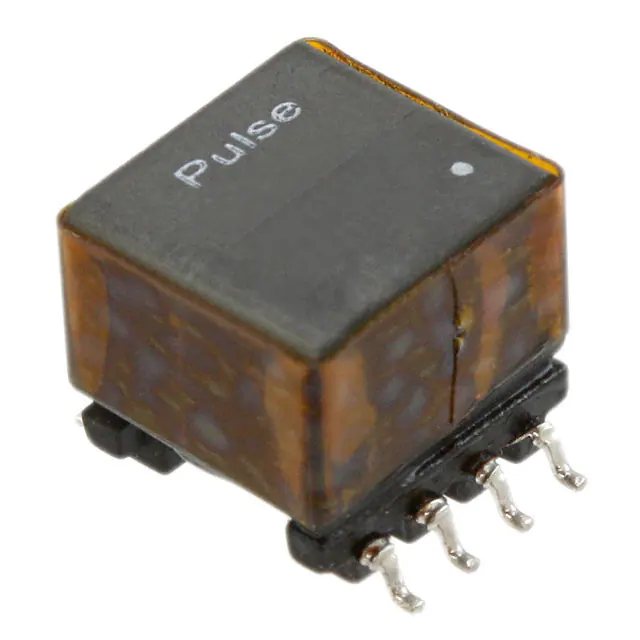

PA1283NLTXFRMR 5V 7W 155UH POE EP10 SMD |
925 | 4.09 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 155µH | - | 1:0.273:0.682 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
PA1282NLTXFRMR 3.3V 7W 155UH POE EP10 SMD |
1,814 | 4.09 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 155µH | - | 1:0.182:0.682 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|

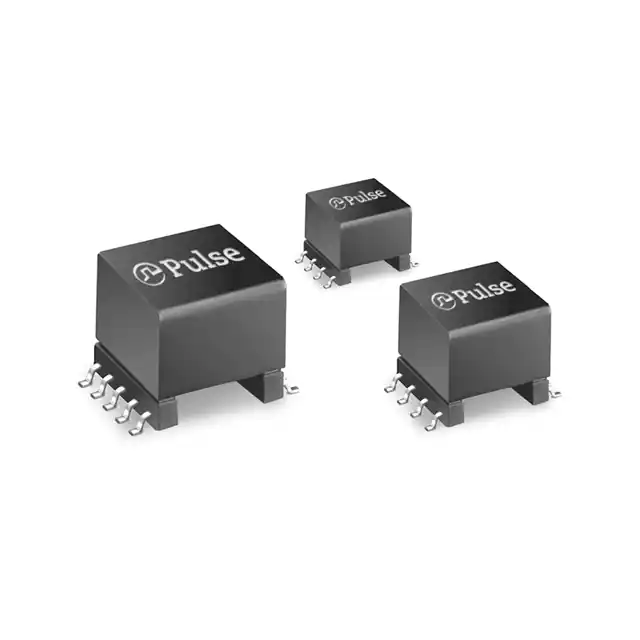

PA1137NLXFMR FLYBACK EP13 SMT |
340 | 4.39 |
|
Datasheet |
PA1137NL | Tray | Active | Power over Ethernet (PoE) | 126µH | - | 1:0.125:0.208 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PH9185.083NLTTRANSFORMER 560UH 8:3 SMD |
944 | 3.97 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
ST7010QNLPULSE XFMR 1CT:1.414CT 1CT:1CT |
822 | 5.07 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 18µH, 60µH, 80µH, 175µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
