Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1137NLTRANSFORMER TELECOM DUAL T1/E2 |
782 | 5.52 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
HM2171HLDUAL XFMR CMC 150UH 1:1 4.3KV |
355 | 0.00 |
|
Datasheet |
- | Tube | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 125°C | - | - |
|
|
T1090NLTXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
895 | 5.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
TX1099NLXFRMR 1CT:1:0.8/1CT:1:0.8 SMD |
680 | 5.52 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1:0.8, 1CT:1:0.8 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
PE-65861NLTXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
242 | 5.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
T1124NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
283 | 10.64 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
E2023FNLXFRMR LAN ISOL 10BASET 1:2.5 SMD |
408 | 5.18 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|

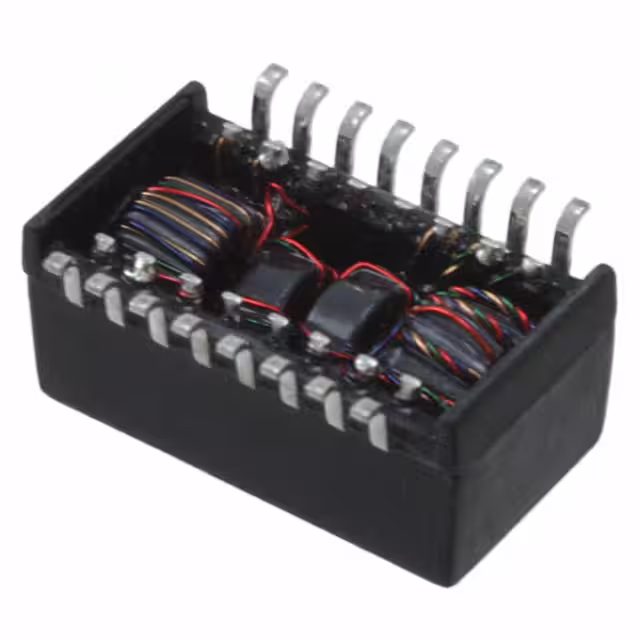

H1100NLXFRMR MAGNETIC 1PORT 2:1 10/100 |
415 | 5.82 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 2:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
B82806D0060A240P300868 EFD20 POE TRANSFORMER |
319 | 6.13 |
|
Datasheet |
B82806D | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.866" L x 1.181" W (22.00mm x 30.00mm) | - | -40°C ~ 125°C | - | - |
|
|
TM40601ANLXFMR CMC MODULE AECQ BATT MNGT |
3,000 | 0.00 |
|
Datasheet |
Stratos | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.299" L x 0.268" W (7.60mm x 6.80mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
|
BM6155NLTTRANSFORMER 28UH 1:1:1 3KV SMT |
423 | 6.01 |
|
Datasheet |
BM615xNL | Tape & Reel (TR) | Active | - | 28µH | - | 1:1:1 | Surface Mount | 0.417" L x 0.357" W (10.60mm x 9.08mm) | 0.394" (10.00mm) | -40°C ~ 125°C | - | - |
|
EX2024NLXFRMR LAN ISOL 10BASET 1:2.5 SMD |
124 | 6.02 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
|
TM1188NLLAN XFMR 10/100 BASE-T SINGLE |
2,178 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.504" L x 0.281" W (12.80mm x 7.15mm) | 0.197" (5.00mm) | -40°C ~ 85°C | - | - |
|

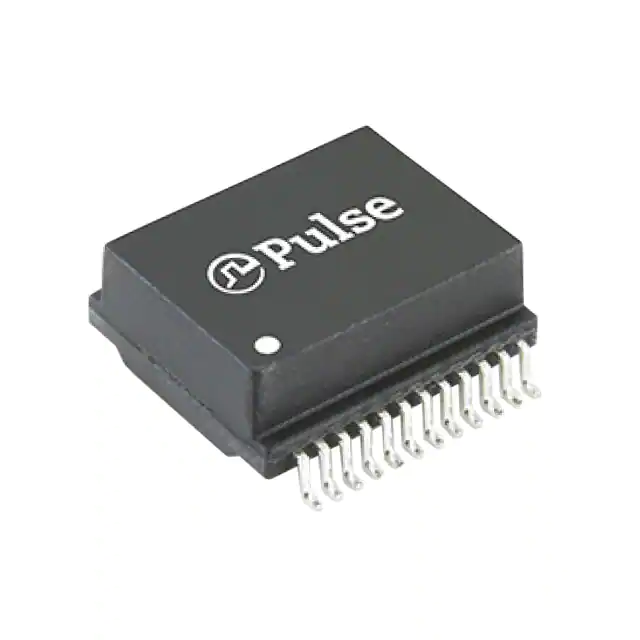

HDX8004NLMDL,SIN, HDBASET, 60W, SMT |
210 | 11.19 |
|
Datasheet |
- | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | - | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
_R5001NL(T)_iNRCORE_Product-Image.jpg)
|
R5001NLXFRMR ETHERNET MOD IND 1000B-T |
198 | 9.52 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.700" L x 0.490" W (17.78mm x 12.45mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
H5007EFNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
736 | 9.05 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

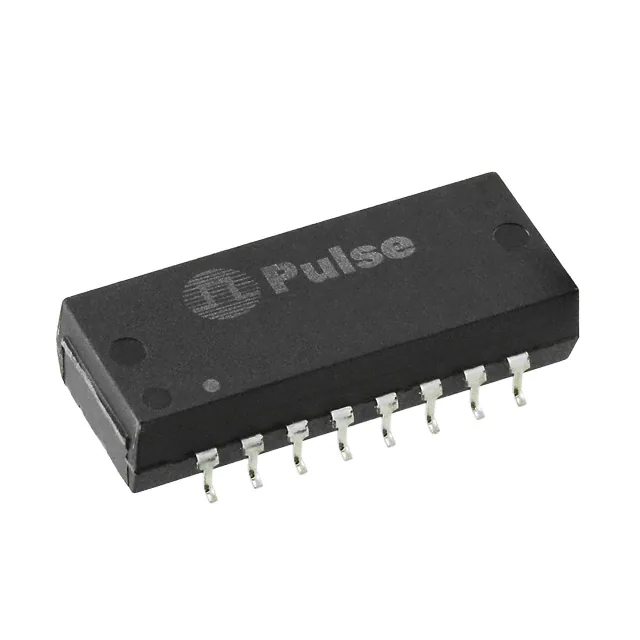

H1086NLTXFRMR MODULE 1PORT 1:1 10/100 |
803 | 6.89 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H7019FNLTRANSFORMER MODULE 10GBASE-T SMD |
151 | 10.87 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|

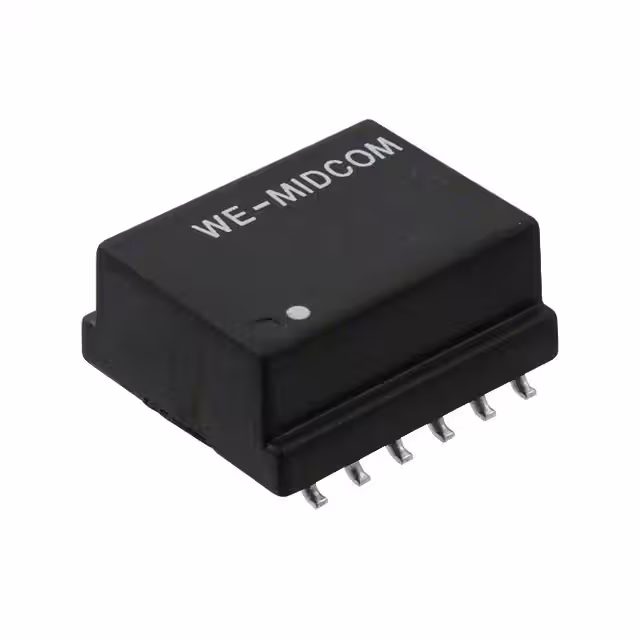

749014010TRANSFORMER WE-LAN MED 10/100BT |
406 | 7.80 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.341" (8.65mm) | 0°C ~ 70°C | - | - |
|

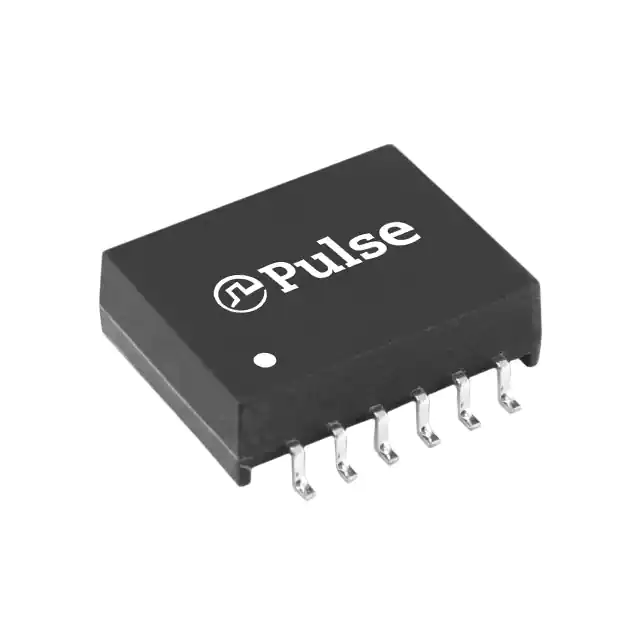

HX1112QNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
412 | 7.01 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
