Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

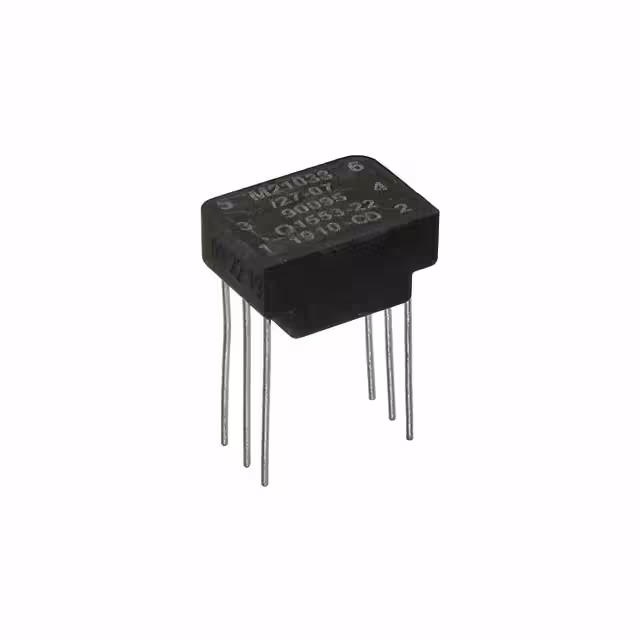

Q1553-22TRANSFORMER PBC |
1,033 | 36.42 |
|
Datasheet |
- | Tube | Active | MIL-STD-1553 | - | - | 1CT:1.41CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
TS8121CM HFSMD 10/100 SINGLE PORT POE 15W |
1,807 | 2.21 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
PA1837NLPULSE XFMR 4.5UH |
2,586 | 6.84 |
|
Datasheet |
- | Tray | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
IT233XFRMR PULSE 1:1:1 DL 3MH .25A |
100 | 9.21 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 3mH | - | 1:1:1 | Through Hole | 1.063" L x 0.886" W (27.00mm x 22.50mm) | - | -25°C ~ 70°C | - | - |
|
H5079NLMODULE MINI-MAG 1PORT 1000BASE-T |
2,985 | 11.30 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.785" L x 0.551" W (19.94mm x 14.00mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|

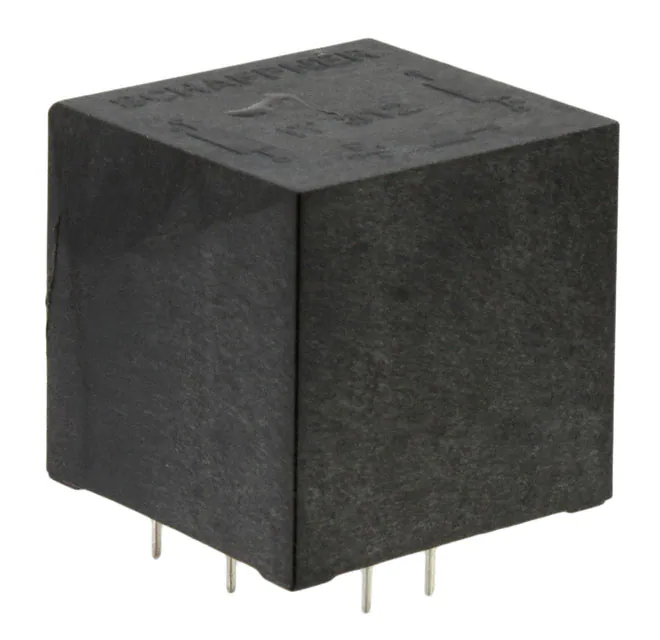

IT313XFRMR PULSE 1:1:1 DL 3MH 1A |
3,534 | 17.05 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 3mH | - | 1:1:1 | Through Hole | 1.004" L x 1.004" W (25.50mm x 25.50mm) | 0.992" (25.20mm) | -25°C ~ 70°C | - | - |
|

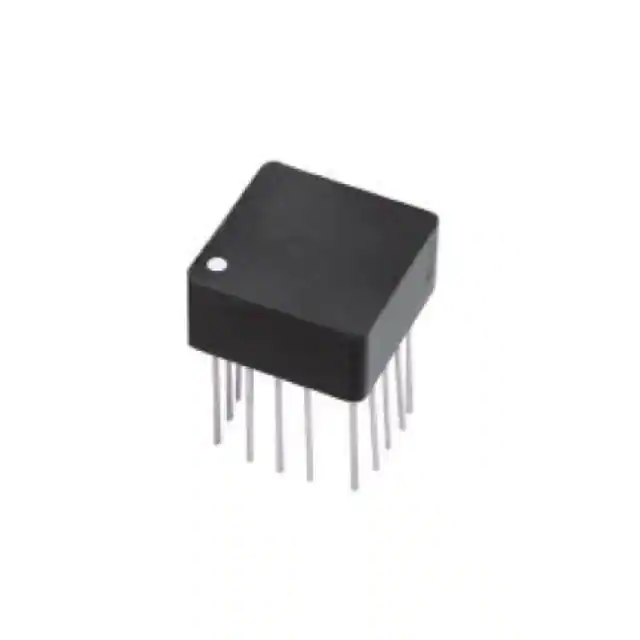

STQ1553-45TRANSFORMER DUAL STACKED M PBC |
3,816 | 88.52 |
|
Datasheet |
- | Tray | Active | Interface, MIL-STD-1553 | - | - | 1CT:2.5CT, 1CT:1.79CT | Through Hole | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.340" (8.64mm) | -55°C ~ 125°C | - | - |
|
78613/4JCPULSE XFMR 1CT:1 50UH |
1,060 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 50µH | 4VµS | 1CT:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78601/1MCPULSE XFMR 1:1 2MH |
1,296 | 1.57 |
|
Datasheet |
786 | Tube | Not For New Designs | General Purpose | 2mH | 20VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/3JCPULSE XFMR 1:1 150UH |
4,178 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 150µH | 6VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78615/3CPULSE XFMR 1CT:1CT 200UH |
3,954 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 200µH | 6VµS | 1CT:1CT | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
DA101MCDIGITAL AUDIO TX |
4,341 | 1.57 |
|
Datasheet |
DA100 | Box | Not For New Designs | - | 2.06mH | 15VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/8JCPULSE XFMR 1:1:1 970UH |
3,660 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 970µH | 15VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78615/8MCPULSE XFMR 1CT:1CT 1MH |
1,680 | 1.57 |
|
Datasheet |
786 | Tube | Not For New Designs | General Purpose | 1mH | 15VµS | 1CT:1CT | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78613/3CPULSE XFMR 1CT:1 200UH |
2,165 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 200µH | 6VµS | 1CT:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
DA103MCDIGITAL AUDIO TX 1:1 5MH SMD |
1,058 | 1.57 |
|
Datasheet |
DA100 | Box | Not For New Designs | - | 7.75mH | 28VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/8CPULSE XFMR 1:1:1 1MH |
3,902 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 1mH | 15VµS | 1:1:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/16CPULSE XFMR 2:1 4MH |
2,853 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 4mH | 28VµS | 2:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78615/2CTRANSFORMER 1CT:1CT 500UH 10VUS |
4,484 | 1.57 |
|
Datasheet |
786 | Bulk | Active | General Purpose | 500µH | 10VµS | 1CT:1CT | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/4JCPULSE XFMR 1:1:1 53UH |
2,092 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 53µH | 4VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
