Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ILR-11-0003ILR3 IMPULSTRAFO KONVENTIONELL |
2,430 | 4.62 |
|
Datasheet |
ILR | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 5mH | 200VµS | 3:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|
BX6158NLTRANSFORMER 20UH 1:1:1 3KV SMT |
2,350 | 5.14 |
|
Datasheet |
- | Tube | Active | - | 20µH | - | 1:1:1 | Surface Mount | 0.445" L x 0.411" W (11.31mm x 10.43mm) | 0.287" (7.30mm) | -40°C ~ 125°C | - | - |
|

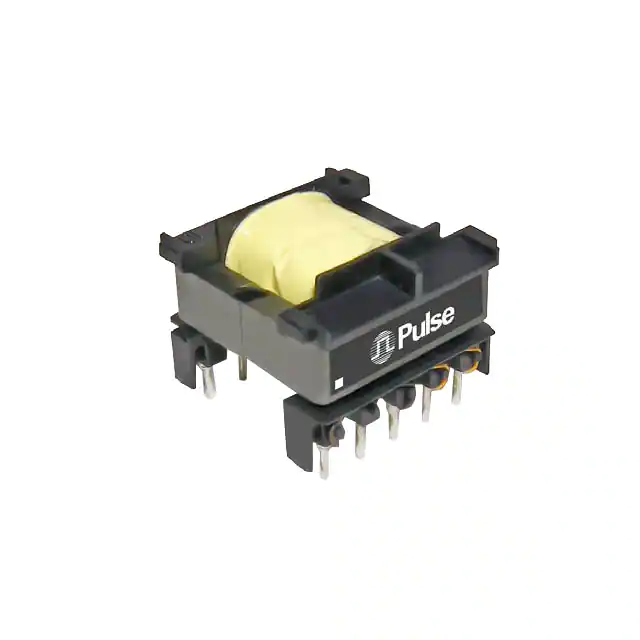

PA1297NLPULSE XFMR 380UH |
1,862 | 0.00 |
|
Datasheet |
- | Tray | Active | - | 380µH | - | - | Through Hole | 1.100" L x 1.150" W (27.94mm x 29.21mm) | 0.820" (20.82mm) | -40°C ~ 130°C | - | - |
|
PA1837NLTPULSE XFMR 4.5UH |
3,530 | 6.87 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
H5007EFNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,124 | 8.73 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
77203HVCPULSE XFMR 2:1:1 1MH |
4,729 | 7.99 |
|
Datasheet |
- | Tube | Active | SCR and Triac Trigger (Encapsulated) | 1mH | 120VµS | 2:1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
H6096FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,410 | 8.29 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
HX6062FNLPULSE XFMR 1CT:1CT TX/RX |
4,449 | 9.33 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
IT143XFRMR PULSE 1:1:1 DL 15MH .025A |
1,519 | 10.16 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 15mH | - | 1:1:1 | Through Hole | 1.063" L x 0.886" W (27.00mm x 22.50mm) | - | -25°C ~ 70°C | - | - |
|
H5014NLMODULE DL GIGABIT ETHER LAN 48P |
2,858 | 11.19 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
IT237XFRMR PULSE 1:1 SGL 25MH .25A |
3,244 | 12.11 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 25mH | - | 1:1 | Through Hole | 1.063" L x 0.886" W (27.00mm x 22.50mm) | - | -25°C ~ 70°C | - | - |
|
H5020NLTRANSFORMER MODULE GIGABIT 2PORT |
2,980 | 18.38 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | 0°C ~ 70°C | - | - |
|
GDE25-4TRANSF .650 OHM DUAL GATE DRIVE |
3,950 | 17.31 |
|
Datasheet |
GDE25 | Bulk | Active | Gate Drive | 1.5mH | 840VµS | 1.5:1:1 | Through Hole | 1.100" L x 1.040" W (27.94mm x 26.42mm) | 1.200" (30.48mm) | - | - | - |
|
MTBAUGDT125100TRANSFORMER, MICRO GATE DRIVE, 1 |
3,289 | 17.10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 330µH | 63VµS | 1:1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
IT314XFRMR PULSE 3:1:1 DUAL 35MH 1A |
2,813 | 18.09 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 35mH | - | 3:1:1 | Through Hole | 1.004" L x 1.004" W (25.50mm x 25.50mm) | 0.992" (25.20mm) | -25°C ~ 70°C | - | - |
|
|
IT312XFRMR PULSE 1:1:1 DL 21MH .25A |
2,412 | 18.09 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 21mH | - | 1:1:1 | Through Hole | 1.004" L x 1.004" W (25.50mm x 25.50mm) | 0.992" (25.20mm) | -25°C ~ 70°C | - | - |
|
100B-1001EXTMP XFMR 100BT SMG COM PBC |
1,284 | 21.06 |
|
Datasheet |
- | Bulk | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | - | - | - | - | - |
|

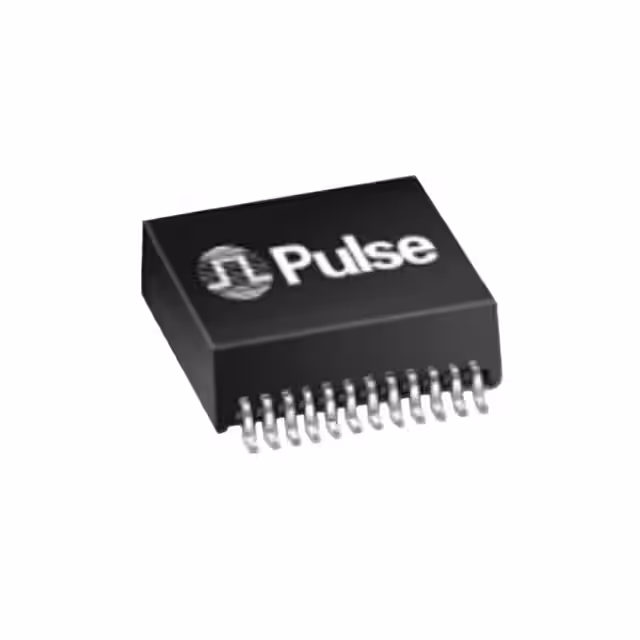

1000B-5002FNLXFMR MODULE SNGL 1GB SMT PBC |
4,659 | 25.77 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
1000B-5002XXFMR MODULE SNGL 1GB SMT PBC |
1,699 | 27.44 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | - | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.235" (5.97mm) | -55°C ~ 125°C | - | - |
|
T-1250SCTXFMR DUAL 1250M BAUD |
1,472 | 41.24 |
|
Datasheet |
Copperhead™ | Tube | Active | - | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.290" W (12.70mm x 7.37mm) | 0.180" (4.57mm) | -55°C ~ 125°C | - | - |
