Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78604/2CPULSE XFMR 2:1 500UH |
1,732 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 500µH | 10VµS | 2:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/3CPULSE XFMR 1:1:1 200UH |
4,946 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 200µH | 6VµS | 1:1:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/3CTRANSFORMER 2:1 200UH 6VUS |
4,111 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 200µH | 6VµS | 2:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78602/16JCPULSE XFMR 1:1:1 3.35MH |
4,124 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 3.35mH | 28VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78615/4CPULSE XFMR 1CT:1CT 67UH |
1,622 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 67µH | 4VµS | 1CT:1CT | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
DA103CDIGITAL AUDIO TX 1:1 5MH DIP |
4,898 | 1.57 |
|
Datasheet |
DA100 | Box | Active | - | 7.75mH | 28VµS | 1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
78615/8JCPULSE XFMR 1CT:1CT 1MH |
2,900 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 1mH | 15VµS | 1CT:1CT | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/4JCPULSE XFMR 1:1 58UH |
4,174 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 58µH | 4VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/8CPULSE XFMR 2:1 1MH |
1,011 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 1mH | 15VµS | 2:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/16CTRANSFORMER 1:1:1 5000UH 28VUS |
2,968 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 4mH | 28VµS | 1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/8JCPULSE XFMR 1:1 850UH |
4,262 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 850µH | 15VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/16JCPULSE XFMR 1:1 3.65MH |
4,696 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 3.65mH | 28VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
76615/1CXFRMR 1CT:1CT 3200UH 45VUS D |
4,829 | 2.05 |
|
Datasheet |
766 | Tube | Active | General Purpose | 3.2mH | 45VµS | 1CT:1CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
|
76602/1CXFRMR 1:1:1 2060UH 17.5VUS C |
1,385 | 2.05 |
|
Datasheet |
766 | Tube | Active | General Purpose | 2.06mH | 17.5VµS | 1:1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|

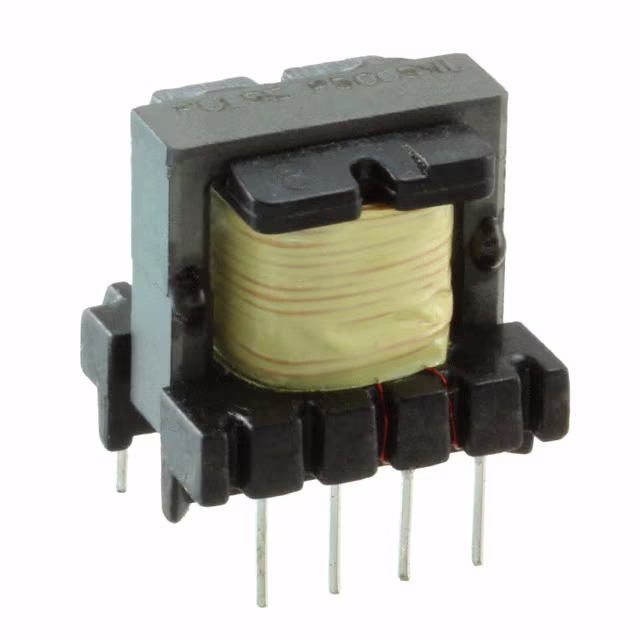

P5005NLPULSE XFMR 1:0.1:0.1 |
3,269 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.1:0.1 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
.00xNL-Series.jpg)
|
PA3855.002NLPULSE XFMR 48UH |
2,018 | 0.00 |
|
Datasheet |
- | Tray | Active | - | 48µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|
IL-10-0003IL5 PULSE TRANSFORMER THT 0.25A |
3,955 | 3.48 |
|
Datasheet |
IL | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.5mH | 200VµS | 1:1:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|
|
IL-10-0002IL7 PULSE TRANSFORMER THT SPEZ |
1,969 | 3.48 |
|
Datasheet |
IL | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 16.5mH | 200VµS | 3:1:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|
ITRB-0249-D101ITRB PULSE TRANSFORMER THT 0.1A |
2,862 | 4.20 |
|
Datasheet |
IT | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.4mH | 250VµS | 2:1 | Through Hole | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.512" (13.00mm) | -25°C ~ 100°C | - | - |
|
76250ENCXFRMR MAX250 EN60950 APPROVED |
4,248 | 4.47 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 2mH | - | 1CT:1 | Through Hole | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.502" (12.75mm) | 0°C ~ 70°C | - | - |
