Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

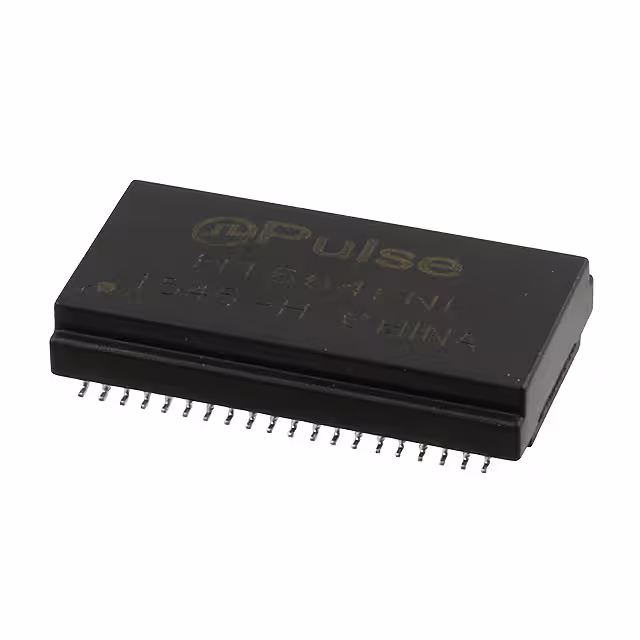

H1664FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,993 | 14.11 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
T5007NLTXFRMR ISDN-S 1:2/1:2 22MH SMD |
1,549 | 9.66 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:2, 1:2 | Surface Mount | 0.950" L x 0.580" W (24.13mm x 14.73mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
H2009NLMODULE XFRMR VOIP DL LAN 24-SOIC |
2,132 | 9.93 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | 0°C ~ 70°C | - | - |
|
HDX8006NLMDL,SIN, HDBASET, 140W, SMT |
1,904 | 12.34 |
|
Datasheet |
- | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
TX1475NLXFRMR OCTAL 1:2/1:1 1.2MH SMD |
2,564 | 10.64 |
|
Datasheet |
- | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1193NLMODULE 1CT:2CT 1.2MH SMD |
1,300 | 16.13 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|

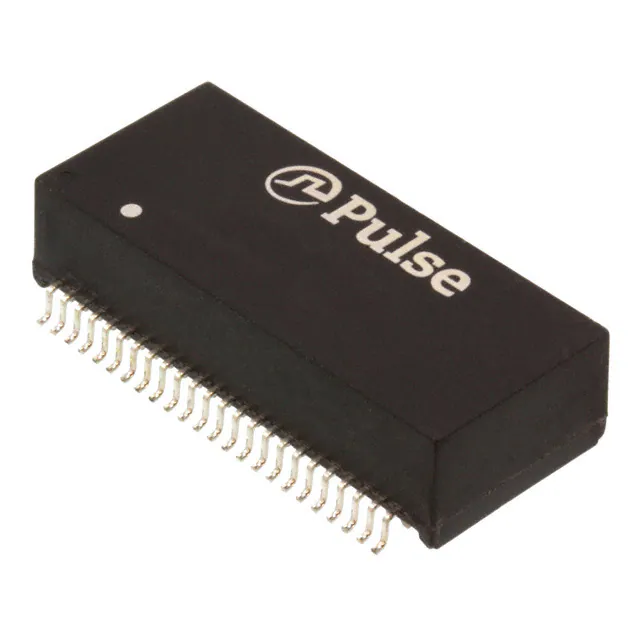

H5014NLTTRANSFORMER MODULE GIGABIT 2PORT |
4,383 | 11.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
H2017NLTXFRMR MAGNT MOD 4PORT POE 10/100 |
1,276 | 13.73 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
H6101NLPULSE XFMR 1CT:1CT TX/RX |
3,548 | 14.05 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
MGDT100125-SMPLANAR GATE-DRIVE XFMR, 1 : 1.25 |
1,325 | 15.08 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 240µH | - | 1:1.25:1.25 | Surface Mount | 0.810" L x 0.725" W (20.57mm x 18.42mm) | 0.450" (11.43mm) | -55°C ~ 125°C | - | - |
_iNRCORE_Product-Image.jpg)
|
R5033NLXFRMR ETHERNET MOD IND 1000B-T |
4,339 | 16.00 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.600" L x 0.430" W (15.24mm x 10.92mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

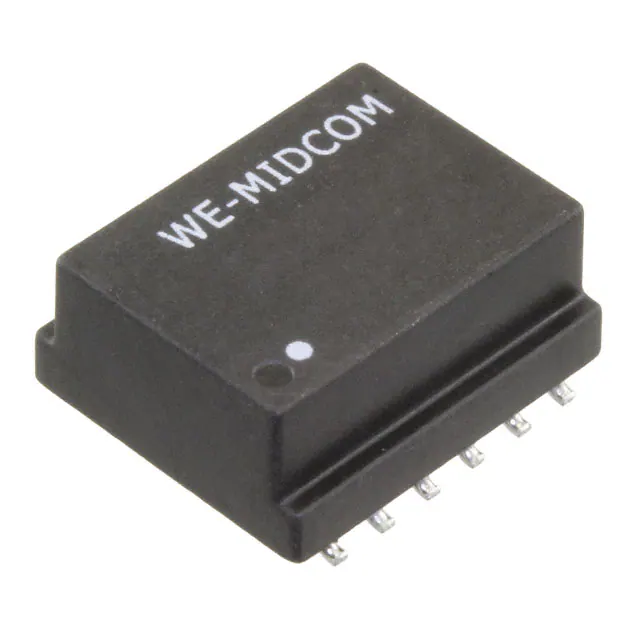

74901401810/100 BASE-T SMD TRANSFORMER 1 |
3,124 | 17.50 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.341" (8.65mm) | 0°C ~ 70°C | - | - |
|
MTBAUGDT250102-LFTRANSFORMER, GATE DRIVE 5MM, 250 |
3,121 | 17.10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 264µH | 22.4VµS | 1:1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|

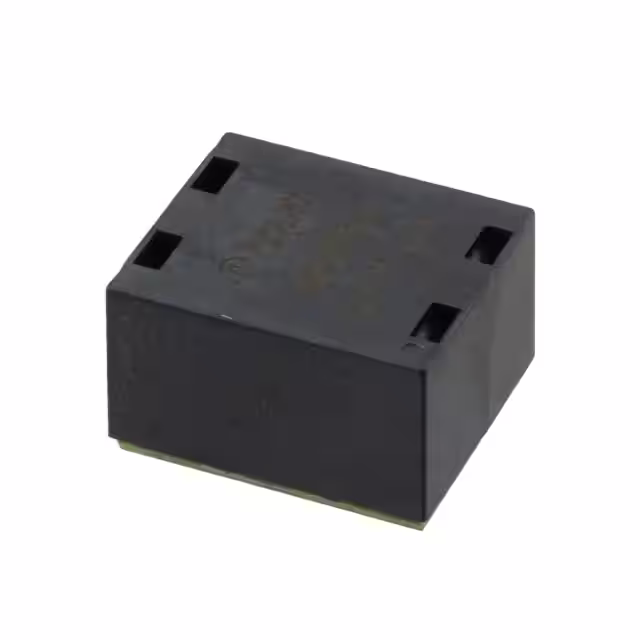

H6200NLPULSE XFMR 1CT:1CT TX/RX |
4,802 | 20.09 |
|
Datasheet |
- | Tray | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
|
Q1553-24TRANSFORMER PBC |
4,789 | 36.71 |
|
Datasheet |
- | Bulk | Active | MIL-STD-1553 | - | - | 1CT:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
|
Q1553-51TRANSFORMER PBC |
1,580 | 35.08 |
|
Datasheet |
- | Bulk | Active | MIL-STD-1553 | - | - | 1CT:1.79CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
Q1553-1TRANSFORMER PBC |
2,671 | 41.95 |
|
Datasheet |
- | Bulk | Active | MIL-STD-1553 | - | - | 1CT:1CT, 1CT:0.707CT | Through Hole | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | - | - | - |
|
78604/1CPULSE XFMR 2:1 2MH |
4,569 | 1.50 |
|
Datasheet |
786 | Tube | Active | General Purpose | 2mH | 20VµS | 2:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/16CTRANSFORMER 2:1 5000UH 28VUS |
3,064 | 1.50 |
|
Datasheet |
786 | Bulk | Active | General Purpose | 4mH | 28VµS | 1:1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
LAN1VSOD24351C2MOD TRANS LAN 100B-T 2 PORT |
455 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.244" (6.20mm) | -40°C ~ 85°C | - | - |
