Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

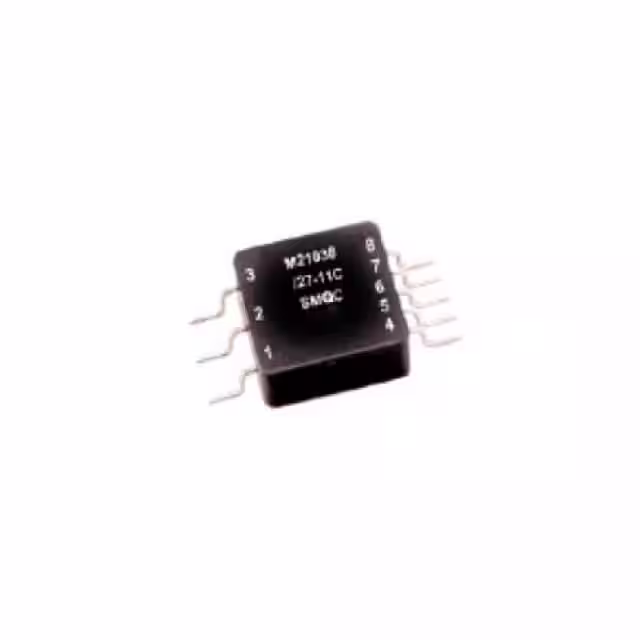

SMQC1553-45TRANSFORMER PULSE DUAL RATIO |
1,965 | 41.21 |
|
Datasheet |
- | Bulk | Active | Interface, MIL-STD-1553 | - | - | 1CT:2.5CT, 1CT:1.79CT | Surface Mount | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | -55°C ~ 130°C | - | - |
|
SMQ1553-45TRANSFORMER PULSE DUAL RATIO |
2,528 | 53.66 |
|
Datasheet |
- | Bulk | Active | Interface, MIL-STD-1553 | - | - | 1CT:2.5CT, 1CT:1.79CT | Surface Mount | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | -55°C ~ 130°C | - | - |
|
IT364XFRMR PULSE 1:1 SINGLE 1.5MH 3A |
3,577 | 72.45 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 1.5mH | - | 1:1 | Through Hole | 1.969" L x 1.969" W (50.00mm x 50.00mm) | 2.362" (60.00mm) | -25°C ~ 70°C | - | - |
|
78613/1CPULSE XFMR 1CT:1 2MH |
1,098 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 2mH | 20VµS | 1CT:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78615/16MCPULSE XFMR 1CT:1CT 4MH |
4,772 | 1.57 |
|
Datasheet |
786 | Tube | Not For New Designs | General Purpose | 4mH | 28VµS | 1CT:1CT | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78602/3JCPULSE XFMR 1:1:1 180UH |
2,493 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 180µH | 6VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/2JCPULSE XFMR 2:1 500UH |
2,024 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 500µH | 10VµS | 2:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78613/16CPULSE XFMR 1CT:1 4MH |
2,014 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 4mH | 28VµS | 1CT:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

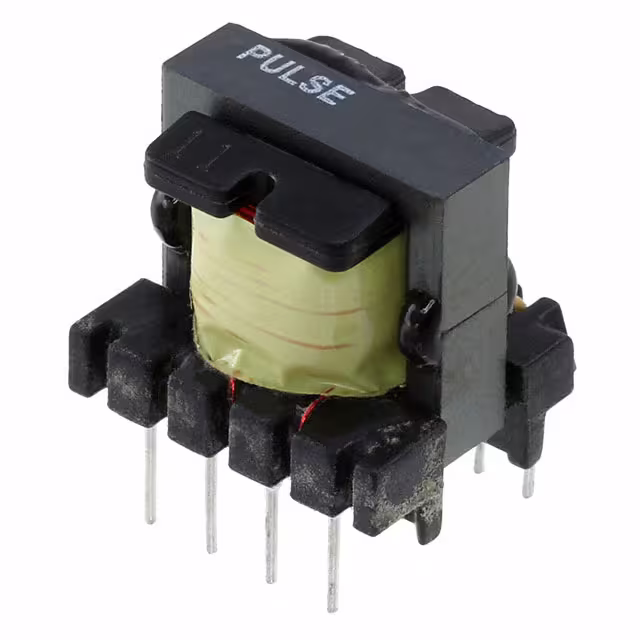

P5008NLPULSE XFMR 1:0.07:0.07 |
2,430 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.07:0.07 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|

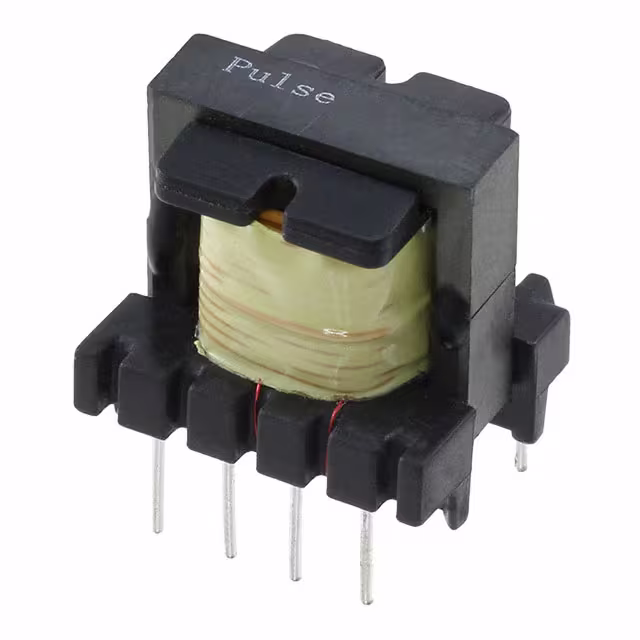

P5004NLPULSE XFMR 1:0.07:0.07 |
2,410 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.07:0.07 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9185.013NLTRANSFORMER 200UH 1:3 SMD |
4,820 | 0.00 |
|
Datasheet |
PH9185 | Tray | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
ITNB-0249-D101ITNB PULSE TRANSFORMER THT 0.1A |
3,876 | 3.59 |
|
Datasheet |
ITNB | Bulk | Active | Isolation and Data Interface (Encapsulated) | 1.6mH | - | 2:1 | Through Hole | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.512" (13.00mm) | -25°C ~ 100°C | - | - |
|
ISNB-0249-D101ISNA PULSE TRANSFORMER SMD 0.1A |
4,287 | 3.87 |
|
Datasheet |
IS | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.6mH | 250VµS | 2:1 | Surface Mount | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.532" (13.50mm) | -25°C ~ 100°C | - | - |
|
IL-21-0001IL1 PULSE TRANSFORMER THT 0.25A |
4,166 | 4.01 |
|
Datasheet |
IL | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 3mH | 300VµS | 1:1 | Through Hole | 1.102" L x 0.906" W (28.00mm x 23.00mm) | 0.571" (14.50mm) | -25°C ~ 70°C | - | - |
|

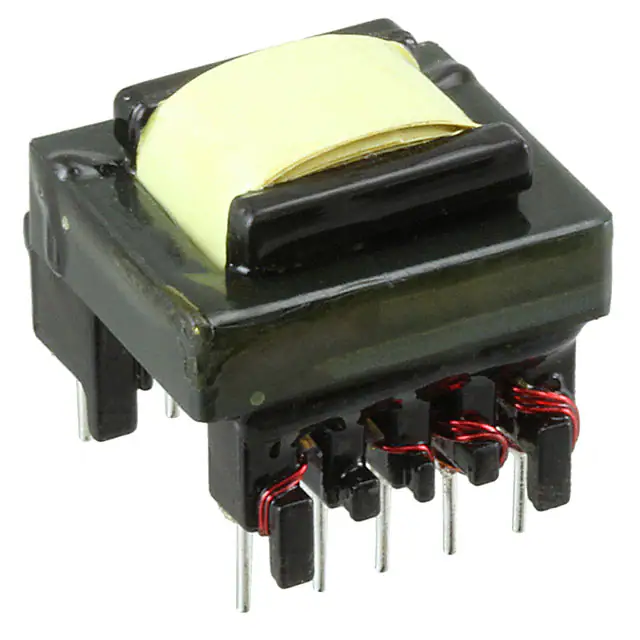

PA2653NLPULSE XFMR 910UH |
3,759 | 0.00 |
|
Datasheet |
- | Tray | Active | - | 910µH | - | - | Through Hole | 0.920" L x 0.960" W (23.37mm x 24.38mm) | 0.810" (20.57mm) | -40°C ~ 130°C | - | - |
|
HX1217NLTPULSE XFMR 1:1 TX 1:1 RX 350UH |
4,618 | 5.59 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
B82806D0060A033P300868 EFD20 POE TRANSFORMER |
4,045 | 6.13 |
|
Datasheet |
B82806D | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.866" L x 1.181" W (22.00mm x 30.00mm) | - | -40°C ~ 125°C | - | - |
|
E4001NLTXFRMR LAN ISOL 10BASE-T 1:2 SMD |
4,257 | 5.85 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 112µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
_R5012NL(T)_iNRCORE_Product-Image.jpg)
|
R2002NLXFRMR ETHERNET MOD IND 10/100B-T |
3,791 | 9.23 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.595" L x 0.518" W (15.11mm x 13.16mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|
HX1178NLTXFRMR MODULE 1PORT 1:1 10/100 |
1,473 | 8.44 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
