Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCTSM80809AAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
4,690 | 3.13 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 250µH | 11.0VµS | 8:9 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
|
PAT6625.001NLTXMR, FLYBACK, EP17P, 19-37V INPU |
4,415 | 0.00 |
|
- |
* | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - |
|
23Z467SMPULSE XFMR 1CT:2CT TX 1CT:1CT RX |
2,357 | 5.40 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
|
PLC-002SMD Signal transformer for HPGP |
1,226 | 0.00 |
|
Datasheet |
- | Tray | Active | LAN | 10µH | - | 1:1 | Surface Mount | 0.449" L x 0.409" W (11.40mm x 10.40mm) | 0.236" (6.00mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|

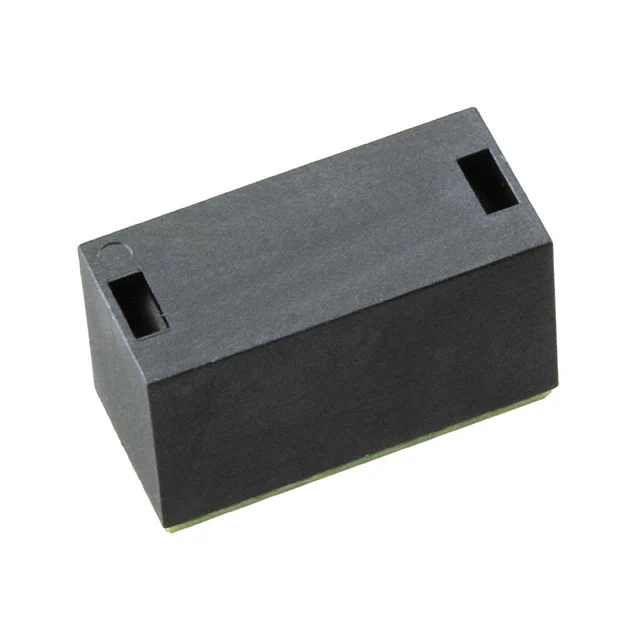

H6600NLTTRANSFORMER MODULE 10GBASE-T |
4,542 | 10.76 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
|
EPG4260S-LFPOE DATA XFM, 1.15A |
3,912 | 11.97 |
|
Datasheet |
EPG-SMT24 | Tube | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.710" L x 0.600" W (18.03mm x 15.24mm) | 0.400" (10.16mm) | -40°C ~ 85°C | - | - |
|

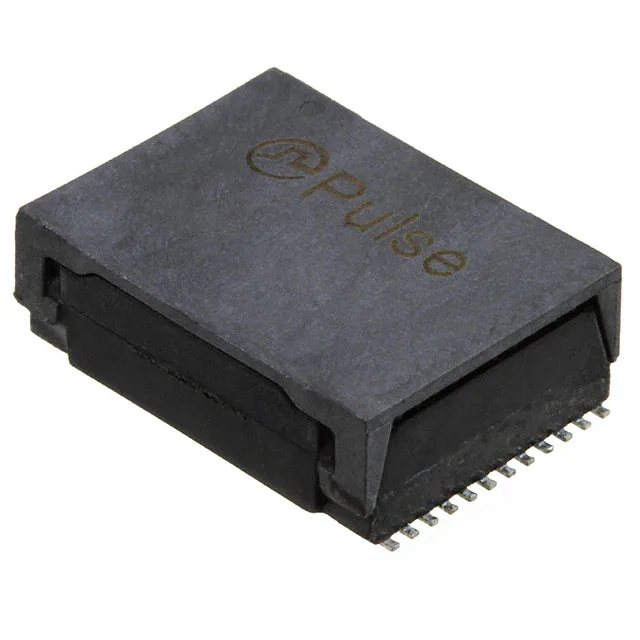

H2009FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,749 | 11.44 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
|
H5009FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,840 | 11.75 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.538" L x 0.726" W (13.67mm x 18.44mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|
MTBAUGDT250252-LFTRANSFORMER, GATE DRIVE 5MM, 250 |
2,707 | 9.70 |
|
Datasheet |
MTBAUGDT | Bulk | Active | Gate Drive | 300µH | 23.8VµS | 2.5:1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|

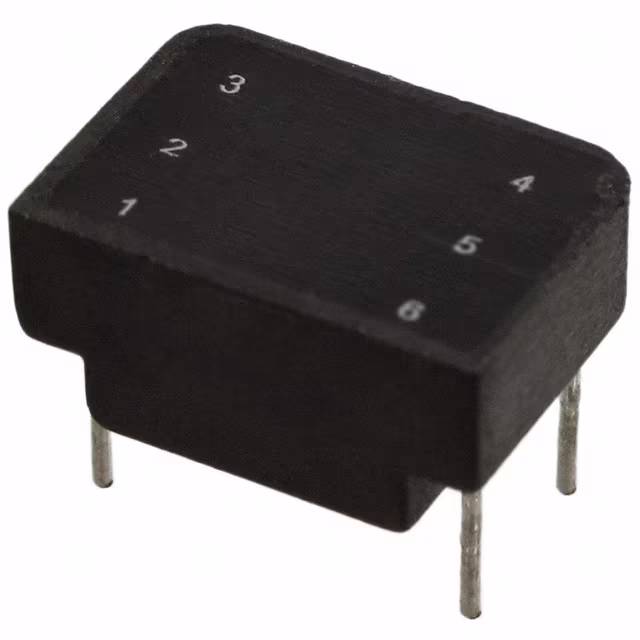

T6075NLPULSE XFMR 1:1 225UH |
3,342 | 15.91 |
|
- |
- | Tube | Active | - | 225µH | - | 1:1 | Through Hole | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
MTBAUGDT250251TRANSFORMER, GATE DRIVE 5MM, 250 |
1,804 | 14.72 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 473µH | 30.6VµS | 2.5:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
MTBAUGDT125050-LFTRANSFORMER, MICRO GATE DRIVE, 1 |
2,823 | 10.50 |
|
Datasheet |
MTBAUGDT | Tape & Reel (TR) | Active | Gate Drive | 330µH | 63VµS | 1:0.5:0.5 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
MTBAUGDT125075-LFTRANSFORMER, MICRO GATE DRIVE, 1 |
4,995 | 10.50 |
|
Datasheet |
MTBAUGDT | Tape & Reel (TR) | Active | Gate Drive | 360µH | 66VµS | 1:0.75:0.75 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
MTBAUGDT125100-LFTRANSFORMER, MICRO GATE DRIVE, 1 |
4,400 | 11.60 |
|
Datasheet |
MTBAUGDT | Tape & Reel (TR) | Active | Gate Drive | 330µH | 63VµS | 1:1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
HX5012FNLPULSE XFMR 1 CT:1CT TX/RX 350UH |
2,616 | 19.13 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
|
T9021NLTXFRMR 4PORT 1:2.42 0.6MH SMD |
3,066 | 31.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 600µH | - | 1:2.42 Transmitter, 1:2.42 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|

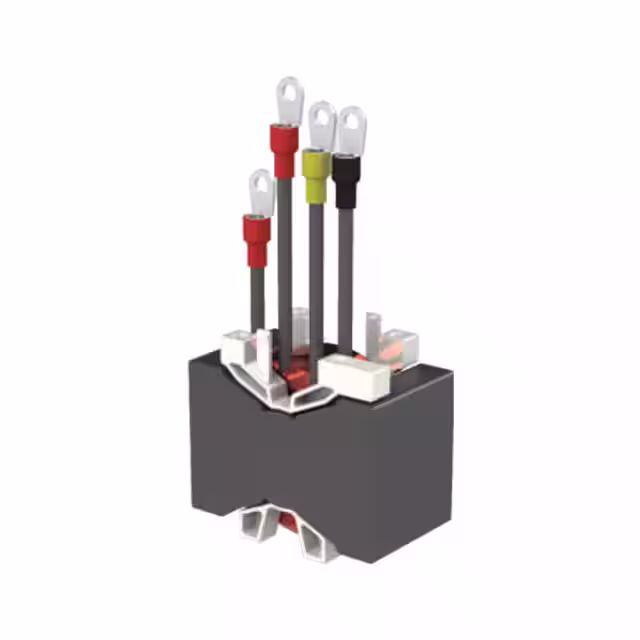

BC3.5LFB1.4LLC RESONANT 3.5KW HALF-BRIDGE T |
4,002 | 50.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | 2.402" L x 2.217" W (61.00mm x 56.30mm) | 1.378" (35.00mm) | -40°C ~ 140°C | - | - |
|
|
PM-9210XFMR,ISO WITH FILTR,1000 BASE T |
3,648 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.148" (3.75mm) | -40°C ~ 85°C | - | - |
|
|
PM-100610/100 BASE-T, ISOLATION XFMR |
100 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 150µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.472" L x 0.285" W (12.00mm x 7.25mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
PM-101610/100 BASE-T, ISOLATION XFMR |
100 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 180µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.472" L x 0.285" W (12.00mm x 7.25mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
